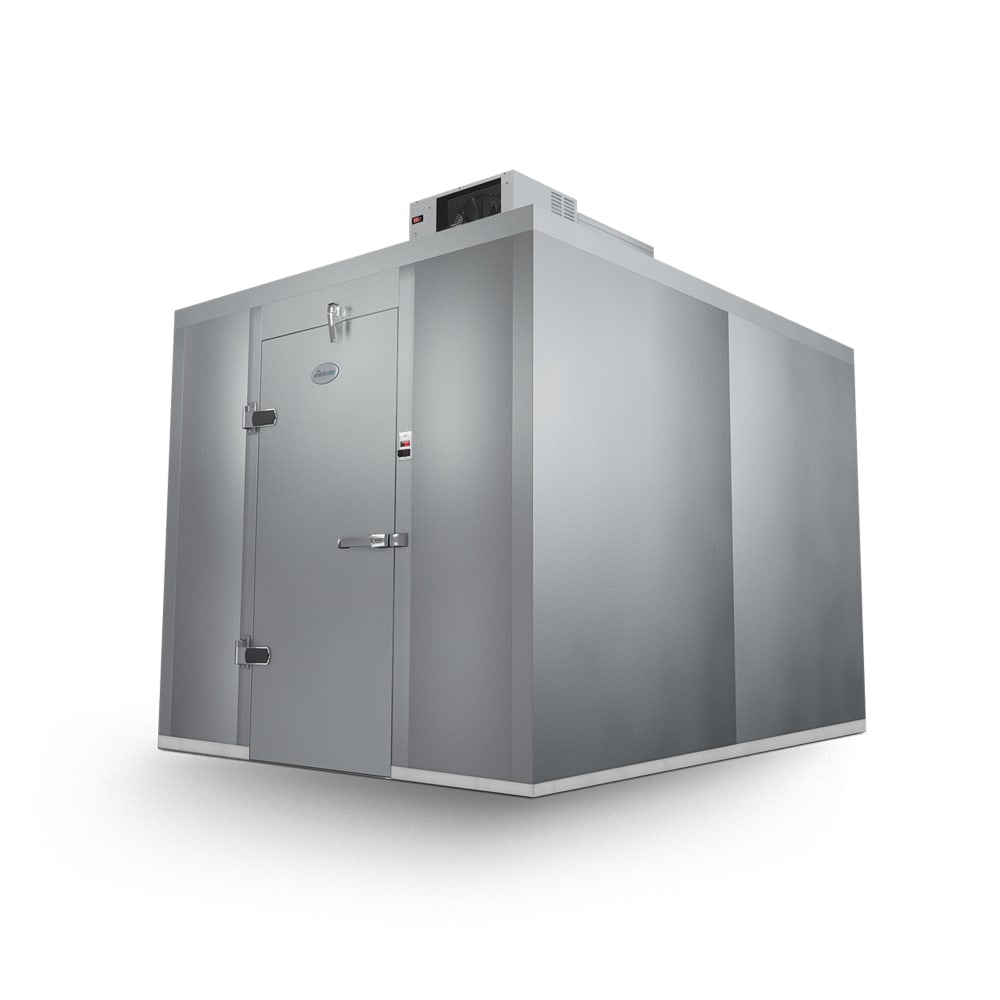

Amerikooler QC081072**NBSC 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$12,064.60 /Each
Amerikooler QC081072**NBSC Description
Great for businesses with ample space that can be dedicated to refrigeration, the Amerikooler QC081072**NBSC quick-ship indoor walk-in cooler measures 7 feet 10 inches wide by 9 feet 9 1⁄4 inches deep by 7 feet 2 1⁄4 inches tall. This floorless unit can be placed on a finished tile or concrete floor, while its included vinyl screed can be lag fastened to the floor to ensure the cooler sits flat on the flooring. To ease setup, it comes with a hardware and installation instruction kit, which features a shop drawing, detailed installation instructions, hex wrench, and PVC press fit caps. The wall and ceiling tongue-and-groove panels boast a corrosion-resistant cam-action locking system and compression gasket to ensure airtight joints. Each panel is insulated with 4 inches of water-resistant closed-cell AK-XPS4 rigid foam that maintains an R-29 thermal resistance value over time, and these panels are finished with 26-gauge, stucco-embossed, corrosion-resistant Acrylume®—acrylic-coated GALVALUME®.
This unit is built with a 76-inch-tall self-closing entrance door. Because it features two heavy-duty super cam-rise spring-assisted hinges, it opens and closely smoothly. Its three-sided magnetic gasket, door closer, and double wiper ensure a secure close to reduce the risk of temperature fluctuations. To eliminate the risk of staff getting trapped inside the unit, its deadbolt keyed handle latch boasts an easy-grip, glow-in-the-dark twist-off inside release handle mounted to the door frame. While an LED light center mounted to the door jamb brightens the unit's interior, the digital LED thermometer provides a clear readout of interior temperatures.
To maintain a 35-degree-Farhenheit interior, the Amerikooler QC081072**NBSC indoor walk-in cooler uses the included Heatcraft Bohn PT0078MBNAMSA refrigeration system, which is rated to perform in ambient air as hot as 90 degrees Fahrenheit. This 55-inch-wide by 36-inch-deep by 32 2⁄5-inch-tall unit ships fully assembled, evacuated, charged, run tested, and wired to ease installation on top of the cooler. To generate desired temperatures, it uses R-448A refrigerant and features an air-defrost mechanism.
- Floorless indoor unit
- Includes hardware and installation instruction kit to simplify setup
- Panels feature corrosion-resistant cam-action locking system and compression gaskets
- Wall and ceiling made of 4-in.-thick AK-XPS4 rigid foam with R-29 value
- Panels laminated with 26-ga. stucco-embossed, corrosion-resistant Acrylume
- Included vinyl screed can be lag fastened to the floor
- 76-in.-tall entrance door
- 2 heavy-duty super cam-rise spring-assisted door hinges
- 3-sided magnetic gasket, door closer, and double wiper
- Heavy-duty keyed deadbolt handle latch with twist-off inside release mechanism
- LED light center mounted on door jamb
- Digital LED thermometer with safety pilot light on/off switch
- Conduit between switch box and outlet junction box
- Requires assembly
- Includes Heatcraft Bohn PT0078MBNAMSA PRO3 top-mounted refrigeration system
- Ships packaged, fully assembled, evacuated, charged, run-tested, and wired
- For installation on top of indoor cooler
- Self-contained
- Can maintain 35-degree-F interior temperature
- Designed to operate in temperatures as hot as 90 degrees F
- R-448A refrigerant
- Air defrost system
- Refrigeration system: 55 in. W x 36 in. D x 32 2⁄5 in. H
- Walk-in cooler: 7 ft. 10 in. W x 9 ft. 9 1⁄4 in. D x 7 ft. 2 1⁄4 in. H
- 8.24 A
- 208-230 V/60 Hz/1 ph, NEMA 6-15R plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Amerikooler QC081072**NBSC within the 48 contiguous states.
From The Manufacturer
Amerikooler QC081072**NBSC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Amerikooler |
| Base | No Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.19 |
| Hertz | 60 |
| Length (ft) | 9.77 |
| Phase | 1 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Refrigerant | R448A |
| Type | Indoor |
| Voltage | 208/230 |
| Warranty | 1-year Parts & Labor; 5-year Door; 15-year Panel; 50-year Thermal |
| Width (ft) | 7.83 |
| Weight | 1564.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
The overall dimensions are 7 ft. 10 in. W x 9 ft. 9 1⁄4 in. L x 7 ft. 2 1⁄4 in. H.
It is designed for indoor installation.
No, it has a floorless design.
It includes a refrigeration system.
It uses self-contained, top-mounted refrigeration.
It is designed to maintain 35°F.
It requires 208-230V/60 Hz/1 ph, NEMA 6-15R.
It uses R448A refrigerant.
It uses 4-in. thick AK-XPS4 insulation AK-XPS4 insulation, rated R-29 for coolers and R-32 for freezers.
Yes, the door is self-closing.
Staff can monitor the interior temperature with the digital LED thermometer.
Yes, it includes LED interior lighting.
Yes, the door has a keyed lock.
The refrigeration system is sized for 90°F ambient temperature.
It uses 26 gauge stucco embossed corrosion resistant acrylic coated Acrylume panels on the interior and exterior.
Yes, it includes an NSF vinyl screed as its base treatment.
It uses air defrost.
