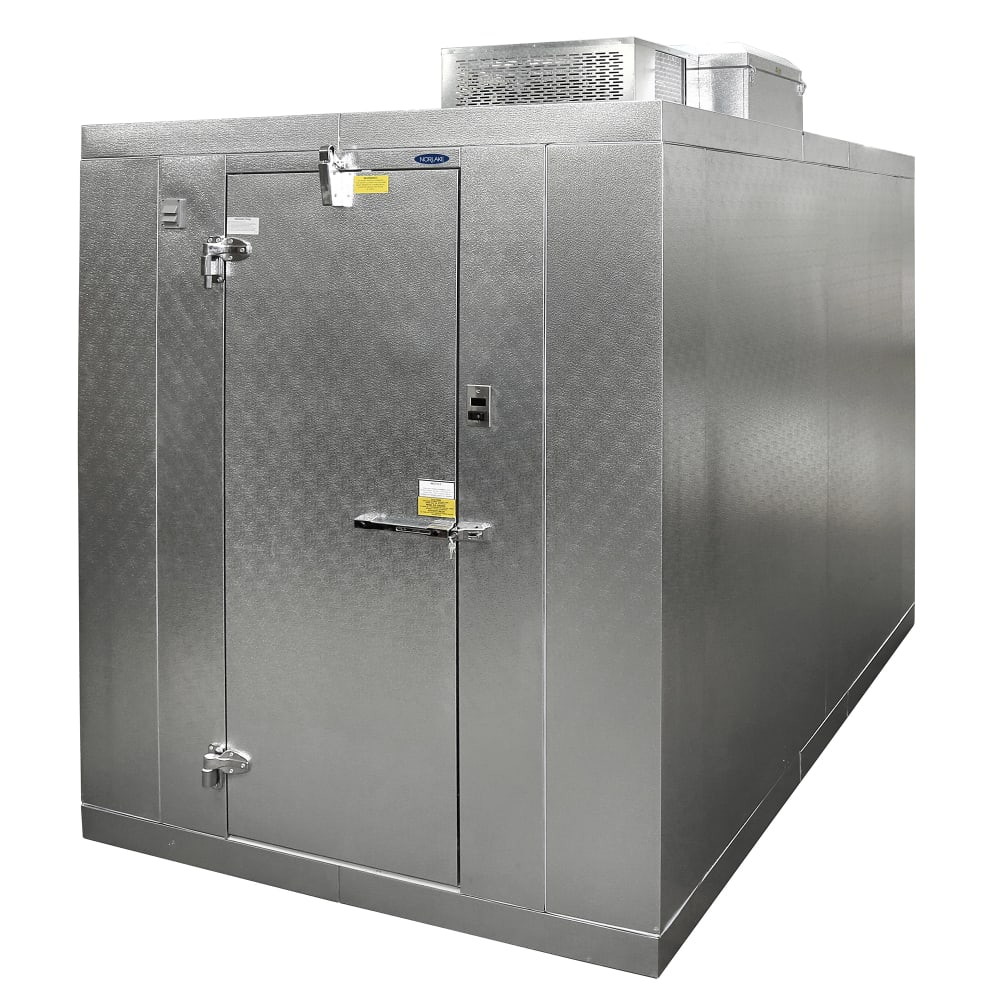

Norlake KLB74810-C 8' x 10' Indoor Walk-In Cooler w/ Top-Mounted Compressor - No Floor
QUICK SHIP: Typically ships in 1 - 3 Business Days
$13,522.71 /Each
Login or enter your email to be instantly sent the price!
Selected Hinge: Left Hinge
Norlake KLB74810-C Description
This Norlake KLB74810-C indoor walk-in cooler with top-mounted compressor features a flush-mounted, self-closing 26-inch door that streamlines entry during peak service hours. Cam-lift hinges guide smooth opening and closure, and an integrated digital thermometer supports real-time temperature monitoring. These elements provide access control and storage visibility in tight, fast-moving environments.
Designed for tight prep areas, the Norlake KLB74810-C indoor walk-in cooler with top-mounted compressor integrates a floorless 8-foot by 10-foot layout with an NSF-listed vinyl sealer. Its low-clearance installation is suited for spaces with height restrictions, and the corrosion-resistant steel finish withstands moisture-prone environments. Internal lighting and a left-hand hinged door support efficient use.
- Kold Locker™ Series
- 473-cu.-ft. interior capacity
- 6,700 BTUH cooling capacity
- Indoor walk-in cooler
- Single-compartment
- Floorless design with NSF-listed vinyl floor sealer
- 4-in.-thick foamed-in-place HFO polyurethane insulation (HFC-free)
- Modular metal-clad panel construction with cam-lock fastening system
- 26-ga. corrosion-resistant stucco-embossed coated steel interior and exterior
- Factory-assembled, pre-hung insulated walk-in door
- Flush-mounted, self-closing 26-in.-wide door with stepped profile
- NL 9800 deadbolt locking handle with inside safety release
- Magnetic door gasket with perimeter door heater wire
- Fiberglass-reinforced heated threshold
- Digital thermometer and light switch integrated into door frame
- Vapor-proof LED interior light with exterior pilot indicator
- Left-hand hinged door configuration
- Self-contained, ceiling-mounted Capsule Pak ECO™ system
- One-piece enclosure with integrated compressor, condenser, evaporator, and controls
- Designed for 37 degrees F interior temperature
- Uses R290 hydrocarbon refrigerant
- LogiTemp® electronic controller with digital display
- Automatic electric defrost
- Indoor condensate pan with wicking pads
- Foamed-in-place evaporator coil enclosure with removable gasketed access cover
- Plug-in, factory-matched refrigeration system
- Overall: 10 ft. L x 8 ft. W x 7 ft. 3 5⁄8 in. H
- Single-point electrical connection
- 115 V/60 Hz/1 ph (Capsule Pak ECO™ refrigeration unit)
- Factory-installed 9-ft. power cord with NEMA 5-20P plug and 11.4 A matched to CPB075PC-S-0 refrigeration system
*Image may not depict product color, inclusions or accessories.
*Free shipping on Norlake KLB74810-C within the 48 contiguous states.
From The Manufacturer
Kold Locker™, Indoor +35°F Cooler, 8' x 10' x 7'-4" H, floorless, 26 gauge embossed coated steel interior & exterior finish, 26" wide self-closing left hinge door, door centered on 8' wall (call for long-side door placement), locking deadbolt handle, R290 Capsule Pak Refrigeration CPB075PC-S-0, KL2 QUALIFIER (Note: The attached installation service prices are not valid in the following states: California, Illinois, Oregon, and Washington. Please call KaTom at 1-800-541-8683 for a quote for installation in these states. )
Norlake KLB74810-C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Norlake |
| Base | No Floor |
| Compressor Location | Ceiling/Top |
| Height (ft) | 7.33 |
| Hinge Configuration | Left |
| Length (ft) | 10 |
| Product | Walk-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Series | Kold Locker™ |
| Type | Indoor |
| Warranty | 18-month Limited Parts & Labor; 15-year Panel |
| Width (ft) | 8 |
| Weight | 1418.00 |
