Southbend HDG-60-M 60" Gas Griddle w/ Manual Controls - 1" Steel Plate, Natural Gas
$9,351.00 /Each
Web price, call us!
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability

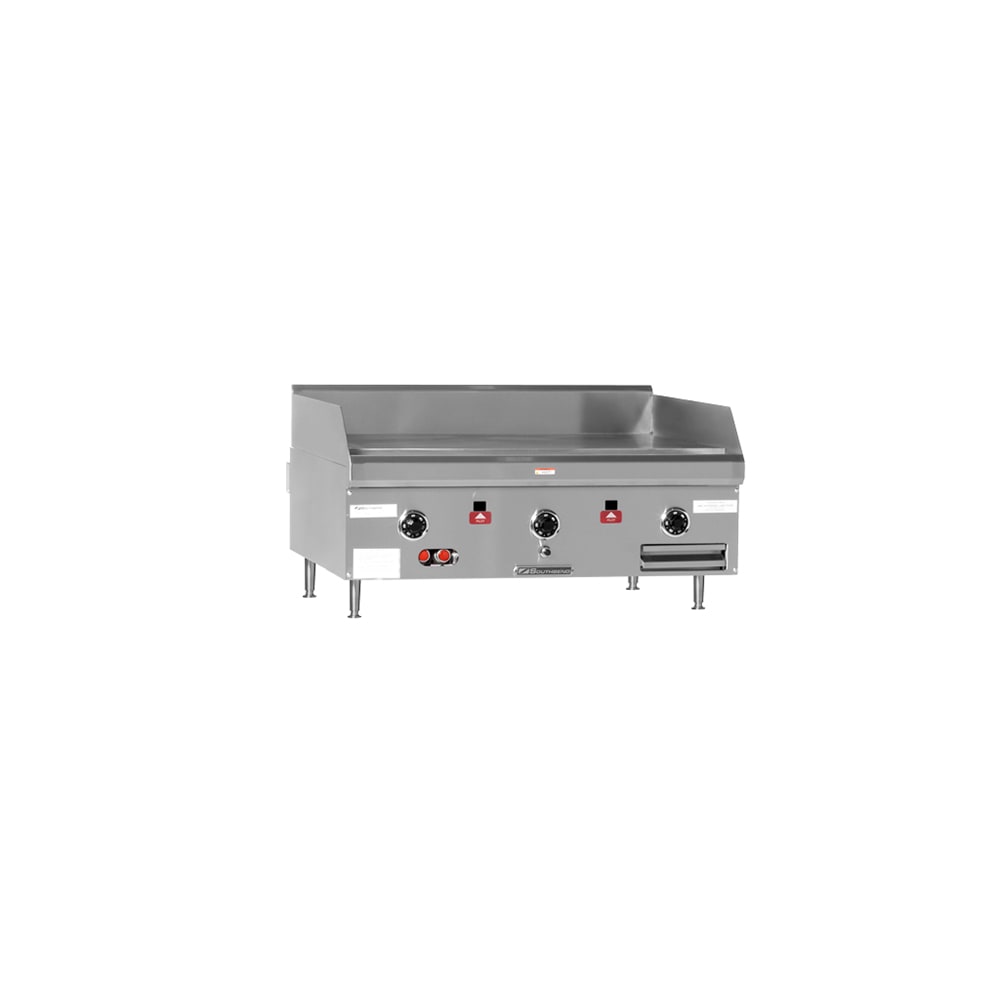

Southbend HDG-60-M Description
This Southbend HDG-60-M griddle has manual controls that operators can use to adjust the heat of the burners. The temperature settings range from low to high heat, and the burners are heated by natural gas through electronic spark ignition. For even heat production, the burners are U-shaped and spaced every 12 inches across the griddle plate, which is 1-inch thick to resist warping from heating up and cooling down all the time.
Side and rear splashes keep messes contained to the cooktop, while grease and food particles are sent to a grease drawer, which is removable for cleanup at the end of the night. Constructed of aluminized and stainless steel, the Southbend HDG-60-M griddle is durable and resistant to corrosion. It is lifted off the countertop with 4-inch-tall legs, ensuring stability on uneven surfaces.
Product Details
- Stainless steel front, sides, and vent are strong and durable
- Aluminized steel rear and bottom panels withstand constant use
- Double-insulated, reinforced sides are durable and retain heat
- Burners are spaced every 12 in.
- 1-in.-thick plate will not warp from heating up and cooling down constantly
- Manual heating controls range from low to high
- Embedded, load-sensing thermostat
- Runner tube for each burner
- Messes are contained to the cooktop with 5-in.-tall rear and 4-in.-tall side splashes
- Liquids and food particles are collected in the grease drawer
- 4-in. legs are adjustable
- Electronic spark ignition
- 3⁄4-in. rear gas connection and pressure regulator
- Damage-resistant flue opening
- Protected exhaust vent
- Flame failure safety device
- Requires 12-in. clearance on sides and 8-in. clearance on rear
- Must be installed under a vent hood
- 100,000 BTU
Dimensions & Utilities
- 60 in. W x 31.75 in. D x 20 in. H
- Heated by natural gas
*Free shipping on Southbend HDG-60-M within the 48 contiguous states.
From The Manufacturer
Griddle, countertop, NG gas, 60" W x 24" D cooking surface, 1" thick polished steel plate, manual controls, battery spark ignition, stainless steel front, sides & 4" adjustable legs, 150,000 BTU, CSA, NSF
*Not as Shown - 5 Controls
Southbend HDG-60-M Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Application | Medium Duty |
| BTU / Burner | 20,000 |
| Control Spacing (in) | 12 |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Controls | Manual |
| Gas Type | NG |
| Heat | Gas |
| Overall Width (in) | 60 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Rating | Better |
| Product Type | Countertop Cooking Equipment |
| Product | Griddles |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 705.00 |
