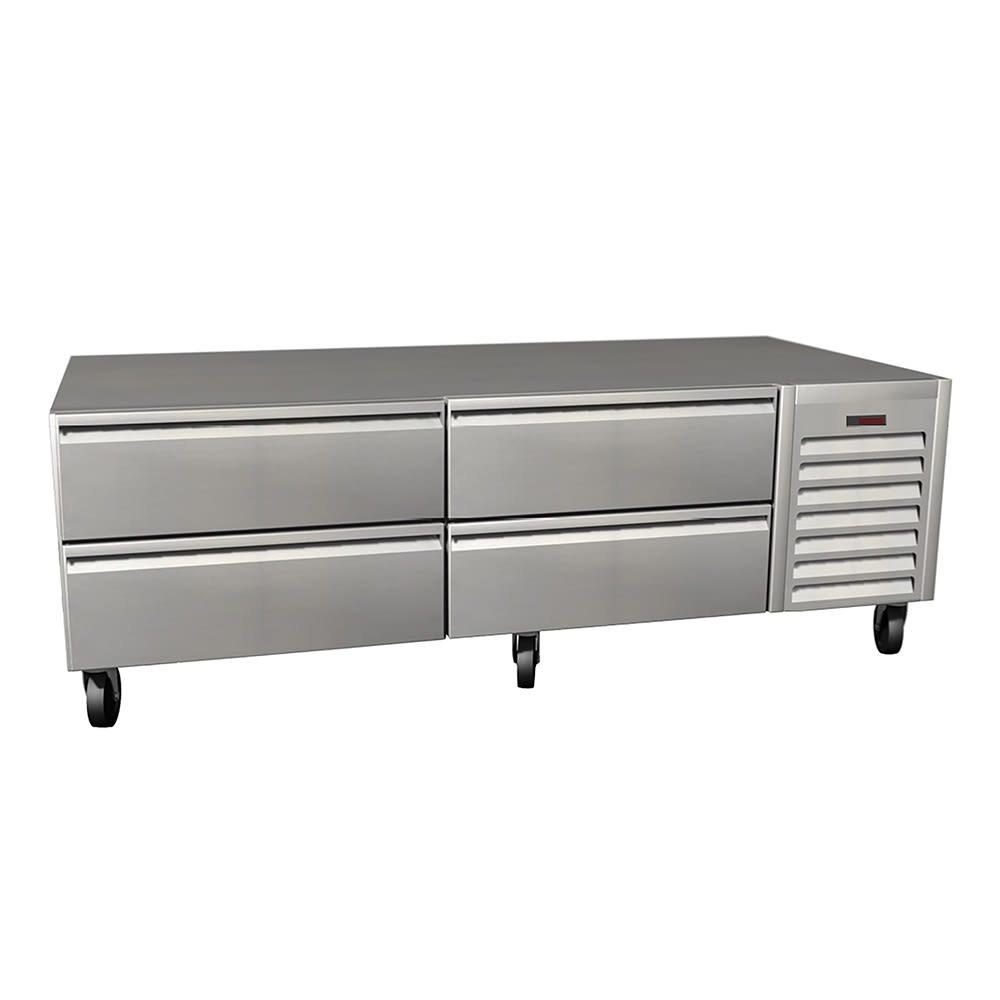

Southbend 20084SB 84" Platinum Series Chef Base w/ 4 Drawers - 120v
$17,585.00 /Each
Call for details!
Southbend 20084SB Description
With four self-closing drawers, the Southbend 20084SB Platinum chef base offers accessible storage for chilled ingredients. Each 31-inch drawer accommodates standard 12-inch by 20-inch pans, optimizing organization for commercial kitchens (pans sold separately). Using R404A refrigerant, this unit maintains consistent cooling, making it ideal for food preparation stations requiring quick access to refrigerated items.
The Southbend 20084SB chef base features a stainless steel construction for durability, with coved interior corners that streamline cleaning. A digital thermostat allows temperature adjustments, while mullion coils support even cooling. Its 6-inch adjustable legs provide stability, and an integrated condensate evaporator pan enhances efficiency.
- Platinum series
- Stainless steel exterior and interior
- Foamed-in-place polyurethane insulation
- Coved interior corners
- Holds standard-sized pans (pans not included)
- 4 self-closing drawers
- Full-width pull handles,/li>
- Magnetic gaskets ensure tight seal
- Corrosion-resistant mullion coils
- 6-in. adjustable legs
- Self-contained refrigeration system
- R404A refrigerant
- Digital thermostat for temperature control
- Integrated condensate evaporator pan and drain
- 84 in. W x 32 1⁄2 in. D x 26 in. H
- 10.1 A, 1⁄3 HP
- 120 V/50-60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend 20084SB within the 48 contiguous states.
From The Manufacturer
Southbend 20084SB Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Depth (in) | 32.5 |
| Height (in) | 26 |
| Hertz | 50/60 |
| NEMA | 5-15P |
| Number of Drawers | 4 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R404A |
| Sections | 2 |
| Series | Platinum Series |
| Type | Refrigerator |
| Voltage | 120 |
| Warranty | 2-year Parts; 1-year Labor; 5-year Compressor |
| Width (in) | 84 |
| Weight | 745.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
Each drawer holds standard 12-in. x 20-in. pans.
Yes, it supports modular cook tops on the stainless steel surface.
It measures 26 in. H with 6-in. adjustable legs.
Yes, it requires a remote condenser for refrigeration operation.
It uses R404A refrigerant in the cooling system.
The drawers self-close using stainless steel roller slides.
The digital thermostat controls internal cabinet temperature settings.
It uses 120 V/60 Hz/1 ph with a NEMA 5-15P plug.
It uses stainless steel for the exterior, interior, and drawers.
The drawers accommodate 12 in. x 20 in. food pans.
It uses a digital thermostat.
It has a self-contained refrigeration system.
It uses R404 refrigerant.
It is NSF listed.
Yes, the drawers are self-closing.
Yes, the interior has coved corners for easier cleaning.
No, food pans are sold separately.
It has 4 drawers.
It is intended for use with Platinum Series modular cooktops.
It is a refrigerated chef base with drawer storage.
It requires 120 V/50-60 Hz/1 ph power and has a NEMA 5-15P plug.
