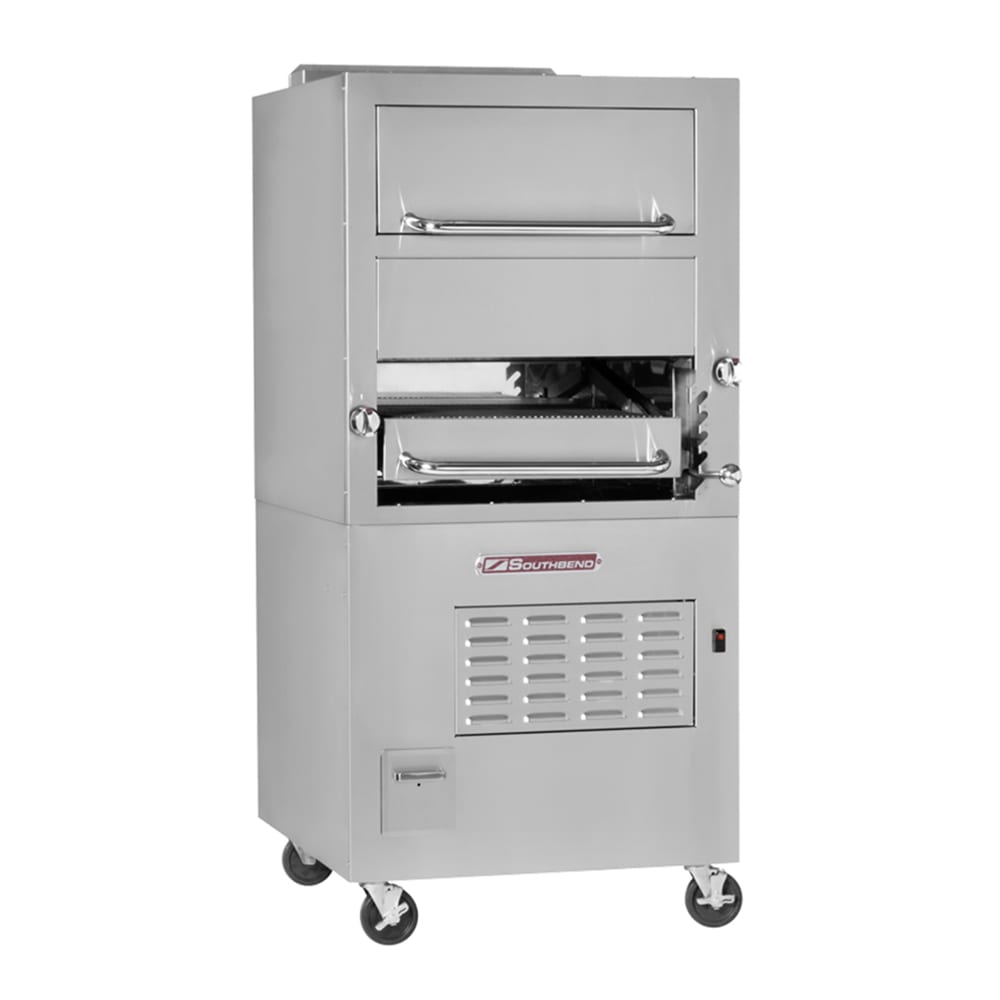

Southbend 171 Infrared Deck-Type Broiler w/ Enclosed Based & Warming Oven, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 348-171NG • MPN: 171 NG
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Web Price: $12,308.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Southbend 171 Description


The Southbend 171 infrared broiler cooks meat quickly and seals in natural juices. Its infrared tiles preheat to 1,650 degrees Fahrenheit in 90 seconds, reducing wait time. The blower brings in fresh air through the metal mesh filter to prevent vapor and smoke from decreasing efficiency. Staff can adjust the broiler grid to five different heights and remove it for cleaning. Insulated by a lining and burner boxes, the flue-gas heated top compartment can hold cooked product at safe temperatures. The Southbend 171 infrared broiler is constructed of durable stainless steel.

Product Details

  • Heated with natural gas
  • Infrared heat cooks quickly and holds natural juices in meat
  • Infrared tiles maximum temperature: 1,650 degrees F
  • 90-sec. preheat
  • Durable stainless steel cabinet cleans quickly
  • Insulated lining and burner boxes improve structure and efficiency

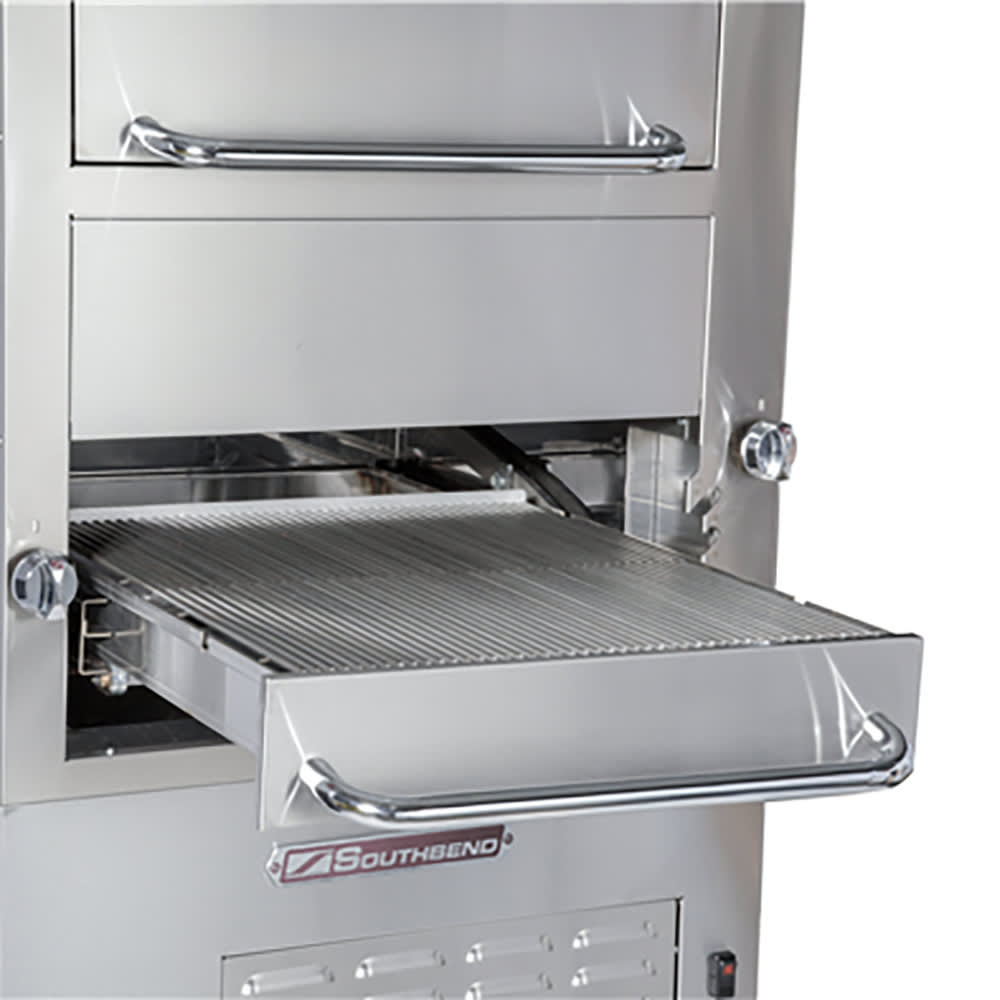

  • 5 adjustable broiler grid height settings
  • Removable round grid creates a pattern on product
  • Internal blower brings in outside air to maintain heating efficiency
  • Top warming oven uses broiler flue gas for heating
  • Washable air filter made of metal mesh
  • Adjustable legs stabilize the unit
  • 104,000 BTU
  • 120 V/60 Hz/1 ph, 1 A, 7-ft. cord with a grounded plug
  • Broiling area dimensions: 2412 in. W x 28 in. D
  • Warming area dimensions: 25 in. W x 25 in. D
  • Overall dimensions: 34 in. L x 37 in. W x 7514 in. H
  • cCSAus and CSA Gas-fired listed; NSF certified

Broiler, natural gas, single deck, free standing, infrared, warming oven, enclosed base, stainless steel top, front, sides & 6" adjustable legs, 104,000 BTU, CSA, NSF (Note: Qualifies for Southbend's Service First™ Program, see Service First document for details)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Southbend 171 Specifications

PDF Spec Sheet
Manufacturer Southbend
BTU 104,000
Specialty Options Warming Oven
Warranty 3 years limited parts & labor
Heat Gas
Gas Type NG
Product Type Cooking Equipment
Product Upright Broiler
Weight 693.00
Southbend 171 Certifications
  • NSF
