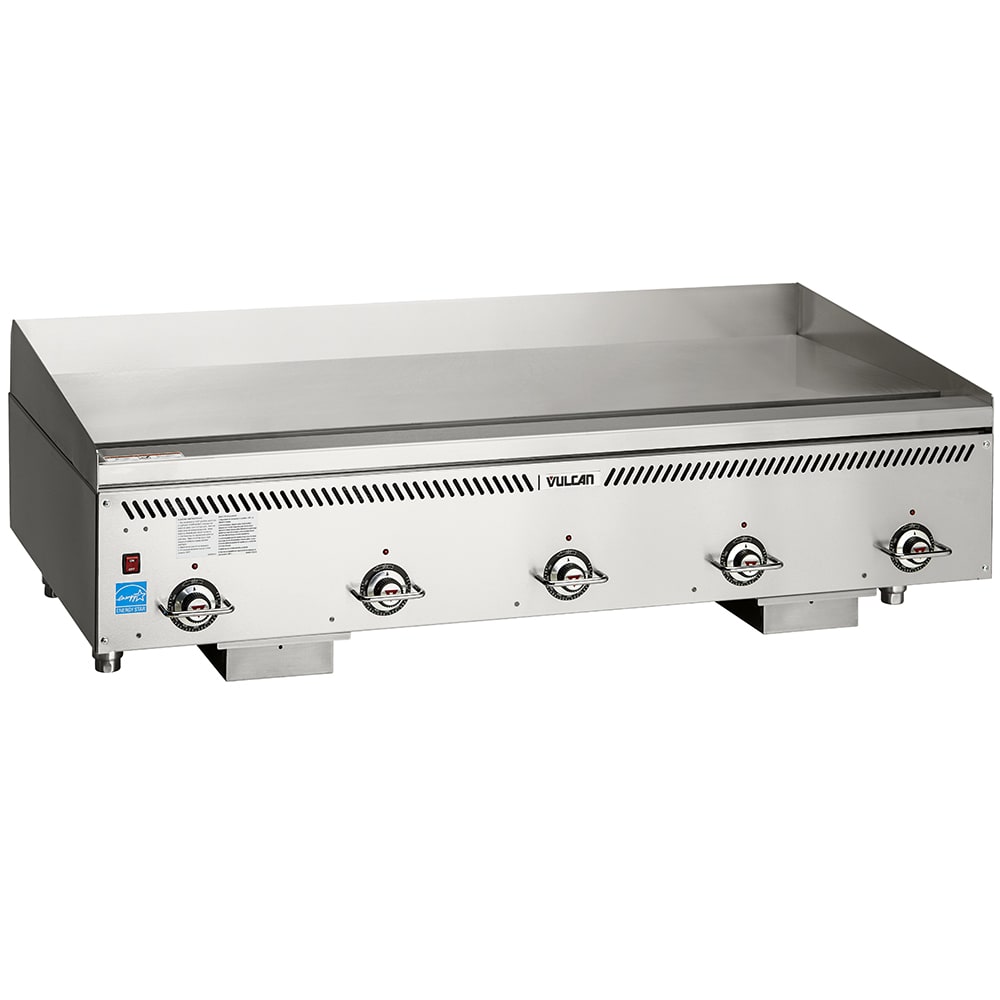

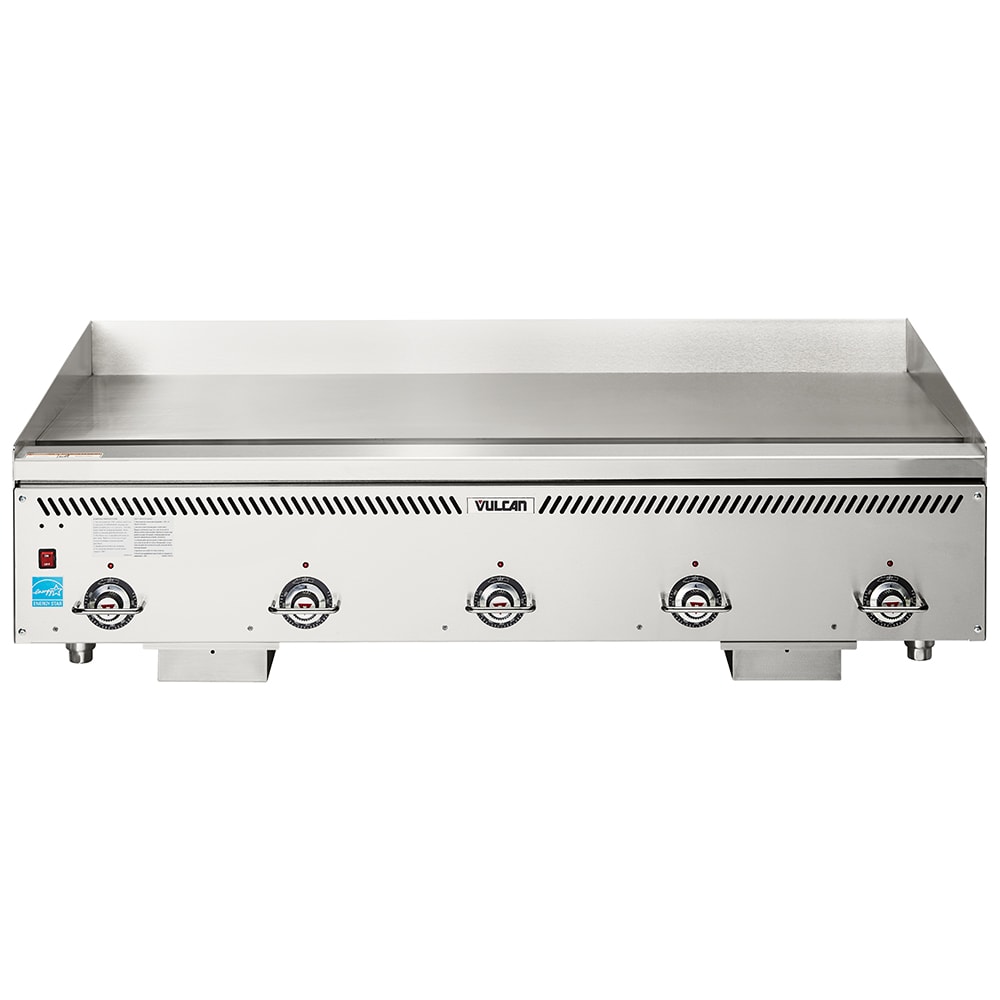

Vulcan VCCG60-AS 60" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas

Each of the Vulcan VCCG60-AS countertop griddle’s five burners are controlled with an individual thermostat, enabling users to set multiple cook zones when preparing a variety of dishes. By setting different temperatures across the griddle, users can cook chicken breasts, burgers, eggs, and pancakes at the same time. Made of 1-inch-thick polished steel, the griddle plate is durable enough to withstand repeated use at high temperatures without warping or cracking. The unit’s U-shaped atmospheric burners heat the plate evenly to avoid cold spots. Spaced 12 inches apart, the solid-state thermostats have electronic spark ignition.

To prevent accidental thermostat changes, the Vulcan VCCG60-AS gas griddle has chrome wire guards that wrap around the knobs’ fronts, shielding them from impacts. The griddle’s plate is wrapped with a splatter guard that’s 4 inches high in the back and sloped on the sides, protecting adjacent walls and countertops from grease splashes. At the griddle’s front, a stainless steel grease trough catches grease and debris and channels it into the unit’s two 6-quart storage drawers. Resting on adjustable, 4-inch legs, the griddle is raised off countertops, reducing the risk of heat damage.

Product Details

• Countertop model
• Resists rust with stainless steel front top ledge, sides, and front
• Temperature range: 200-550 degrees F
• Multiple cook zones can be adjusted with 5 separately controlled burners
• Heated with U-shaped atmospheric aluminized steel burners spaced 12 in. apart
• Solid-state thermostats
• Electronic spark ignition with diagnostics for simplified use
• Pilot protection

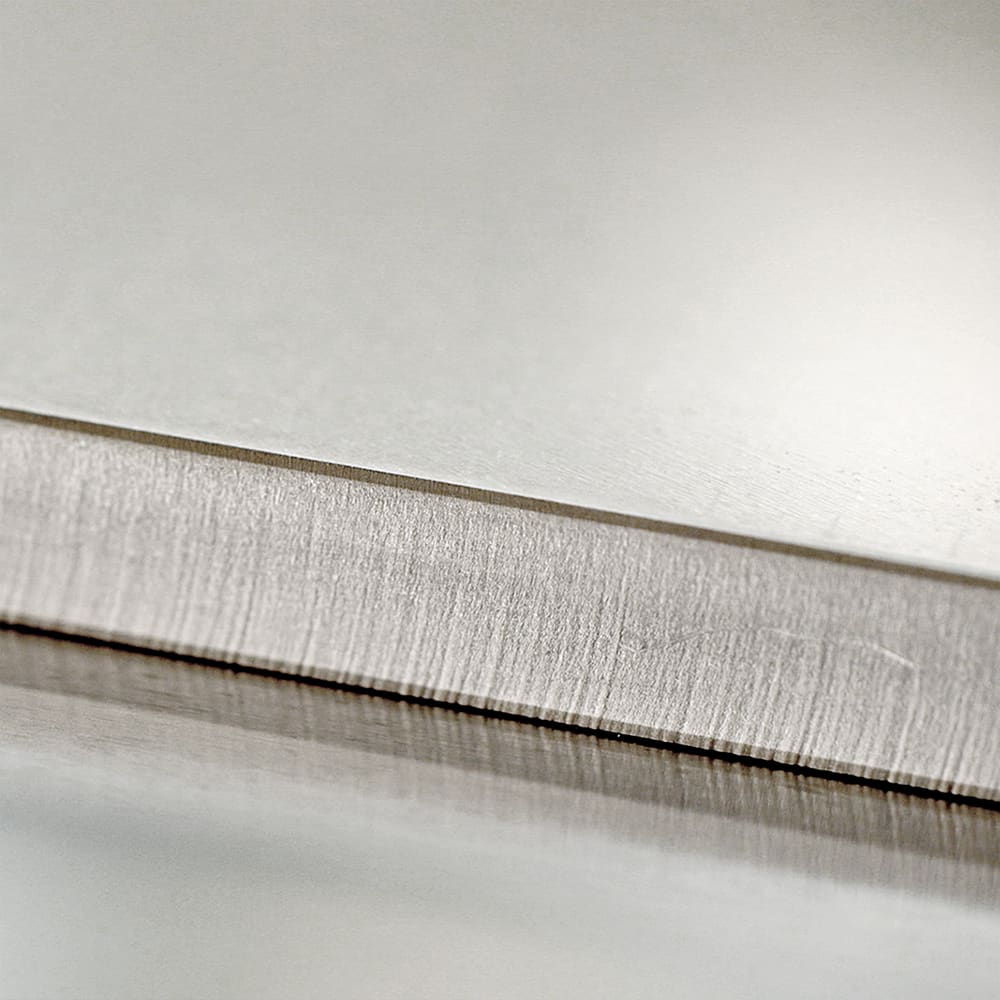

• 1-in.-thick polished steel griddle plate
• Knob guards are made of chrome wire to shield thermostat controls
• Stainless and aluminized steel chassis is welded for long-term strength
• 14⁷/₁₀-in. cooking height
• Built with 4-in. stainless steel backsplash and tapered side splashes

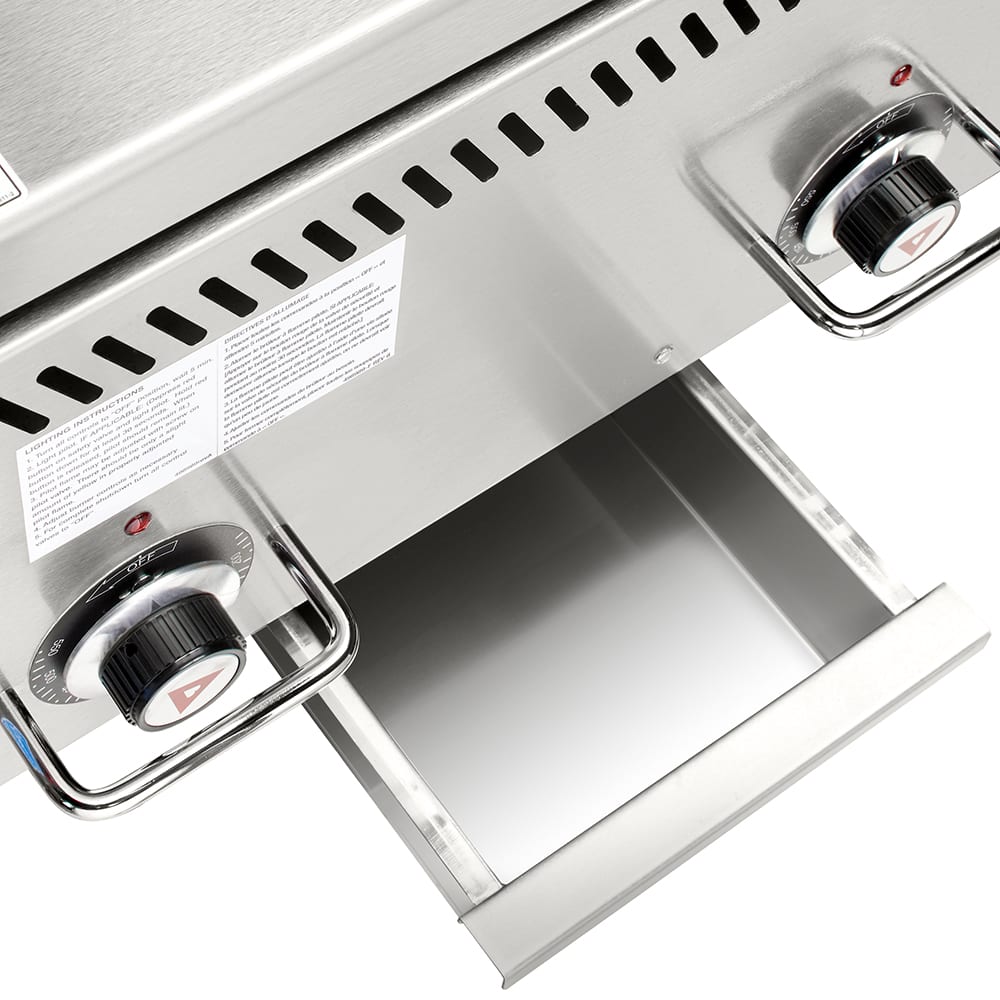

• (2) 6-qt. drawers store grease and crumbs
• Front-mounted stainless steel grease trough transports grease to drawer
• 4-in. adjustable legs
• 150,000 BTU

Dimensions & Utilities

• Cooking surface: 60 in. W x 24 in. D
• Overall dimensions: 60 in. W x 33¹/₁₀ in. D x 18⁴/₅ in. H
• 2 A
• 120 V/50-60 Hz/1-ph, NEMA 5-15P plug
• Rear gas connection and pressure regulator: ³⁄₄ in.
• Uses natural gas

Product Features

*Free shipping on Vulcan VCCG60-AS within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 60" W x 24" D cooking surface, 1" thick steel plate, (5) burners, solid state thermostat every 12", atmospheric type “U” shaped aluminized steel burners, electronic spark ignition & pilot protection, wire knob guards, (2) drawers, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 150,000 BTU, NSF, CSA, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCCG60-AS Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
