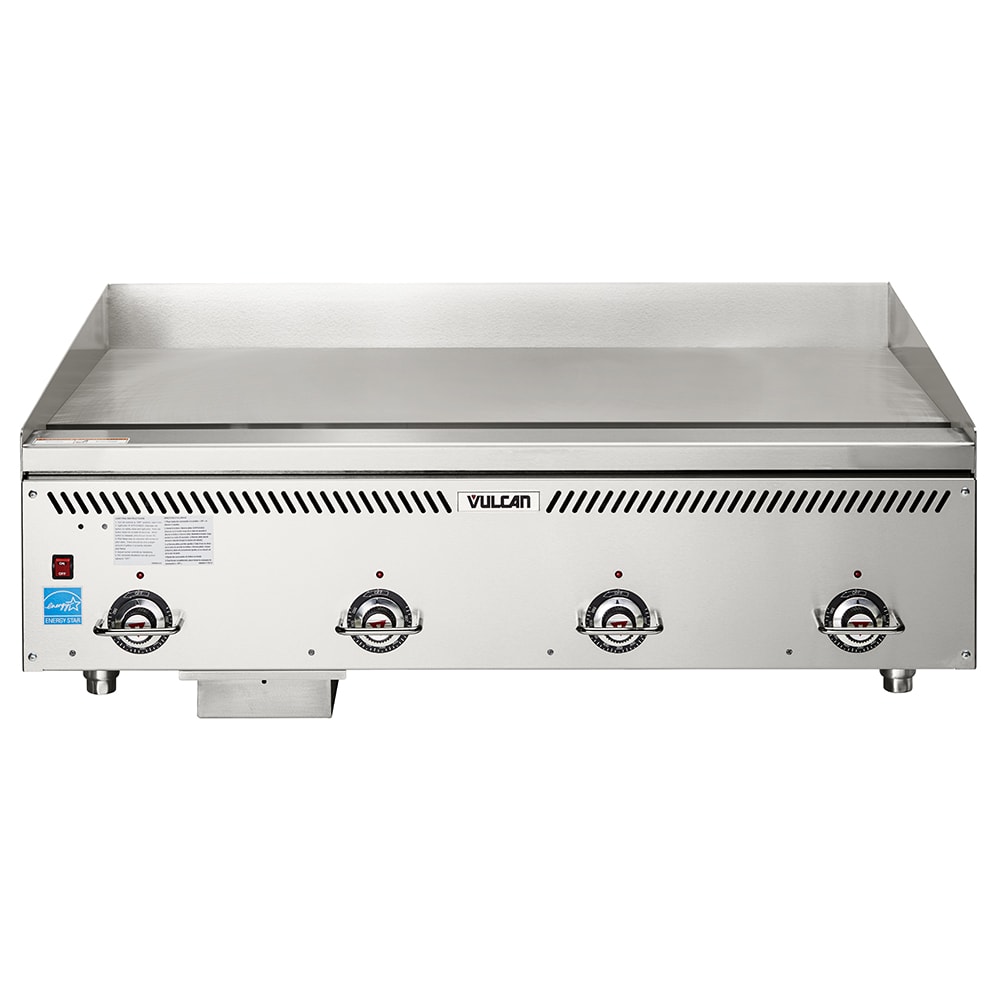

Vulcan VCCG48-AS 48" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Natural Gas

For flexible application, the Vulcan VCCG48-AS gas griddle can have as many as four separate cook zones, helping users warm, toast, grill, and fry product at the same time. To enable safe use at temperatures as high as 550 degrees Fahrenheit without cracking or buckling, the unit's griddle plate is 1 inch thick and made of polished steel. Its smooth surface releases stuck-on residue so users can quickly scrape it into the built-in grease trough to prevent build up. Mounted to the unit's front, the grease trough is made of stainless steel and leads to the integrated 6-quart grease drawer.

To ensure the griddle plate heats evenly, the Vulcan VCCG48-AS griddle's aluminized steel atmospheric burners are U shaped and spaced 12 inches apart across the entire unit. Its cooking surface is 48 inches wide and 24 inches deep, providing space for users to cook several items at once. To ensure comfortable access, the thermostat controls are located on the griddle's front, and to prevent accidental changes, they are shielded with chrome wire guards. During use, the griddle's 4-inch backsplash and tapered side splashes contain hot grease and steam, preventing them from striking surrounding walls and countertops.

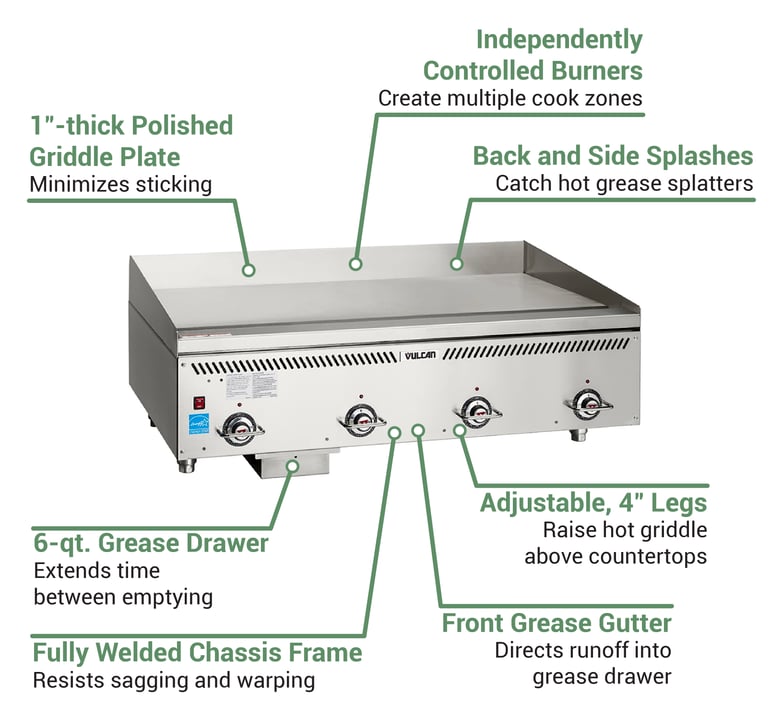

Product Details

• Countertop model
• Rust-resistant stainless steel front top ledge, front, and sides
• Temperature range: 200-550 degrees F
• Separate controls for 4 aluminized steel burners
• Atmospheric burners are U-shaped and spaced 12 in. apart
• Solid-state thermostats
• Electronic spark ignition with pilot protection
• Ignition diagnostics

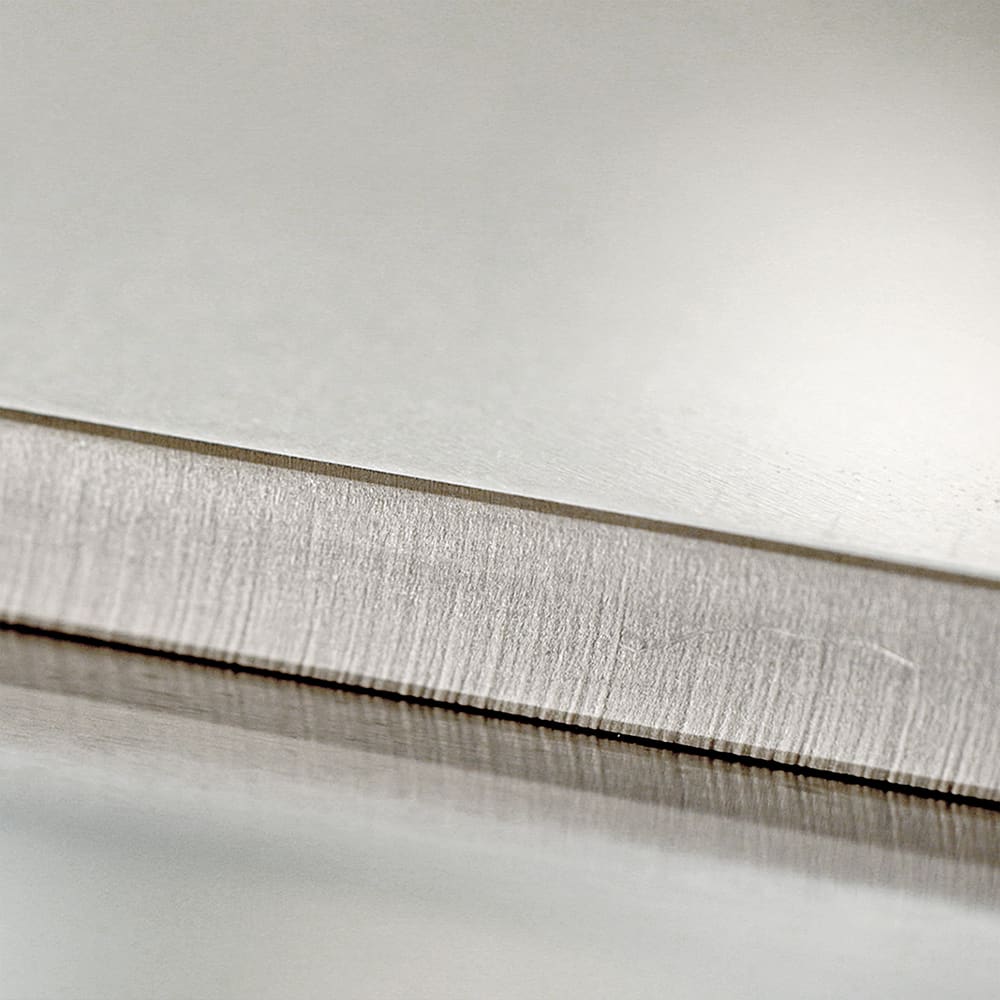

• 1-in.-thick polished steel plate

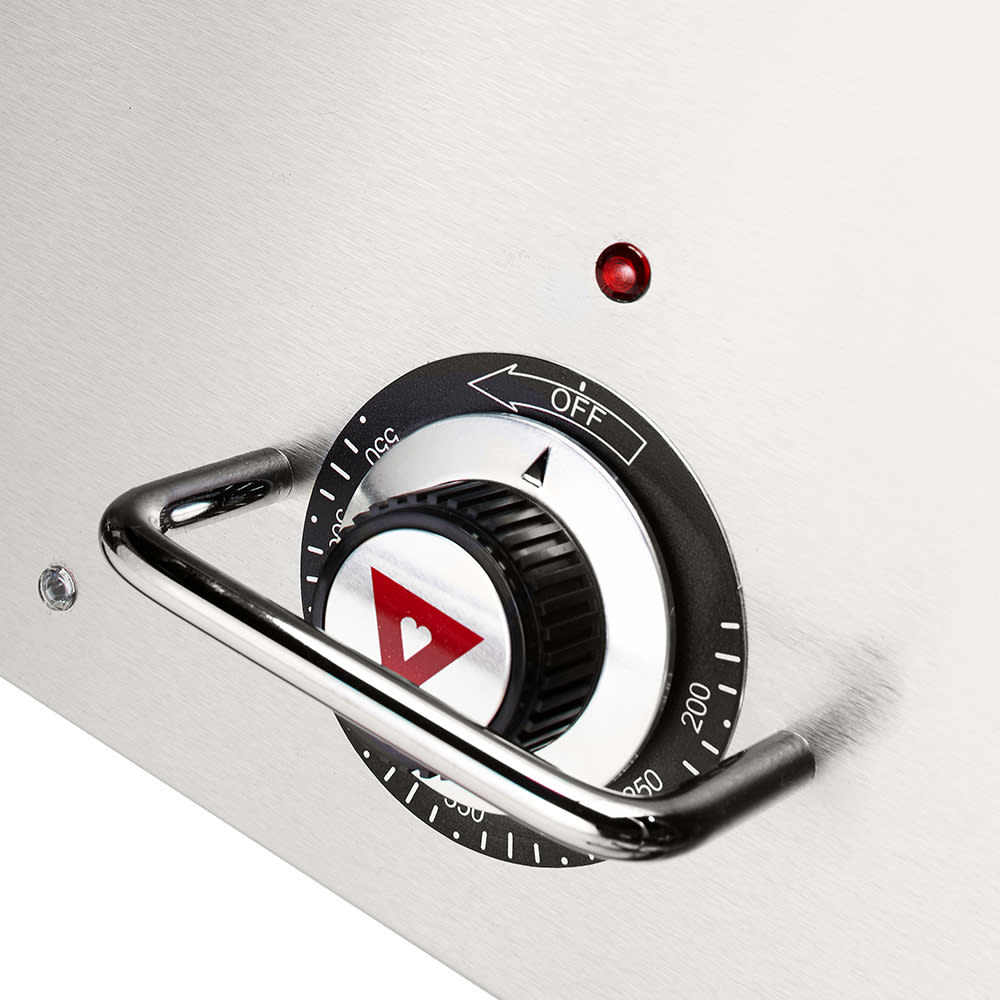

• Control knobs are mounted behind chrome wire guards
• Sturdy welded chassis is made of stainless and aluminized steel
• 14⁷/₁₀-in. cooking height
• Tapered side splashes with 4-in. backsplash made of stainless steel

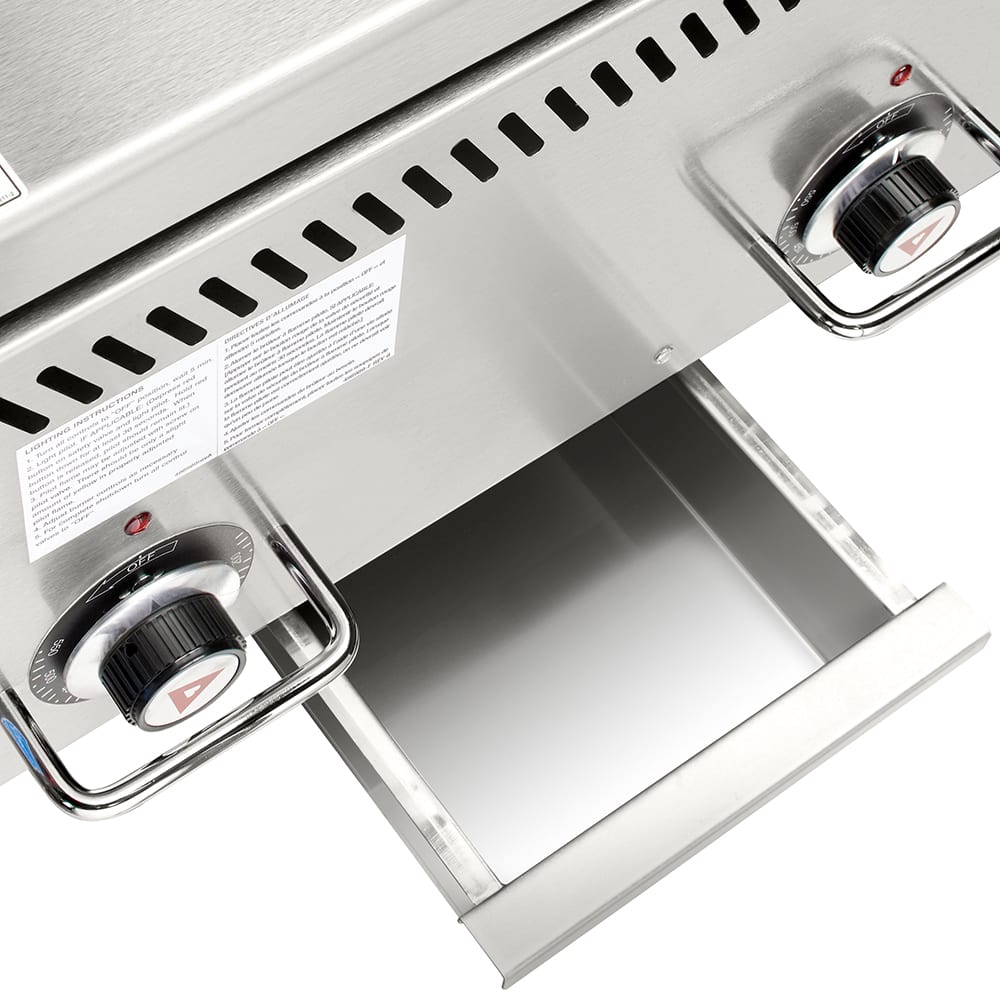

• 6-qt. capacity grease drawer is made of stainless steel

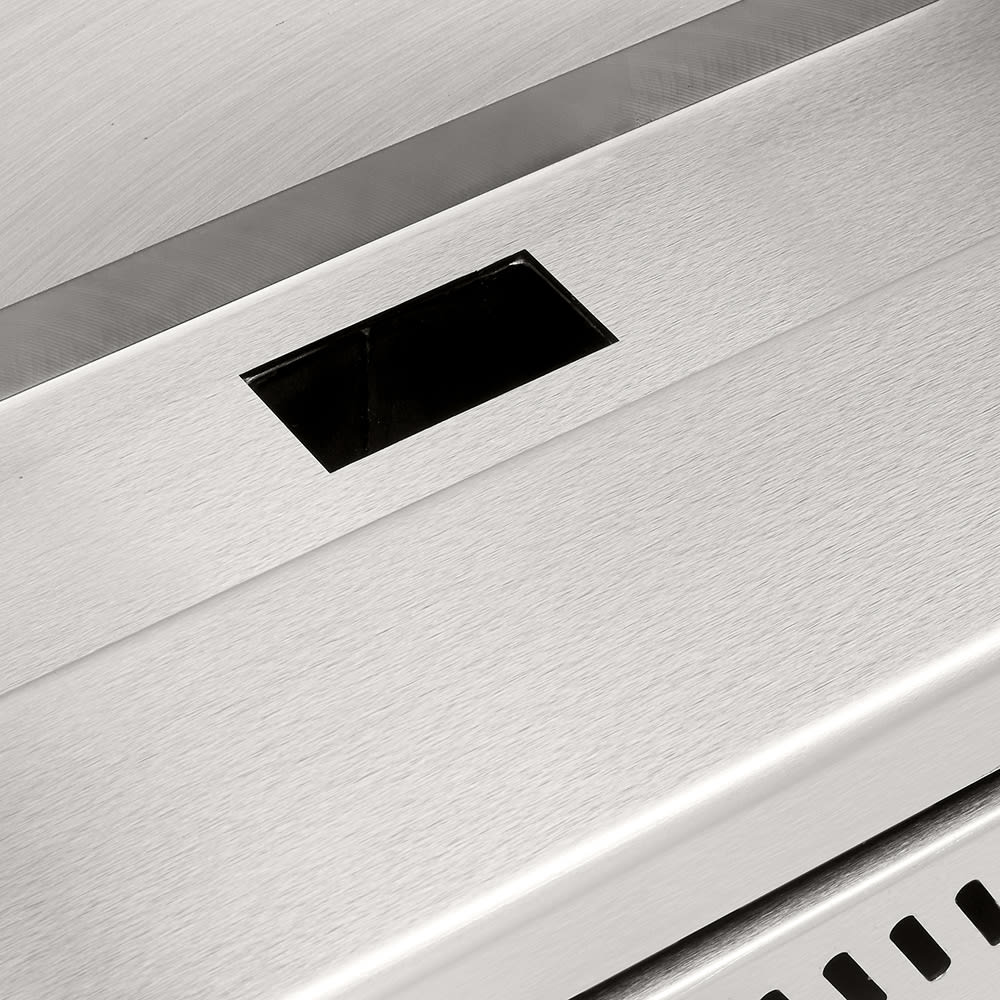

• Front-mounted stainless steel grease trough catches runoff
• 4-in. adjustable legs
• 120,000 BTU

Dimensions & Utilities

• Cooking surface: 48 in. W x 24 in. D
• Overall dimensions: 48 in. W x 33¹/₁₀ in. D x 18⁴/₅ in. H
• 2 A
• 120 V/50-60 Hz/1-ph, NEMA 5-15P plug
• Rear gas connection and pressure regulator: ³⁄₄ in.
• Uses natural gas

Product Features

*Free shipping on Vulcan VCCG48-AS within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 48" W x 24" D cooking surface, 1" thick steel plate, (4) burners, solid state thermostat every 12", atmospheric type “U” shaped aluminized steel burners, electronic spark ignition & pilot protection, wire knob guards, (1) drawer, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 120,000 BTU, NSF, CSA, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCCG48-AS Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
