Vulcan VCCG48-AR 48" Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Natural Gas
Retail Price: $47,335.00
$19,486.00 /Each
Selected Gas Type: Natural Gas
Vulcan VCCG48-AR Description
The Vulcan VCCG48-AR gas griddle measures 48 inches wide and is a good addition to establishments that sell burgers, toasted sandwiches, eggs, and bacon. Designed with a 1-inch-thick plate made of polished chrome, this unit can reach temperatures from 200 to 550 degrees Fahrenheit, facilitating production of fried, grilled, and toasted products. It has four separate thermostats for operating its four U-shaped aluminized steel atmospheric burners, creating multiple cook zones. Mounted to the unit's front for quick access, the thermostats are covered with chrome wire knob guards to prevent accidental changes.

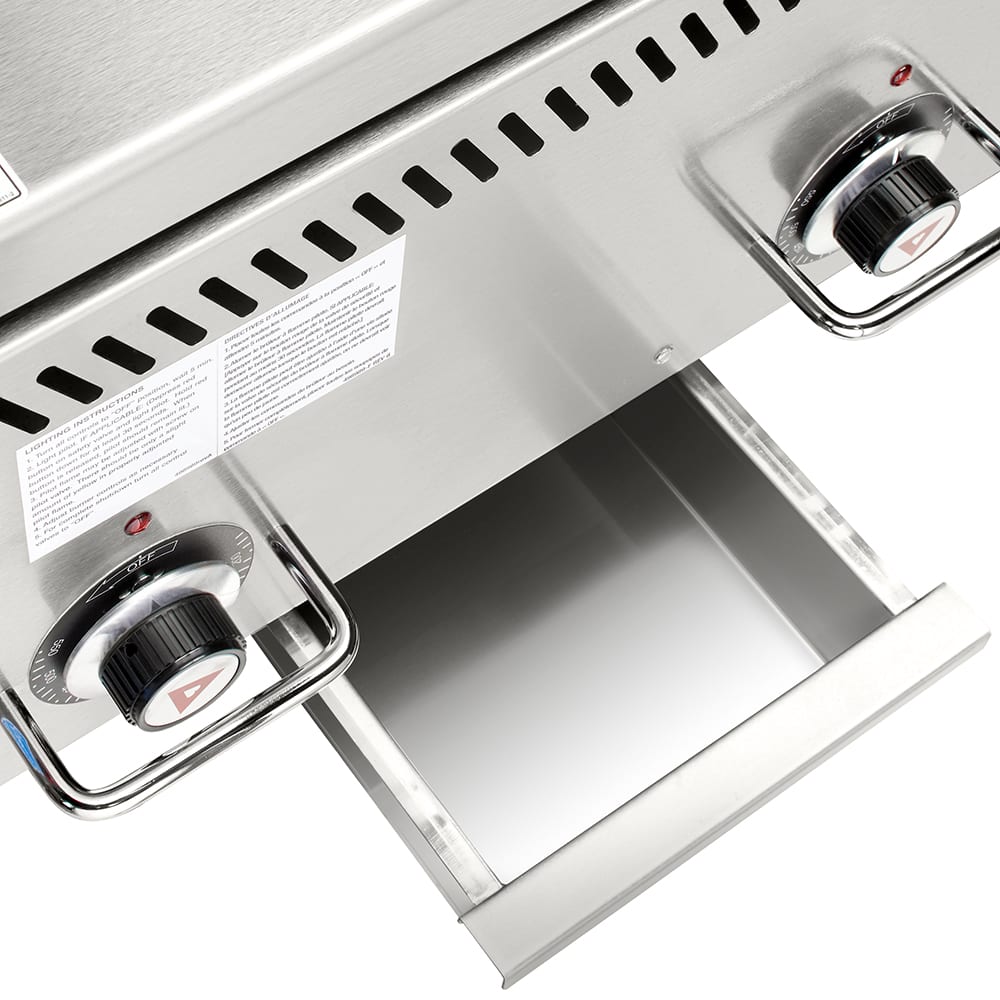

The Vulcan VCCG48-AR countertop griddle stands on 4-inch adjustable legs, lifting the unit above countertops to reduce heat transfer and enabling users to calibrate the griddle's support for a level cooking surface. To prevent hot grease from running off the griddle's back or sides, it's surrounded on three sides by a stainless steel splash guard, and a front-mounted trough safety collects the runoff and transports it to the unit's 6-quart grease drawer. A scraper, blade, and palmetto brush come with the griddle to help clean the chrome plate surface without marring it.
- Countertop model
- Front, sides, and front top ledge are made of stainless steel
- Temperature range: 200-550 degrees F
- 4 individually controlled burners are made of aluminized steel
- U-shaped atmospheric burners are spaced 12 in. apart
- Solid-state thermostats
- Electronic spark ignition with diagnostics
- Pilot protection

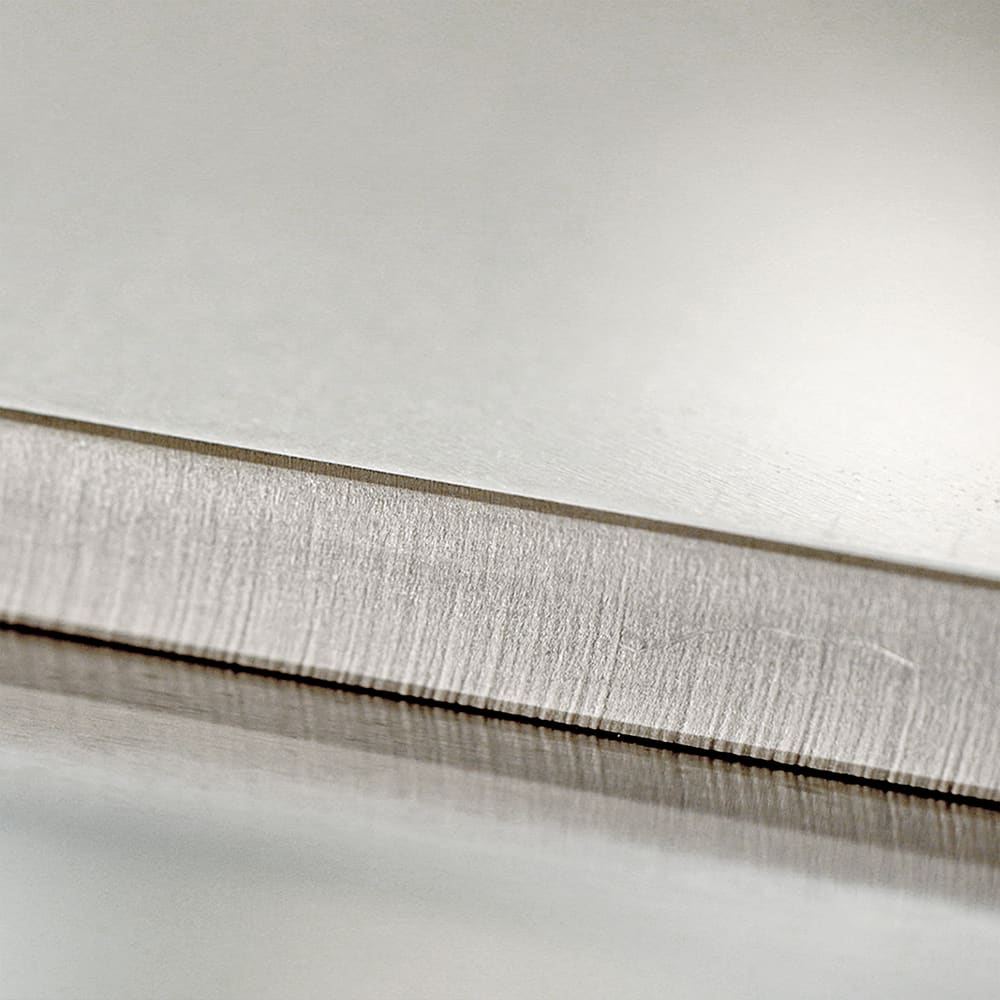

- 1-in.-thick polished chrome plate

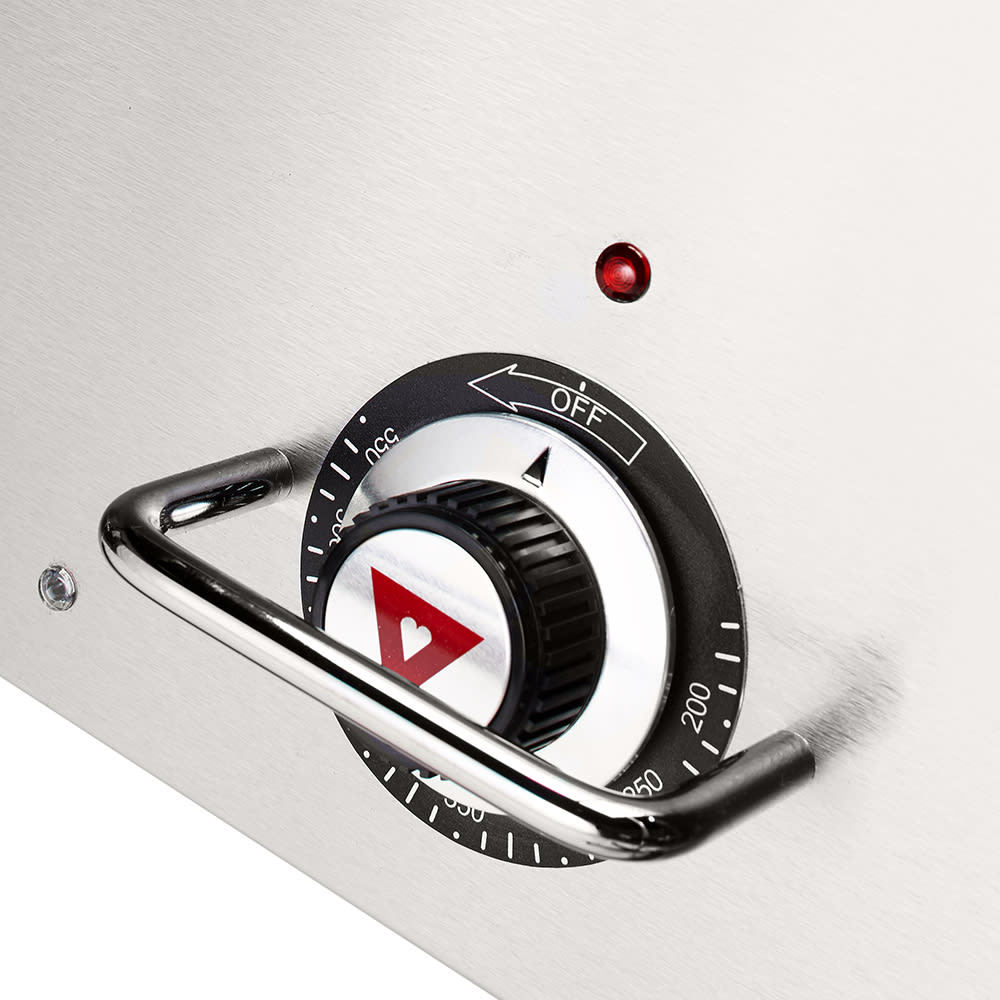

- Control knobs are protected with chrome-plated wire knob guards
- Fully welded stainless and aluminized steel chassis
- 14 7⁄10-in. cooking height
- 4-in. stainless steel backsplash and tapered side splashes
- Stainless steel grease drawer holds 6 qts.
- Includes palmetto brush, scraper, and cleaning blade

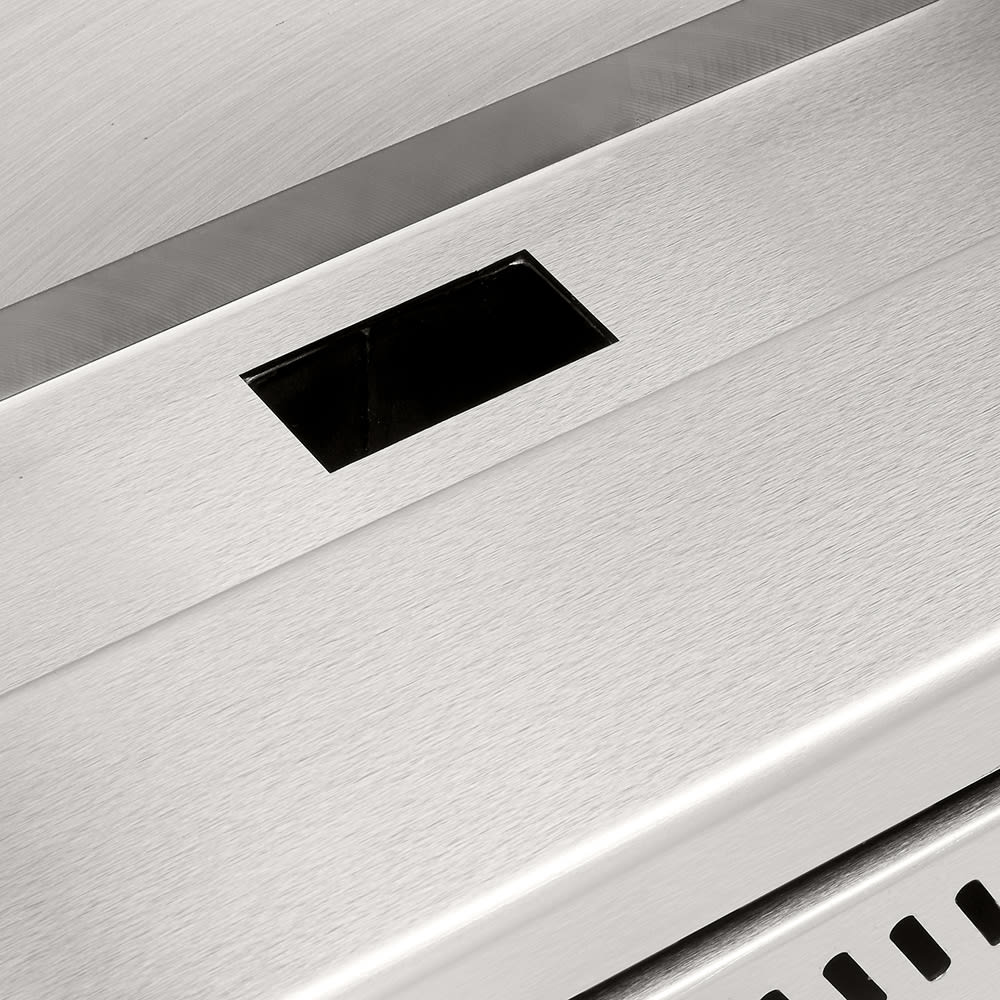

- Front-mounted stainless steel grease trough
- 4-in. adjustable legs
- 120,000 BTU
- Cooking surface: 48 in. W x 24 in. D
- Overall dimensions: 48 in. W x 33 1⁄10 in. D x 18 4⁄5 in. H
- 2 A
- 120 V/50-60 Hz/1-ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3⁄4 in.
- Uses natural gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan VCCG48-AR within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, gas, 48" W x 24" D cooking surface, 1" thick chrome plate, (4) burners, solid state thermostat every 12", atmospheric type “U” shaped aluminized steel burners, electronic spark ignition & pilot protection, wire knob guards, (1) drawer, includes: palmetto brush, scraper & blade, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 120,000 BTU, NSF, CSA, ENERGY STAR®
Vulcan VCCG48-AR Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 30000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 48 |
| Gas Type | NG |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 48 |
| Plate Material | Chrome |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Best |
| Series | VCCG Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 48 |
| Weight | 575.00 |
