Vulcan VCCG24-IR 24" Gas Griddle w/ Thermostatic Controls - 1" Chrome Plate, Liquid Propane

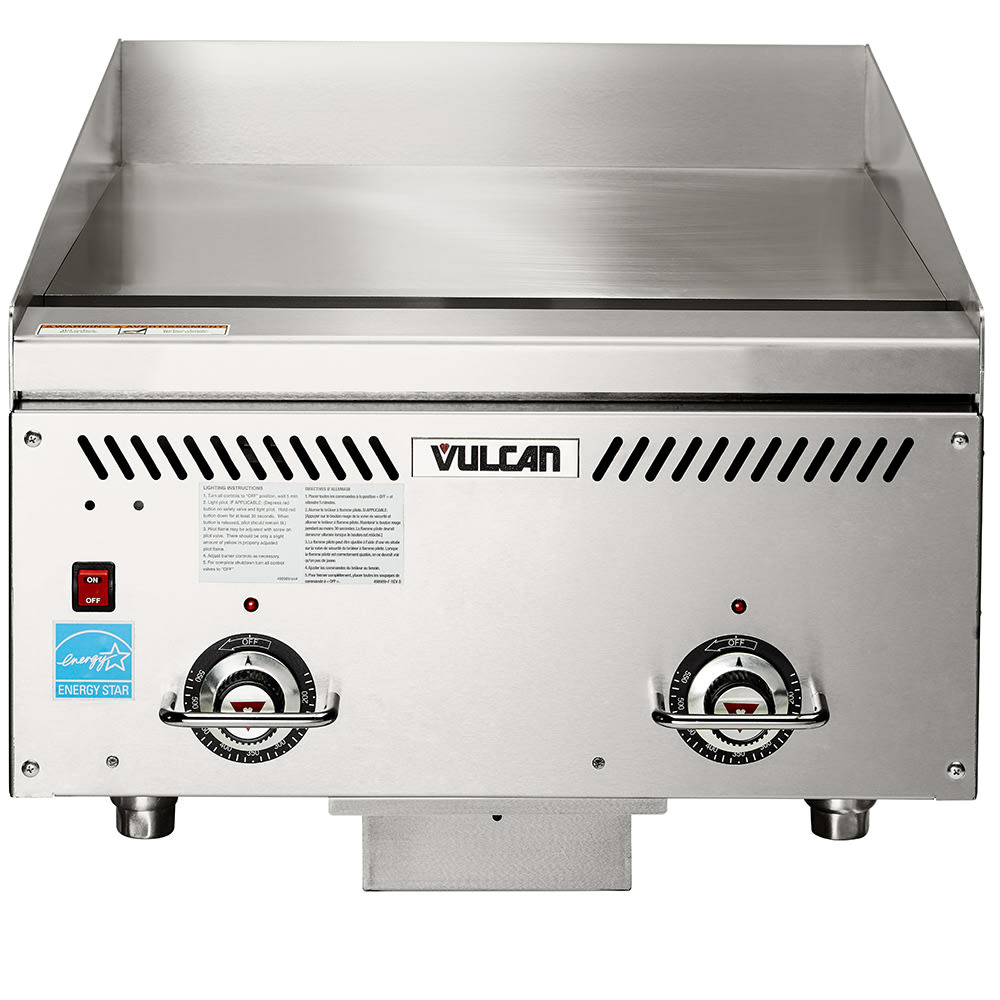

Using LP gas, the Vulcan VCCG24-IR VCCG Series heavy-duty gas griddle incorporates infrared burners to heat 12-inch-wide sections of its 24-inch-wide by 24-inch-deep chrome griddle plate for independent cooking results. Each 12-inch-wide section is controlled by a solid-state thermostat and an electronic ignition system to ensure proper heat transfer. The 1-inch-thick griddle plate is thick enough to withstand constant reheating, so it's less likely to warp over time compared to thinner plates, making it a good choice for high-volume use. It has a temperature range between 200 and 550 degrees Fahrenheit to accommodate various cooking methods, from reheating to searing.

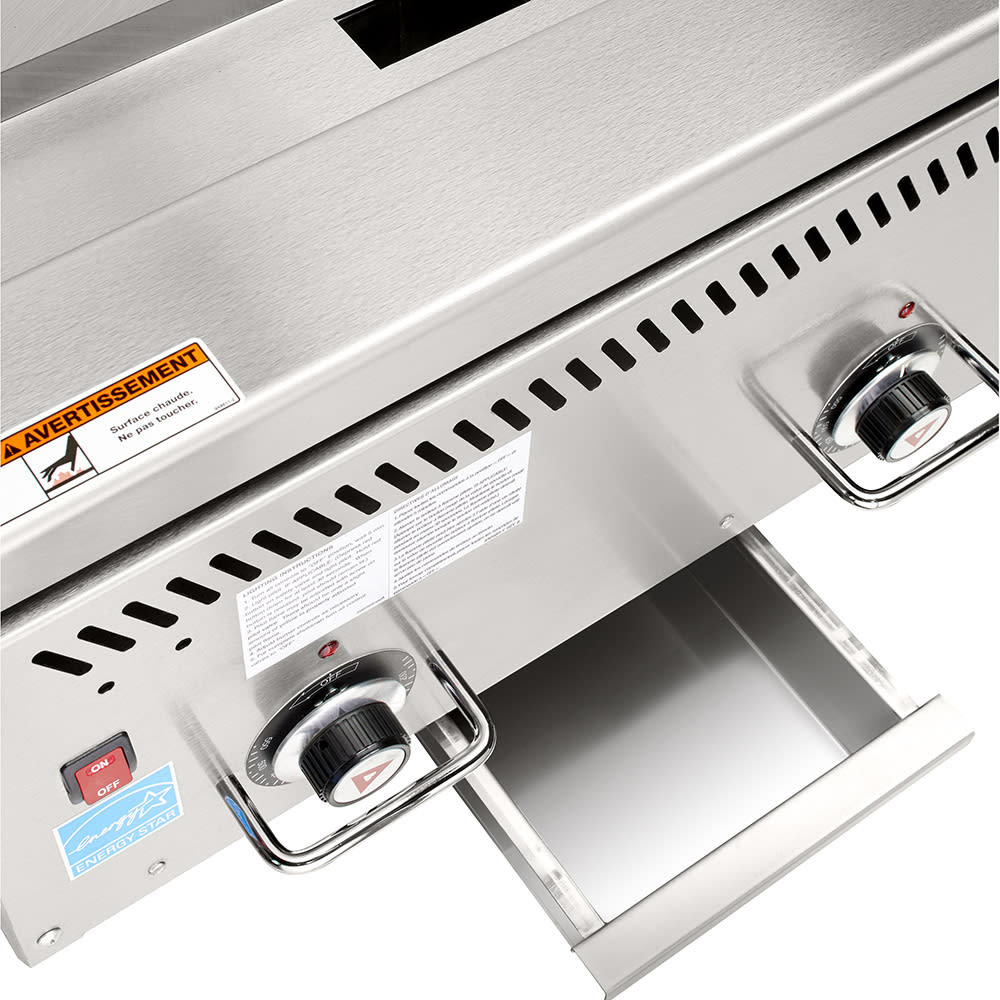

The Vulcan VCCG24-IR gas griddle is made of stainless steel to thrive in a bustling kitchen environment. Designed to be placed on a countertop, it's lifted with four legs that adjust to varying kitchen spaces. When the legs are at their maximum 4-inch height, the cooking height is 14⁷/₁₀ inches. Tapered side splashes and a rear splash guard prevent hot oil from splashing over the griddle's sides or onto the operator. Once oil is contained, it can drain into the 6-quart grease drawer for simplified removal. For plate maintenance upkeep, a palmetto brush, scraper, and blade are included with purchase.

Product Details

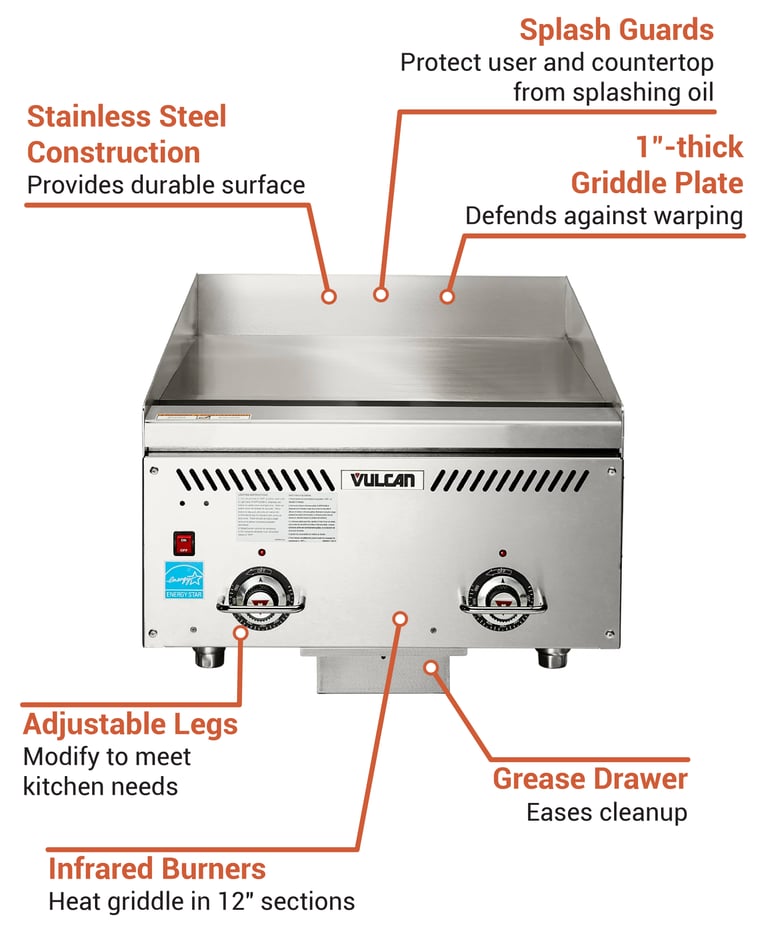

• Part of the VCCG series
• Stainless steel construction
• Chassis is made of fully welded stainless and aluminized steel
• Heats griddle in 12-in.-wide sections

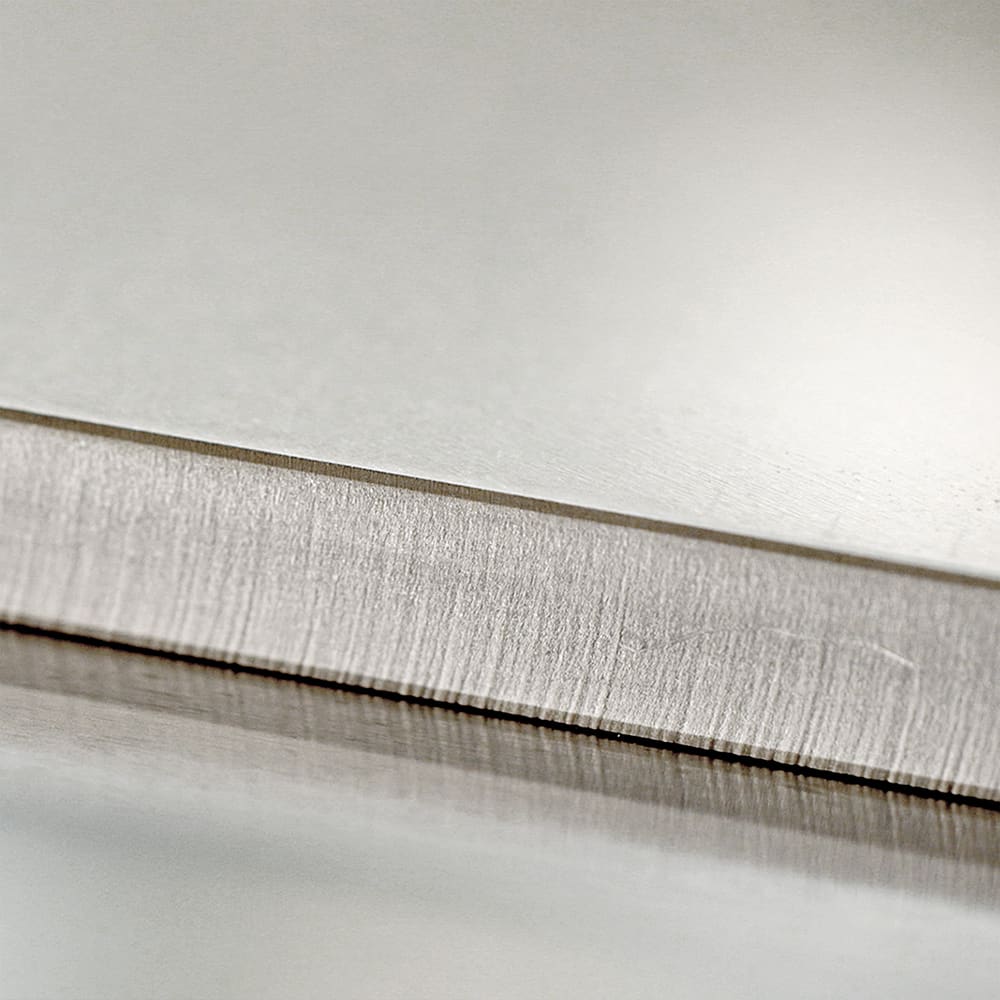

• 1-in.-thick chrome griddle plate
• 2 IRX™ infrared burners

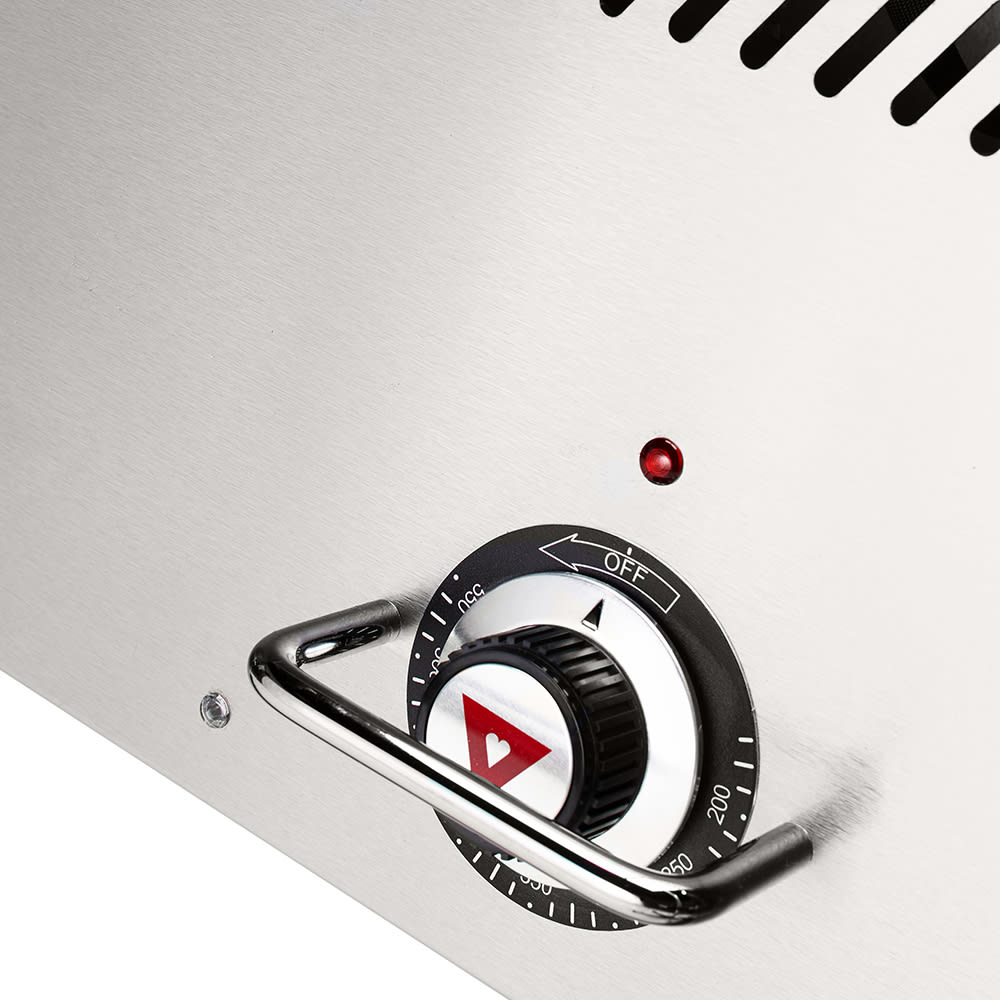

• Accidental adjustments prevented with chrome knob guards
• Electronic ignition and solid-state thermostats
• Temperature range: 200-550 degrees F
• 2 tapered side splash guards and a backsplash
• Grease drawer capacity: 6 qt.
• (4) 4-in.-high adjustable legs
• Pilot protection system
• Internal gas pressure regulators
• Chrome knob guards
• Palmetto brush, scraper, and blade included
• 14⁷/₁₀-in.-tall cooking height
• Side clearances: 6 in.
• Bottom clearance: 4 in.
• 48,000 BTU

Dimensions & Utilities

• Cooking surface: 24 in. W x 24 in. D
• Overall: 24 in. W x 33¹/₁₀ in. D x 18⁴/₅ in. H
• 2 A
• 120 V/50-60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug
• Uses LP gas
• ³⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan VCCG24-IR within the 48 contiguous states.

From The Manufacturer

Heavy Duty Griddle, countertop, gas, 24" W x 24" D cooking surface, 1" thick chrome plate, (2) burners, solid state thermostat every 12", IRX™ infrared burner technology, electronic spark ignition & pilot protection, wire knob guards, (1) drawer, includes: palmetto brush, scraper & blade, stainless steel front, sides, front top ledge, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 48,000 BTU, NSF, CSA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan VCCG24-IR Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
