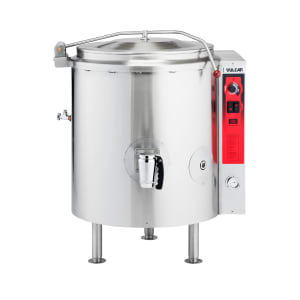

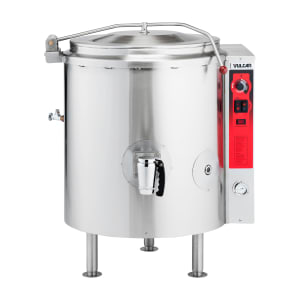

Vulcan K60GL 60 gal Steam Kettle - Stationary, 2/3 Jacket, Natural Gas

Ideal for serving large cafeterias, the Vulcan K60GL floor model steam kettle has a 60-gallon capacity that makes (1,920) 4-ounce portions. When filling the kettle with product, employees can read the embossed gallon and liter markings to determine the fill level and ensure the correct amount. Once ready, employees can set the kettle to warm, simmer, or boil. The water in the steam jacket heats up and cooks the food efficiently.

Because the interior is stainless steel, it resists rust, so even tomato-based or salty dishes can be prepared in the kettle. Once the food is ready, employees can open the draw-off valve and transfer contents into separate containers. These containers can be moved straight to the serving area or cooled and put into storage. To separate solids from liquids, a strainer is provided. This Vulcan K60GL steam kettle has flanged feet that can be bolted to the floor for stability, and if a faucet is mounted to it, water can be poured directly into the kettle.

Product Details

• 60-gal. working capacity
• 316 and 304 series stainless steel construction has a high rust resistance
• Two-thirds steam jacket with a 50-PSI rating
• Self-contained system does not need connection to a boiler
• Embossed markings provide measurements in liters and gallons
• Ellipsoidal bottom reduces food buildup
• Heavy-duty, bar-reinforced rim
• Draw-off valve for releasing contents
• Strainer prevents clogging
• Hinged cover is spring assisted to simplify operation
• Tubular legs with flanged feet that can be bolted down
• Faucet mounting bracket
• 100,000 BTU

Product Features

Enclosed Controls

• Encased in a water-resistant enclosure
• Power switch and power-on light
• Solid-state temperature control has warm, simmer, and boil options
• Vacuum/pressure gauge watches the pressure level
• Pressure relief valve reduces pressure level when it grows too high
• Risk of overheating is reduced with low-water cut-off
• Low-water light alerts users when jacket refills are needed
• Gas valve and control

Dimensions & Utilities

• 40⁹/₁₀ in. W x 43⁹/₂₀ in. D x 39¹/₂ in. H (76³/₅-in. H when open)
• Heats with natural gas
• ¹⁄₂-in. NPT gas connection
• 5 A
• 110-120 V/50-60 Hz/1 ph, 6-ft. cord with 3-prong plug

*Free shipping on Vulcan K60GL within the 48 contiguous states.

From The Manufacturer

Stationary Kettle, Gas, 60-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, spring assist cover with condensate ring, 2" compression draw-off valve with perforated strainer, faucet bracket, stainless steel construction, 100,000 BTU

*Image may not depict product color, inclusions or accessories.

Vulcan K60GL Specifications

Spec Attribute	Spec Value
Manufacturer	Vulcan
Base	Tri Leg
Capacity (gallons)	60
Design	2/3 Jacket
Gas Type	NG
Heat	Gas
No. of Kettles	1
Series	KGL Series
Tilt Mechanism	Stationary
Type	Floor Model
Warranty	1-year Limited Parts & Labor
Weight	950.00
