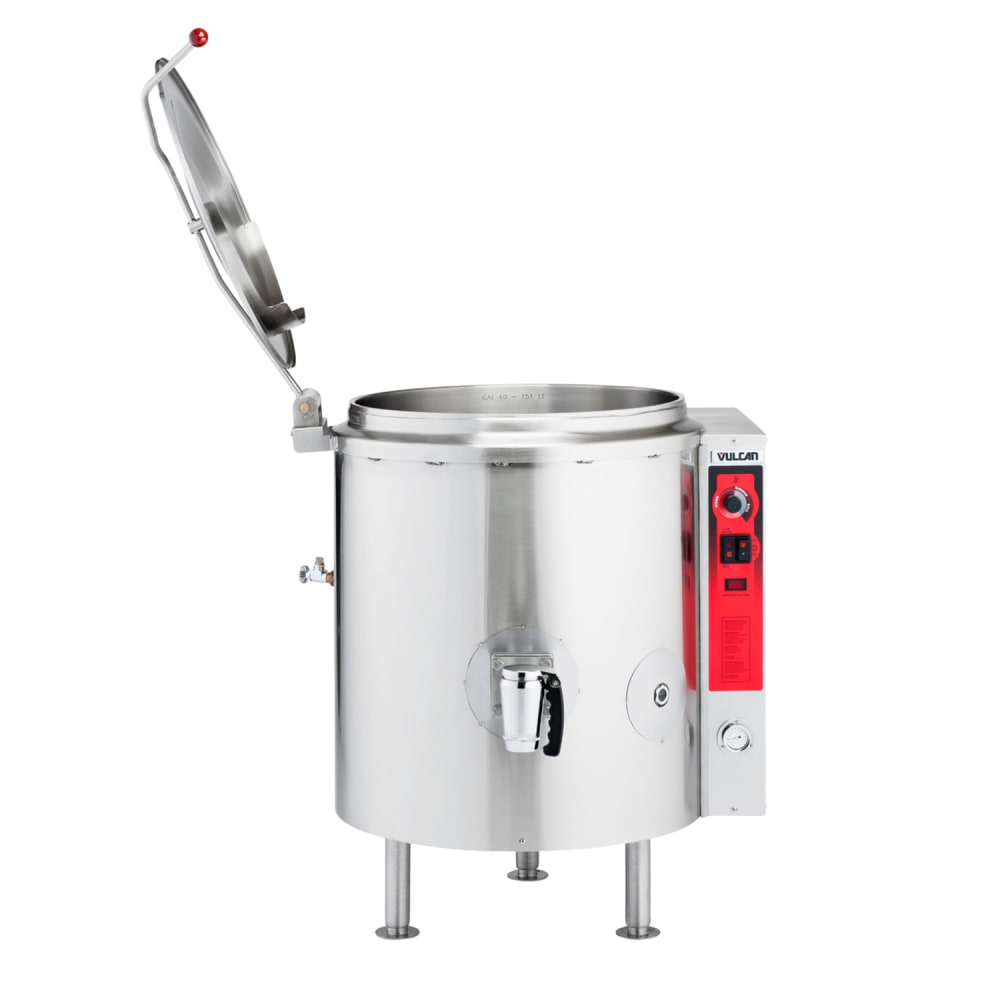

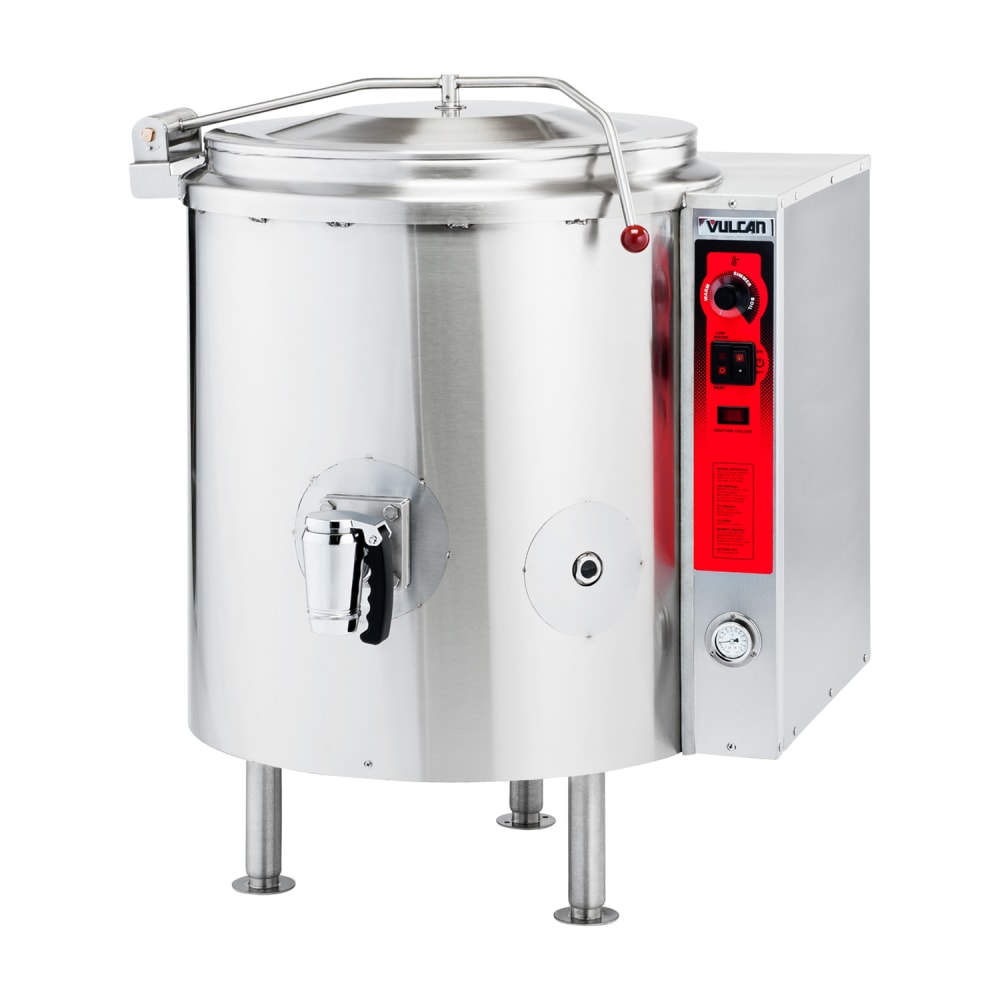

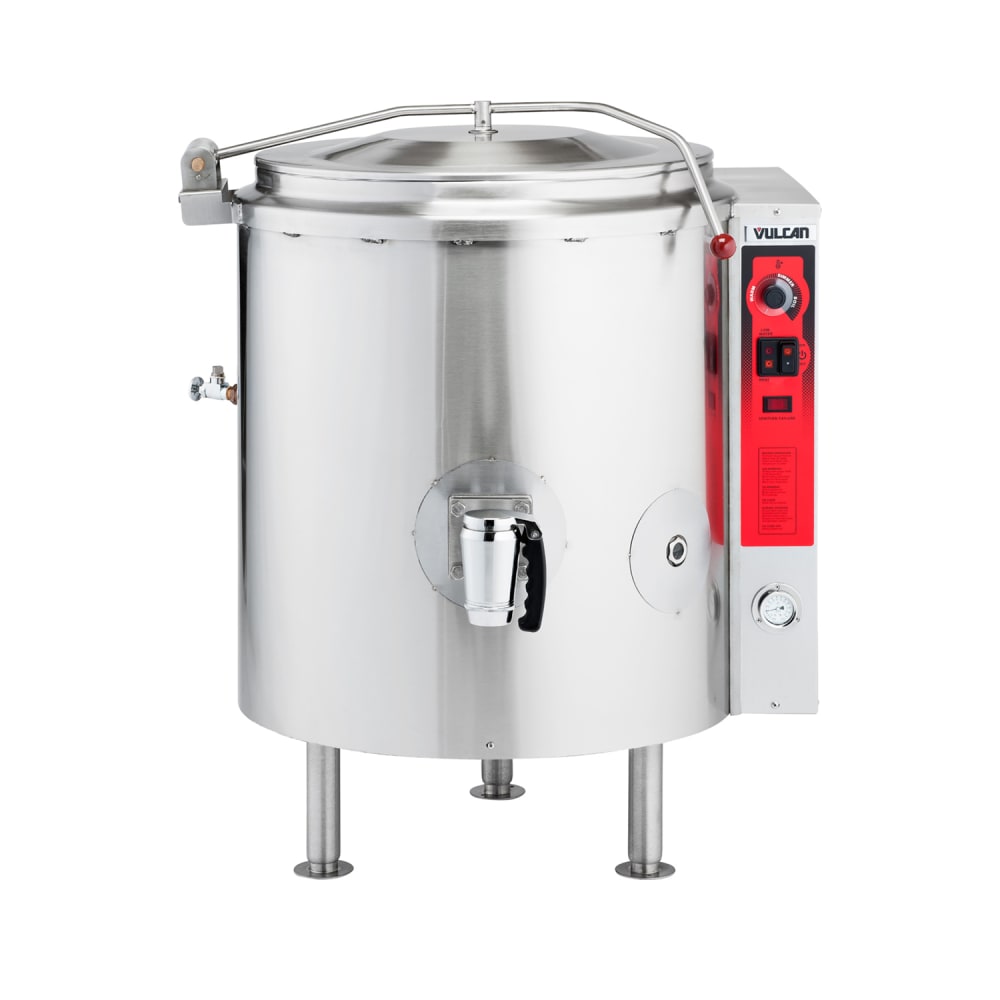

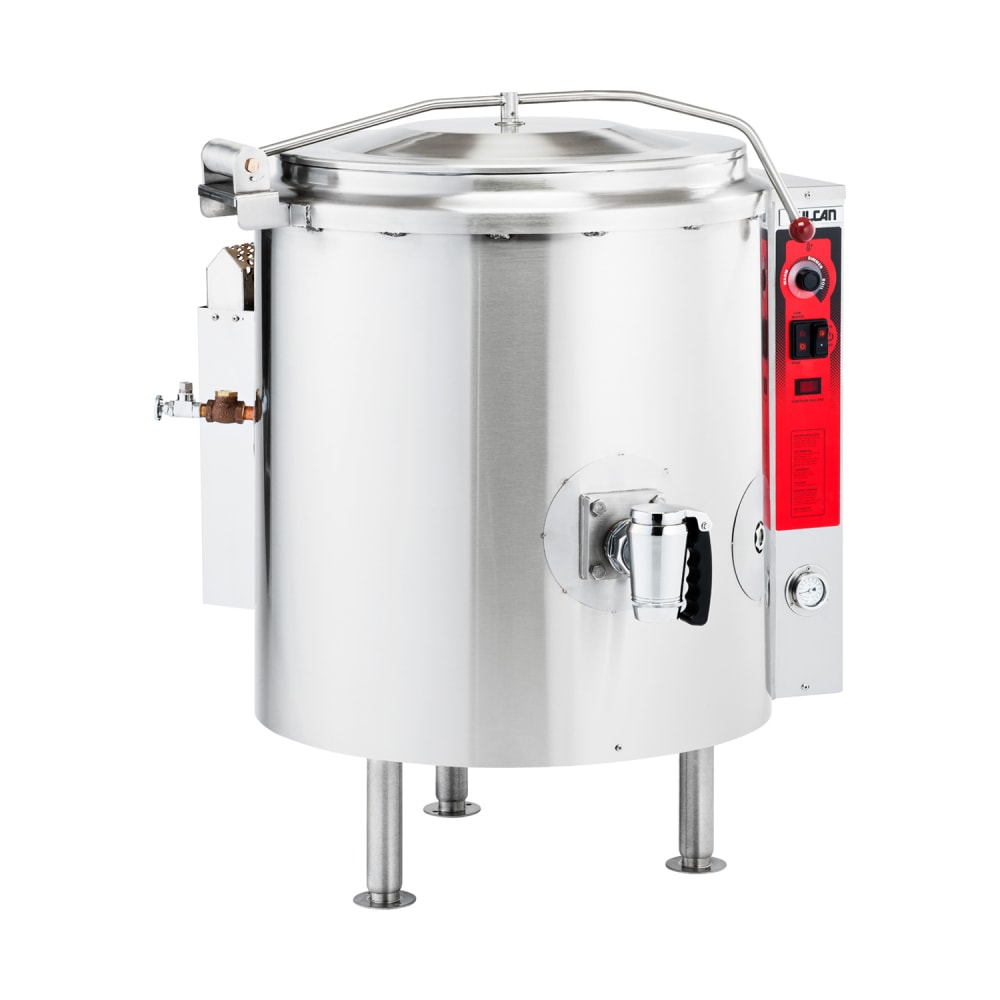

Vulcan K40GL 40 gal Steam Kettle - Stationary, 2/3 Jacket, Natural Gas
Typically ships in 3 - 4 weeks
Retail Price: $69,949.00
$28,795.00 /Each
Selected Gas Type: Natural Gas
Vulcan K40GL Description
The Vulcan K40GL stationary kettle has a 40-gallon capacity. The jacket is rated to 50 psi and permanently filled with treated distilled water. Embossed measurement markings help operators produce consistent batches of product. The markings are included in gallons and liters; they come in increments of five, ranging from 15 to 40 gallons. The interior liner is formed with an oval design that directs product to a 2-inch, draw-off valve and perforated strainer. The spring assist hinge on the cover minimizes evaporation and retains heat, while the drop-down lift handle makes the lid easy to open and close. For stability, the kettle can be bolted down to floors with flanged feet.
The controls on the kettle are easy to use. A user-friendly power switch allows the kettle to be easily turned on and off. When the unit is on, the power light is illuminated. Precise adjustments to the temperature can be made by the solid state controls. The pressure relief valve ensures the Vulcan K40GL stationary kettle is operating efficiently and at a safe level. There is a low water light and low water shut-off that monitors the water levels and alerts the operator when it is at a low, unsafe level. Since the controls are enclosed in stainless steel, there are kept out of the splash zone.
- Powered by natural gas
- 40-gal. true working capacity
- Gal. and liter measurement markings are embossed in the interior
- Measurements range from 15-40 gal. in increments of 5
- Steam jacket is rated to 50 psi
- Jacket is permanently filled with treated, distilled water
- Liner is formed with an ellipsoidal design to direct product to the draw-off valve
- 2-in. draw-off valve has a perforated strainer
- Stainless steel cover has a spring assisted hinge to minimize evaporation and retain heat
- Drop-down lift handle makes it easy to open and close the lid
- Flanged feet mount the kettle to the floor for stationary cooking
- Faucet bracket is enclosed in splash-proof stainless steel
- 100,000 BTU
- Overall Dimensions: 36 7⁄10 in. W x 37 11⁄20 in. D x 69 in. H (Height measures the unit with the cover opened)
- Power indicator light illuminates when the unit is on
- Solid state temperature control allows for accurate adjustments of the temperature
- Temperature controls include warm, simmer, and boil settings
- Vacuum and pressure gauge and pressure relief valve ensure safety
- Low water light and low water shut-off evaluates and maintains a safe water level
- Controls are enclosed in stainless steel to prevent damage from liquids
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan K40GL within the 48 contiguous states.
From The Manufacturer
Stationary Kettle, Gas, 40-gallon true working capacity, 2/3 jacketed, 316 series stainless steel liner with ellipsoidal bottom, spring assist cover with condensate ring, 2" compression draw-off valve with perforated strainer, faucet bracket, stainless steel construction, 100,000 BTU
Vulcan K40GL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Base | Tri Leg |
| Capacity (gallons) | 40 |
| Design | 2/3 Jacket |
| Gas Type | NG |
| Heat | Gas |
| No. of Kettles | 1 |
| Series | KGL Series |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 600.00 |
