Vulcan HEG60E 60" Electric Griddle w/ Thermostatic Controls - 3/4" Steel Plate, 208v/3ph
Typically ships in 8 - 10 weeks
Free Shipping Item
Retail Price: $23,180.19
$9,542.00 /Each
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 240V, 1 Phase |
| 240V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Vulcan HEG60E Description

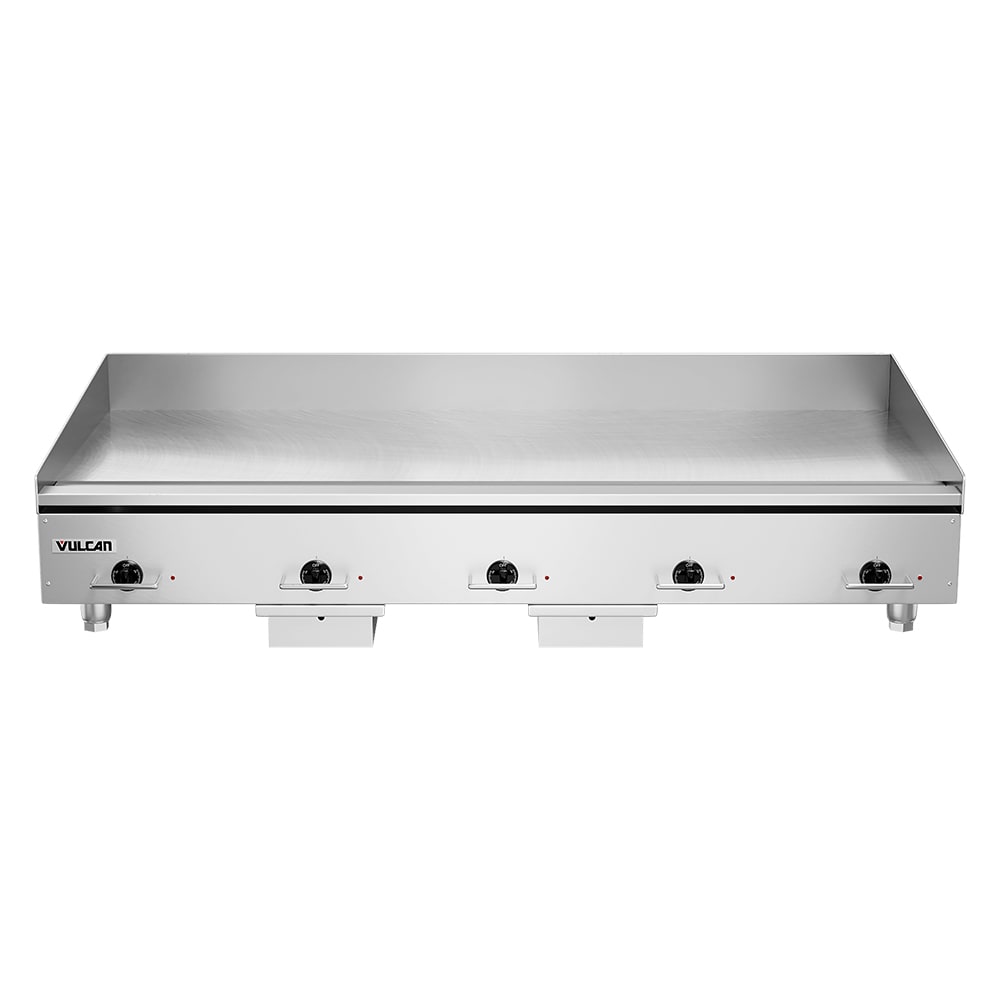

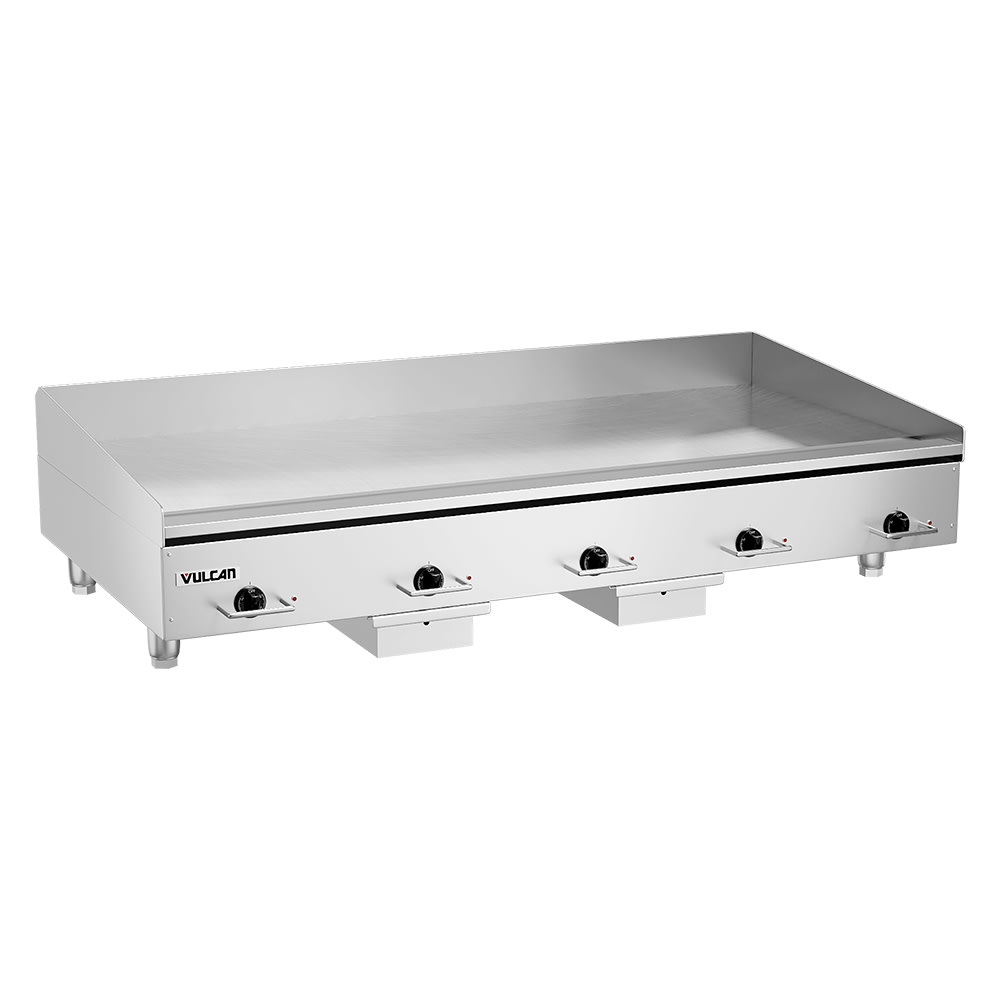

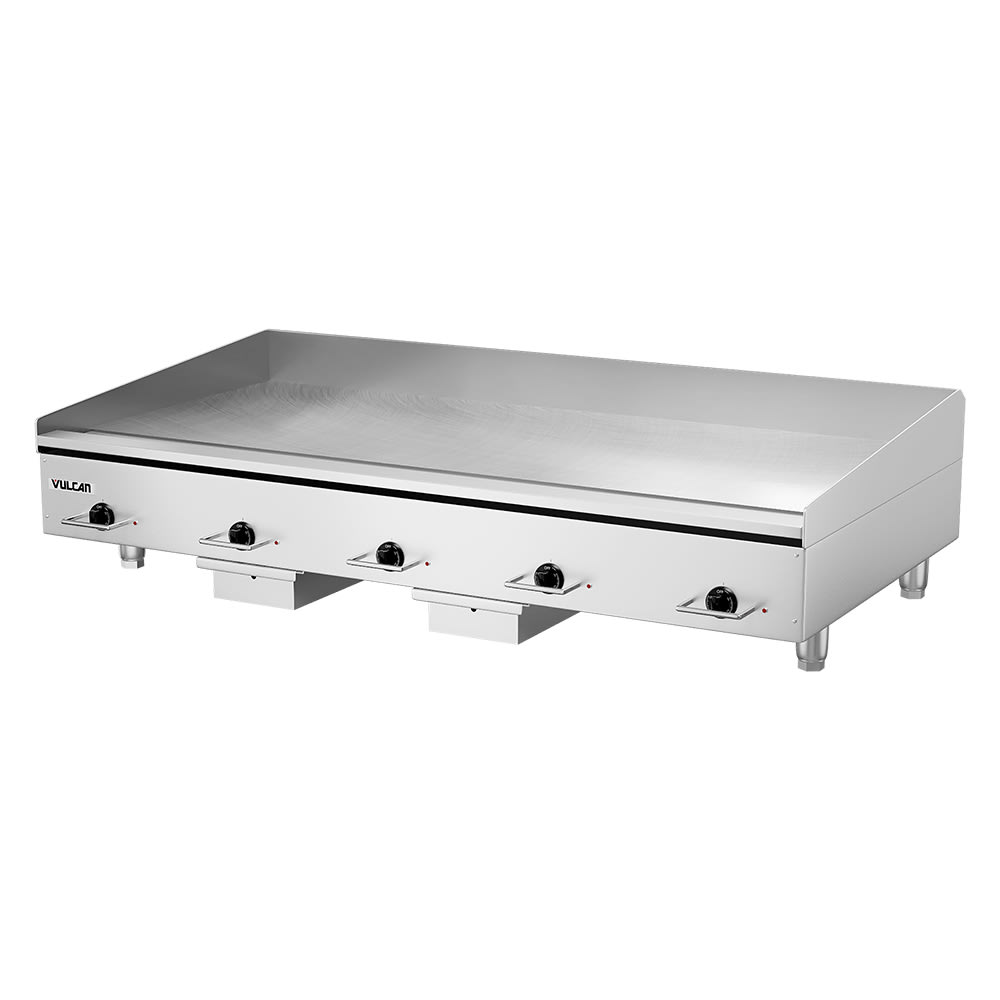

The Vulcan HEG60E HEG-E Series heavy-duty electric griddle has a 60-inch-wide by 24-inch-deep griddle plate equipped to cook several foods at once. Snap-action thermostats line the front of the griddle, with all five controlling a separate 12-inch section of the griddle. Its 3/4-inch-thick steel plate is heated by two solid, tubular incoloy heating elements for fast heating. Able to reach temperatures between 200 and 450 degrees Fahrenheit, this griddle can reheat and thoroughly cook various foods.
For stability and versatility, the stainless steel Vulcan HEG60E commercial griddle is lifted above the countertop with four adjustable legs and 11-inch overall height. Low-maintenance, protective components are built into the griddle, such as three splash guards located on the sides and rear of the griddle. These guards prevent grease from splashing onto the counter or the user. Grease cleanup is simplified with the 31/2-inch-wide front grease trough and the griddle's two 1.5-gallon-capacity grease drawers.
Product Details
- Part of the HEG-E series
- 3/4-in.-thick steel plate
- Temperature range: 200-450 degrees F
- Constructed of stainless steel
- Lifted design with (4) 4-in.-high adjustable legs
- Heated with 2 incoloy heating elements
- 12-in. sections warm separately
- 5 snap-action thermostatic controls with cycling lights
- 5 chrome thermostat knob guards
- 4-in.-high rear splash guard
- 2 tapered side splash guards
- 31/2-in.-wide front grease trough
- 2 grease drawers with 1.5-gal. capacity each
- Side and rear clearance: 1 in.
- Bottom clearance: 4 in.
Dimensions & Utilities
- Griddle plate: 60 in. W x 24 in. D
- Overall: 60 in. W x 311/2 in. D x 153/10 in. H
- 22.5-45 A, 27 kW
- 208 V/60 Hz/3 ph
*Free shipping on Vulcan HEG60E within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, electric, countertop, 60" W x 24" D cooking surface, 3/4" thick polished steel griddle plate, bottom mounted snap action thermostat every 12", low profile, stainless steel front, sides, front top ledge with "Cool Bullnose", (2) front grease trough, 4" back & tapered side splashes, 4" adjustable legs, CSAus, NSF
*Image may not depict product color, inclusions or accessories.
Resources
1-year Limited Parts & Labor
Vulcan HEG60E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Heat | Electric |
| Hertz | 60 |
| kW | 27 |
| Overall Width (in) | 60 |
| Phase | 3 |
| Plate Material | Steel |
| Plate Thickness (in) | 3/4 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | HEG-E Series |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 535.00 |
Documents
Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
