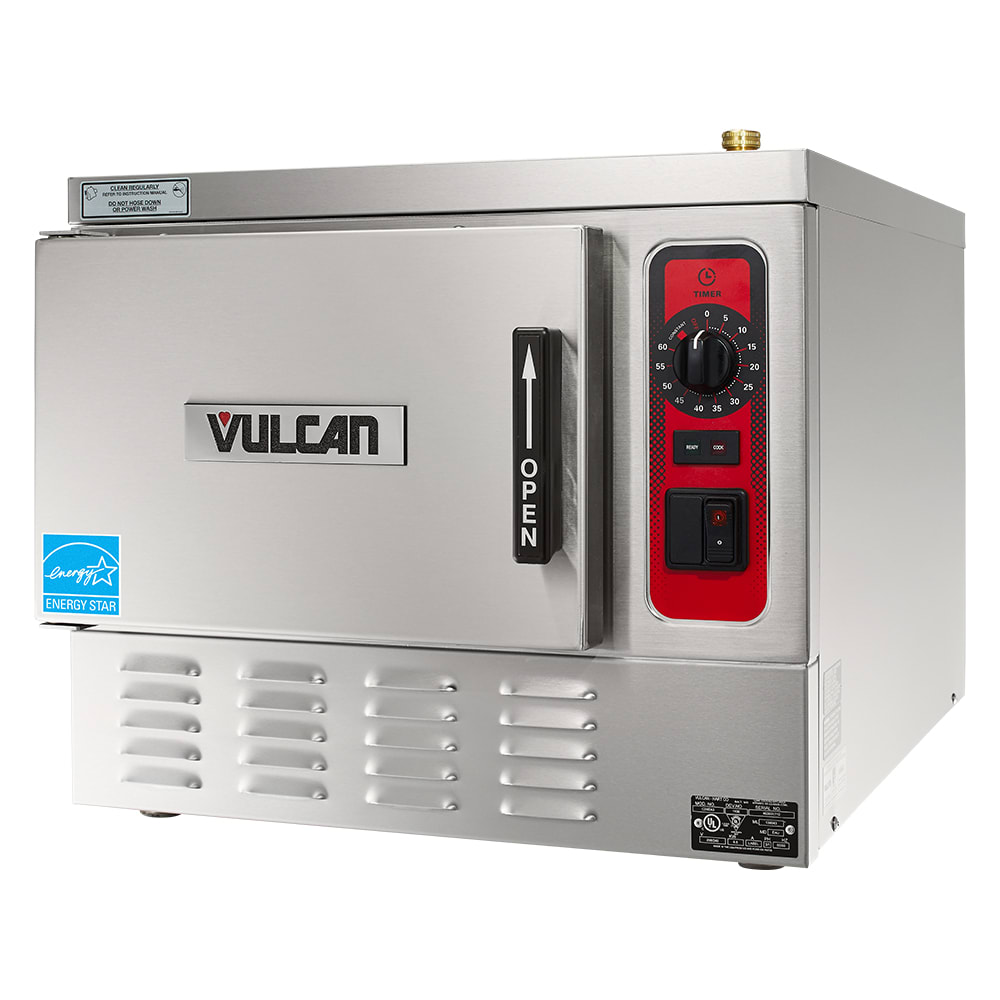

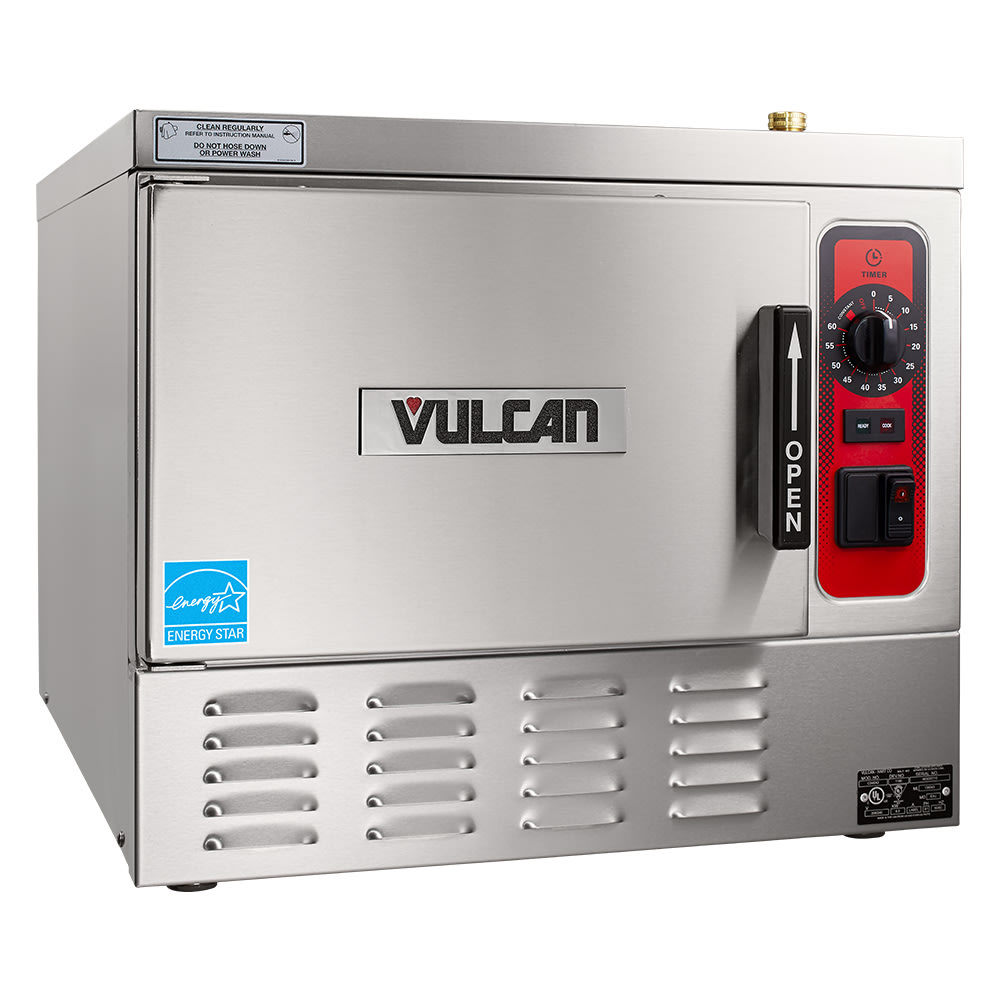

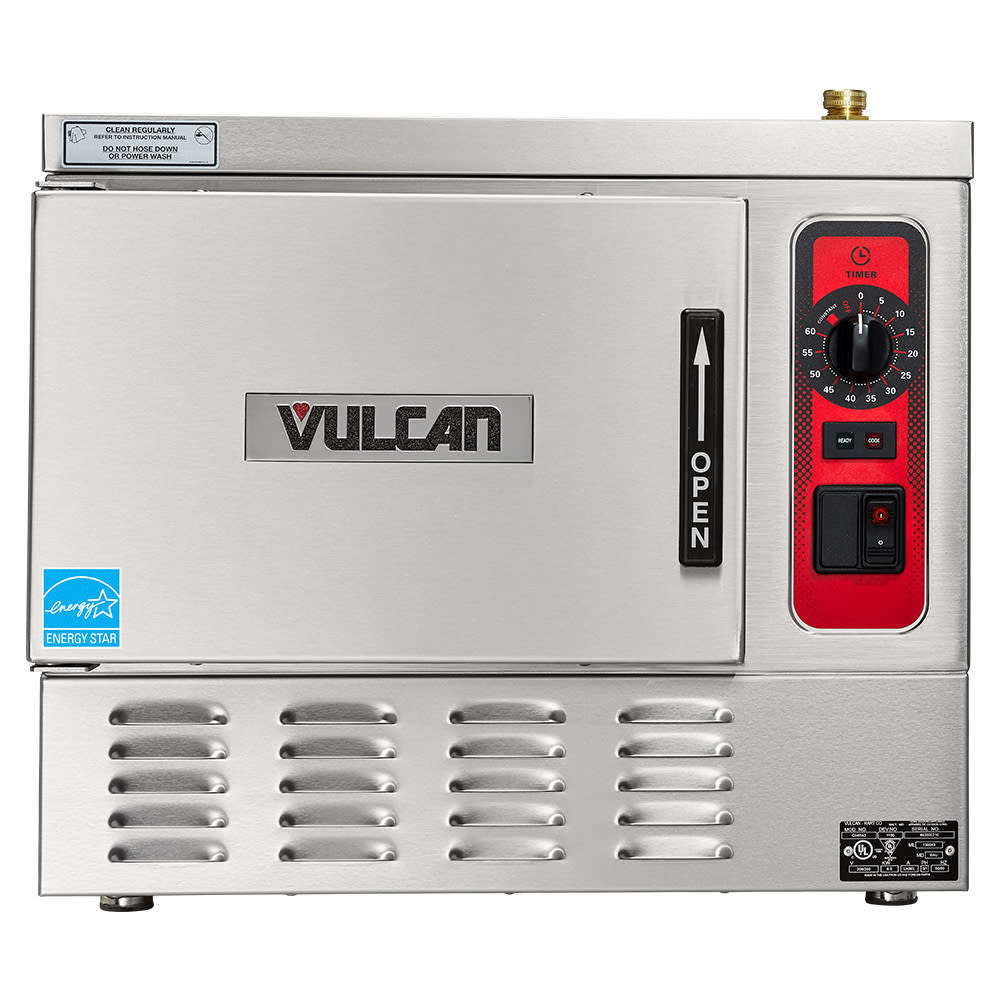

Vulcan C24EA3-PLUS (3) Pan Convection Steamer - Countertop, 208v/3ph

The Vulcan C24EA3 PLUS countertop convection steamer is constructed with a single compartment. It has a 60-minute timer and professional controls and comes with a buzzer and constant steam feature. This unit's cook/ready lights indicate the status of the equipment to the user. Operators can turn the unit on and off with the power switch. High-output stainless steel constructs the generator, which features SmartDrain, PowerFlush, and two-speed staged waterfill for optimal heat-up and steam quality. This steamer can thoroughly cook frozen vegetables in minutes with its natural steam-stirring system, quickly preparing many types of product.

The exterior and cooking compartment are constructed of stainless steel with coved corners on the interior to facilitate cleaning. The door and door latch mechanism are heavy duty, while a door gasket guard seals the door. The Vulcan C24EA3 PLUS three-pan convection steamer is equipped with a relief for cord strain. It is nearly impossible to overcook product in this unit, and it is far more popular than its pressurized alternative.

Product Details

• One compartment
• Holds (3) 12-in. x 20-in. x 2¹⁄₂-in. pans
• 60-min. timer and professional controls
• Buzzer and constant steam feature
• Cook/ready lights notify user about unit status
• Operators can turn the unit on and off with the power switch
• High-output, stainless steel generator
• Generator has SmartDrain, Powerflush, and 2-speed staged waterfill for optimal heat-up and steam quality
• Exterior and cooking compartment constructed of stainless steel with coved interior corners
• Door and door latch mechanism are heavy duty and come with a door gasket guard

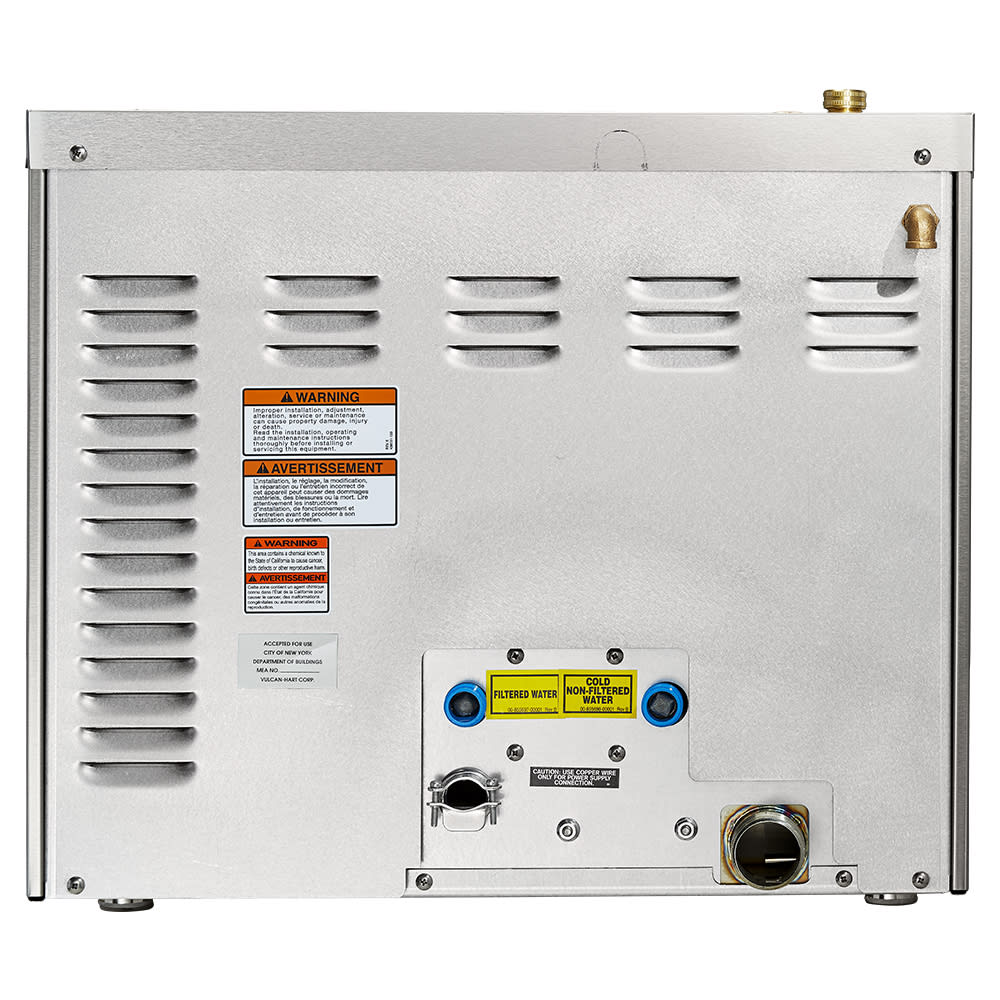

• Split connection for the water line
• 1¹⁄₂-in. drain connection for the NPT
• Equipped with cord strain relief

Product Features

Dimensions & Utilities

• 24 in. W x 33 in. D x 19¹/₂ in. H
• 27 A, 8.5 kW
• 208 V/50/60 Hz/3 ph

*Free shipping on Vulcan C24EA3-PLUS within the 48 contiguous states.

From The Manufacturer

Convection Steamer, countertop, electric, 1 compartment, 24" wide, (3) 12" x 20" x 2-1/2" pans capacity, high output stainless steel steam generator with Timed Smart Drain & PowerFlush, staged water fill, professional controls with 60-minute timer, buzzer and constant steam feature, cook/ready lights & power switch, split water lines, stainless steel interior & exterior, leveling feet, UL EPH Classified, cULus

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Vulcan C24EA3-PLUS Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
