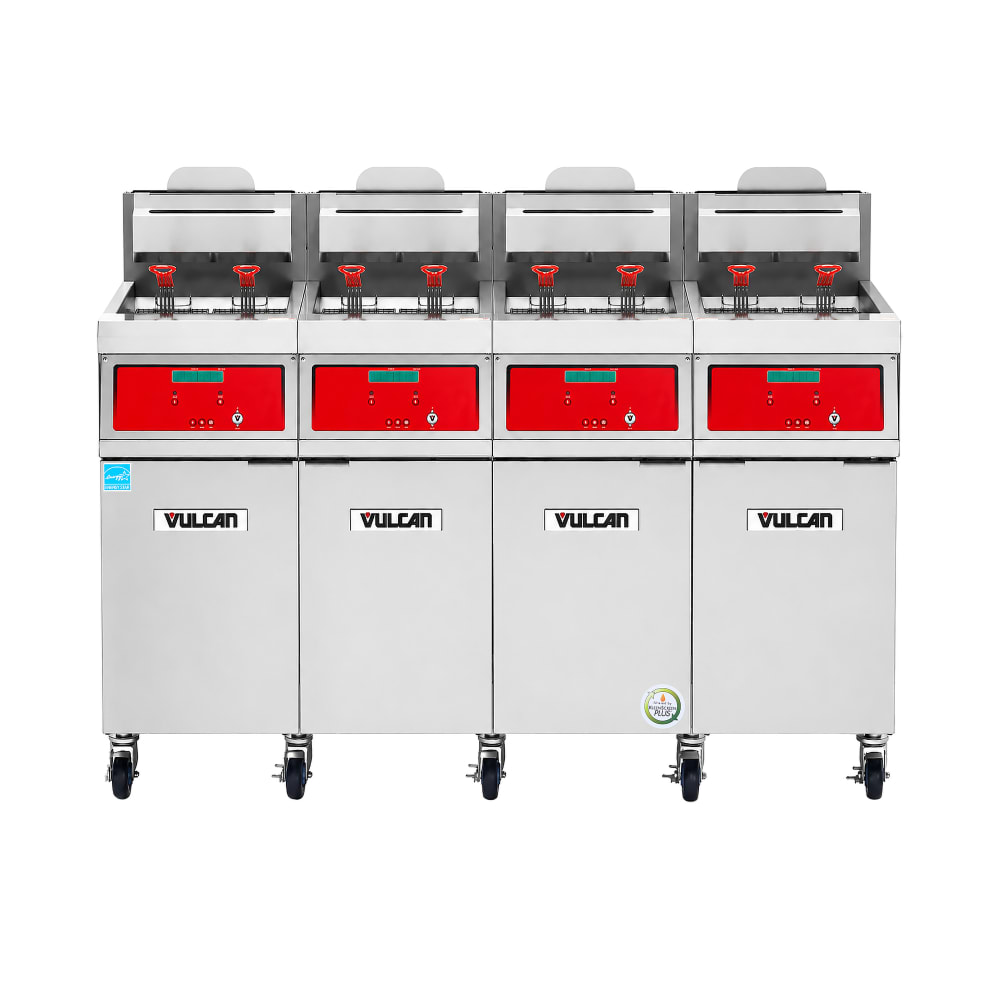

Vulcan 4VHG50DF QuickFry™ Gas Fryer - Four 50 lb Vats, Floor Model, Natural Gas
Retail Price: $123,000.00
$50,633.00 /Each
Selected Gas Type: Natural Gas
Vulcan 4VHG50DF Description
The Vulcan 4VHG50DF QuickFry™ gas fryer features four 50-pound tube-type frypots with a combined 200-pound oil capacity and a total 300,000-BTU input to support high-volume production of breaded foods in restaurants, cafeterias, and other commercial kitchens. Accurate digital controls maintain temperatures from 150 to 390 degrees Fahrenheit and provide two countdown timers, three melt modes, electronic ignition, and automatic or manual boil-out functions to support a range of frying applications. Eight fry baskets enable operators to prepare multiple batches simultaneously across the four frypots.
Built for routine oil maintenance, the Vulcan 4VHG50DF gas fryer incorporates the KleenScreen PLUS filtration system with a one-touch pump that circulates hot oil through a stainless steel mesh filter at 8 gallons per minute. A hands-free oil return connection streamlines the filtration process, while the drain valve interlock automatically shuts off the burners whenever the drain valve is opened and the dry-fire prevention sequence helps protect the frypots. Its adjustable casters, included tank brush, cleanout rod, and discard hose support cleaning and maintenance between cooking cycles.
- QuickFry series
- 50-lb. oil capacity per frypot
- 200-lb. total oil capacity
- 4 tube-type frypots
- Stainless steel cabinet and fry tanks
- 8 fry baskets with plastic-coated handles
- Electronic ignition
- 3 melt modes
- Automatic and manual boil-out modes
- 6-ft. high-temperature discard hose
- Tank brush and cleanout rod
- (4) 6-in. adjustable casters (2 locking)
- Digital temperature controls with display
- Temperature range: 150-390 degrees F
- 300,000-BTU total input
- KleenScreen PLUS built-in filtration
- 1-touch filtration pump activation
- Oil circulation rate: 8 gal./min.
- 16-ga. stainless steel filter pan
- 90-lb. filter pan oil capacity
- Stainless steel mesh filter screen
- Hands-free oil return connection
- 62 1⁄4 in. W x 33 1⁄2 in. D x 47 3⁄4 in. H
- 7.2 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 4VHG50DF within the 48 contiguous states.
From The Manufacturer
QuickFry™ Fryer, gas, high efficiency, 62-1/4"W, (4) battery, 50 lbs. capacity per vat, digital control with melt cycles, electronic ignition, KleenScreen PLUS filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 300,000 BTU, CSA, NSF, ENERGY STAR
Watch a video about this product
Vulcan 4VHG50DF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 8 |
| BTU per Fryer | 75000 |
| Depth (in) | 33.5 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 47.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | QuickFry™ |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 62.25 |
| Weight | 871.00 |
