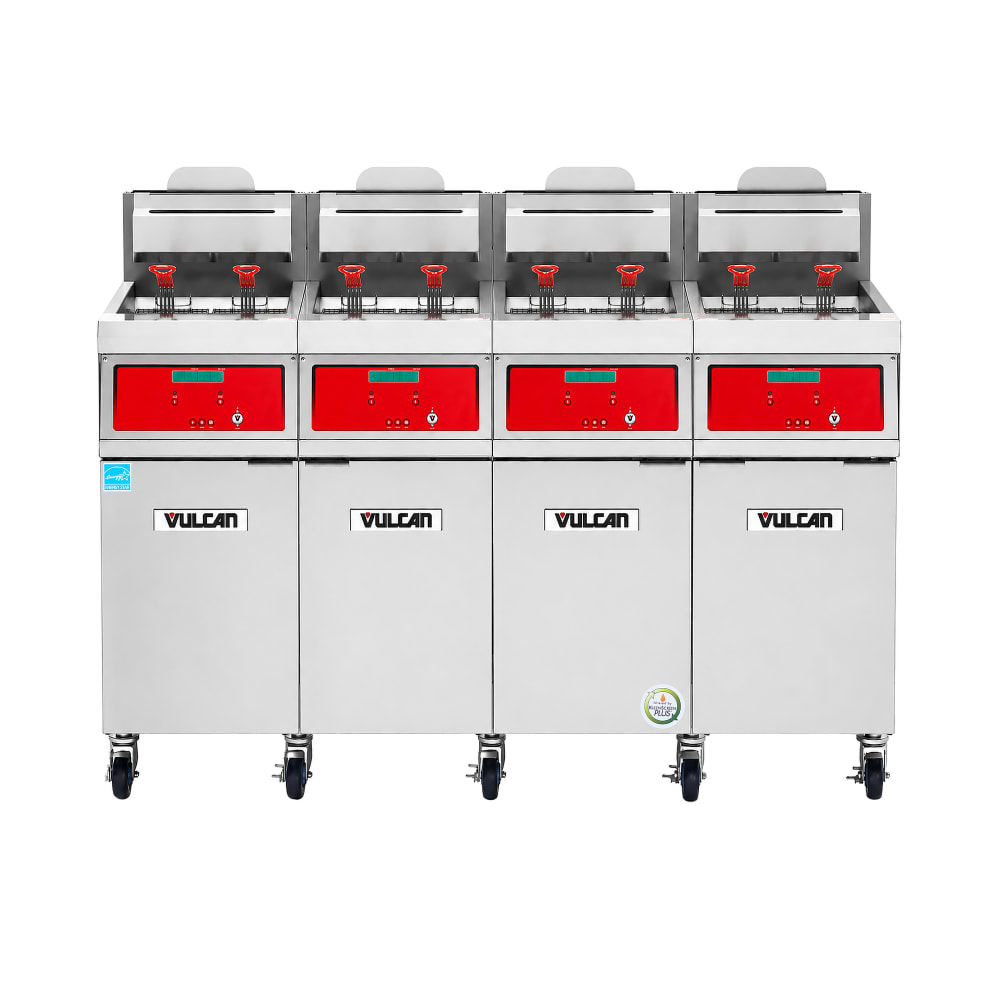

Vulcan 4VHG50DF QuickFry™ Gas Fryer - Four 50 lb Vats, Floor Model, Liquid Propane
Retail Price: $123,000.00
$50,633.00 /Each
Selected Gas Type: Liquid Propane
Vulcan 4VHG50DF Description
The Vulcan 4VHG50DF QuickFry™ gas fryer delivers high-capacity production with four independently controlled 50-pound frypots that provide a combined 200-pound oil capacity for breaded foods. Digital controls maintain temperatures from 150 to 390 degrees Fahrenheit and include two countdown timers, three melt modes, and automatic or manual boil-out functions to support consistent cooking throughout the day. The unit's electronic ignition and 280,000-BTU total input provide dependable heating for demanding commercial operations.
Designed to simplify oil maintenance, the Vulcan 4VHG50DF gas fryer incorporates the KleenScreen PLUS filtration system with a one-touch pump that circulates hot oil through a stainless steel mesh filter at 8 gallons per minute. Stainless steel fry tanks and the cabinet withstand heavy daily use, while a hands-free oil return connection streamlines filtering between cooking cycles. A drain valve interlock automatically shuts off the burners when the drain valve opens, and the dry-fire prevention sequence adds protection during operation. Adjustable casters, a tank brush, cleanout rod, and high-temperature discard hose support routine cleaning and repositioning.
- From the QuickFry series
- 50-lb. oil capacity per frypot
- 200-lb. total oil capacity
- 4 tube-type frypots
- Stainless steel cabinet and fry tanks
- 8 fry baskets with plastic-coated handles
- Electronic ignition
- 3 melt modes
- Automatic and manual boil-out modes
- 6-ft. high-temperature discard hose
- Tank brush and cleanout rod
- (4) 6-in. adjustable casters (2 locking)
- Digital controls
- Temperature range: 150-390 degrees F
- 280,000-BTU total input
- KleenScreen PLUS filtration system
- 1-touch pump activation
- Oil circulation rate: 8 gal./min.
- 16-ga. stainless steel filter pan
- 90-lb. filter pan oil capacity
- Stainless steel mesh filter screen
- Hands-free oil return connection
- 62 1⁄4 in. W x 33 1⁄2 in. D x 47 3⁄4 in. H
- 7.2 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 4VHG50DF within the 48 contiguous states.
From The Manufacturer
QuickFry™ Fryer, gas, high efficiency, 62-1/4"W, (4) battery, 50 lbs. capacity per vat, digital control with melt cycles, electronic ignition, KleenScreen PLUS filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR
Watch a video about this product
Vulcan 4VHG50DF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 8 |
| BTU per Fryer | 70000 |
| Depth (in) | 33.5 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 47.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | QuickFry™ |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 62.25 |
| Weight | 871.00 |
