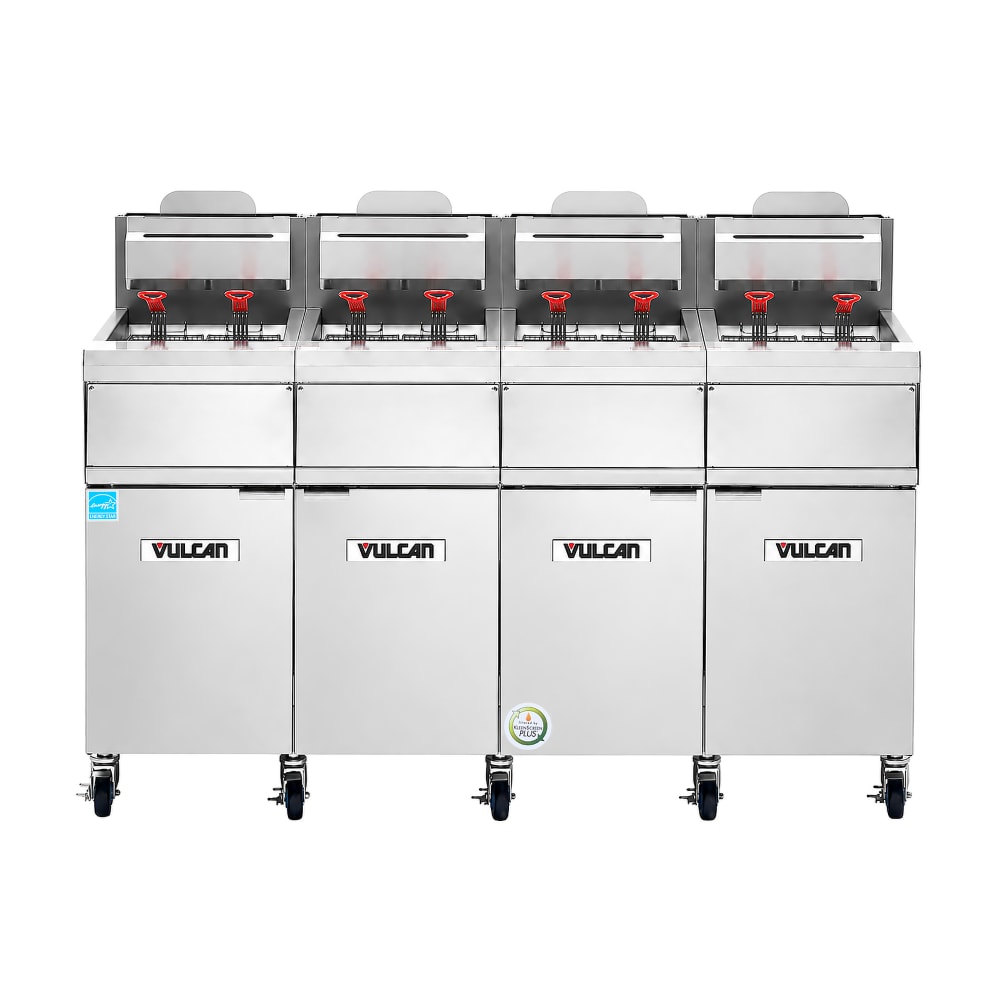

Vulcan 4VHG50AF QuickFry™ Gas Fryer - Four 50 lb Vats, Floor Model, Natural Gas
Retail Price: $120,000.00
$49,398.00 /Each
Selected Gas Type: Natural Gas
Vulcan 4VHG50AF Description
The Vulcan 4VHG50AF QuickFry™ gas fryer equips busy commercial kitchens with four independently heated frypots, each holding 50 pounds of oil for a combined 200-pound capacity. A total input of 300,000 BTU provides the heating power needed for continuous production of breaded foods, while its solid state analog controls with a digital character display maintain temperatures from 150 to 390 degrees Fahrenheit. The three melt modes and electronic ignition support consistent operation throughout the cooking day.
To simplify oil maintenance, the Vulcan 4VHG50AF gas fryer incorporates the KleenScreen PLUS filtration system with a one-touch pump that circulates hot oil through a stainless steel mesh filter at 8 gallons per minute. Stainless steel fry tanks and a stainless steel cabinet withstand demanding commercial use, while a hands-free oil return connection, tank brush, cleanout rod, and high-temperature discard hose support routine cleaning. A drain valve interlock automatically turns off the burners whenever the drain valve opens, and the dry-fire prevention sequence helps protect the frypots during operation.
- From the QuickFry series
- 50-lb. oil capacity per frypot
- 200-lb. total oil capacity
- 4 tube-type frypots
- Stainless steel cabinet and fry tanks
- 8 fry baskets with plastic-coated handles
- Electronic ignition
- 3 melt modes
- 6-ft. high-temperature discard hose
- Tank brush and cleanout rod
- (4) 6-in. adjustable casters (2 locking)
- Solid state analog controls with digital character display
- Temperature range: 150-390 degrees F
- 300,000-BTU total input
- KleenScreen PLUS built-in filtration
- 1-touch filtration pump activation
- Oil circulation rate: 8 gal./min.
- 16-ga. stainless steel filter pan
- 90-lb. filter pan oil capacity
- Hands-free oil return connection
- 62 1⁄4 in. W x 33 1⁄2 in. D x 47 3⁄4 in. H
- 7.2 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 4VHG50AF within the 48 contiguous states.
From The Manufacturer
QuickFry™ Fryer, gas, high efficiency, 62-1/4"W, (4) battery, 50 lbs. capacity per vat, solid state analog knob control with melt cycles, electronic ignition, KleenScreen PLUS filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 300,000 BTU, CSA, NSF, ENERGY STAR
Watch a video about this product
Vulcan 4VHG50AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 8 |
| BTU per Fryer | 75000 |
| Depth (in) | 33.5 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 47.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | QuickFry™ |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 62.25 |
| Weight | 871.00 |
