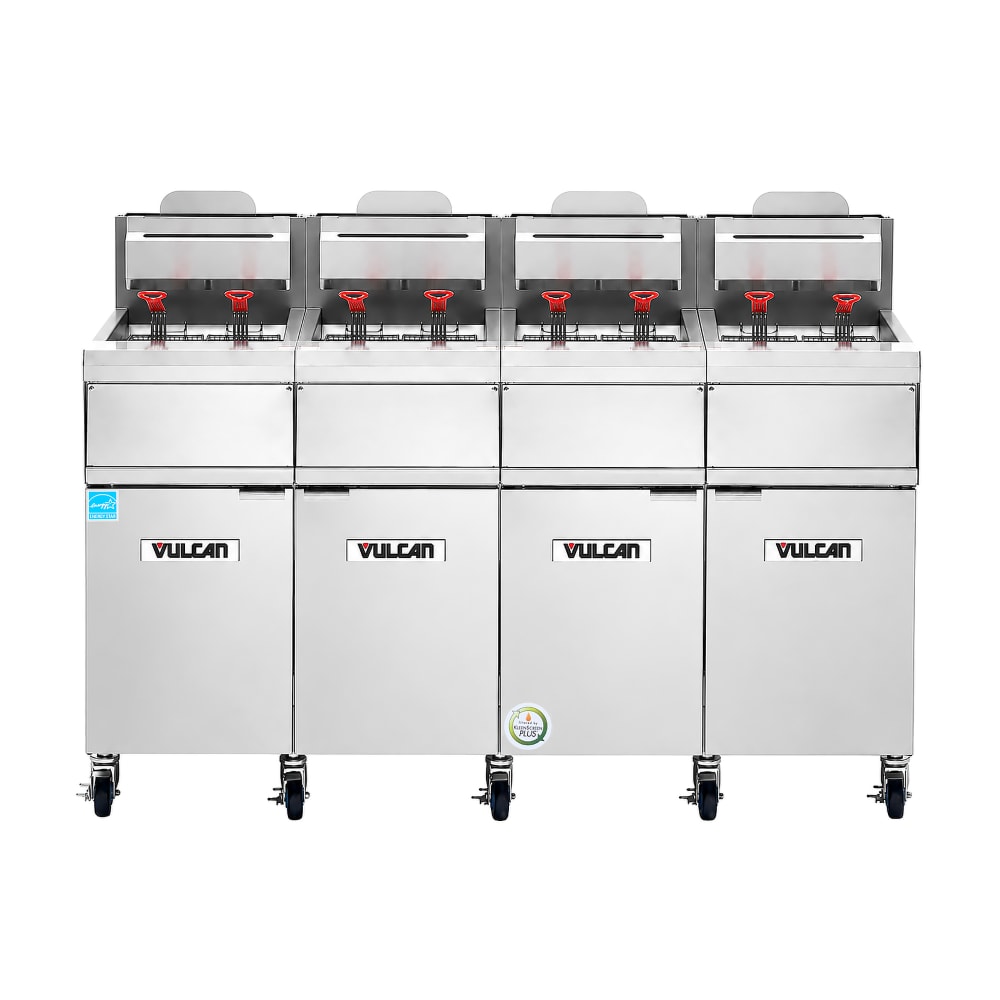

Vulcan 4VHG50AF QuickFry™ Gas Fryer - Four 50 lb Vats, Floor Model, Liquid Propane
Retail Price: $120,000.00
$49,398.00 /Each
Selected Gas Type: Liquid Propane
Vulcan 4VHG50AF Description
The Vulcan 4VHG50AF QuickFry™ gas fryer provides four 50-pound frypots with a combined 200-pound oil capacity and 280,000-BTU total input for high-volume preparation of breaded foods. Solid state analog controls with a digital character display maintain temperatures from 150 to 390 degrees Fahrenheit and offer three melt modes, electronic ignition, and Fahrenheit or Celsius temperature readouts. Eight fry baskets enable operators to manage multiple cooking batches across four independently heated frypots.
To keep oil circulating as part of routine maintenance, the Vulcan 4VHG50AF gas fryer integrates the KleenScreen PLUS filtration system with a one-touch pump that moves hot oil through a stainless steel mesh filter at 8 gallons per minute. A drain valve interlock automatically turns off the burners when the drain valve opens, while the dry-fire prevention sequence supports dependable operation throughout the workday. Stainless steel fry tanks and a stainless steel cabinet withstand daily use, and the included tank brush, cleanout rod, and high-temperature discard hose help simplify cleaning and oil handling.
- Part of the QuickFry series
- 50-lb. oil capacity per frypot
- 200-lb. total oil capacity
- 4 tube-type frypots
- Stainless steel cabinet and fry tanks
- 8 fry baskets with plastic-coated handles
- Electronic ignition
- 3 melt modes
- 6-ft. high-temperature discard hose
- Tank brush and cleanout rod
- (4) 6-in. adjustable casters (2 locking)
- Solid state analog controls with digital character display
- Temperature range: 150-390 degrees F
- 280,000-BTU total input
- KleenScreen PLUS built-in filtration
- 1-touch filtration pump activation
- Oil circulation rate: 8 gal./min.
- 16-ga. stainless steel filter pan
- 90-lb. filter pan oil capacity
- Hands-free oil return connection
- 62 1⁄4 in. W x 33 1⁄2 in. D x 47 3⁄4 in. H
- 7.2 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 4VHG50AF within the 48 contiguous states.
From The Manufacturer
QuickFry™ Fryer, gas, high efficiency, 62-1/4"W, (4) battery, 50 lbs. capacity per vat, solid state analog knob control with melt cycles, electronic ignition, KleenScreen PLUS filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 280,000 BTU, CSA, NSF, ENERGY STAR
Watch a video about this product
Vulcan 4VHG50AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Baskets | 8 |
| BTU per Fryer | 70000 |
| Depth (in) | 33.5 |
| Food Type | Breaded |
| Frypot Style | Tube Type |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 47.75 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Fry Pots | 4 |
| Oil Capacity (lb) | 200 |
| Oil Capacity/Fryer (lb) | 50 |
| Phase | 1 |
| Product | Gas Fryers |
| Product Type | Cooking Equipment |
| Rating | Best |
| Series | QuickFry™ |
| Special Features | Built In Filter |
| Special Features | Casters Included - Uninstalled |
| Special Features | High Efficiency |
| Special Features | Melt Cycle |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 62.25 |
| Weight | 871.00 |
