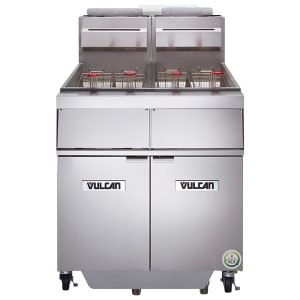

Vulcan 2GR45MF Gas Fryer - (2) 50 lb Vats, Floor Model, Natural Gas

To accommodate high-volume cooking requirements, the Vulcan 2GR45MF fryer has two stainless steel fry tanks and a stainless steel cabinet. French fries, onion rings, chicken nuggets, and more can be placed in the two sets of twin baskets, which are then lowered into the two 45- to 50-pound capacity vats. To protect users from burns, these baskets have plastic-coated handles. This freestanding unit is mounted on four adjustable 6-inch casters. Because two of the casters have brakes, the fryer can be locked in place while in use. Overall, this fryer measures 31 inches wide by 30¹⁄₈ inches deep by 46¹⁄₄ inches high and should be installed under a vent.

The Vulcan 2GR45MF gas fryer is powered by natural gas and generates temperatures between 200 and 400 degrees Fahrenheit; users can monitor and adjust these temperatures using the millivolt thermostat. Heat is effectively transferred from four heat exchanger tubes to the oil, and to minimize overheating risks, the unit is designed with a high-limit shut-off system. For maintenance, the fuel channel can be closed with the combination gas and pilot shut-off valve. A KleenScreen PLUS® filtration system filters particles as small as 0.5 microns, extending the oil's life. Oil color and taste is preserved with a double-sided mesh screen and a push-button-activated ¹/₃-HP motor and pump; this system circulates oil at 8 gallons per-minute. Polluted oil and waste is then collected in the 70-pound-capacity filter pan. After cleaning, boil-out solution can be removed through the Boil Out ByPass™ system without touching the drain manifold. To expedite cleaning, this unit has a 1¹⁄₄-inch full-port, ball-type drain valve, tank brush, and clean-out rod.

Product Details

• 45-50-lb. vat capacity
• 2 vats
• 2 stainless steel fry tanks with stainless steel cabinet
• 4 fry baskets with plastic-coated handles
• 4 heat exchanger tubes
• Millivolt thermostat controls
• 200-400 degree-F temperature range
• Boil Out Bypass removes boil-out solution without touching the main drainline
• High-limit shut-off system with combination gas and pilot shut-off valve
• 1¹⁄₄-in. full-port, ball-type drain valve
• Adjustable casters (2 casters lock)
• Includes tank brush and clean-out rod
• Requires ventilation system
• 240,000 BTU

Filtration System

• Stainless steel filter pan has 70-lb. capacity
• KleenScreen PLUS filtration system traps fine particulates
• 2-sided stainless steel mesh filter screen
• ¹⁄₃-HP motor and pump circulates oil at 8 GPM
• One-touch push button triggers the pump and motor

Dimensions and Utilities

• Overall: 31 in. W x 30¹⁄₈ in. D x 46¹⁄₄ in. H
• Powered by natural gas
• 6.0 A
• 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 2GR45MF within the 48 contiguous states.

From The Manufacturer

Fryer, natural gas, 31" W, (2) battery, 45-50 lb. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA Star, CSA Flame, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank
