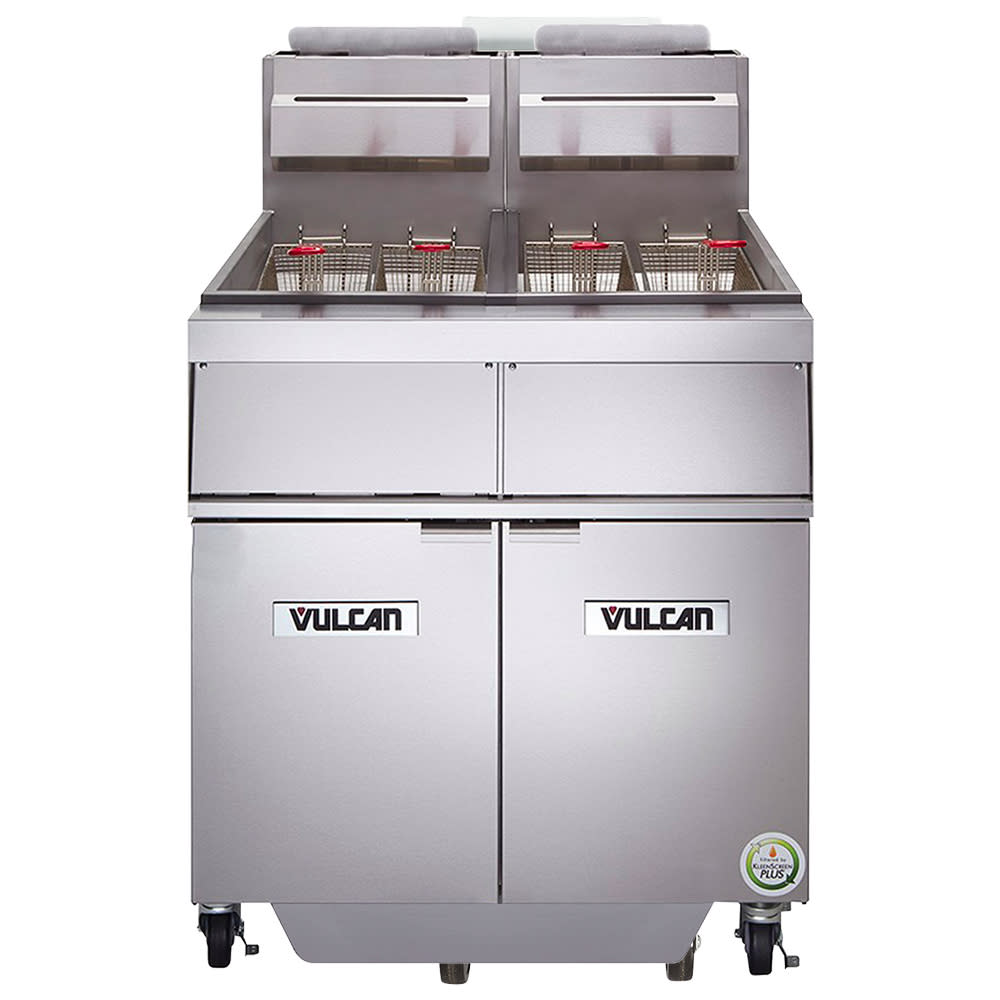

Vulcan 2GR45MF Gas Fryer - (2) 50 lb Vats, Floor Model, Liquid Propane

The Vulcan 2GR45MF LP gas fryer has an adjustable millivolt thermostat, which users can use to raise and lower temperatures between 200 and 400 degrees Fahrenheit. Heat is transferred from four heat exchanger tubes to the oil, and to prevent overheating, it has a high-limit shut off. Users can manually close the fuel channel with the combination gas and pilot shut-off valve. This unit has a Kleenscreen Plus® filtration system, which traps particles that are 40 to 60 times smaller than a paper filter to preserve oil taste and color. This system operates using a double-sided mesh screen and a push-button-activated ¹/₃-HP motor and pump that circulates oil at 8 gallons per-minute. Waste is then collected in the filter pan, which can hold as much as 70 pounds. After users clean the tank with boil-out solution, it can be removed through the Boil Out ByPass™ system without touching the drain manifold. To expedite cleaning, this unit has a 1¹⁄₄-inch full-port, ball-type drain valve, tank brush, and clean-out rod.

For high-volume cooking requirements, the Vulcan 2GR45MF fryer has two stainless steel fry tanks, two vats, and a stainless steel cabinet. To fry shrimp, peppers, chicken, and mozzarella sticks, the tanks boast a 45- to 50-pound capacity. Two sets of twin baskets hold product as they're transferred to and from the vat. Plastic-coated basket handles ease transportation and protect hands from burns. This freestanding unit is mounted on four adjustable 6-inch casters, which have two locks to hold it in place during operation. Overall, this fryer measures 31 inches wide by 30¹⁄₈ inches deep by 46¹⁄₄ inches high and requires a ventilation system for safe operation.

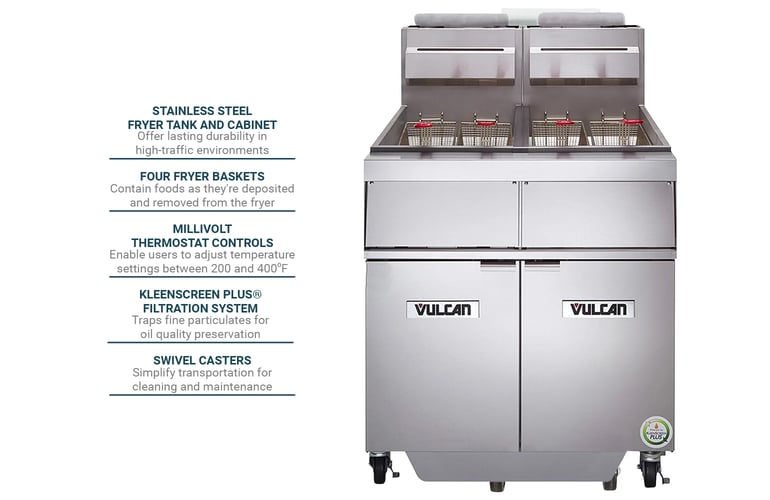

Product Details

• 45-50-lb. vat capacity
• 2 vats
• 2 stainless steel fry tanks are durable for long-term use
• Stainless steel cabinet
• 2 sets of twin fry baskets with plastic-coated handles
• 4 heat exchanger tubes positioned for easy cleaning
• Millivolt thermostat control
• 200-400 degrees F temperature range
• Boil Out Bypass removes boil-out solution without using the main drain
• High-limit shut-off system
• Combination gas and pilot shut-off valve
• 1¹⁄₄-in. full-port, ball-type drain valve
• Adjustable casters, 2 locking to keep fryer in place
• Included tank brush and clean-out rod simplify cleaning
• Ventilation system required
• 240,000 BTU

Filtration System

• 70-lb. filter pan capacity
• Stainless steel filter pan
• KleenScreen PLUS filtration traps particles 40-60 times smaller than paper filters
• Stainless steel mesh screen filters from 2 sides
• ¹⁄₃-HP motor and pump circulates frying compound at 8 GPM
• One-touch push button switch engages the pump and motor

Dimensions and Utilities

• Overall: 31 in. W x 30¹⁄₈ in. D x 46¹⁄₄ in. H
• Powered by LP gas
• 6.0 A
• 115 V/60 Hz/1 ph with cord and NEMA 5-15P plug
• 1¹⁄₄-in. rear gas connection

Product Features

*Free shipping on Vulcan 2GR45MF within the 48 contiguous states.

From The Manufacturer

Fryer, liquid propane gas, 31" W, (2) battery, 45-50 lb. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 240,000 BTU, CSA Star, CSA Flame, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 2GR45MF Specifications

Vulcan started producing equipment in Louisville Ky., more than 150 years ago. Today, the brand produces state-of-the-art cooking appliances, including fryers, ovens, and everything in between. The brand is owned by Illinois Tool Works, a global manufacturing leader.
