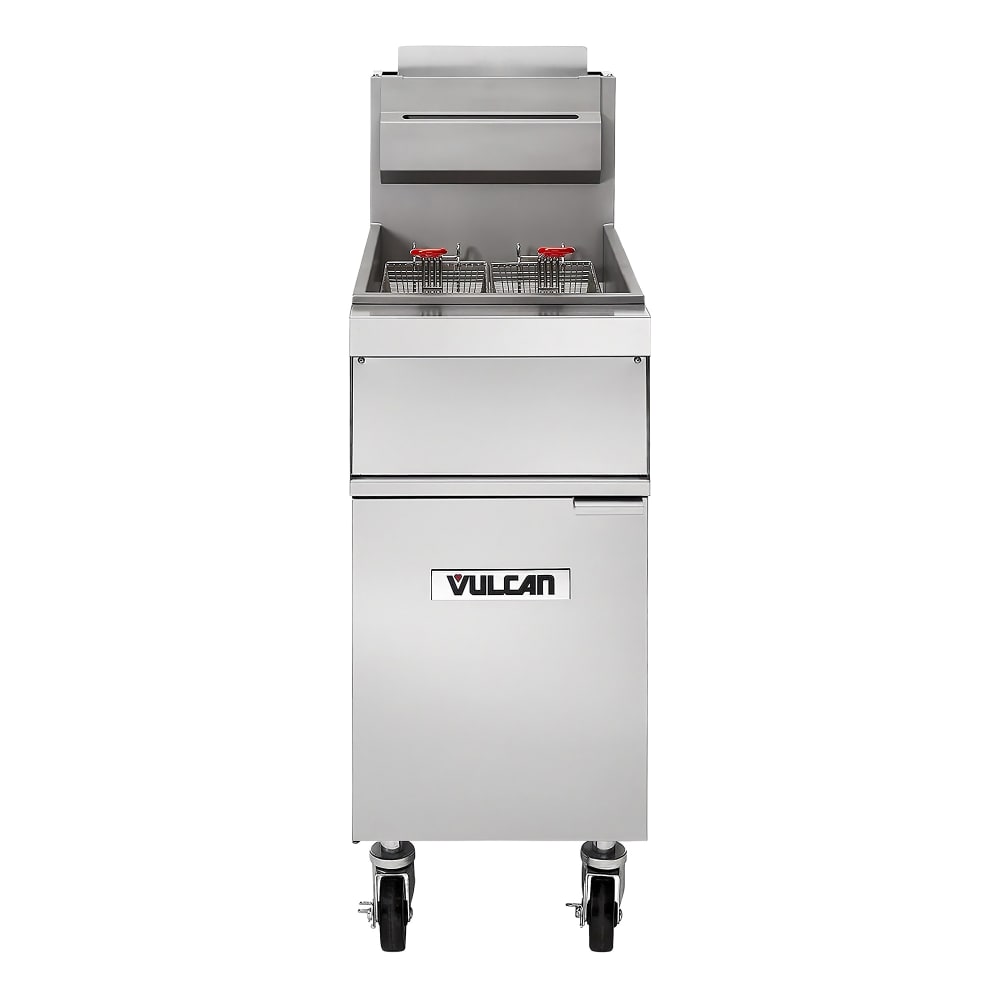

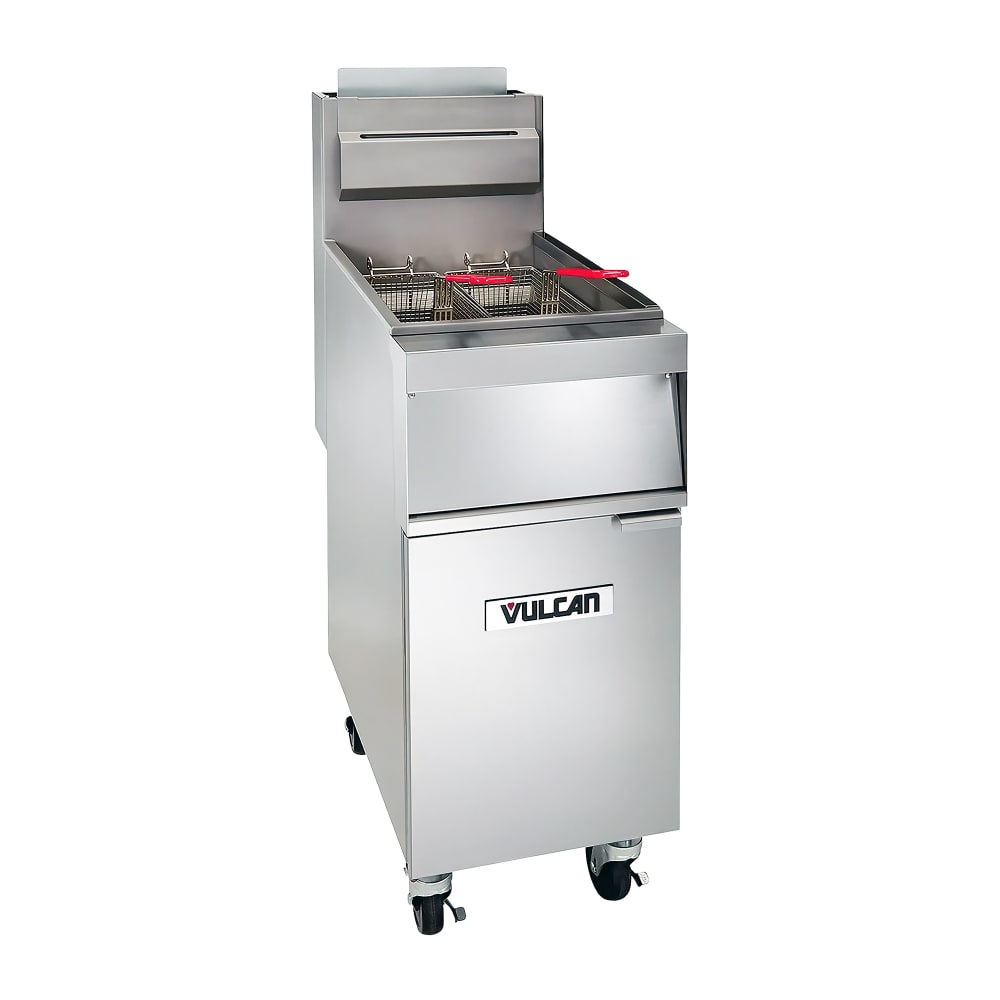

Vulcan 1GR45M Gas Fryer - (1) 50 lb Vat, Floor Model, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 207-1GR45MNG • MPN: 1GR45M NG
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $3,090.00

Selected Gas Type: Natural Gas

Image may not depict product color, inclusions or accessories.

Vulcan 1GR45M Description


The Vulcan 1GR45M fryer is natural gas heated and has a 45- to 50-pound oil capacity in the 14-inch-by-14-inch tank. Two fryer baskets are included to fit in the tank, so multiple batches of product can be prepared at the same time. Millivolt controls adjust the temperature from 200 to 400 degrees Fahrenheit, and a tank brush, crumb scoop, and clean-out rod are included with the unit to simplify cleaning. Staff can remove debris from the tank with the brush, and the scoop removes larger debris the brush cannot reach. Shortening can be carefully stirred out of the cold area with the clean-out rod so it can melt.

Product Details

  • Heated with natural gas
  • 14-in. x 14-in. stainless steel fry tank with a 45-50 lb. oil capacity

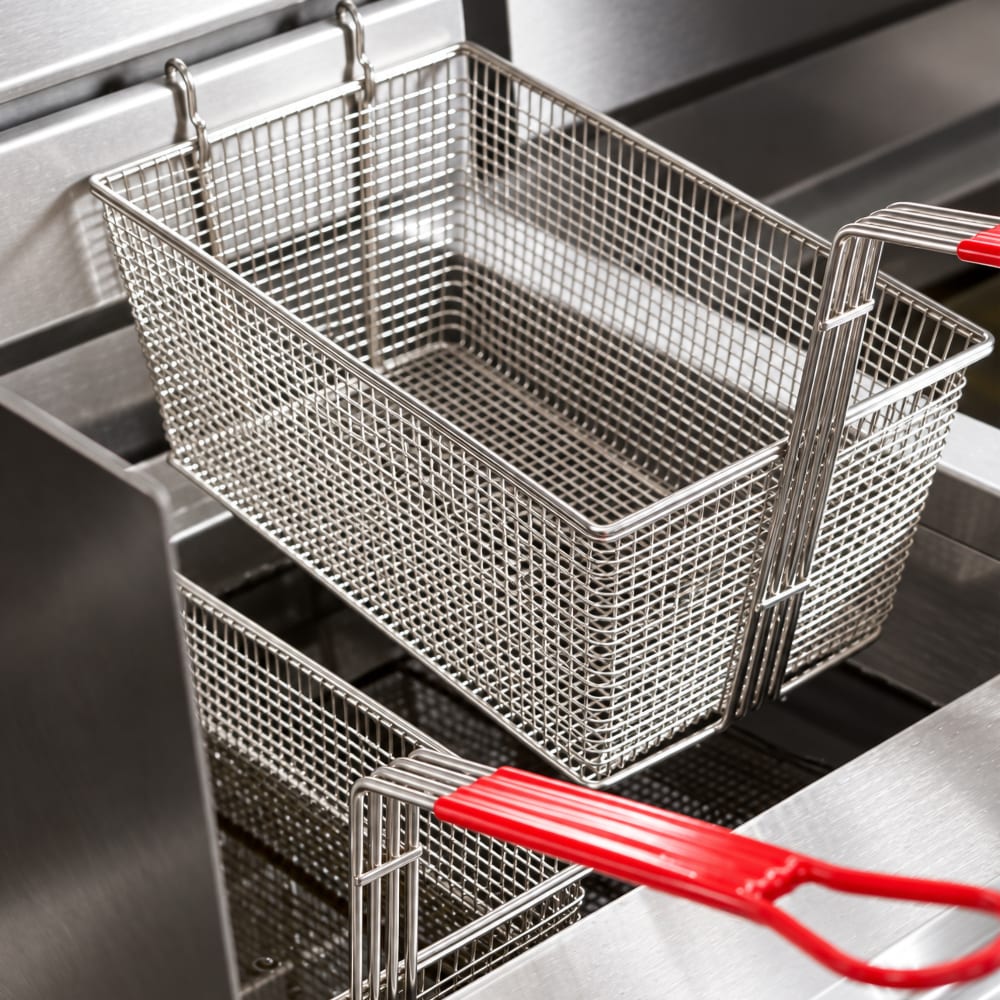

  • 2 fry baskets with plastic-coated handles can prepare 2 batches at once

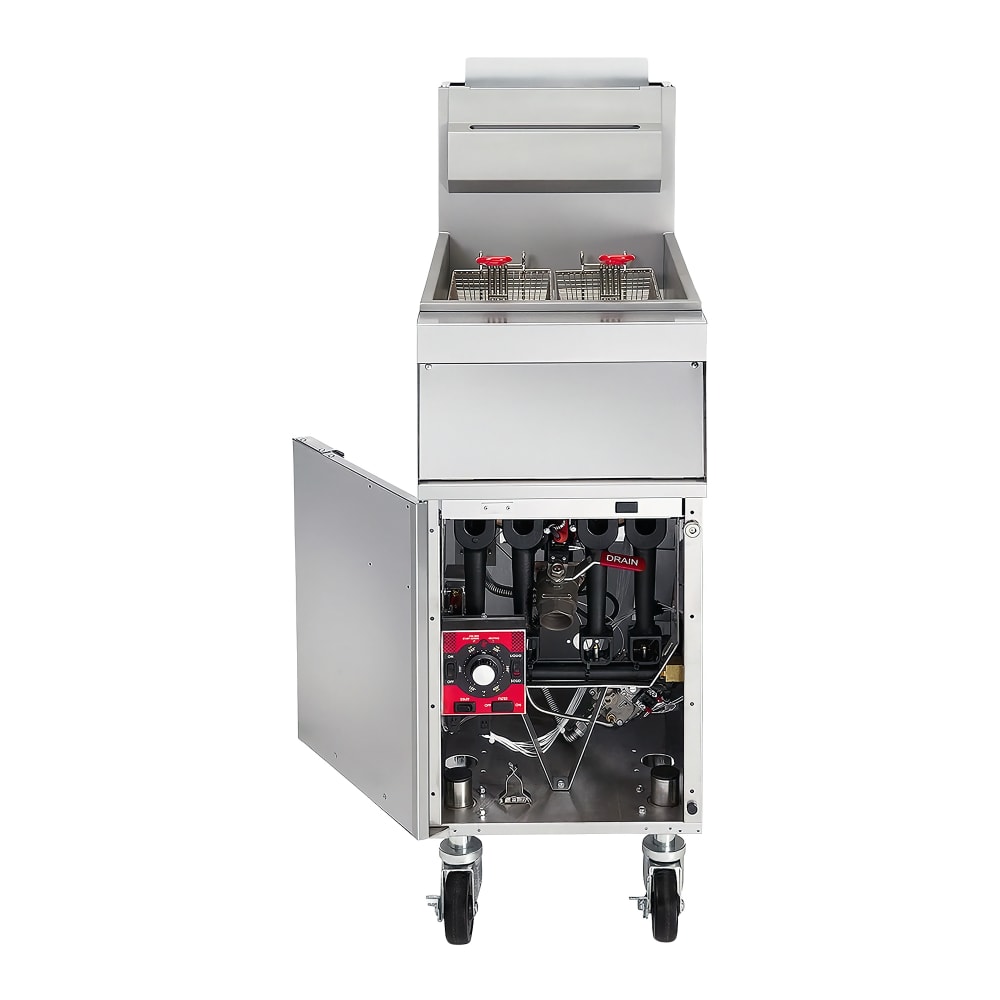

  • Millivolt control system adjusts from 200-400 degrees F
  • Heavy-duty, stainless steel cabinet resists corrosion
  • 2 of the (4) 6-in., adjustable casters lock to keep the unit in place
  • Hi-limit shut-off turns the gas valve off and extinguishes the pilot if the shortening gets too hot
  • Combination gas shut-off valve and pilot safety system
  • 114-in. full port ball type drain valve
  • 120,000 BTU
  • Overall dimensions: 1512 in. W x 3014 in. D x 4718 in. H
  • CSA Gas-Fired listed; NSF certified

Cleaning Design and Accessories

  • Stainless steel components resist corrosion and simplify cleaning
  • 4 heat exchanger tubes are in a reachable position
  • Tank brush removes debris
  • Crumb scoop removes heavy debris from the tank bottom
  • Clean-out rod stirs hard shortening above the cold zone to melt

Our fryers buyers' guide lists and describes important features that are common with commercial fryers.

Fryer, natural gas, 15-1/2" W, free-standing, 45-50 lb. capacity, millivolt thermostat controls, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 120,000 BTU, CSA Star, CSA Flame, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Vulcan 1GR45M Specifications

PDF Spec Sheet
Manufacturer Vulcan
Number of Fry Pots 1
Gas Type NG
BTU per Fryer 120,000
Oil Capacity per Fryer 50 lb
Frypot Style Tube Type
Food Type Breaded
Width (in) 15
Warranty 1 year limited parts & labor
Baskets 2
Product Gas Fryer
Product Type Cooking Equipment
Weight 195.00
Vulcan 1GR45M Certifications
  • NSF
