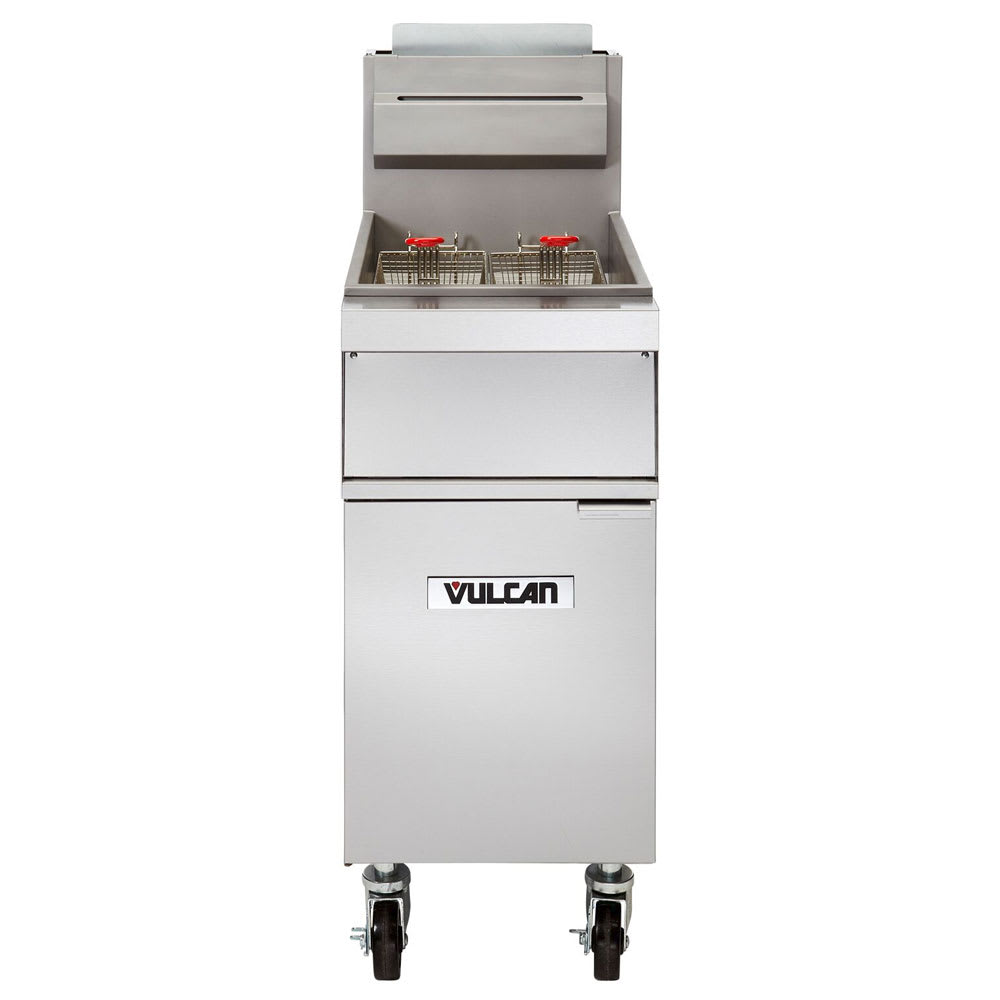

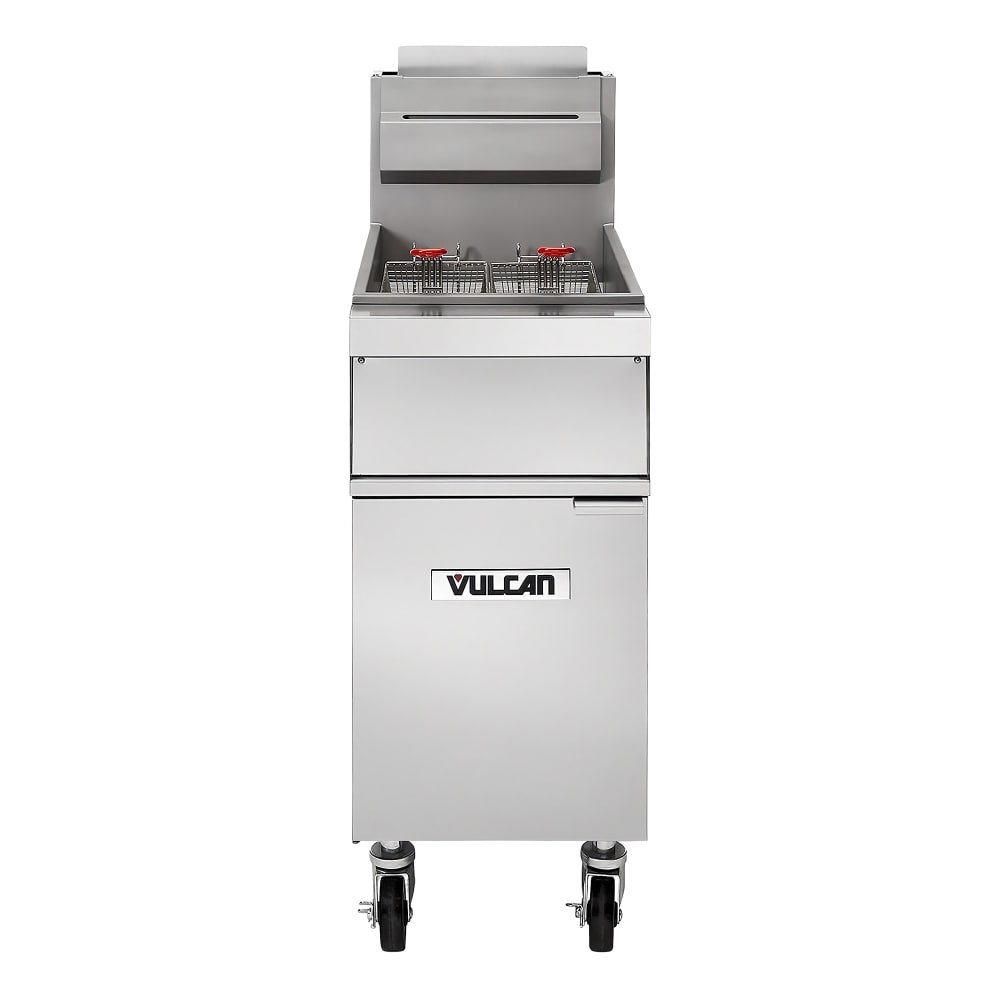

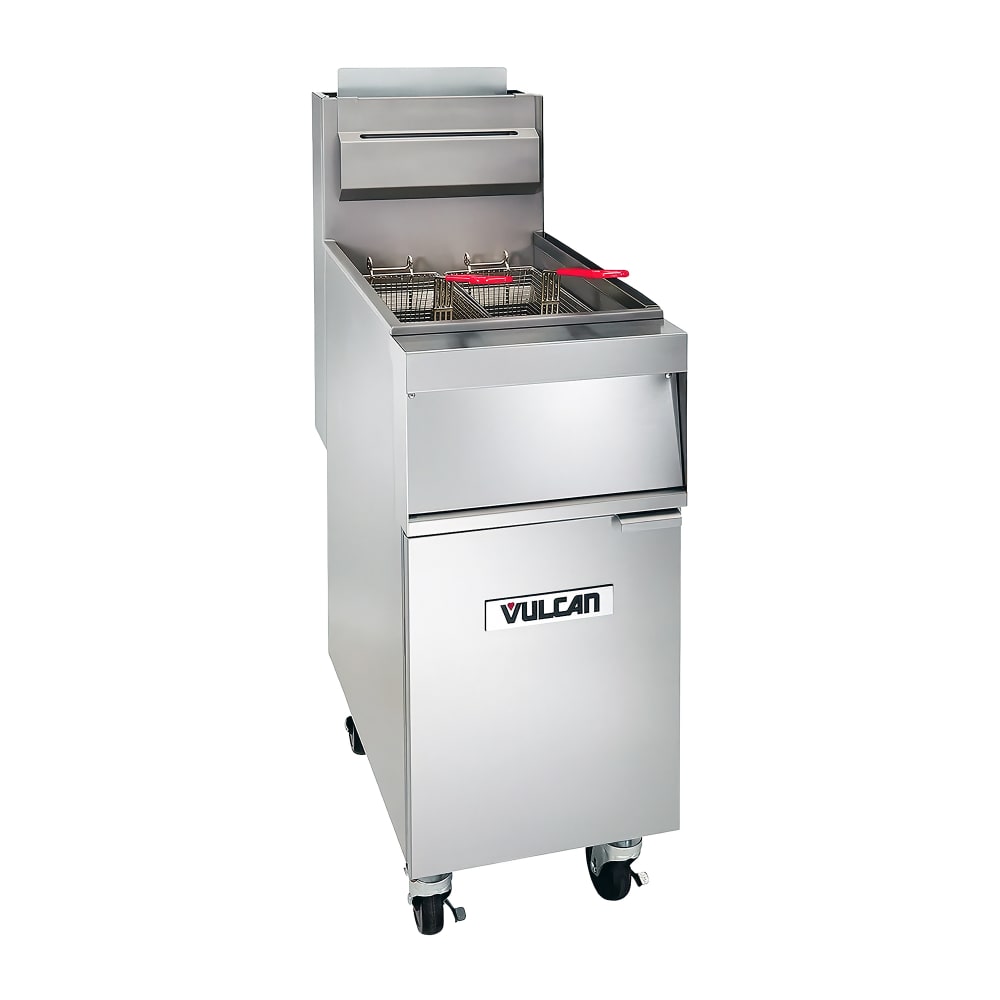

The Vulcan 1GR45M gas fryer has a 14-inch-by-14-inch tank with a shortening capacity of 45 to 50 pounds. Heat transfer through the tank is provided by four heat exchanger tubes, minimizing hot spots. The millivolt thermostat is located behind the door for convenient temperature adjustments between 200 and 400 degrees Fahrenheit. Two different products can be prepared in one batch thanks to the twin fry baskets. Since the baskets have plastic-coated handles, the risk of burns is reduced.
A V-shaped cold zone in the tank’s bottom prevent crumbs and other debris from burning, while oil removal is quick and simple with a 11⁄4-inch, full port, ball-type drain valve. The Vulcan 1GR45M gas fryer’s clean-out rod, tank brush, and crumb scoop facilitate cleaning. Mobility is provided by 6-inch adjustable casters, and the unit can be locked in place since two of the casters have brakes.
- Operates with LP gas
- Shortening capacity of 45-50 lbs.

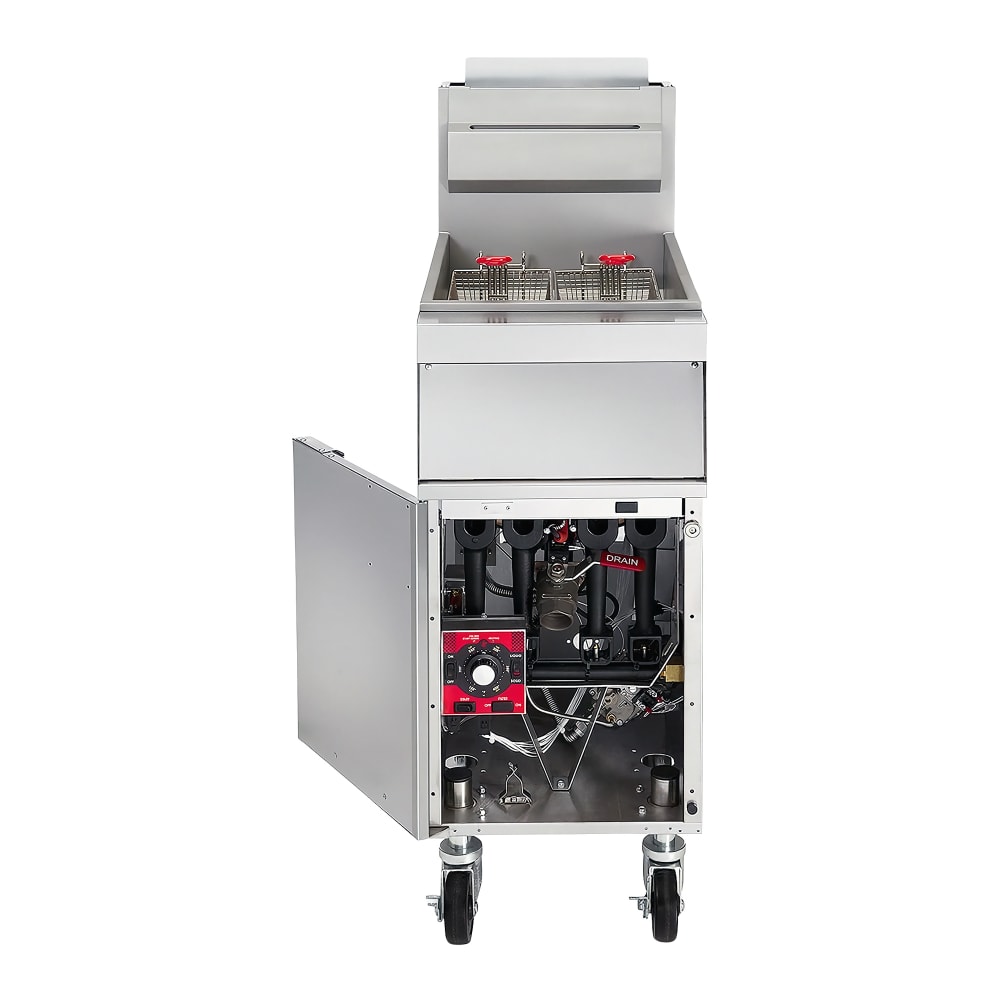

- Temperatures adjust from 200-400 degrees F with a millivolt thermostat
- Thermostat is located by the door for convenient operation
- 4 heat exchanger tubes provide quality heat transfer
- Heat exchanger tubes are in an easy-to-clean position

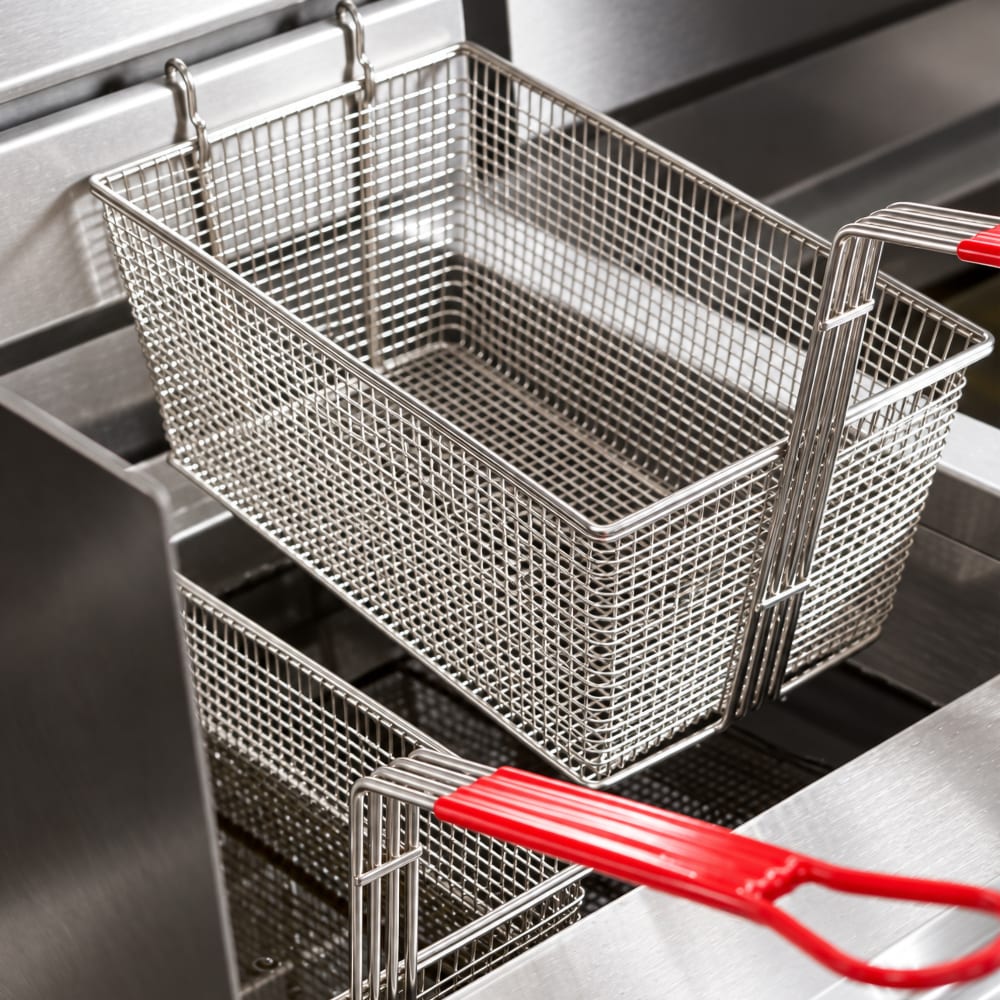

- Prepare 2 different products in 1 batch with twin fry baskets
- Plastic-coated handles on the baskets reduce burn risks
- Bottom of the fry tank has a V-shaped cold zone that prevents crumbs and other debris from burning
- Oil removal is quick and easy with a 11⁄4-in., full port, ball-type drain valve
- Clean-out rod, tank brush, and stainless steel crumb scoop facilitate cleaning
- Stainless steel cabinet construction creates durability for commercial applications
- Mobility is provided by (4) 6-in. adjustable casters
- 2 of the casters lock in place for safe frying
- Gas shut-off valve and pilot safety system are combined
- Safe use is provided by the high-limit shut-off feature
- 120,000 BTU
- Tank Dimensions: 14 in. L x 14 in. W
- Overall Dimensions: 151⁄2 in. W x 301⁄4 in. D x 471⁄8 in. H
- CSA listed; NSF certified
Fryer, LP gas, 15-1/2" W, free-standing, 45-50 lb. capacity, millivolt thermostat controls, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 120,000 BTU, CSA Star, CSA Flame, NSF
*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
Important Prop 65 information for California residents.
Vulcan 1GR45M SpecificationsPDF Spec Sheet
|Number of Fry Pots||1|
|BTU per Fryer||120,000|
|Oil Capacity per Fryer||50 lb|
|Frypot Style||Tube Type|
|Warranty||1 year limited parts & labor|
|Product Type||Cooking Equipment|
