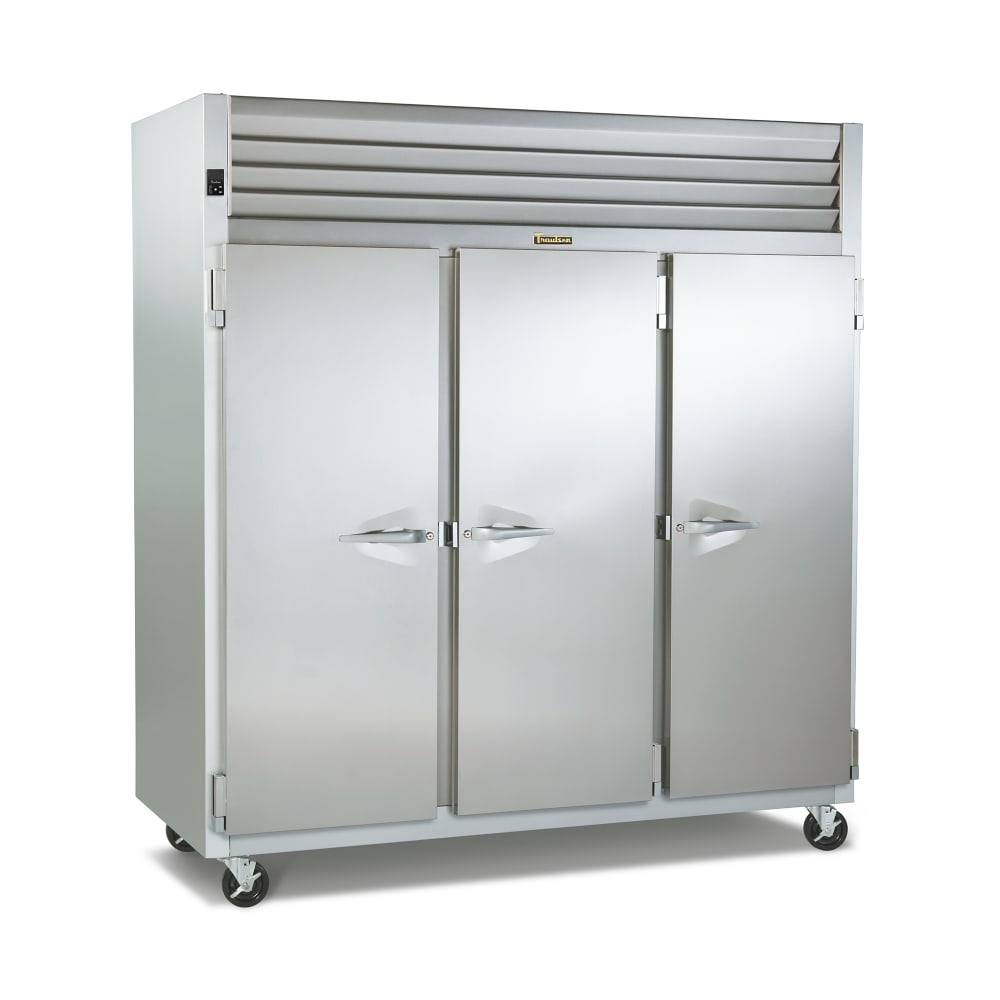

Traulsen G31312 76 3/8" Three Section Reach In Freezer, 3 Right Hinge Solid Doors, 115/208-230v
$12,189.00 /Each
Selected Hinge: Right Hinge
Attention: Order by 12-01-2026 to save before the price increases!
Traulsen G31312 Description
The doors on the Traulsen G31312 three-section reach-in freezer have a self-closing design, and at 120 degrees, they stay open so product can be conveniently loaded in. A Load-Sure Guard in the cabinet ensures air can flow properly because it prevents stocking too close to the interior walls. Product sits on nine shelves that are epoxy coated and resistant to corrosion, and to enhance visibility so staff members can quickly find what they need, this unit has LED lighting in the cabinet.
Temperatures in this Traulsen G31312 three-section reach-in freezer are adjustable on the microprocessor control that has a range from -5 to 0 degrees Fahrenheit, though it can run as low as -10 degrees Fahrenheit. Temperature is regulated by the thermostatic expansion valve—a component that meters refrigerant to the evaporator—and because the refrigeration system is top mounted, the parts are separated from debris on the floor that could be sucked into the condenser. However, these components are closer to grease-laden vapor in the air.
- 69.35-cu.-ft. interior space
- 9 epoxy-coated wire shelves
- Load-Sure Guard keeps air flowing properly by preventing improper loading
- LED cabinet lighting keeps stored items visible
- Right-hinged, full-height solid doors
- Self-closing doors can stay open at 120 degrees for convenient product loading and unloading
- Magnetic, snap-in door gaskets offer user-friendly removal and cleaning
- Horizontal door handles sit in a recessed pocket to reduce protrusion into the aisle
- 2-in.-thick foamed-in-place polyurethane insulation in the cabinet and doors
- Stainless steel exterior front
- Anodized aluminum exterior sides and interior
- (4) 6-in. casters can be locked in place
- 3,500 BTU
- Temperature holding range: -5 to 0 degrees F
- Can run as low as at -10 degrees F
- Microprocessor controller
- 3-digit LED temperature display operates in Fahrenheit or Celsius
- Top-mounted placement provides separation between components and floor debris
- Components are accessible behind the removable, 1-piece louver
- Front-facing condenser unit for convenient coil cleaning
- Uses R290 refrigerant
- Thermostatic expansion valve meters refrigerant to the evaporator
- 76 5⁄16 in. W x 35 in. D x 83 7⁄16 in. H
- 6.7 A, 15.81 kW, 1 HP
- 208-230 V/60 Hz/1 ph, 9-ft. cord with a NEMA L14-20P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen G31312 within the 48 contiguous states.
From The Manufacturer
Traulsen G31312 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Compressor Location | Top |
| Cubic Feet | 69.35 |
| Depth (in) | 35 |
| Door Design | Full |
| Door Type | Solid |
| Height (in) | 83.44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Material | Aluminum |
| NEMA | L14-20P |
| Phase | 1 |
| Product | Reach-In Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 3 |
| Series | Dealer's Choice |
| Special Features | Casters Included - Uninstalled |
| Type | Reach In |
| Voltage | 115/208/230 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 76.31 |
| Weight | 790.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
It maintains temperatures from -5°F to 0°F.
It provides 69.35 cu. ft. of frozen storage space.
The cabinet temperature is monitored with a digital display.
It requires a 115/208/230V, 60 Hz, single-phase connection with a NEMA L14-20P plug.
The compressor is located at the top of the cabinet.
Yes, it uses a natural refrigerant.
Yes, it is NSF certified.
Yes, it has self-closing doors.
Yes, the door has a stay-open feature for loading.
Yes, it includes door locks.
Yes, the door gaskets are removable for cleaning.
Yes, it includes casters for mobility.
No, the included casters are shipped uninstalled.
Yes, it includes interior lighting.
