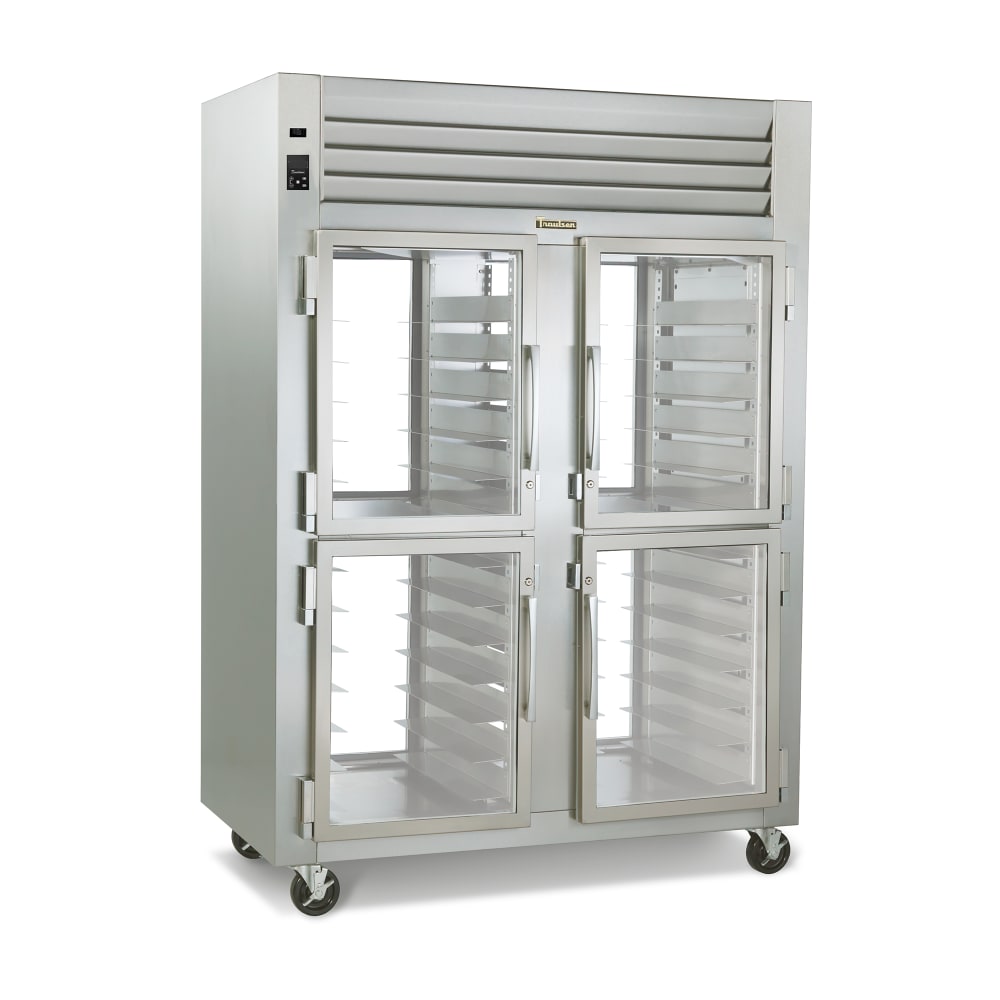

Traulsen G21004P 52" Two Section Pass Thru Refrigerator, (8) Left/Right Hinge Glass Doors, 115v

Made completely of anodized aluminum and stainless steel, the Traulsen G21004P two-section pass-thru refrigerator resists scratches, dents, and corrosion. The cabinet comes with six shelves made of epoxy-coated steel; their wire design encourages even airflow around all product. Half-height doors on the front and back create a pass-thru design, which improves workflow between two sections of a kitchen. All the doors self-close to retain cold air and have a stay-open design at 120 degrees. Insulation in the unit is foamed in place, improving structural strength and cold-air retention.

The refrigeration system in this Traulsen G21004P two-section refrigerator is mounted on top. With this placement, the condenser operates away from dirt and dust on the floor, but it can be harder to access than bottom-mounted alternatives. Because the condenser faces the front, operators can reach it for cleaning without having to move the unit. A thermostatic expansion valve is used to meter refrigerant to the evaporator and help maintain the set temperature; this unit uses R290 refrigerant.

Product Details

• 49.84-cu.-ft. interior space
• 6 epoxy-coated steel wire shelves
• Load-Sure Guard creates a barrier between stored items and the walls to encourage airflow
• Interior LED lighting provides product visibility
• Anodized aluminum interior
• Anodized aluminum exterior sides
• Stainless steel exterior front
• 2-in.-thick polyurethane insulation is foamed in place in the cabinet for additional strength
• 4 locking 6-in. casters
• 4,610 BTU
• Requires 12-in. top clearance

Product Features

Pass-thru Door Design

• Front and rear half-height glass doors
• Left hinged on the left and right hinged on the right
• Self-closing to reduce the amount of escaping cold air
• Stay open at 120 degrees for convenient stocking and cleaning
• Long-lasting EZ Clean gaskets
• Metal handles

Refrigeration System

• Microprocessor temperature controller
• 3-digit LED display for temperature readouts in Fahrenheit or Celsius
• Temperature holding range: 34-38 degrees F
• Uses R290 refrigerant
• Thermostatic expansion valve accurately meters refrigerant to the evaporator to maintain the set temperature
• Top-mounted condenser
• High-humidity evaporator is outside the food zone, saving space in the cabinet for product
• Front-facing condenser coil for convenient component access

Dimensions & Utilities

• 52¹⁄₈ in. W x 37¹⁵⁄₁₆ in. D x 83⁷⁄₁₆ in. H
• 9.6 A, 5.63 kW, ⁵⁄₈ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Free shipping on Traulsen G21004P within the 48 contiguous states.

From The Manufacturer

Dealer's Choice Display Refrigerator, Pass-thru, two-section, 50.2 cu. ft., self-contained refrigeration, control side: (4) half-height glass doors, (hinged left/right), other side: (4) half-height glass doors (hinged left/right), (3) epoxy coated shelves per section (factory installed), microprocessor control with LED display, LED interior lights, stainless steel front, anodized aluminum sides & interior, 6" high casters, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1, 7.9 amps, NEMA 5-15P, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

6-year Parts & Labor; 7-year Compressor
