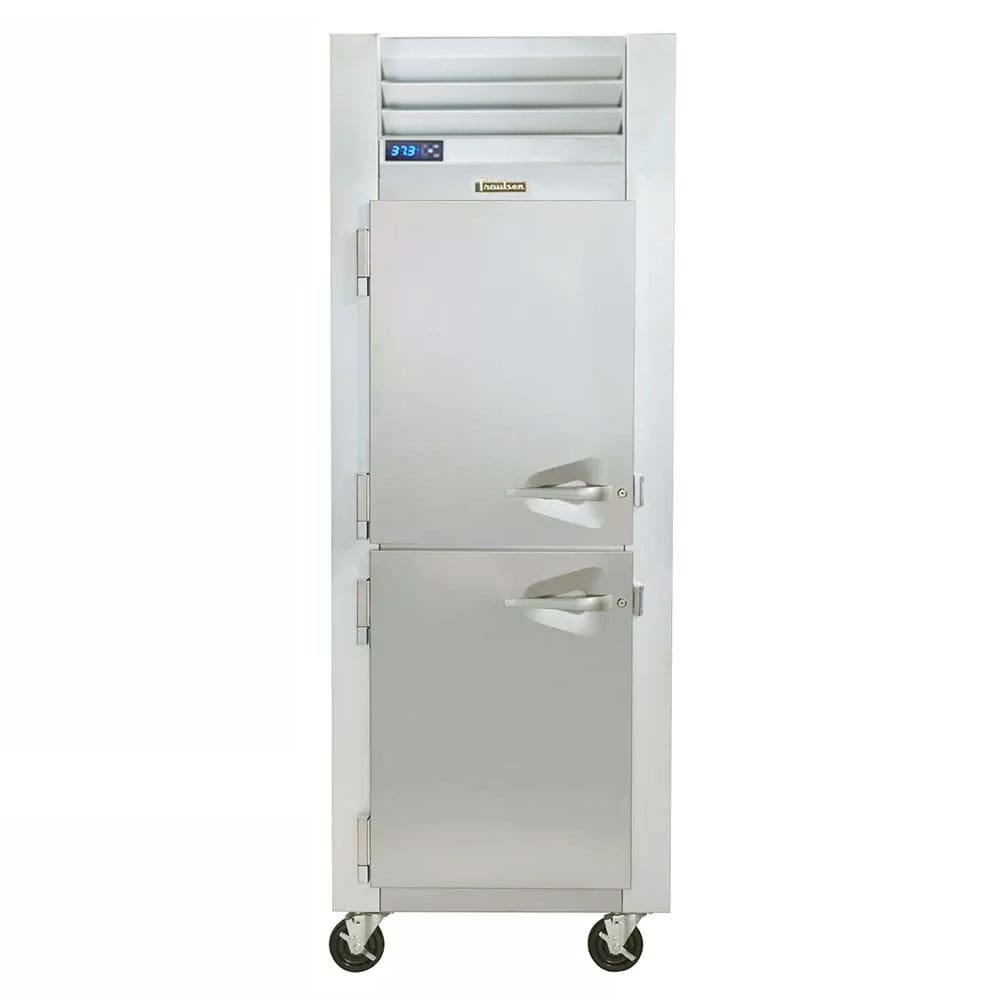

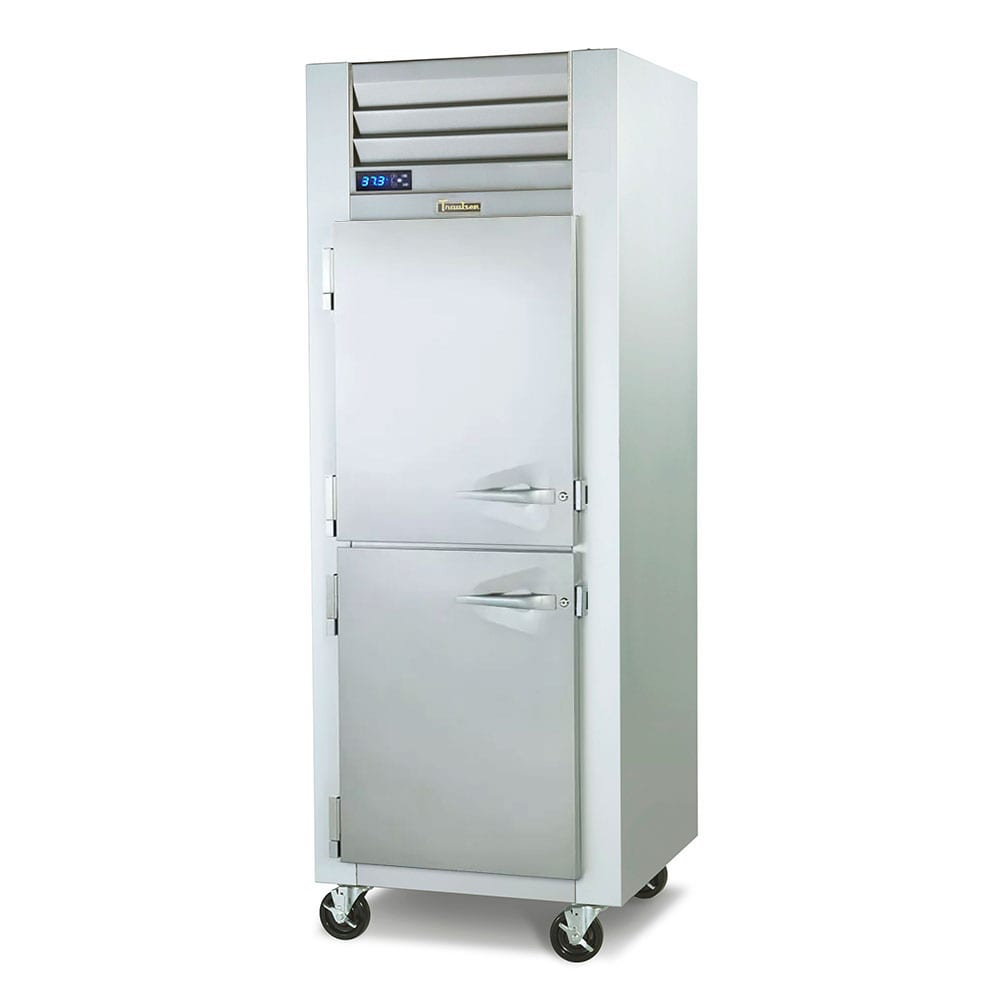

Traulsen G10005P 29 7/8" One Section Pass Thru Refrigerator, 4 Left Hinge Solid Doors, 115v
$8,208.00 /Each
Attention: Order by 12-01-2026 to save before the price increases!
Traulsen G10005P Description
The Traulsen G10005P one-section pass-thru refrigerator comes with three corrosion-resistant epoxy shelves and a guard that promotes air circulation by buffering items away from the side walls. Insulation in the unit retains cold air and lends structural strength to the refrigerator. This unit is made of metal, with an anodized aluminum interior, stainless steel exterior front, and anodized aluminum exterior sides. With this construction, the unit is durable to support heavy use without breakable plastic parts.
The Traulsen G10005P pass-thru refrigerator is designed to be placed between two areas to connect them, using two doors on the front and back. These doors self-close to keep cold air inside and are half size, separating the unit into sections and reducing the amount of cold air that flows out of the cabinet. At 120 degrees, the doors stay open so users can load product into the cabinet. The gaskets in the doors are made of a material that shows dirt and grime, create a seal to prevent cold air leaks, and are safe with chemical cleaners.
- 24.72-cu.-ft. interior space
- 3 epoxy-coated steel wire shelves
- Load-Sure Guard on the side walls ensures airflow is not blocked by product
- LED interior lighting enhances the visibility of stored items
- All-metal construction with stainless steel exterior front, anodized aluminum exterior sides, and anodized aluminum interior
- Foamed-in-place, 2-in.-thick polyurethane insulation retains cold air
- 6-in. locking casters
- 1,650 BTU
- Temperature holding range: 34-38 degrees F
- Microprocessor temperature controller
- 3-digit LED temperature display in Fahrenheit or Celsius
- Uses R290 refrigerant
- Thermostatic expansion valve maintains the set temperature by metering refrigerant to the evaporator coil
- Components are top mounted away from dirt and dust on the floor
- 1-piece louver assembly in front of the parts
- Condenser coil faces the front for cleaning access
- 2 left-hinged front half doors
- 2 right-hinged rear half doors
- Self-closing design with a 120-degree, stay-open feature for loading
- Long-lasting EZ Clean door gaskets
- Built-in door heaters remove condensate buildup
- 29 7⁄8 in. W x 38 7⁄8 in. D x 83 7⁄16 in. H
- 4.9 A, 2.47 kW, 1⁄5 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Traulsen G10005P within the 48 contiguous states.
From The Manufacturer
Traulsen G10005P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Traulsen |
| Additional Info | Contact Customer Service for Additional Information |
| Color | Silver |
| Compressor Location | Top |
| Cubic Feet | 24.72 |
| Depth (in) | 37.94 |
| Door Type | Solid |
| Doors | Half |
| Evaporator Type | Expansion Valve |
| Height (in) | 83.44 |
| Hertz | 60 |
| Hinge Configuration | Left |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| No. of Doors | 4 |
| Number of Shelves | 3 |
| Phase | 1 |
| Product | Reach-In Refrigerators |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Sections | 1 |
| Series | Dealer's Choice |
| Special Features | Casters Included - Uninstalled |
| Supports | Casters |
| Thermometer Type | Digital |
| Type | Pass Thru |
| Voltage | 115 |
| Warranty | 6-year Parts & Labor; 7-year Compressor |
| Width (in) | 29.88 |
| Weight | 365.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
This unit provides 24.72 cu. ft. of refrigerated storage in one section.
Yes. The half-height door design lets staff open a smaller portion of the cabinet during loading and retrieval.
The compressor is mounted at the top of the cabinet.
This unit measures 29 7⁄8 in. W x 37 15⁄16 in. D x 83 7⁄16 in. H.
This model has half-height solid doors.
Yes. It plugs into a standard outlet with a NEMA 5-15P plug.
Yes. Casters are included for repositioning or cleaning access.
It uses R290 hydrocarbon refrigerant.
This reach-in fits restaurants, hotels, schools, and healthcare kitchens where staff access refrigerated ingredients throughout service.
It has one section and four doors.
It comes with three shelves for organizing refrigerated items.
It maintains a holding temperature range from 34-38° F.
