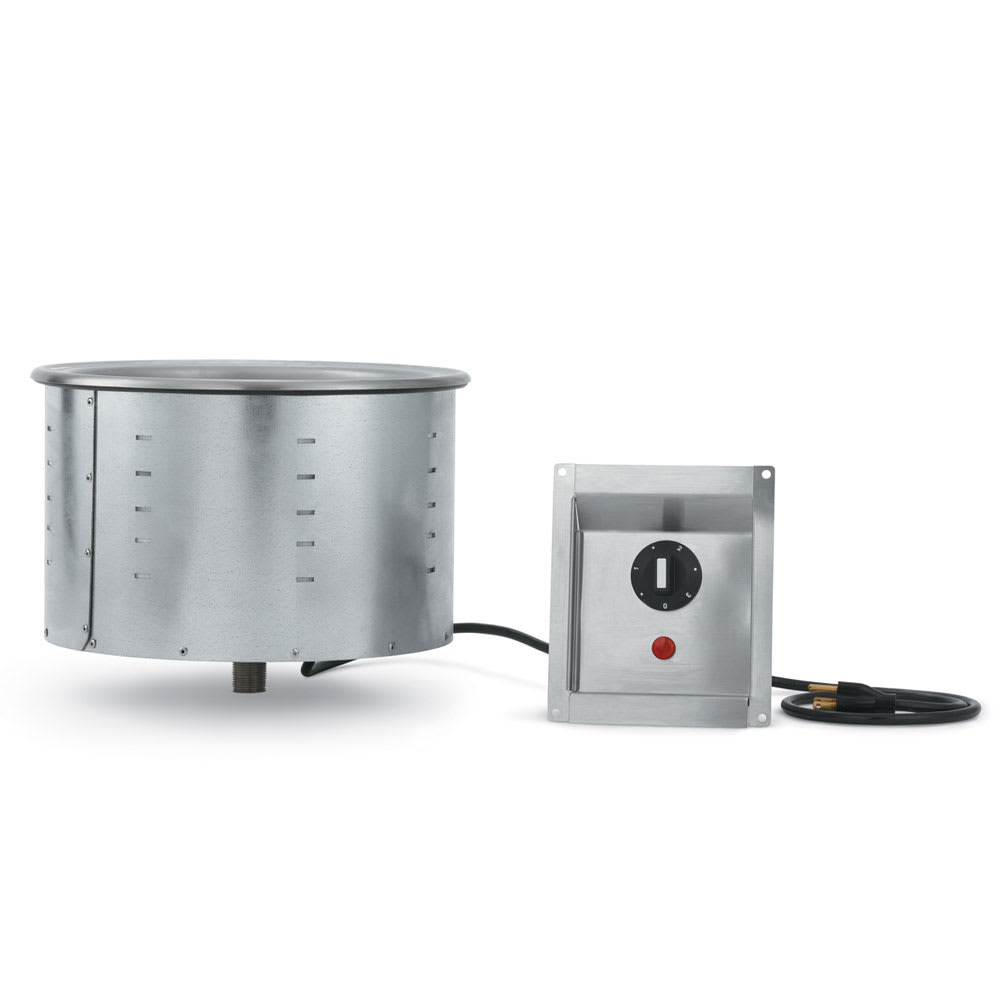

Vollrath 3646410 11 qt Drop In Soup Warmer w/ Thermostatic Controls, 120v

No hard wiring is required when installing the Vollrath 3646410 drop-in soup well because it connects to a 120-volt circuit, while its 720-watt heating elements offer low-cost, energy-efficient operation. This modular well can be top mounted into 12¹/₄-inch-diameter cutout, and a flat flange with a gasket promises a firm fit against the countertop. With its double-wall construction and fiberglass insulation, the well retains heat to increase efficiency and keep product at safe holding temperatures.

The top, well, exterior housing, and mounted-in control panel of the Vollrath 3646410 drop-in soup well are made of stainless steel for durability. It measures 12¹³/₁₆ inches in diameter by 11¹¹/₁₆ inches high, and its flat work surface simplifies cleaning. To further optimize cleaning processes, a standard drain is welded to the pan with a ball-type drain valve, and for uncomplicated installation, mounting brackets are included.

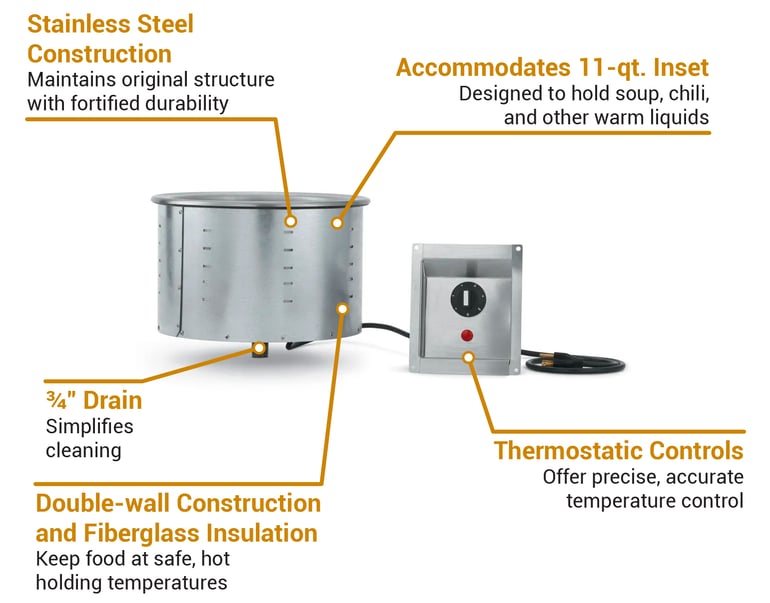

Product Details

• Accommodates (1) 11-qt. inset
• Fits 12¹/₄-dia. cutouts
• Well fits firmly against the countertop with an included 12¹³/₁₆-in. dia. flat flange and gasket
• Top, well, and exterior housing are made from stainless steel for durability
• Thermostatic controls
• Stainless steel control panel
• Stainless steel drain nipple is welded to the well’s interior for durability
• Ample water capacity for the moist heat operation
• Double-wall construction and fiberglass insulation uphold hot, safe temperatures
• Molded breaker gasket fits under drip edge
• Flat work surface for easy cleaning
• ³⁄₄-in. stainless steel drain fitting welded to pan with ball valve shutoff

Dimensions & Utilities

• 12¹³⁄₁₆ in. dia. x 11¹¹⁄₁₆ in. H
• 720 W, 6 A
• 120 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

Product Features

*Free shipping on Vollrath 3646410 within the 48 contiguous states.

From The Manufacturer

Soup Well, drop-in, thermostatic control mounted in stainless steel corded control panel, wet operation only, accommodates (1) 11 quart inset, over flange 12-13/16" diameter, cutout 12-1/4" diameter, outside 12-13/16" diameter, well outer 12" diameter, 3/4" drain, 120v/60/1-ph, 720 watts, 6.0 amps, cord with NEMA 5-15P, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Parts & Labor

Vollrath 3646410 Specifications

Documents

Spec Sheet

Warranty

Manual
