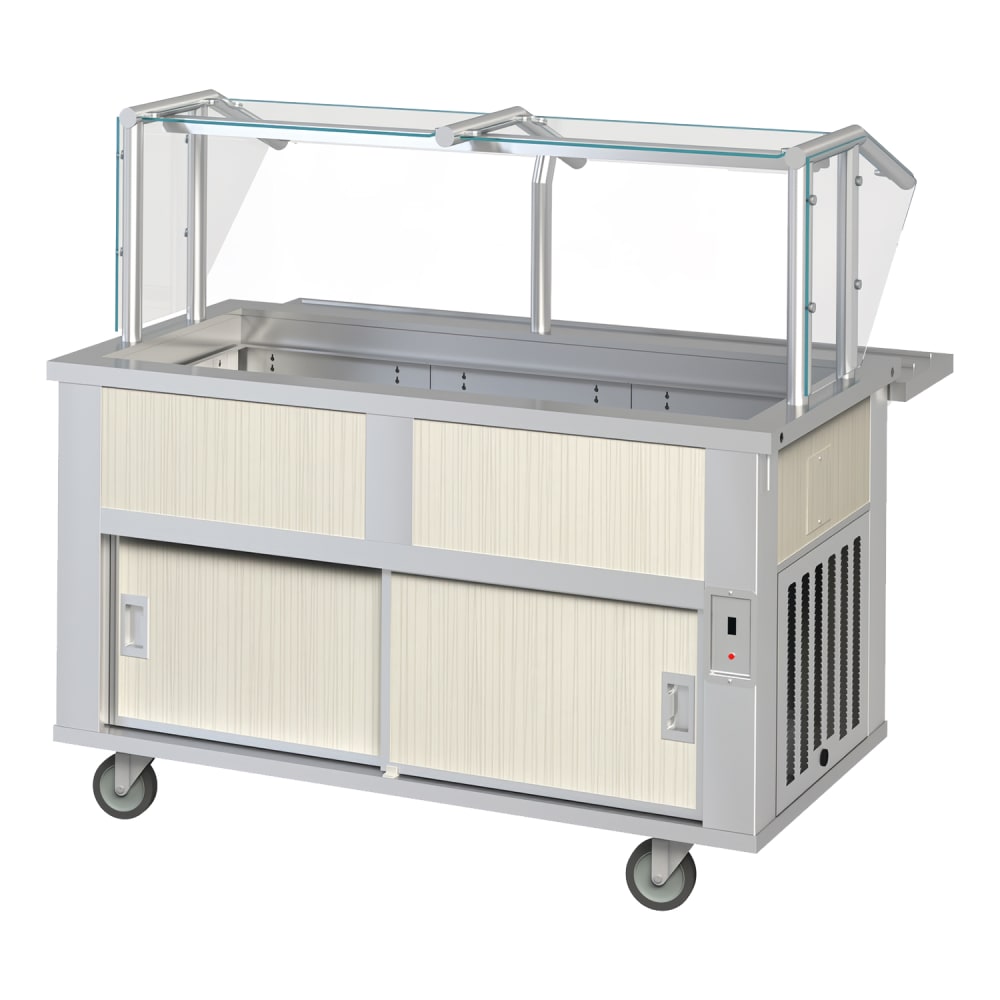

Dinex DXP4BCM 54 1/4" DineXpress™ Cold Food Bar - 4 Pan Capacity, Floor Model, Stainless Steel
Extended Leadtime (Call for Availability)
Retail Price: $17,020.96
$8,893.45 /Each
Non Returnable Item
Dinex DXP4BCM Description
The Dinex DXP4BCM DineXpress™ cold food bar is a floor model serving counter designed with a mechanically cooled system that maintains chilled temperatures without the use of ice. Its four-pan configuration is supported by a 9 7⁄16-inch-deep welded well, while the interlocking mechanism enables this unit to connect with compatible Dinex modules for flexible buffet layouts. A 14-gauge stainless steel top with turndown edges provides a durable work surface, and sliding doors beneath the cabinet base create accessible storage for supplies.
Built for mobile service applications, the Dinex DXP4BCM cold food bar features a stainless steel exterior with front, end, and louvered panels that support airflow around the condensing unit. The refrigerated well is fully insulated and includes a concealed continuous coil bonded to the sides to maintain consistent cooling across stored pans. Mounted on swivel-plate casters, this unit can be repositioned as needed, and its operator-side controls include an on/off switch with a pilot light for monitoring operation.
- Part of the DineXpress series
- 4-pan capacity
- Mechanically refrigerated cold well
- 9 7⁄16-in.-deep welded, watertight well
- Interlocking mechanism for modular configuration
- 14-ga. stainless steel top with turndown edges
- Stainless steel front, end panels, and cabinet base
- Sliding doors for enclosed storage
- Louvered panel for condensing unit ventilation
- Removable end louver panel for compressor access
- Insulated well with continuous coil bonded to sides
- 1-in. drain with shutoff valve; 3⁄4-in. FPT connection
- Swivel-plate casters; 2 with brakes
- Fan-cooled condensing unit
- Expansion valve with pressure control switch
- Copper tubing coils wrapped around well sides
- 54 1⁄4 in. W x 28 in. D x 36 in. H
- 6.3 A, 1⁄3 HP
- 120 V/60 Hz/1 ph, 8-ft. cord with a NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Dinex DXP4BCM within the 48 contiguous states.
From The Manufacturer
Dinex DXP4BCM Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Dinex |
| Access | Self Service |
| Base | Cabinet |
| Color | Silver |
| Depth (in) | 28 |
| Design | Salad Bars |
| Exterior Construction | Stainless Steel |
| Height (in) | 36 |
| Hertz | 60 |
| NEMA | 5-15P |
| Pan Capacity | 4 |
| Phase | 1 |
| Product | Cold Food Bars |
| Product Type | Food Bars & Buffets |
| Refrigeration Type | Refrigerated |
| Series | DineXpress™ |
| Special Features | Includes Casters |
| Style | Mobile |
| Type | Floor Model |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 54.25 |
| Weight | 405.00 |
