Dinex DXPIDT1C1622 Mobile Cantilever Tray Dispenser w/ 100 Tray Capacity, 16" x 22"
Retail Price: $4,629.74
$2,450.06 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Dinex DXPIDT1C1622 Description

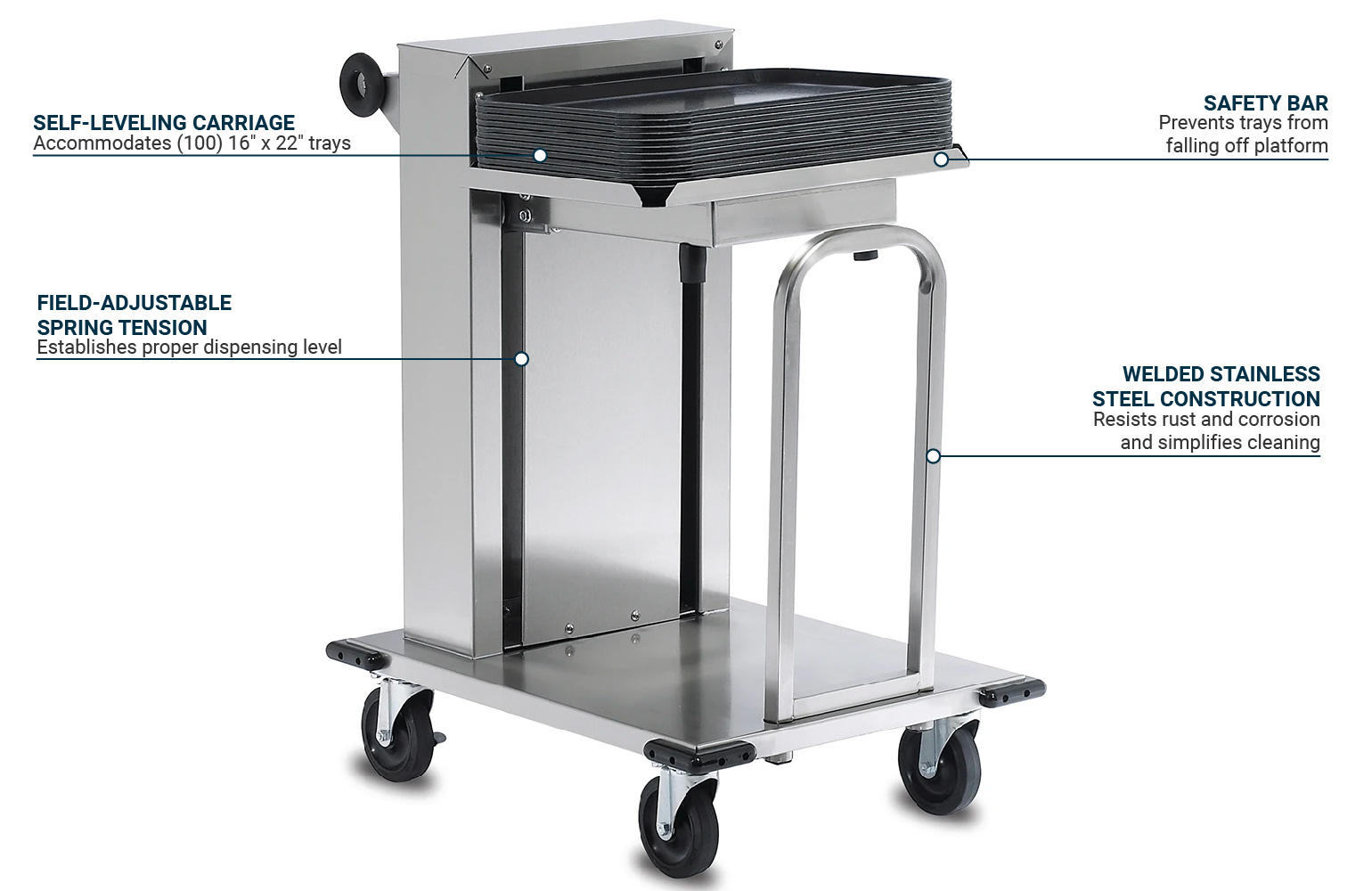

This Dinex DXPIDT1C1622 tray dispenser's solid platform accommodates (100) 16-inch by 22-inch trays—ideal for high-volume storage. Its cantilever-style shelf remains stable as trays are loaded or retrieved, while a front bar prevents trays from falling off the platform. After use, this bar can be removed and stored on the unit's back. To alter dispensing levels, operators can adjust the spring tension by hooking or unhooking springs to or from the carriage. For mobility, it's furnished with four 5-inch swivel casters, and two casters include brakes to secure the unit in place during tray insertion or removal. This 223/4-inch-wide by 307/8-inch-deep by 373/4-inch-high unit's stainless steel construction is strong enough to withstand daily wear, and it resists rust and corrosion to preserve it original appearance. To protect other surfaces from collisions, bumpers are built onto its corners.
Product Details
- Replaces DXPIDT1C1622
- Capacity: (100) 16-in. x 22-in. trays
- Welded stainless steel construction
- Open tubular frame
- Cantilever style
- Spring-loaded, self-leveling solid platform
- Field-adjustable spring tension
- Front SAFE "T" BAR (can be stored on back)
- Corner bumpers
- (4) 5-in. heavy-duty swivel casters (2 with brakes)
- Overall dimensions: 223/4 in. W x 307/8 in. D x 373/4 in. H
Product Features
*Free shipping on Dinex DXPIDT1C1622 within the 48 contiguous states.
From The Manufacturer
Mobile Tray Dispenser, maximum tray size 16" x 22", 100 capacity, solid shelf, open tubular frame, cantilever single self-leveling tray platform, removable carrier, adjustable lifting rate, (4) 5"HD non- marking swivel casters (2 with brakes) & bumpers, stainless steel construction & push handle, CSA, NSF, Made in USA (IDT1C/1622)
*Image may not depict product color, inclusions or accessories.
Dinex DXPIDT1C1622 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Dinex |
| Color | Silver |
| Construction | Stainless Steel |
| Depth (in) | 30.88 |
| For Use With | 16" x 22" |
| Height (in) | 37.75 |
| Installation Type | Freestanding |
| Product | Tray Dispensers |
| Product Type | Storage & Transport |
| Temperature | Unheated |
| Type | Open |
| Warranty | 1-year Parts & Labor |
| Width (in) | 22.75 |
| Weight | 178.00 |
