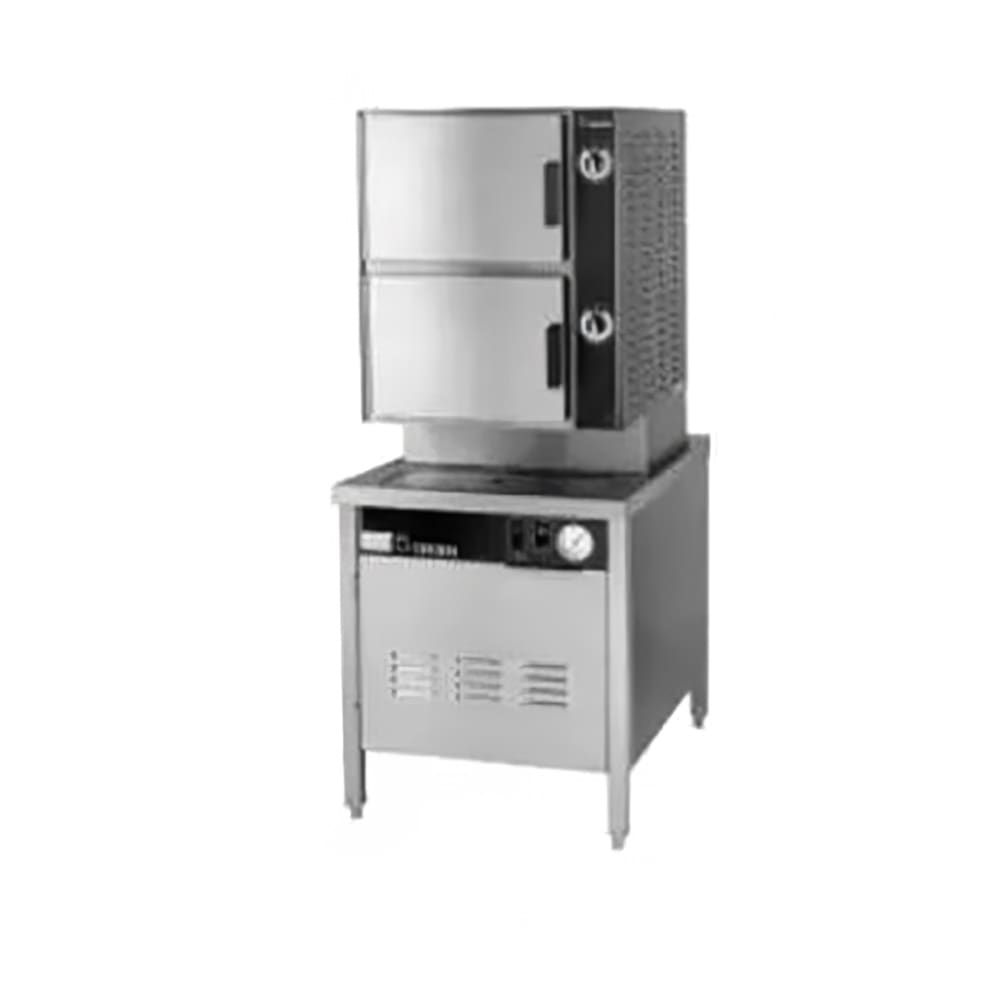

Groen HY-6SG-24 (6) Pan Convection Steamer - Cabinet, Liquid Propane
Typically ships in 4 - 6 weeks
$32,439.00 /Each
Call us for pricing
Selected Gas Type: Liquid Propane
Natural GasShip times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Groen HY-6SG-24 Description
The Groen HY-6SG-24 HyPlus™ pressureless steamer includes two steam compartments heated by a cabinet-mounted, gas-heated boiler in the base. Providing an atmospheric temperature of 212 degrees Fahrenheit inside the compartments, this boiler drains automatically when the unit is powered off and the water has cooled to 170 degrees Fahrenheit. Water-level sight glass enables users to monitor the water levels, while low-water sensors prevent the level from getting too low and causing internal damage.
The Groen HY-6SG-24 two-compartment steamer can accommodate six 12-inch by 20-inch by 21⁄2-inch pans. Sitting on top of a 24-inch wide stainless steel cabinet base, the compartments themselves are made of durable stainless steel. Field-reversible doors are equipped with continuous hinges, and the pan support racks are constructed of durable stainless steel to ease cleaning. A wide drip sink with a condensate drain underneath the compartment doors catches and drains liquid.
Product Details
- 2 steamer compartments
- Holds (6) 12-in. x 20-in. x 21⁄2-in. pans
- Compartments constructed of rust-resistant stainless steel
- 24-in.-wide cabinet base have a stainless steel frame and top-deck
- Removable lift-off panels enable access to internal components
- Stainless steel, field-reversible steamer doors have strong continuous hinges
- Doors equipped with handles to ease opening and latches to ensure the doors stay closed
- Hidden, magnetic door switches shut off power to blower and generator if door is opened
- Removable pan support racks made of electro-polished stainless steel
- Wide drip sink including a condensate drain located under doors
- Adjustable bullet feet keep unit level
- Electronic ignition starts quickly
- Side-mounted blowers evenly disperses steam throughout the cabinet
- Unit turns off if water level is too low or pressure is too high
- On/off switch for each compartment
- 60-min. timers with constant steam features
- Part of the HyPlus series
Gas Boiler
- Mounted in the cabinet base
- Gas heated
- Operating temperature: 212 degrees F
- 200,000 BTU
- Automatically drains when unit is powered off and after water cools to 170 degrees F
- Gas control valve enables control over gas levels
- Sensor prevents water from getting too low
- Water level sight glass for monitoring water levels
- Power-on switch
- Reset light notifies user
- Start switch
Dimensions & Utilities
- 241⁄8 in. W x 343⁄16 in. D x 573⁄16 in. H
- Uses LP gas
- 5 A, 6 kW
- 120 V/60 Hz/1 ph
From The Manufacturer
HyPlus™ Pressureless Steamer, gas, 2 compartments, 24" cabinet base, (3) 12" x 20" x 2-1/2" deep pans /compartment, stainless steel construction, dual water connection, 200,000 BTU (CSD-1 compliant)
*Image may not depict product color, inclusions or accessories.
Groen HY-6SG-24 Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Groen |
Application | High Volume |
Base | Cabinet |
Total BTU | 200000 |
Controls | Digital |
Depth (in) | 34.25 |
Gas Type | LP |
Heat | Gas |
Height (in) | 58.75 |
Hertz | 60 |
kW | 6 |
Pan Capacity | 3 to 9 Pans |
Steam Generator | Boilerless |
Warranty | Limited 1-year Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
Width (in) | 24.13 |
Series | HyPlus™ |
Product | Steamers |
Product Type | Cooking Equipment |
No. of Compartments | 2 |
Water Source | Plumbed |
Steamer Type | Convection |
Weight | 710.00 |
Important Prop 65 information for California residents.
Groen HY-6SG-24 Accessories
Other Products From This Line
Compare to Similar Items
Attributes |
Current Item: Groen HY-6SG-24 (6) Pan Convection Steamer - Cabinet, Liquid Propane |
Cleveland 24CGM200 (6) Pan Convection Steamer - Cabinet, Liquid Propane |
---|---|---|
Customer Rating |
|
|
Price | $32,439.00 | $37,848.00 |
Shipping | Ships Free | Ships Free |
Lead Time | Typically ships in 4 - 6 weeks | |
Heat | Gas | Gas |
Water Source | Plumbed | Plumbed |
Steam Generator | Boilerless | External Source |
Pan Capacity | 3 to 9 Pans | 3 to 9 Pans |
Application | High Volume | High Volume |
Steamer Type | Convection | Convection |
Base | Cabinet | Cabinet |
Gas Type | LP | LP |
Total BTU | 200000 | 220000 |
Warranty | Limited 1-year Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School | 1-year Parts & Labor; 3-year Door; 5-year Pro-Rated Parts Boiler & Steam Generator |
