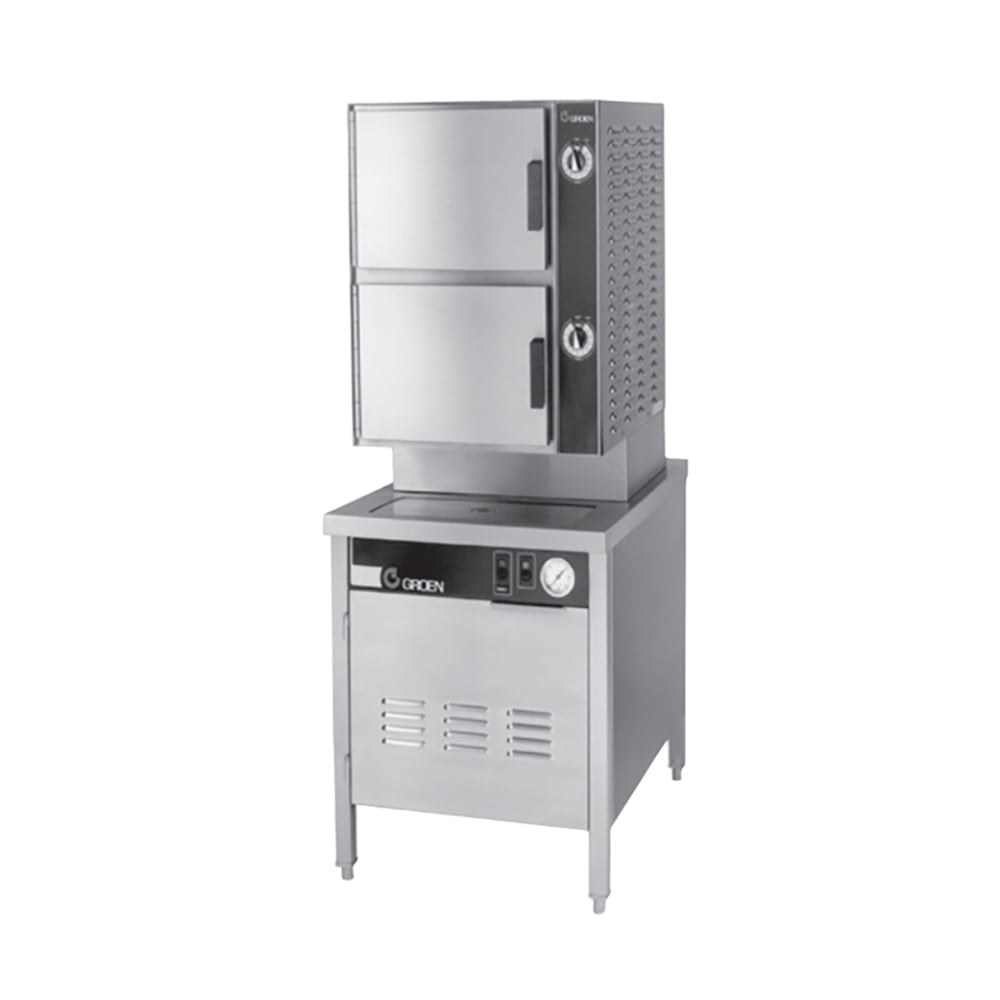

Groen HY-6SG-24 (6) Pan Convection Steamer - Cabinet, Natural Gas

The Groen HY-6SG-24 HyPlus™ gas steamer has a pressure boiler in the cabinet base to generate atmospheric steam at 212 degrees Fahrenheit, and this steam is evenly circulated in the two compartments and between the steam pans by powerful blowers. Pans measuring 12-inches by 20-inches are accommodated by this unit, and these pans can be 1 inch, 2¹⁄₂ inches, or 4 inches deep. If they are 2¹⁄₂ inches deep, the unit can hold three in each compartment. Pan rack supports are made of durable stainless steel and can be removed to facilitate cleaning, while the door is field reversible to fit into different kitchens. Latches on the doors secure them, and seals prevent steam from leaking out.

On/off switches for the boiler and steaming simplify operation for this Groen HY-6SG-24 floor-model commercial steamer, and the timer can be set to any level below 60 minutes or turned off for continuous steaming. This food steamer has an automatic shut-off feature that turns off power if the water level is too low or pressure is too high, and after the boiler is turned off and the water cools, the unit automatically drains to remove sediment.

Product Details

• Pressure boiler in the cabinet base provides atmospheric steam to cook food
• Steam temperature: 212 degrees F
• Powerful, side-mounted blowers evenly distribute steam throughout the cavities and between pans
• Each compartment holds (3) 12-in. x 20-in. x 2¹⁄₂-in. pans
• Removable pan support racks are made of heavy-duty stainless steel
• Stainless steel chambers resist rust and dents
• Panel on the right side can be removed to provide internal component access
• Field-reversible, stainless steel doors have replaceable, 1-piece seals for insulation
• Door latches maintain a positive lock and seal
• Handles on doors ease opening
• Magnetic switch cuts off the blowers and steam flow when a door opens during a cycle
• Automatic shut-off feature for low-water levels or high pressure
• Boiler automatically drains to minimize sediment buildup when power is switched off and after the water is cooled to 170 degrees F
• Front and rear legs have adjustable bullet feet to maintain stability
• 200,000 input BTU
• 120,000 output BTU

Steam and Boiler Control Systems

• Steam on/off power switch
• 60-min. electromechanical steam timers
• Continuous setting for non-stop steaming
• Boiler power-on switch
• Boiler reset light
• Water level sight glass for boiler
• Low-water boiler sensor

Dimensions & Utilities

• 24¹⁄₈ in. W x 34³⁄₁₆ in. D x 57³⁄₁₆ in. H
• Heated by natural gas

From The Manufacturer

HyPlus™ Pressureless Steamer, gas, 2 compartments, 24" cabinet base, (3) 12" x 20" x 2-1/2" deep pans /compartment, stainless steel construction, dual water connection, 200,000 BTU (CSD-1 compliant)

*Not as Shown

Limited 1-year Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School
