Groen BPM-40GC 40 gal. Tilt Skillet - Open Leg Base, Polished Pan, Measurement Marks, Natural Gas

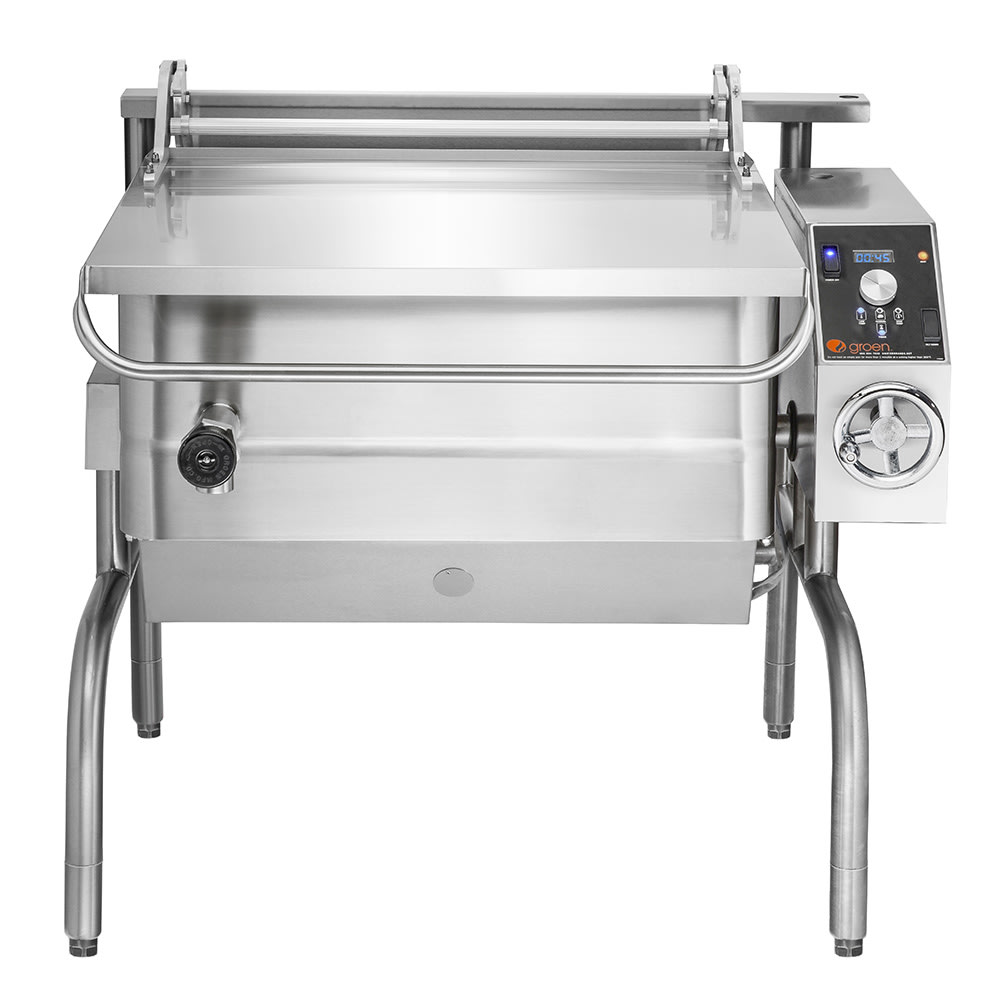

The Groen BPM-40GC tilting braising pan has a large, 40-gallon capacity that can be used to braise, fry, boil, simmer, and steam large batches of food in a cafeteria. Clad in stainless steel and ⁵⁄₈ inch thick, the cooking plate is resistant to warping as it is repeatedly heated up by the unit's gas burner and combustion chamber. To facilitate cleaning by eliminating debris-trapping crevices, the pan is 10 inches deep and has coved corners. Marks in gallons and liters are etched into the pan so users can measure ingredients.

Because this braising pan tilts, it conveniently empties cooked contents into separate pans and containers. Tilting is manual through an integrated hand crank, which is less smooth than electric, automatic tilting but more economical. To improve tilt precision and reduce sloshing, this unit has a worm-and-gear tilt mechanism. It tilts to a vertical position when the crank is turned 24 times, and it can be tilted past vertical to facilitate cleaning. If the operation requires griddling, the pan can be tilted 7 degrees with the heating element on, enabling cooking while grease moves toward the front.

The tilt crank on this Groen BPM-40GC tilt skillet is positioned with the rest of the controls in a water-resistant enclosure. These controls are user friendly and include an on/off power switch. Indicator lights denote when the unit is on and when the burner is heating. Ranging from 175 to 425 degrees Fahrenheit, the temperature in the pan can be adjusted on a temperature control knob.

To increase durability, this unit is made of welded stainless steel. Its tubular legs maintain stability on uneven floors with their bullet feet, and the open base ensures the floor underneath is accessible for cleaning. Although it must be purchased separately, a faucet can be installed on the included bracket. Adding a faucet provides a constant supply of water for recipes and cleaning; it can be a single-pantry faucet for either hot or cold water or a double-pantry faucet for hot and cold water.

Product Details

• 40-gal. capacity
• Stainless steel-clad cooking plate is ⁵⁄₈ in. thick for warp and bend resistance as it heats and cools repeatedly
• Combination of the gas burner and combustion chamber provides an even heat pattern on the cooking surface
• 10-in.-deep pan has gallon and liter etch marks for precise ingredient measuring
• Pan's 3-in.-radius corners eliminate cracks and crevices, supporting quick cleanup
• Pan can be tilted to empty cooked contents
• Manual tilt hand crank has a worm-and-gear mechanism to ensure tilting is precise, smooth, and slosh free
• Vertical tilt position in 24 turns of the crank
• Can be tilted past vertical to aid in cleaning
• Heat stays on when the pan is tilted 7 degrees, convenient for griddle cooking with grease runoff
• Welded stainless steel construction is a single piece and provides strength and corrosion resistance
• Faucet bracket can hold a single- or double-pantry faucet to keep water available
• Tubular legs have bullet feet that stabilize it on uneven surfaces
• Open base provides access to the floor underneath for cleaning
• 144,000 BTU

Simple Controls

• Power on/off switch
• Power indicator light
• Heat indicator light
• Temperature control knob
• Temperature range: 175-425 degrees F
• Thermostat controls the temperature by shutting off burners when the set level is reached and turning them on when it drops
• Front-right mounted in an enclosure for water resistance

Dimensions & Utilities

• 48 in. W x 39.75 in. D x 43.5 in. H (70.3 in. H with the cover raised)
• Heated by natural gas

From The Manufacturer

Braising Pan, NG gas, 40-gallon capacity, 10" deep pan, 38" pan height, IPX6 water rated electronic Classic controls, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, electric spark ignition, 144,000 BTU/hr, cCSAus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

Limited 1-year Parts & Labor/2000 Operating Hours; 10-year Pan; 2-year Parts & Labor/4000 Operating Hours for K-12 School
