Summit BIM182IFLHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled

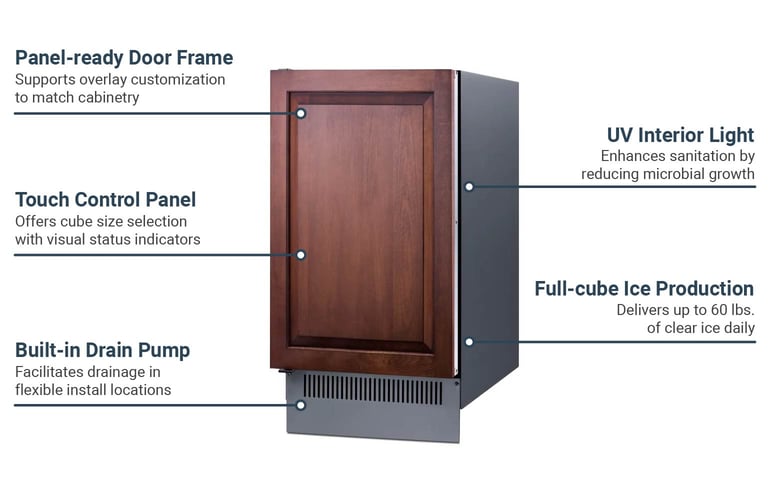

Built for versatility and compact spaces, the Summit BIM182IFLHD undercounter ice machine is equipped with a front-breathing, air-cooled refrigeration system and an internal drain pump for flexible installation. Capable of producing up to 60 pounds of clear, full-cube ice every 24 hours, it stores 33 pounds of product in a removable, insulated bin. To accommodate different usage preferences, the digital touch control panel supports small, medium, or large cube sizes and provides illuminated indicators to guide operation.

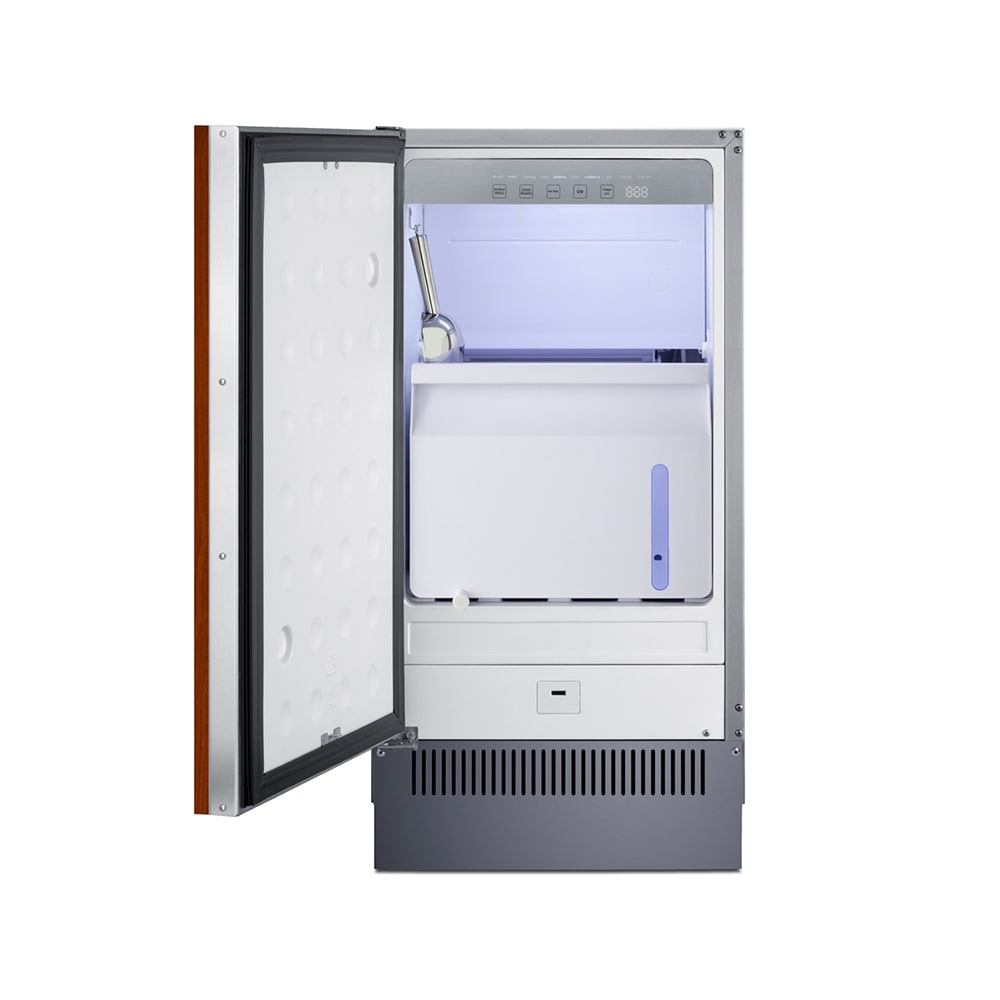

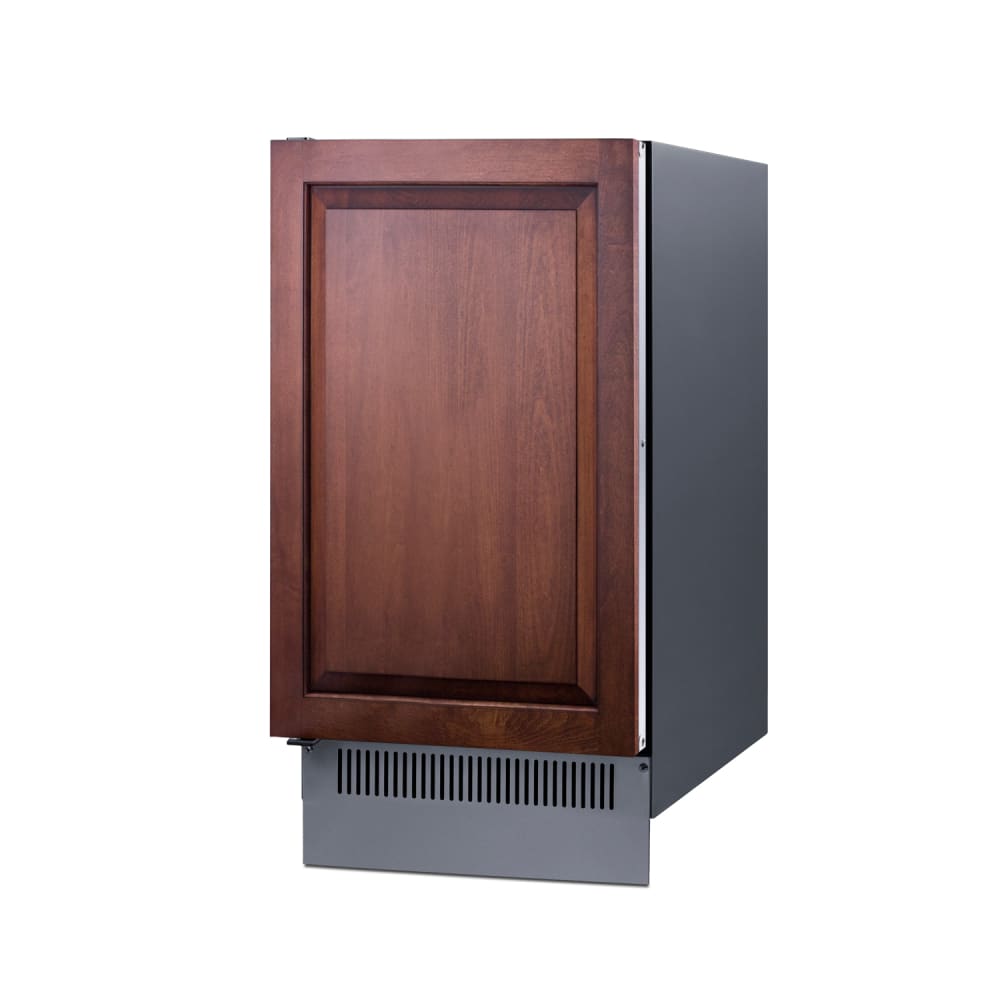

The Summit BIM182IFLHD ice machine is designed with a stainless steel cabinet and factory-reversible, left-hinged door frame that accepts overlay panels for seamless cabinetry integration. Suitable for built-in or freestanding use, it includes adjustable leveling legs for uneven floors and a sealed back to maximize space. The interior features LED lighting for visibility and a UV light to promote sanitation. Its foamed-in-place polyurethane insulation helps maintain consistent interior temperatures and preserve stored ice.

Product Details

• Part of the BIM182 series
• Suited for undercounter or freestanding installation

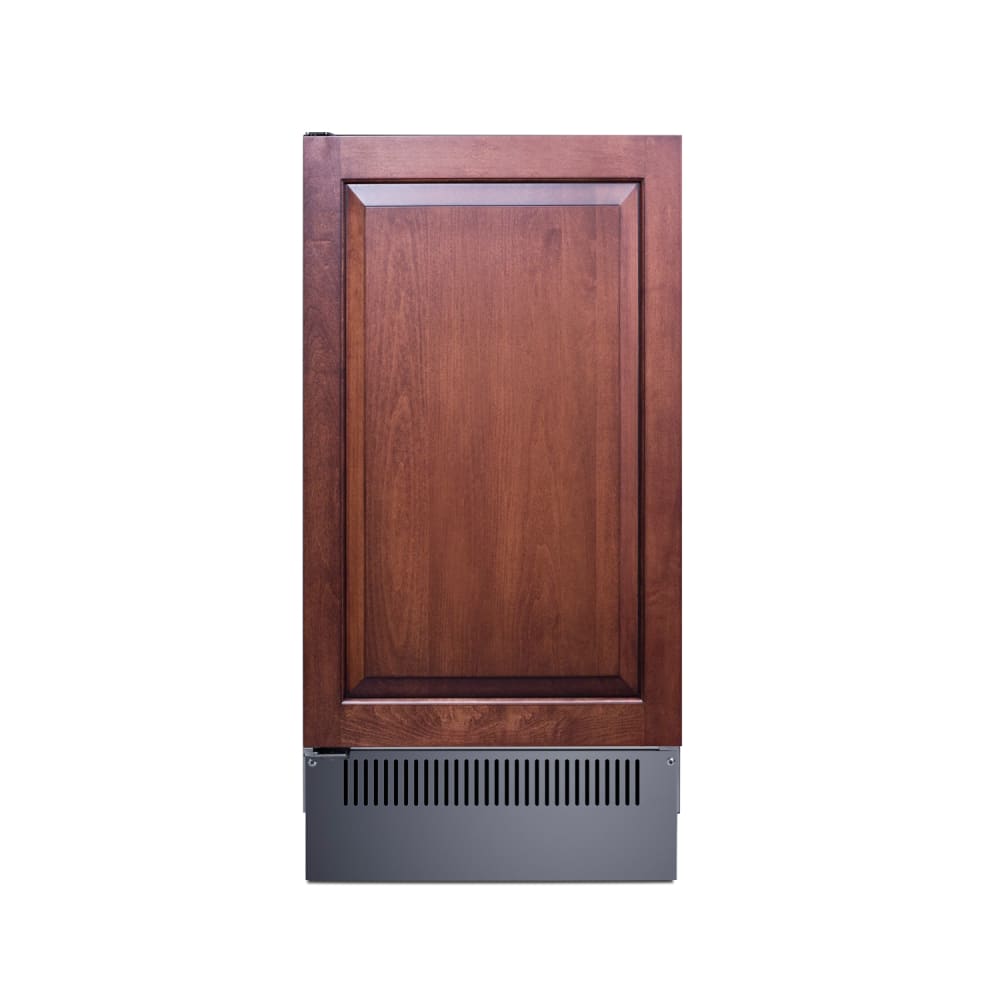

• Panel-ready design
• Produces up to 60 lbs. of full-cube ice per day
• Makes full cube ice in 3 sizes: small, medium, or large

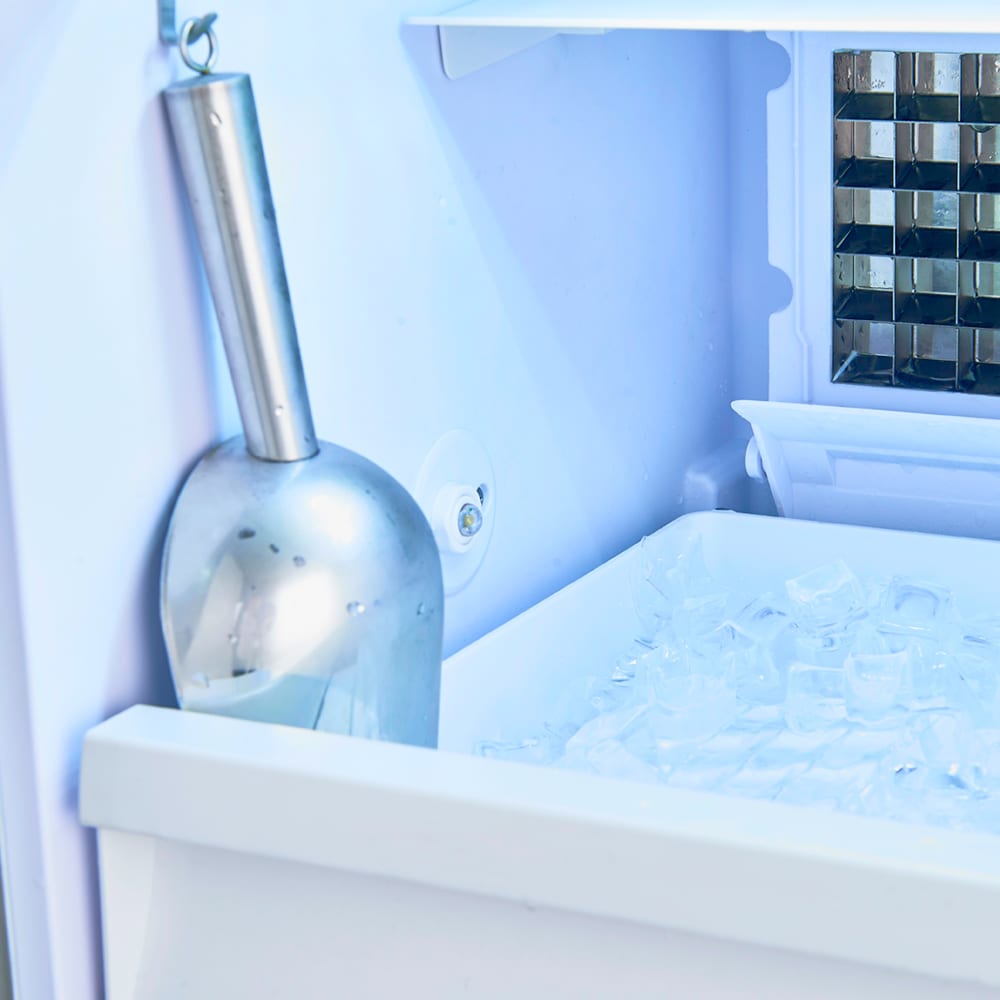

• Removable bin with 33-lb. storage volume
• Stainless steel cabinet and door frame
• Plastic interior
• Steel frame
• Polyurethane foam insulation
• Factory-reversible, left-hinged door

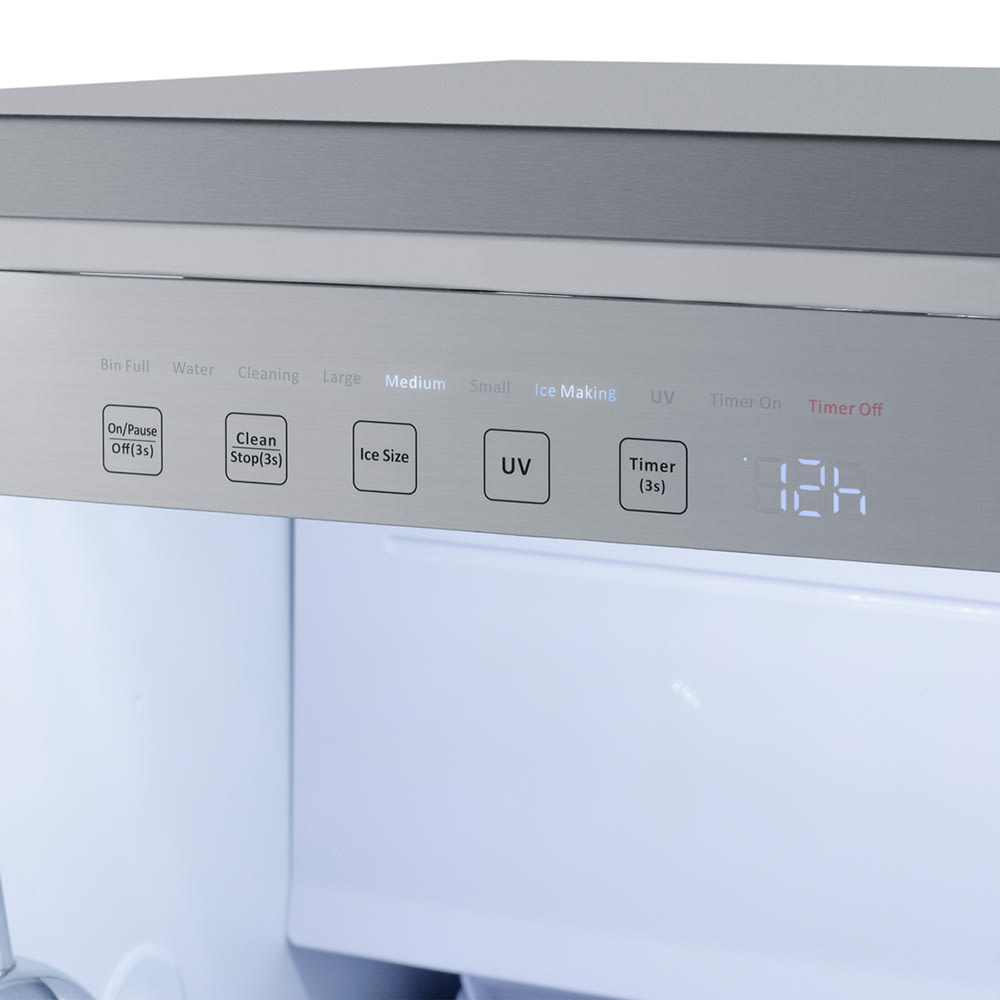

• Touch control panel with size selection and LED indicators
• LED interior lighting
• Built-in UV light
• 4 leveling legs

Refrigeration System

• Front breathing and self-contained
• Air-cooled compressor
• R290 hydrocarbon refrigerant
• Automatic defrost system
• Internal drain pump
• Drain required

Dimensions & Utilities

• Interior: 14³/₄ in. W x 16³/₄ in. D x 18³/₄ in. H
• Overall: 17³⁄₄ in. W x 23³⁄₄ in. D x 34³⁄₄ in. H
• 11.8 A
• 115 V/60 Hz/1 ph, 10-ft. cord with NEMA 5-15P plug

Product Features

*Summit BIM182IFLHD is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 23-3/4"D x 34-3/4"H, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, panel-ready, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182IFLHD Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.
