Summit BIM182ADAIFLHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA
Retail Price: $3,930.00
$2,625.64 /Each
Selected Height: ADA Height
| ADA Height |
| Standard Height |
Summit BIM182ADAIFLHD Description
The Summit BIM182ADAIFLHD panel-ready ice machine supports clear ice production in a slim 18-inch footprint. This item features a stainless steel cabinet and a panel-ready door frame that accepts a full overlay to match surrounding cabinetry. Its left-hand door swing suits installations that require a reversed hinge orientation, while a front-breathing system permits built-in or freestanding placement. The included kickplate supports height extension up to 34 3⁄4 inches for more seamless counter alignment.
To support consistent ice production, the Summit BIM182ADAIFLHD ice maker includes a built-in drain pump and produces up to 60 pounds of full-cube ice every 24 hours. The insulated bin holds 33 pounds and can be accessed using the included scoop. A touch control panel lets users choose from small, medium, or large cube sizes, while LED indicators display operation status. Inside, a UV light helps reduce bacterial buildup during production, and LED lighting activates when the door opens. An automatic defrost system limits manual upkeep between cycles.
- Produces full-cube ice in 3 selectable sizes
- Makes up to 60 lbs. of ice per 24 hours
- 33-lb. insulated storage bin
- Stainless steel cabinet with panel-ready door

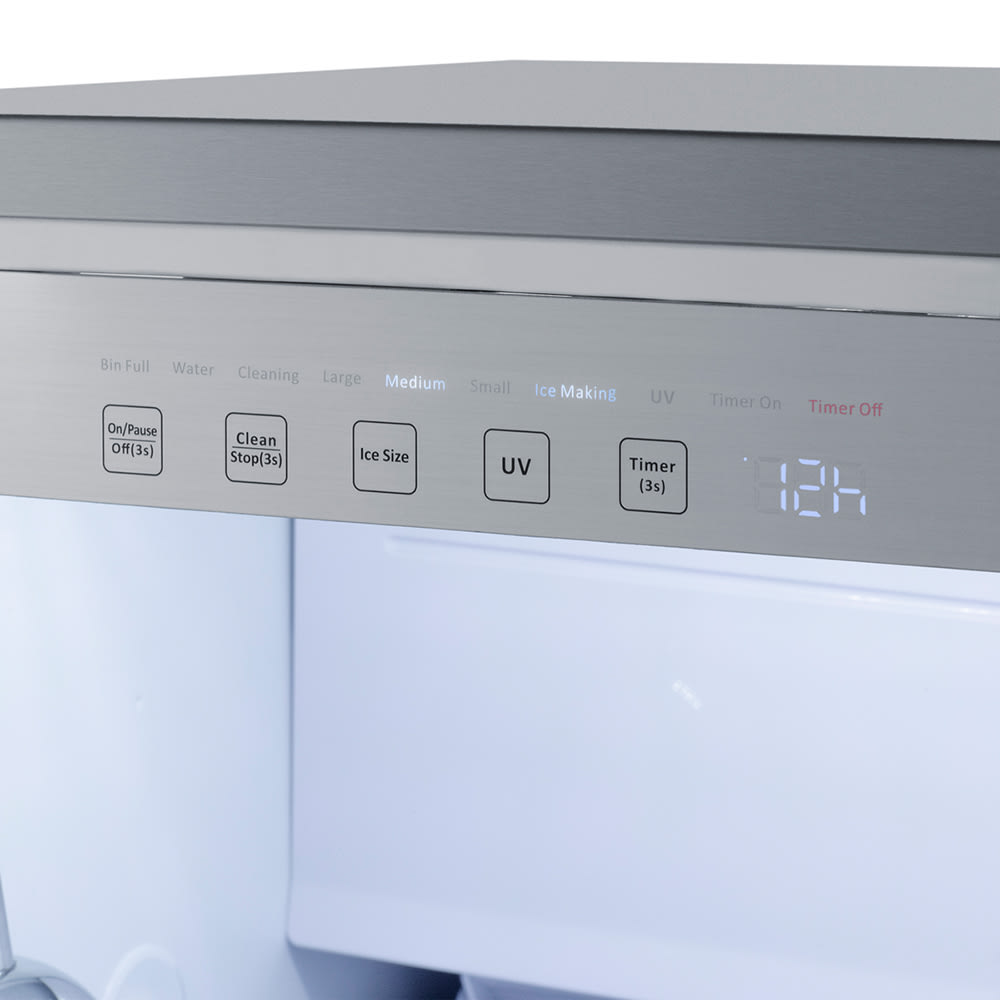

- Touch controls with LED production indicators
- Factory-reversible, left-hinged door
- Built-in UV light sanitizes during ice production
- LED-lit interior
- Ice scoop included
- 4 adjustable leveling feet
- Self-contained
- Front-breathing configuration
- Air-cooled condenser
- Built-in drain pump
- Automatic defrost
- R290 refrigerant
- Interior: 14 3⁄4 in. W x 16 3⁄4 in. D x 18 3⁄4 in. H
- Overall: 17 3⁄4 in. W x 23 3⁄4 in. D x 32 1⁄2 in. H
- 11.8 A
- 115 V/60 Hz/1 ph cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 23-3/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, panel-ready, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)
Summit BIM182ADAIFLHD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 60 |
| Bin Capacity (lb) | 33 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.75 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Cabinet Door |
| Height (in) | 32.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R290 (Hydrocarbon) |
| Series | BIM182 Series |
| Special Features | Adjustable Leveling Feet |
| Special Features | Bacteria-Killing UV Light |
| Special Features | Custom Panel Front |
| Special Features | Digital Controls |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 17.75 |
| Weight | 75.00 |
