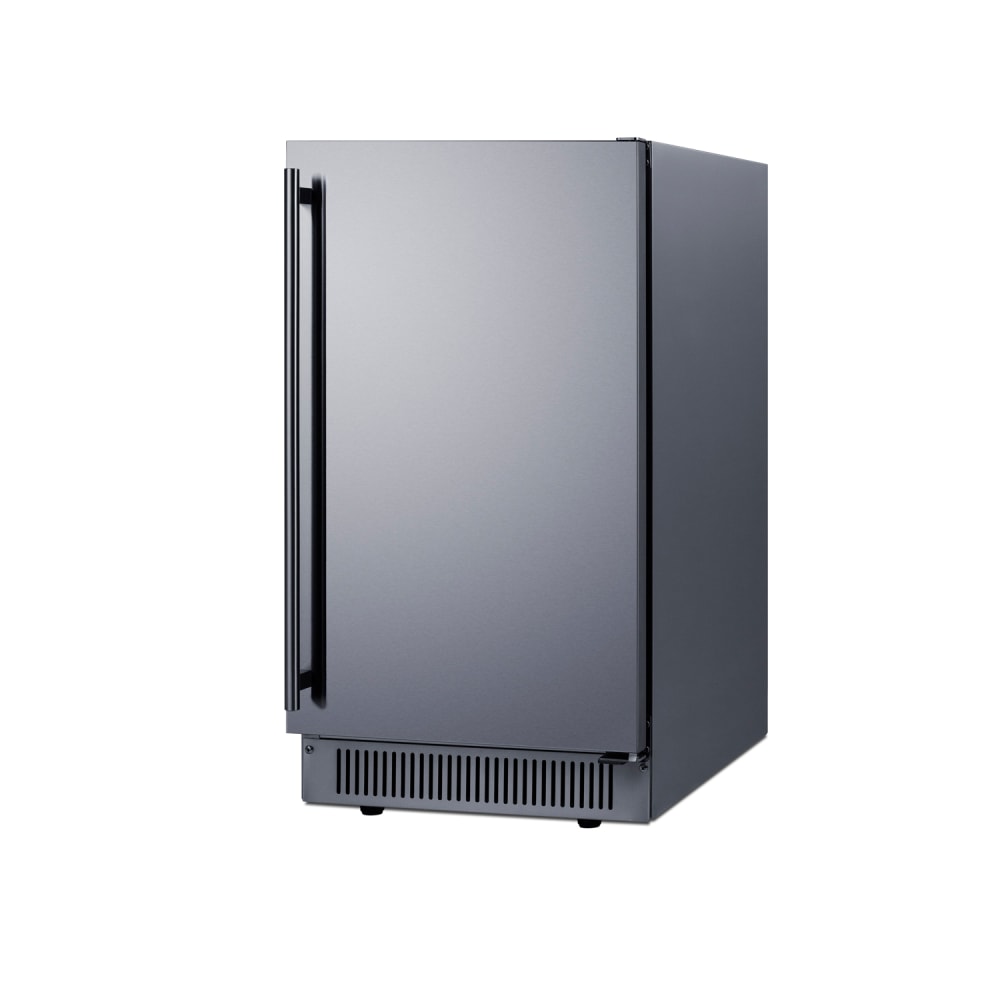

Summit BIM182ADA 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA

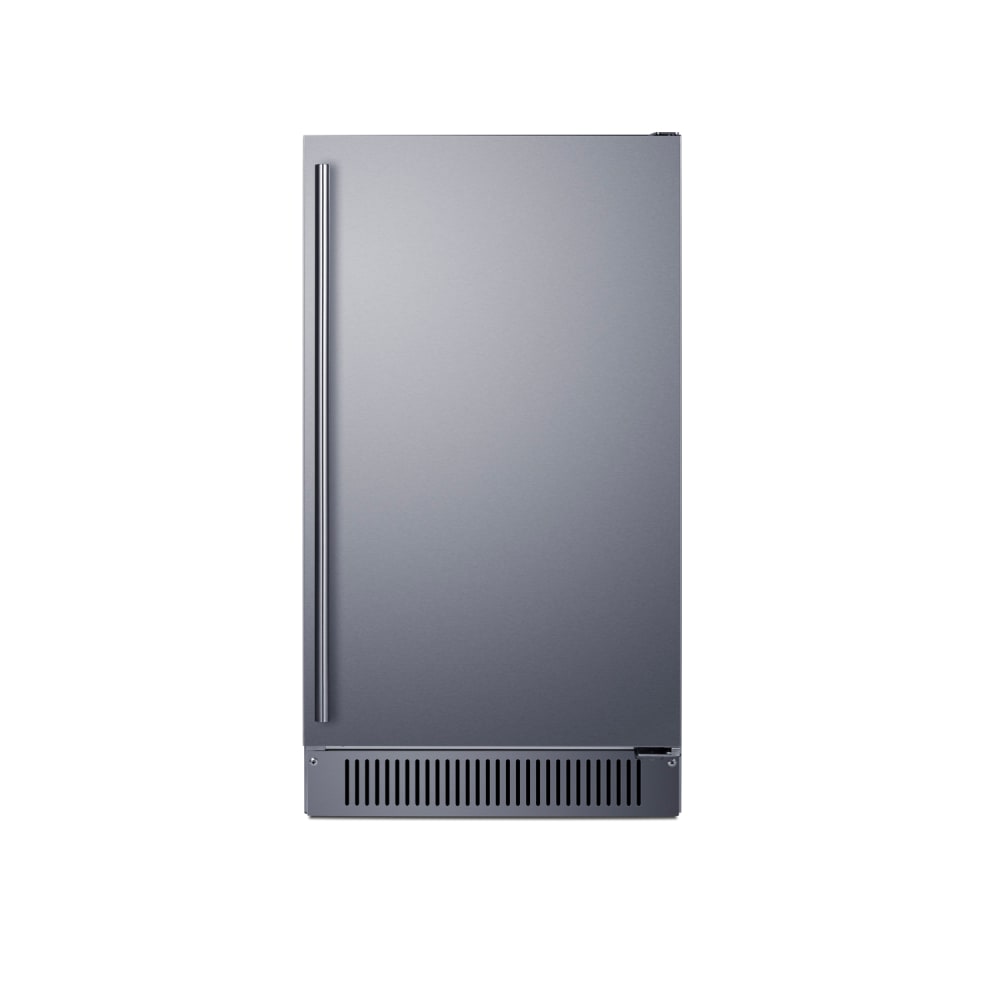

The Summit BIM182ADA undercounter ice machine delivers full-cube ice production with a height-adjustable design for versatile installation. At just 32¹⁄₂ inches tall, this 18-inch-wide unit fits comfortably beneath lower counters while still producing up to 60 pounds of ice per day. This unit features a front-breathing, stainless steel exterior with a right-hinged door for versatile placement. Its slim profile and built-in drain pump enable flexible freestanding or built-in installation in home bars, break rooms, or office kitchens.

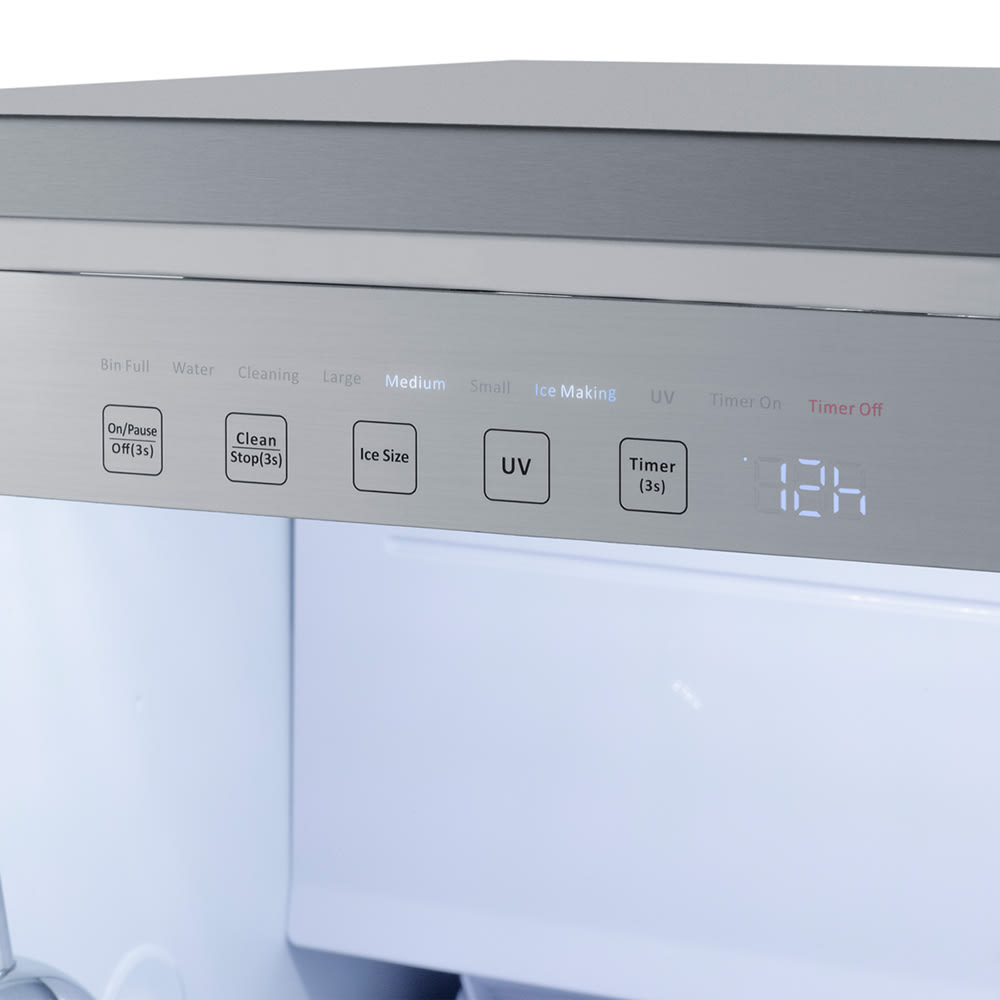

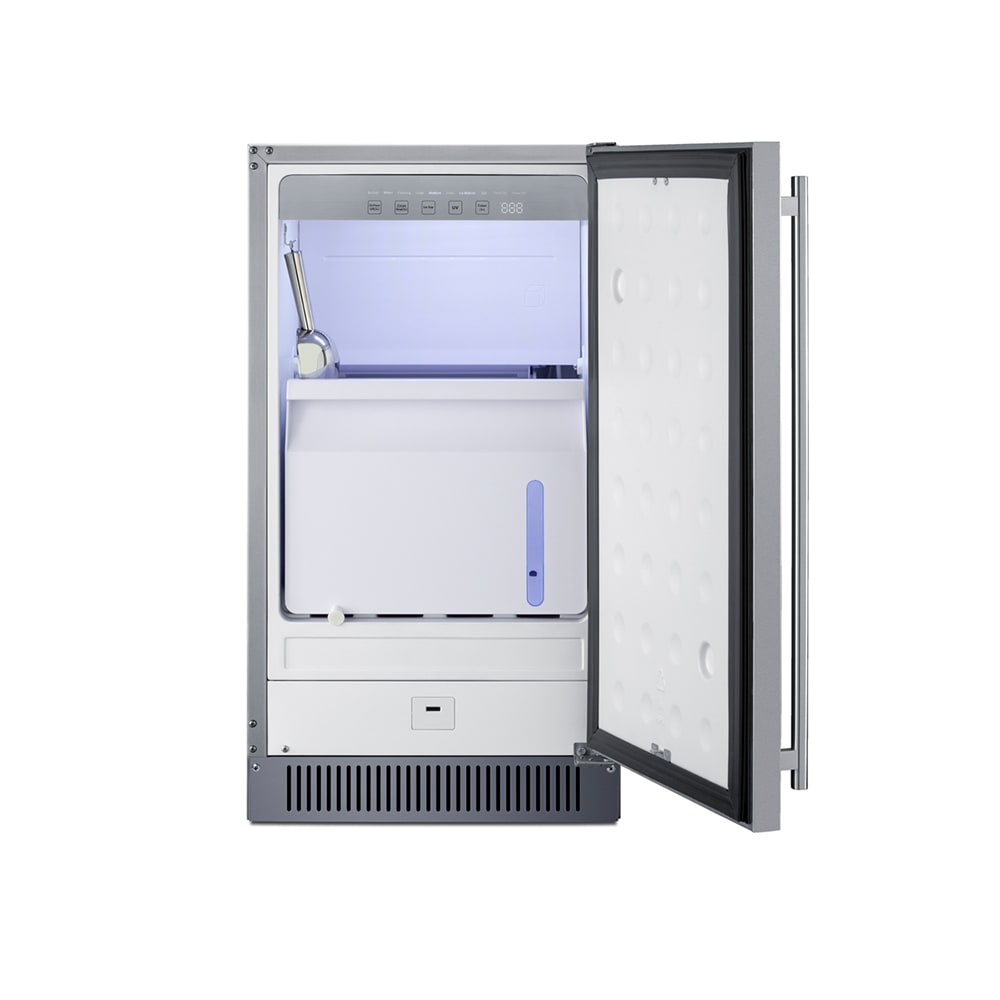

Inside, the Summit BIM182ADA ice maker includes a touch control panel with LED production indicators and a built-in UV light that helps kill bacteria during the ice-making cycle. LED interior lighting activates when the door opens for improved visibility. The unit's insulated bin stores up to 33 pounds of clear, full-cube ice and dispenses ice using the included scoop. Users can select from small, medium, or large ice cube sizes depending on their needs. An automatic defrost system minimizes maintenance, and the use of R290 hydrocarbon refrigerant enhances energy efficiency.

Product Details

• Produces full-cube ice in 3 selectable sizes
• Makes up to 60 lbs. of ice per 24 hours
• 33-lb. insulated storage bin
• Stainless steel cabinet and door
• Touch controls with LED production indicators
• Right-hinged door
• Built-in UV light sanitizes during ice production
• LED-lit interior
• Ice scoop included
• 4 adjustable leveling feet

Refrigeration System

• Self-contained
• Front-breathing configuration
• Air-cooled condenser
• Built-in drain pump
• Automatic defrost
• R290 hydrocarbon refrigerant

Dimensions & Utilities

• Interior: 14³⁄₄ in. W x 16³⁄₄ in. D x 18³⁄₄ in. H
• Overall: 17³⁄₄ in. W x 25¹⁄₄ in. D x 32¹⁄₂ in. H
• 11.8 A
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

*Summit BIM182ADA is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 25-1/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, user reversible right-hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182ADA Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
