Summit BIM182 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled

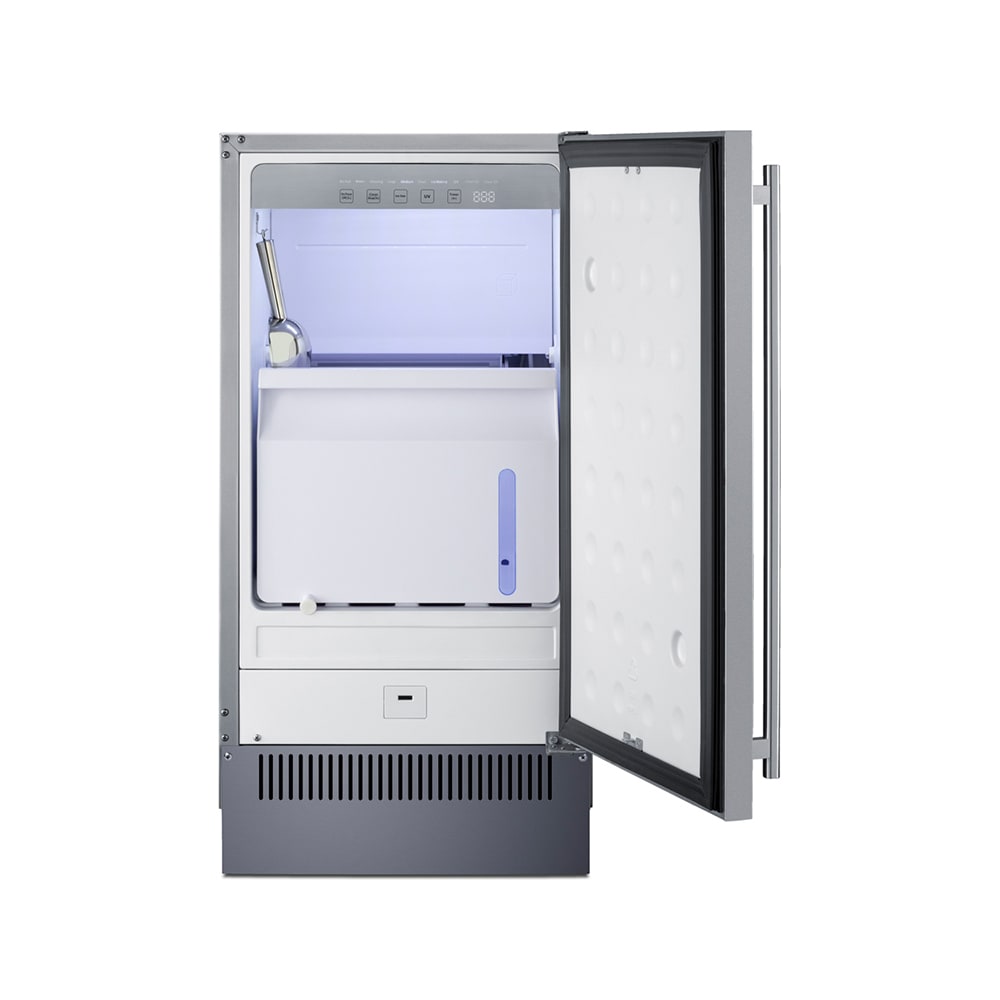

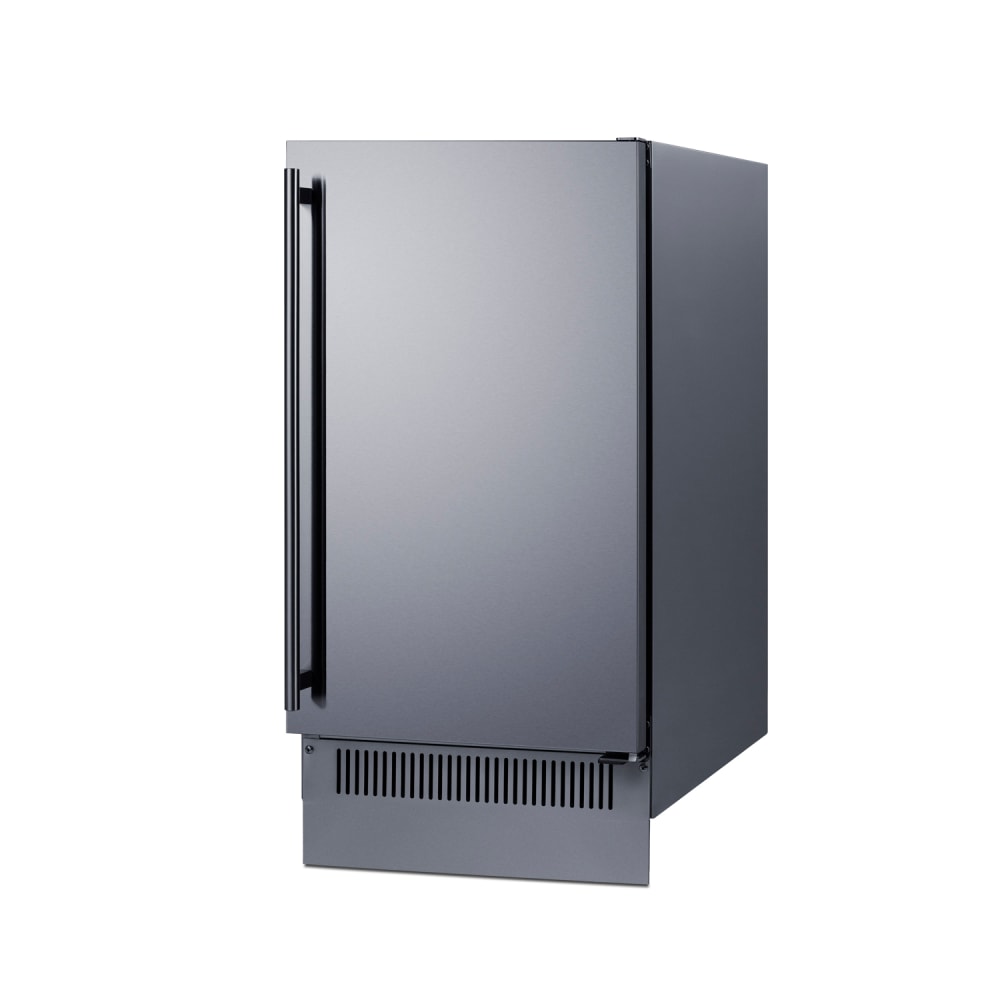

Built for both built-in and freestanding applications, the Summit BIM182 undercounter ice machine offers compact ice production in an 18-inch footprint. This ice machine produces up to 60 pounds of clear, full-cube ice every 24 hours and stores as much as 33 pounds in its insulated bin. Designed for undercounter installation, the unit is front breathing and includes a built-in drain pump for flexible placement. It features a stainless steel cabinet and door with a user-reversible swing, while four adjustable legs raise the unit up to 34³⁄₄ inches to accommodate various counter heights.

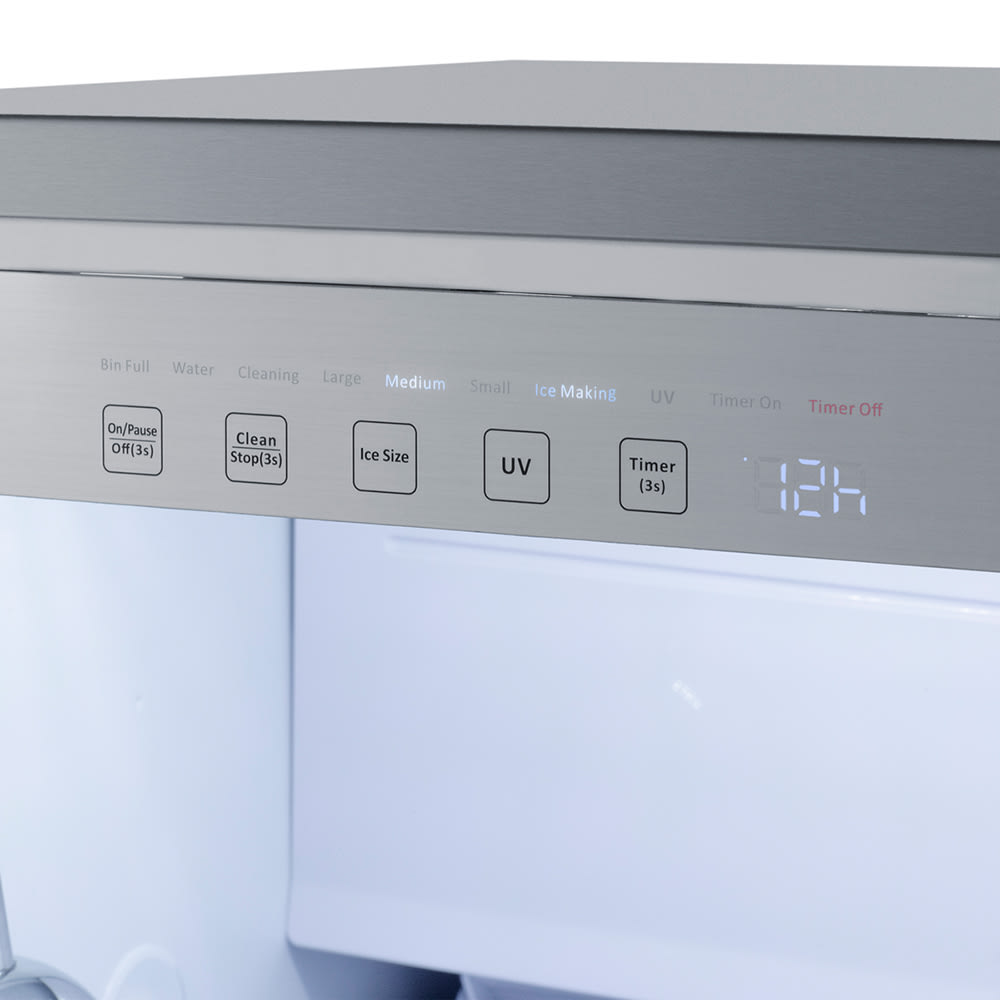

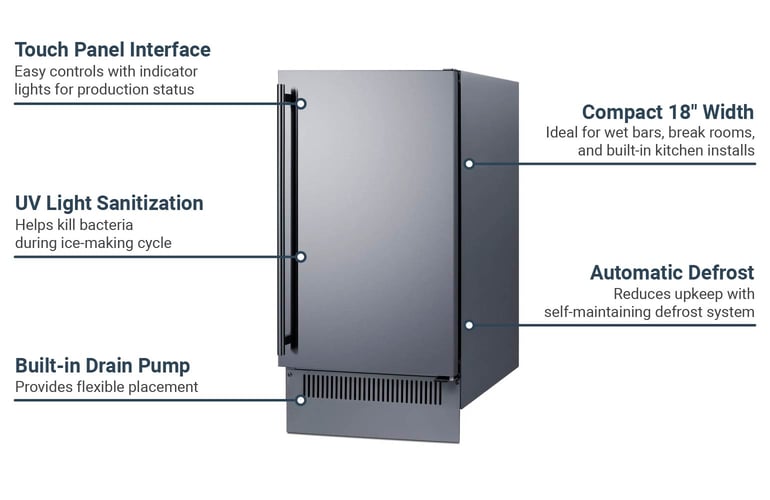

For added convenience, the Summit BIM182 ice machine includes a touch control panel with LED indicators that guide users through every stage of ice production. Interior LED lighting activates when the door opens, and a built-in UV light helps kill bacteria during the ice-making cycle. Users can select from three ice cube sizes—small, medium, or large—while the automatic defrost system reduces cleaning needs. This unit uses R290 hydrocarbon refrigerant to maintain optimal cooling conditions.

Product Details

• Produces full-cube ice in 3 selectable sizes
• Makes up to 60 lbs. of ice per 24 hours
• 33-lb. insulated storage bin
• Stainless steel cabinet and door
• Touch controls with LED production indicators
• Right-hinged door
• Built-in UV light
• LED-lit interior

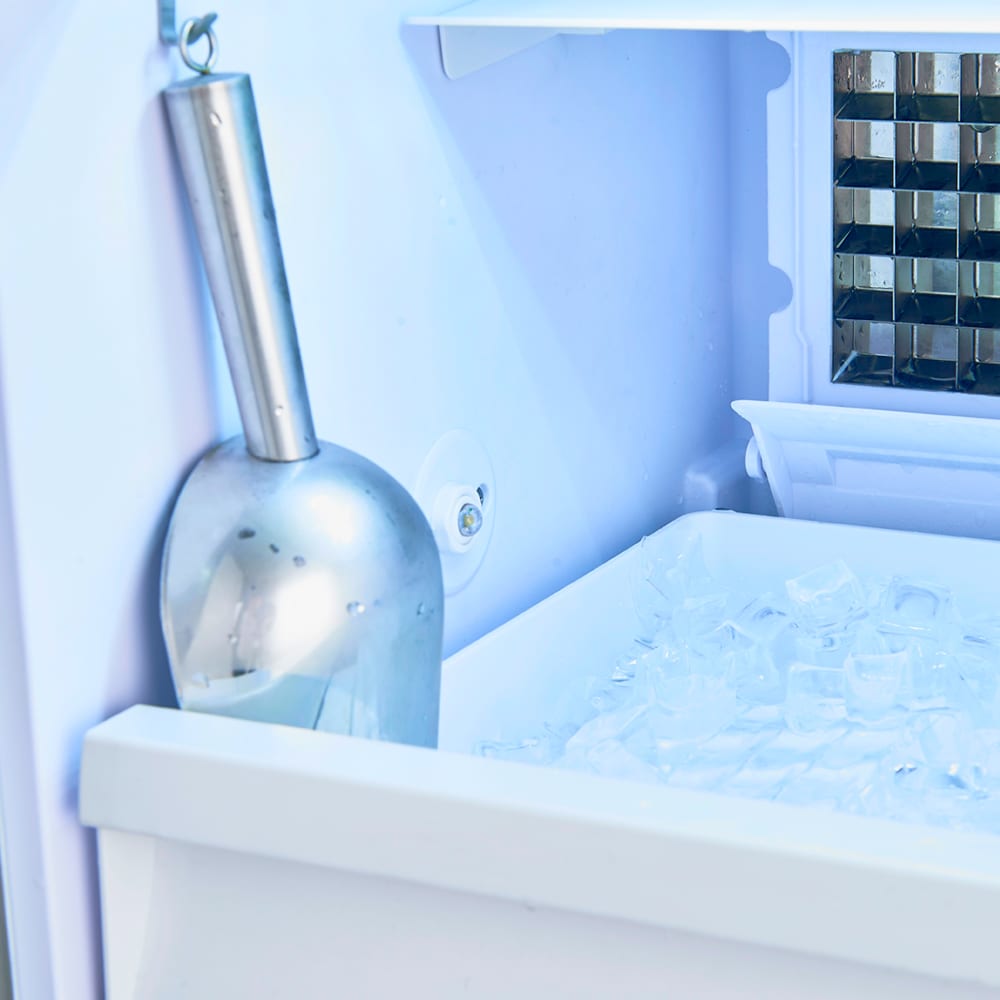

• Ice scoop included
• 4 adjustable leveling feet

Refrigeration System

• Self-contained
• Front-breathing configuration
• Air cooled
• Built-in drain pump
• Automatic defrost
• R290 refrigerant

Dimensions & Utilities

• Interior: 14³⁄₄ in. W x 16³⁄₄ in. D x 18³⁄₄ in. H
• Overall: 17³⁄₄ in. W x 25¹⁄₄ in. D x 34³⁄₄ in. H
• 11.8 A
• 115 V/60 Hz/1 ph cord with NEMA 5-15P plug

Product Features

*Summit BIM182 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 25-1/4"D x 34-3/4"H, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, user reversible right-hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182 Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
