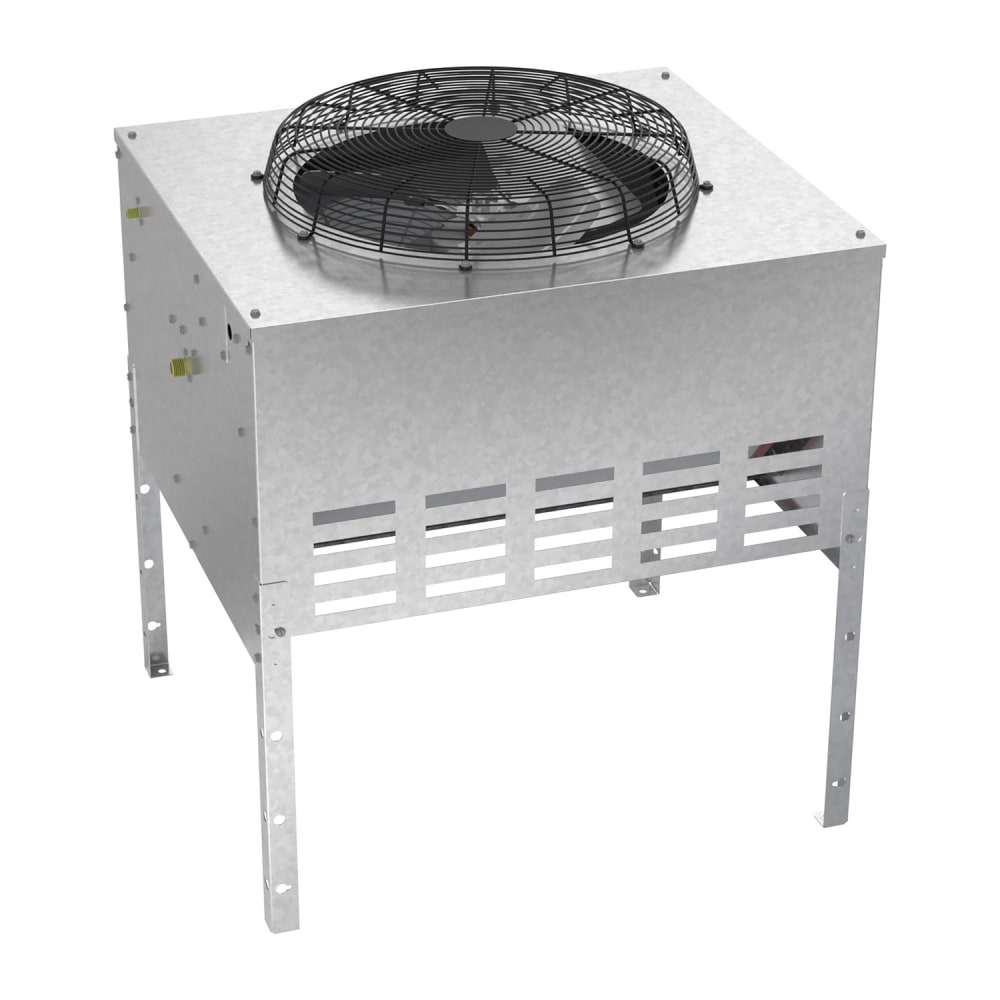

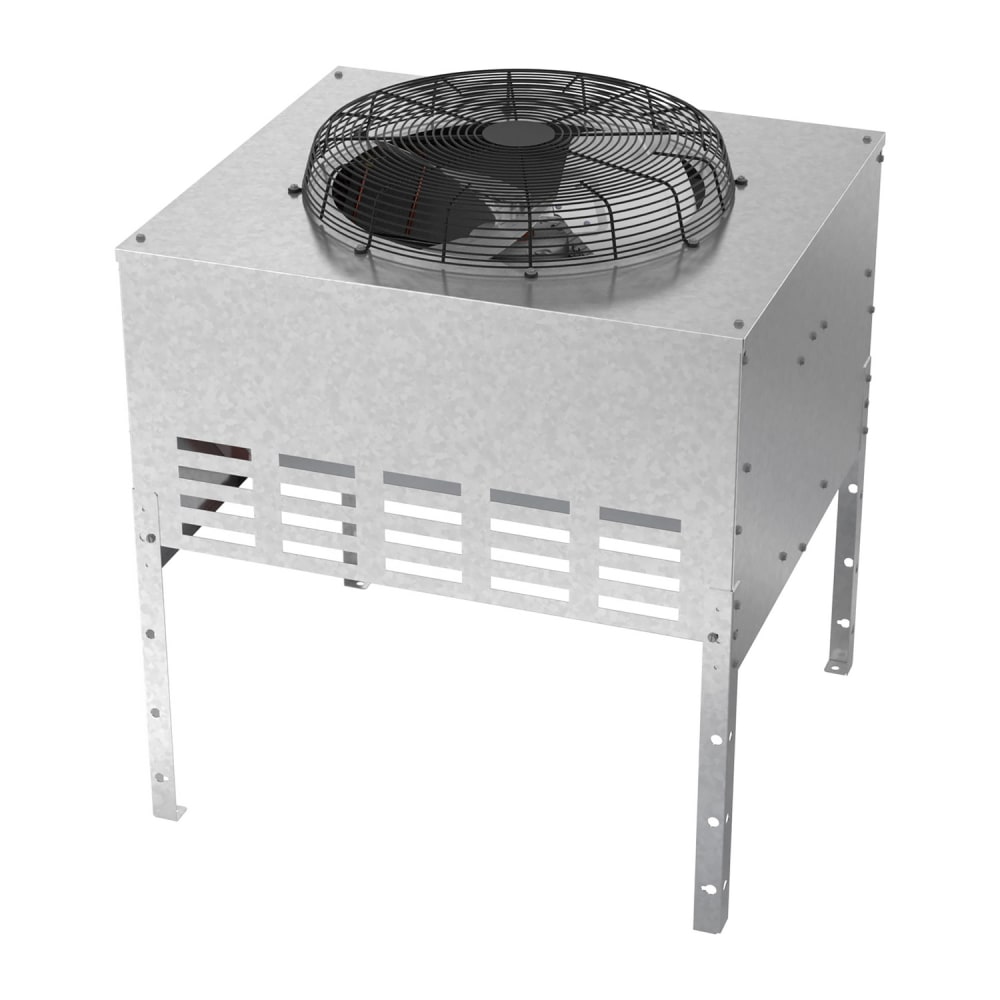

Ice-O-Matic RC406C49 Air Cooled Remote Ice Machine Condenser for CIM2046R & CIM2047R - 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$1,723.00 /Each
Ice-O-Matic RC406C49 Description
The Ice-O-Matic RC406C49 remote ice machine condenser is engineered to support CIM2046R and CIM2047R ice makers by efficiently removing heat from the ice-making process. Its air-cooled design uses a vertical air discharge system to improve cooling performance and maintain steady ice production in commercial settings.
The Ice-O-Matic RC406C49 condenser is equipped with a PSC motor to reduce energy use while keeping the condenser running efficiently. This remote condenser features an externally located fan that lowers indoor noise levels, creating a quieter work environment. Made of galvanized steel, the unit is built for long-term use. Its remote setup reduces strain on air conditioning systems, helping to lower energy costs. Running on R449 refrigerant, this condenser ensures reliable cooling for continuous ice-making operations.
- From the RC series
- For use with CIM2046R and CIM2047R ice makers
- Galvanized steel construction
- Air-cooled remote condenser
- Uses R449 refrigerant
- Vertical air discharge
- PSC motor
- External fan lowers indoor noise
- 30 9⁄10 in. W x 34 3⁄5 in. D x 38 9⁄10 in. H
- 15 A, 93 W
- 208-230 V/50-60 Hz/1 ph (hardwired)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic RC406C49 within the 48 contiguous states.
From The Manufacturer
Remote Condenser for models CIM2046R & CIM2047R
Ice-O-Matic RC406C49 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| Also Known As | RC406C40 |
| Depth (in) | 34.6 |
| For Use With | CIM2046R & CIM2047R |
| Height (in) | 38.9 |
| Hertz | 50/60 |
| Part Type | Compressor |
| Phase | 1 |
| Product | Parts & Accessories |
| Product Type | Ice Makers & Bins |
| Refrigerant | R449A |
| Series | RC |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 30.9 |
| Weight | 145.00 |
