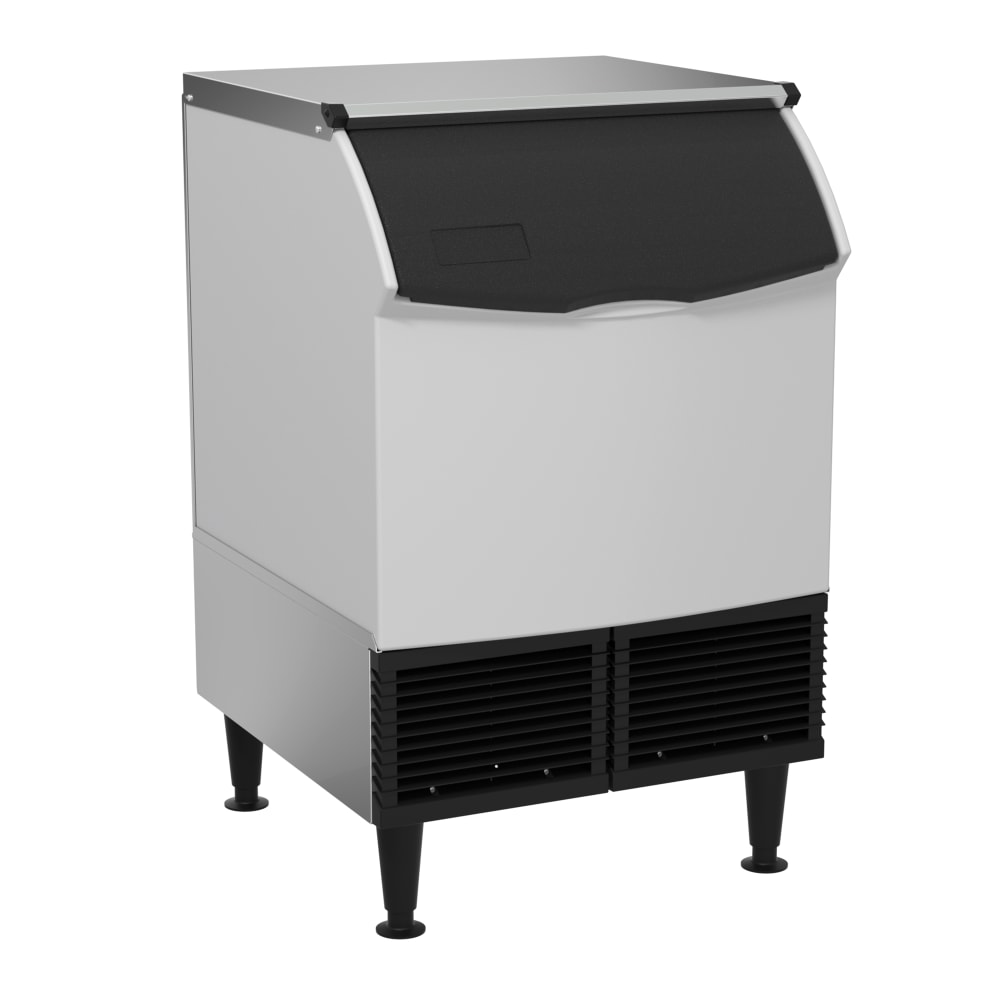

Ice-O-Matic CIMU220FA90 24"W Full Cube Undercounter Ice Machine - 223 lbs/day, Air Cooled
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,352.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIMU220FA90 Description
The Ice-O-Matic CIMU220FA90 ICE Series™ undercounter ice maker can produce 238 pounds of ice in 24 hours and store 70 pounds in the built-in bin. It makes 7⁄8-inch by 7⁄8-inch by 7⁄8-inch full-cube ice, which is perfect for drinks in bars and restaurants since it is large and slow melting. The unit is designed to consistently produce ice, reduce energy use, and increase storage capacity.
Antimicrobial protection on the surfaces in the Ice-O-Matic CIMU220FA90 undercounter ice machine reduces scale, mold, and bacteria buildup. The evaporator plate has a durable nickel plating that enhances its durability. The condenser in this ice maker is air cooled, and air flows in and out the front of the unit. With this design, the unit can be placed against walls and other surfaces.
- 223-lb. maximum daily production
- 74-lb. ice storage capacity

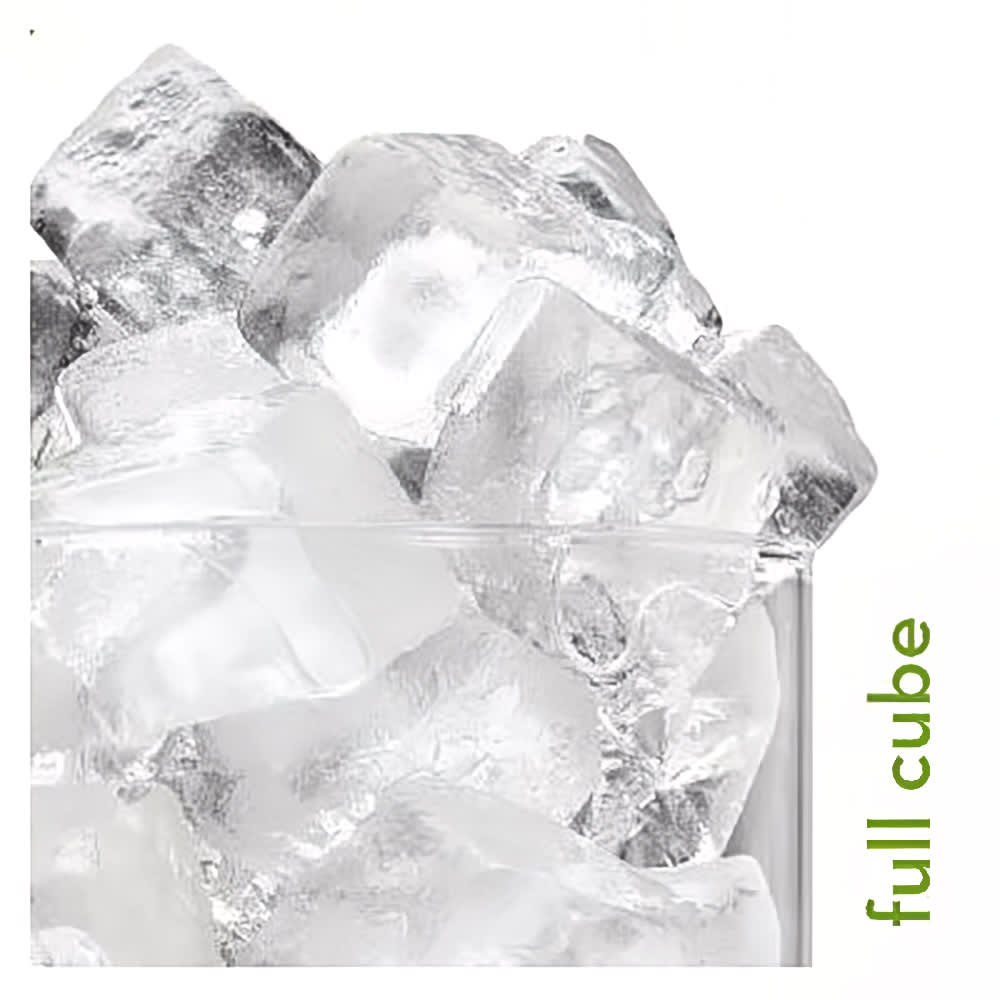

- Full-cube ice size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Harvest Assist feature consistently produces ice, reduces energy consumption, and increases capacity
- Pure Ice® antimicrobial agent protects surfaces from bacteria and scale buildup
- Strong nickel plating on the evaporator plate increases durability
- Air-cooled condenser
- Front air intake and discharge enables placement against walls and other equipment
- Made of corrosion-resistant stainless steel and plastic
- 6-in. adjustable legs stabilize on most surfaces
- R290 hydrocarbon refrigerant
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
- Part of the Ice Series
- 24 27⁄50 in. W x 26 27⁄100 in. D x 39 in. H
- 11.6 A, 8.8 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIMU220FA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Undercounter Cube Ice Maker in R290, air-cooled, self-contained condenser, front breathing design, 24" W, approximately 223 lb production/24 hours at 70°/50° (167 lb at 90°/70°), built-in storage of 74 lbs of ice, full-size cubes, LED status display, one touch sanitize/descaling controls, cULus, NSF, ENERGY STAR®
Watch a video about this product
Ice-O-Matic CIMU220FA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 223 |
| Also Known As | ICEU220FA |
| Bin Capacity (lb) | 74 |
| Compressor Type | Air Cooled |
| Depth (in) | 26.27 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | ICE Series™ |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 24.37 |
| Weight | 153.00 |
