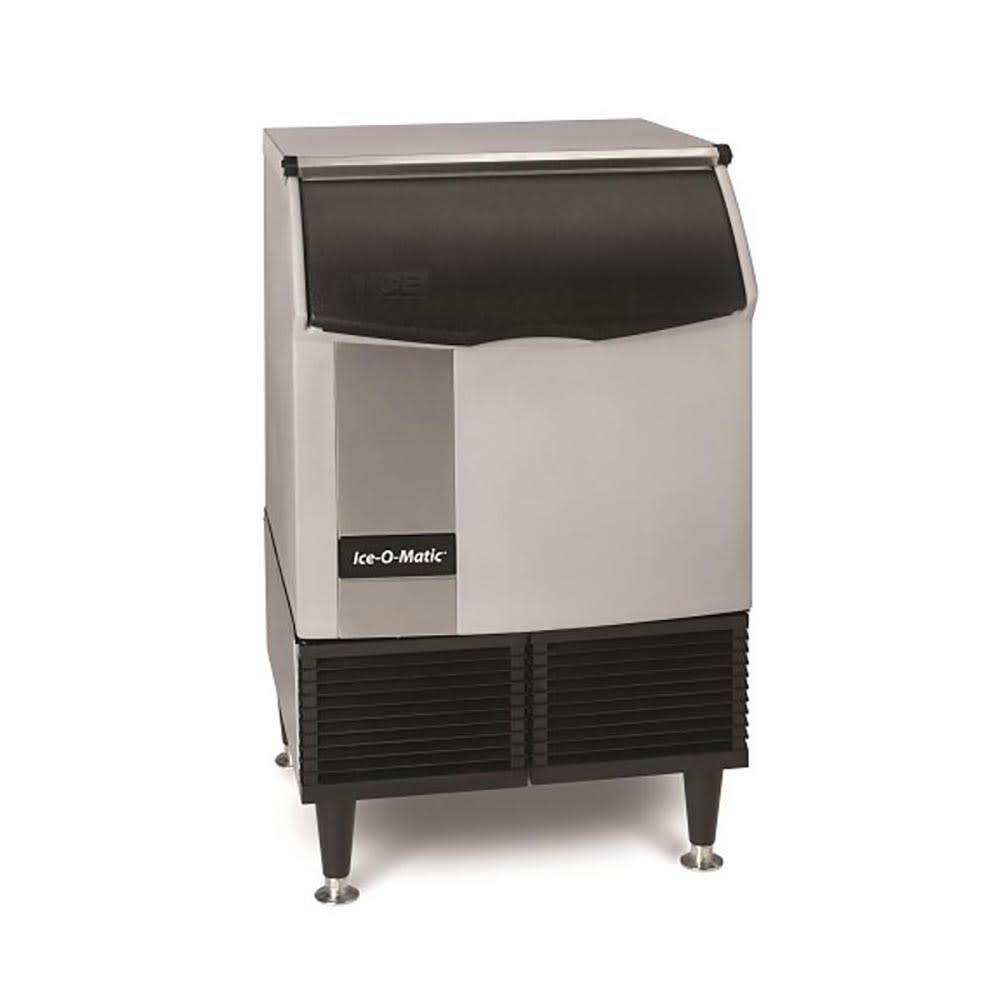

Ice-O-Matic CIMU220HA90 24 1/2"W Half Cube Undercounter Ice Machine - 223 lbs/day, Air Cooled
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,352.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIMU220HA90 Description
The Ice-O-Matic CIMU220HA90 ice machine is a self-contained unit with a built-in storage bin. It can produce as much as 238 pounds of half-cube ice per day and store 70 pounds, keeping you well-stocked with ice for blended drinks, beverages, and other applications. This air-cooled model uses a front-located air exchange and does not require an air filter for operation. It is also an ENERGY STAR-qualified ice machine, which means it uses significantly less energy compared to similar equipment.
The Ice-O-Matic CIMU220HA90 ice machine comes standard with Ice-O-Matic exclusive features that promote durability and performance. Finished ice is pushed into the bin via a harvest assist technology for accelerated ice production. The machine's evaporator is plated in nickel to resist damage from its constant exposure to water and ice. Antimicrobial protection inhibits bacterial growth to help maintain a cleaner ice machine. The adjustable 6-inch legs and 24-inch width also provide flexible installation options.
- Maximum daily ice production of 223 lbs.
- Total storage capacity of 70 lbs.
- Half-cube ice is ideal for soft drinks and blended frozen drinks
- Air-cooled model uses a front-located air exchange and requires no air filter
- R290 refrigerant
- Low-profile, compact design allows undercounter installation in small spaces
- Construction includes stainless steel, molded plastic, and adjustable 6-in. legs
- ENERGY STAR model is designed to use less energy and water to save on operation costs
- Half Cube Dimensions: 3⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- 115 V/60 Hz/1 ph, 11.9 A, plug and cord included
- 24 27⁄50 in. W x 26 27⁄100 in. D x 39 in. H
- Antimicrobial protection helps inhibit the growth of bacteria and slime on machine interior
- Harvest assist pushes ice into the storage bin to promote consistent ice production
- Evaporator has a copper core and nickel plating to resist damage and corrosion
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIMU220HA90 within the 48 contiguous states.
From The Manufacturer
Watch a video about this product
Ice-O-Matic CIMU220HA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 223 |
| Also Known As | ICEU220HA |
| Bin Capacity (lb) | 70 |
| Compressor Type | Air Cooled |
| Depth (in) | 26.27 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Half Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | ICE Series™ |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 24.54 |
| Weight | 160.00 |
- 5
- 4
- 3
- 2
- 1
Review this product!
love the compact width
Perfect for my bar, it has such a compact width!
OK, but difficult to adjust
It's too difficult to adjust the thickness of the ice cubes, the adjustments are a silly little dip switch, and easy access is blocked by coolant tubes. Plus, we simply can't set the proper thickness, and customer service says we'll probably be charged for a service call. Plus Ice-o-matic is really made by Scotsman, which we had before with lots of problems.
It produces 223 lbs. of ice per day.
Yes, the bin stores 70 lbs. of ice.
The front-breathing design vents from the front.
Yes, the unit uses a gravity drain.
A harvest assist system pushes ice into the storage bin.
Yes, the one-touch sanitize and descaling controls are included.
The nickel-plated evaporator resists corrosion.
It makes half-cube ice.
It can produce up to 223 lb. of ice per 24 hours.
Its storage bin holds 70 lb. of ice.
It makes half cube ice.
It measures 24 9/16 in. W x 26 1/4 in. D x 39 in. H.
It uses an air-cooled condensing system.
It requires 115 V electrical service.
It requires 1-phase electrical service.
Yes, it uses a gravity drain connection.
It uses R290 refrigerant.
Yes, it includes a storage bin with a 70-lb. capacity.
Its listed certifications include C-UL US, CE, and NSF.
It requires 11.9 A.
It uses a NEMA 5-15P plug.
It requires a 3/8-in. water line connection.
Yes, it vents through the front.
Yes, it includes a power cord and plug.
