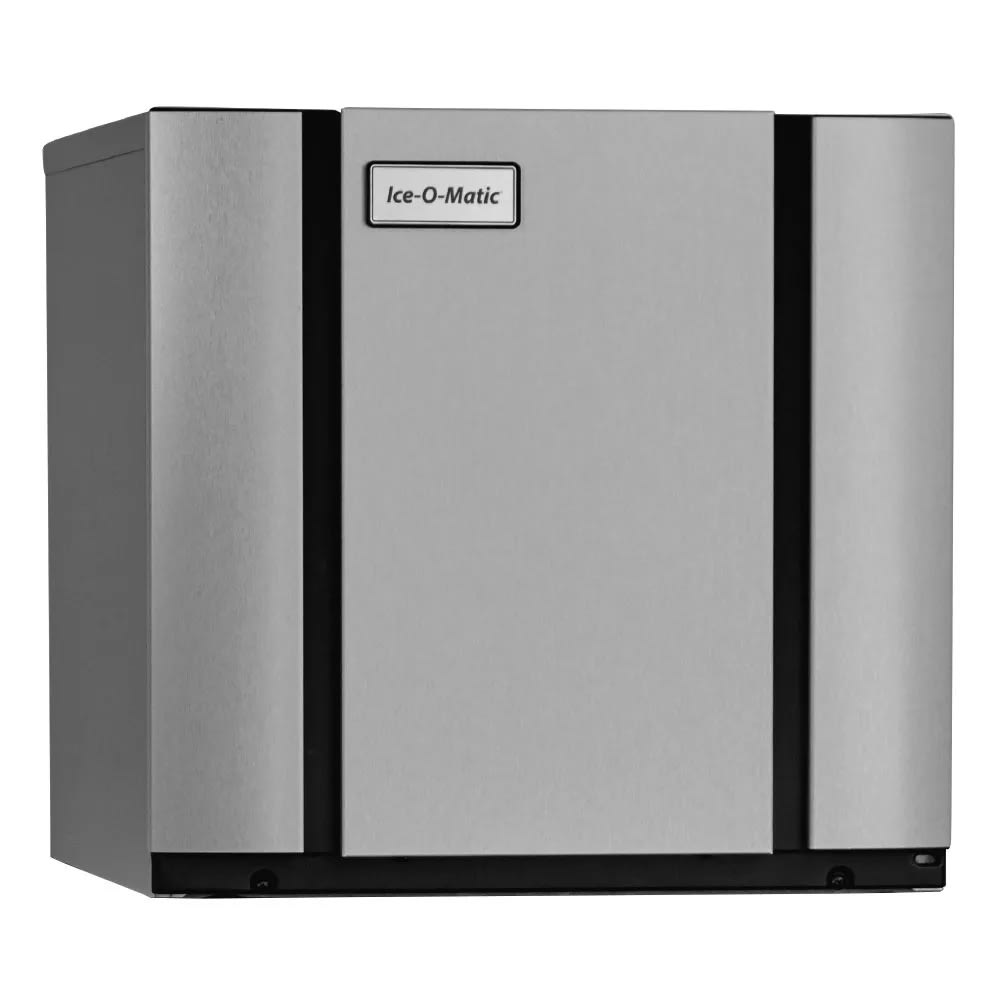

Ice-O-Matic CIM1126HA 22 1/4" Elevation Series™ Half Cube Ice Machine Head - 932 lb/24 hr, Air Cooled, 208-230v/1ph

Part of the Elevation Series™, the Ice-O-Matic CIM1126HA modular cube ice maker is an air-cooled unit with a self-contained condenser. This configuration is an economical alternative to water-cooled condensers or remote systems because of its simple installation and maintenance requirements. Because the condensing unit is within the machine itself, it doesn't require wiring beyond the unit's main connection.

The Ice-O-Matic CIM1126HA half-cube ice machine head is designed to discharge air from the top and side, maximizing installation possibilities. This piece of equipment measures 22¹/₄ inches in width by 24¹/₄ inches in depth by 26⁹/₁₀ inches in height and produces as much as 932 pounds of ice in 24 hours. The machine's half-size cubes each measure ³⁄₈ by ⁷⁄₈ by ⁷⁄₈ inch.

Product Details

• Part of the Elevation Series
• 932-lb. maximum daily ice production
• 762-lb. AHRI-certified daily ice production
• Produces half-cube ice
• Cube dimensions: ³⁄₈ in. x ⁷⁄₈ in. x ⁷⁄₈ in.
• Self-contained condenser
• Air cooled
• Made with recyclable parts and BPA-free plastic
• Plastic food zone eliminates nooks and crannies
• PURE ICE antimicrobial protection inhibits spread of bacteria
• Smart LED light indicates machine status

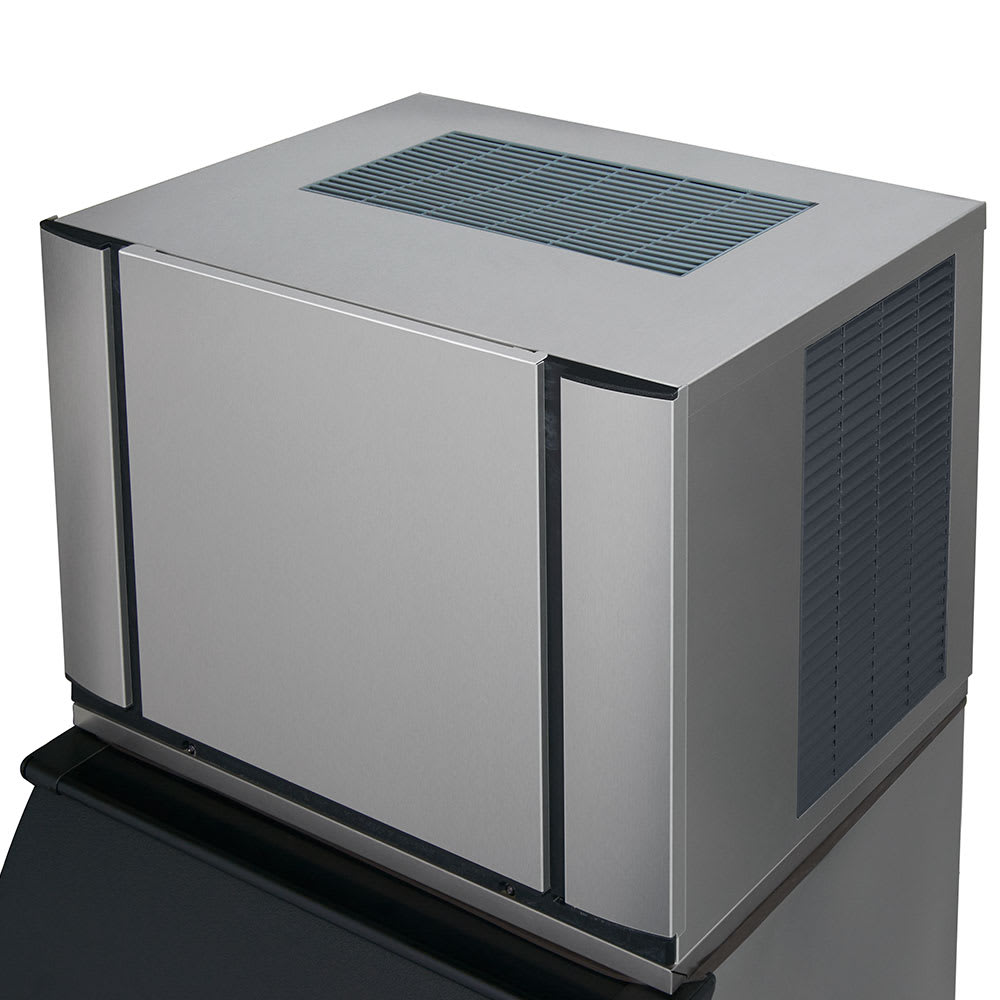

• Dual-exhaust system maximizes installation possibilities

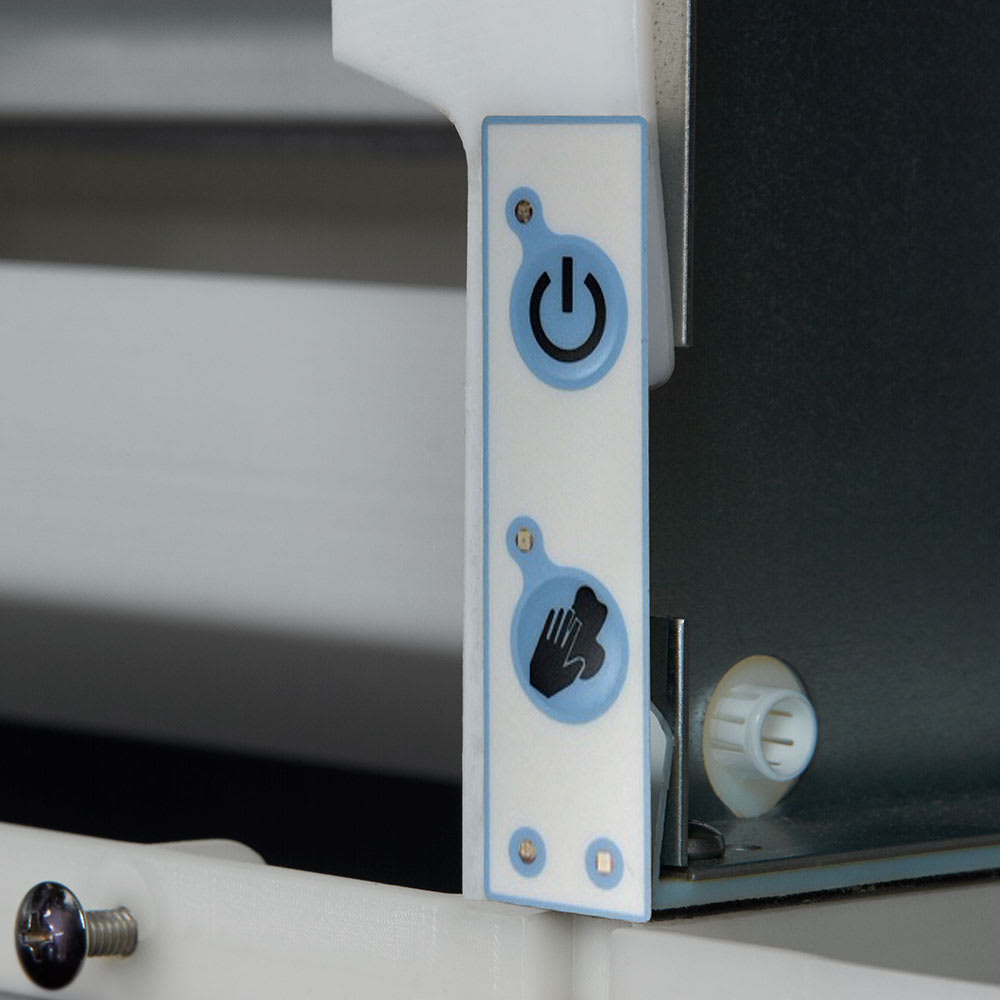

• 1-touch controls streamline sanitization and descaling

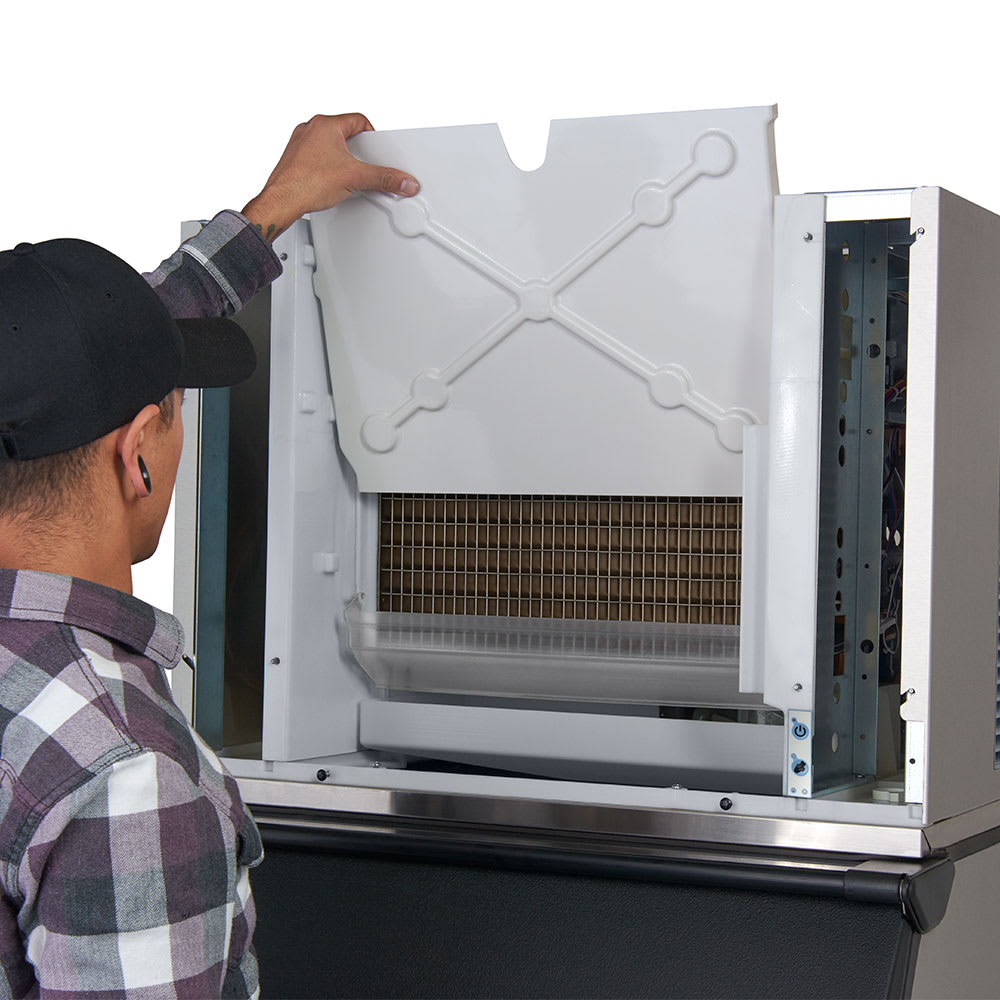

• Dishwasher-safe components snap out for facilitated cleaning
• Universal Smart Harness™ control board optimizes access to controls
• Provides digital diagnostics
• Universal components and common configuration
• 18,200-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• Overall: 22¹/₄ in. W x 24¹/₄ in. D x 26⁹/₁₀ in. H
• 12.2 A, 5.1 kW
• 208-230 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CIM1126HA within the 48 contiguous states.

From The Manufacturer

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22 1/4"W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free (Replaces ICE0926HA)

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor; 5-year Evaporator & Compressor Parts

Ice-O-Matic CIM1126HA Specifications
