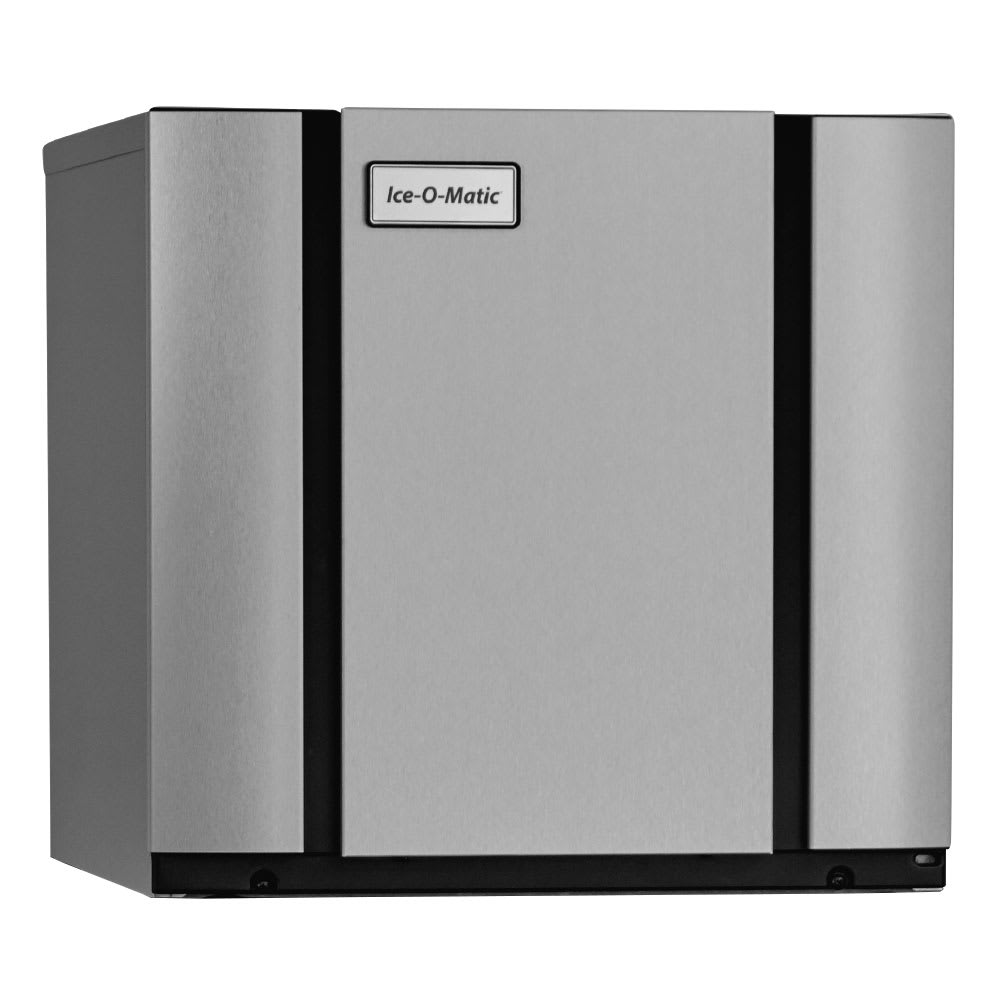

Ice-O-Matic CIM0836GA 30 1/4" Elevation Series™ Extra-Large Cube Ice Machine Head - 800 lb/24 hr, Air Cooled, 208-230v/1ph
$6,744.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0836GA Description
The Ice-O-Matic CIM0836GA extra-large cube ice machine head has a plastic food zone that doesn't have any crevices for debris to get stuck in. This food zone's components snap out, so they can be placed in the dishwasher for cleaning. To monitor the system's status, it has an LED screen that provides a readout, and to perform sanitizing and descaling measures, employees just have to push a button. Equipped with PURE ICE® antimicrobial, this unit slows bacterial growth to reduce maintenance needs.
Great for supplying ice in soft drinks and cocktails, the Ice-O-Matic CIM0836GA ice maker head makes extra-large cubes of ice, which melt slower than smaller cubes of ice. In ideal operating conditions, it makes as much as 800 pounds daily, but if conditions are less than ideal, it makes closer to 645 pounds. Facilitating installation, the air-cooled condenser is self-contained. This unit doesn't come with a bin or dispenser, so one will need to be purchased separately for use.
- Part of the Elevation Series™
- 800-lb. daily ice production
- 645-lb. AHRI-certified daily ice production
- Makes grande-size cubes of ice
- Grande-size cube dimensions: 1 1⁄4 in. x 1 1⁄8 in. x 7⁄8 in.
- Self-contained condenser is air cooled
- Built-in PURE ICE antimicrobial protection
- LED display can be monitored for updates
- Sanitizing and descaling performed with the touch of a button

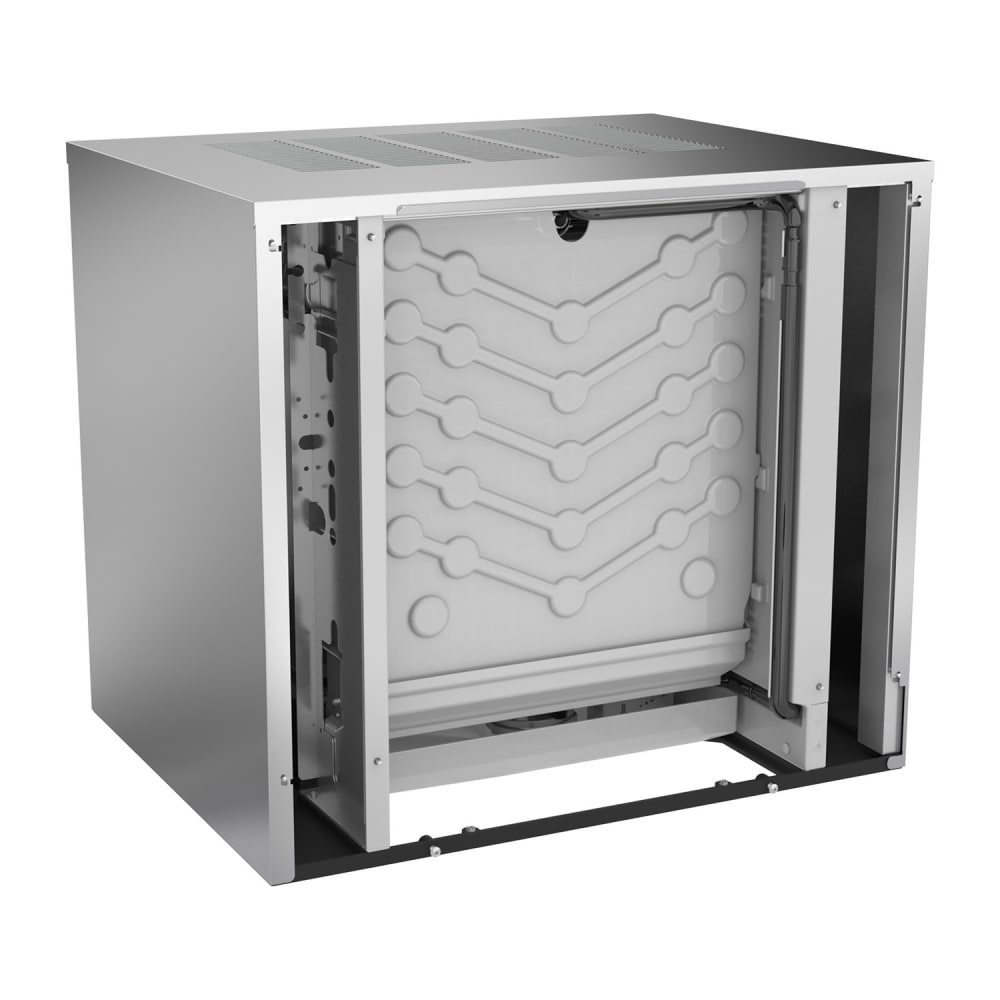

- Plastic food zone with removable, dishwasher-safe components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 18,200-BTU heat transfer capacity
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 26 9⁄10 in. H
- 12.3 A, 5.4 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0836GA within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30 1/4"W, approximately 800 lb production/24 hours at 70°/50° (645 lb at 90°/70°), grande-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0836GA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 800 |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 26.9 |
| Ice Type | Extra-large Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R404A |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 230.00 |
