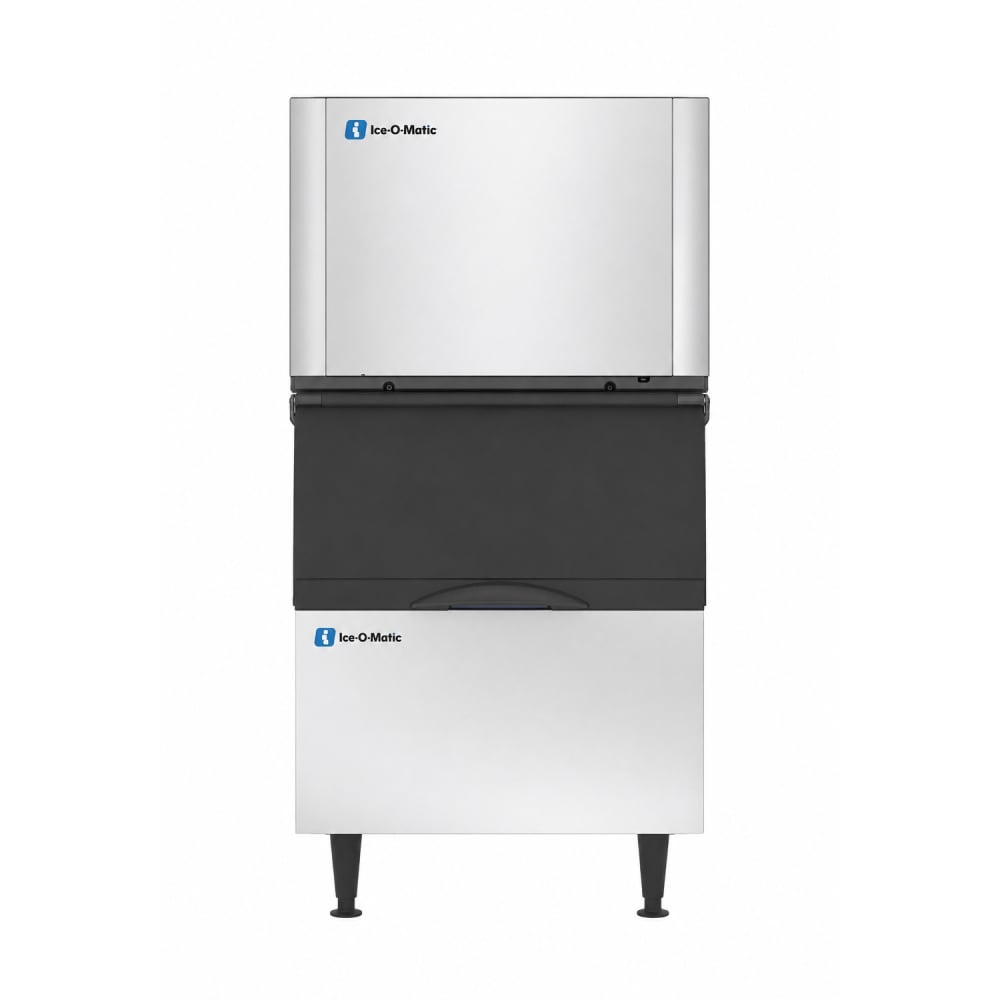

Ice-O-Matic CIM0636HA90/B40 600 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 208-230v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,031.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0636HA90/B40 Description
In ideal environmental conditions, the Ice-O-Matic CIM0636HA90/B40 can produce a maximum of 600 pounds of ice per day. Protected with PURE ICE® antimicrobial, it inhibits the growth of harmful mildew, bacteria, and other microbes for optimal sanitation. To further ensure cleanliness, its plastic food zone is equipped with components that can be removed and cleaned in a dishwasher. The unit’s status is indicated with a clear LED display, and its dual-exhaust discharge enables placement in a variety of settings.
The exterior of the Ice-O-Matic CIM0636HA90/B40 ice machine’s included bin is made of aluminum—a durable metal that provides excellent resistance to corrosion. Its polyethylene liner won’t harbor bacteria and can be easily wiped clean as needed. It can house as much as 344 pounds of ice and is positioned on sturdy 6-inch legs.
- Part of the Elevation Series™
- 600-lb. maximum daily ice production
- 455-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Plastic food zone with dishwasher-safe components
- Operators can monitor unit status with LED display
- 1-touch descaling and sanitizing feature
- Dual-exhaust system discharges air from side and top for installation flexibility
- PURE ICE antimicrobial protects against growth of mold, mildew, and bacteria
- Air cooled
- Self-contained condenser
- Uses R290 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 8,600-BTU heat transfer capacity
- 344-lb. application capacity
- Sloped front door is top hinged
- Exterior made of corrosion-resistant aluminum
- Lined with easy-to-clean polyethylene
- Supported with 6-in. legs
- Ice maker: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin: 30 in. W x 31 in. D x 37 1⁄2 in. H
- 9.2 A, 5.63 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0636HA90/B40 within the 48 contiguous states.
From The Manufacturer

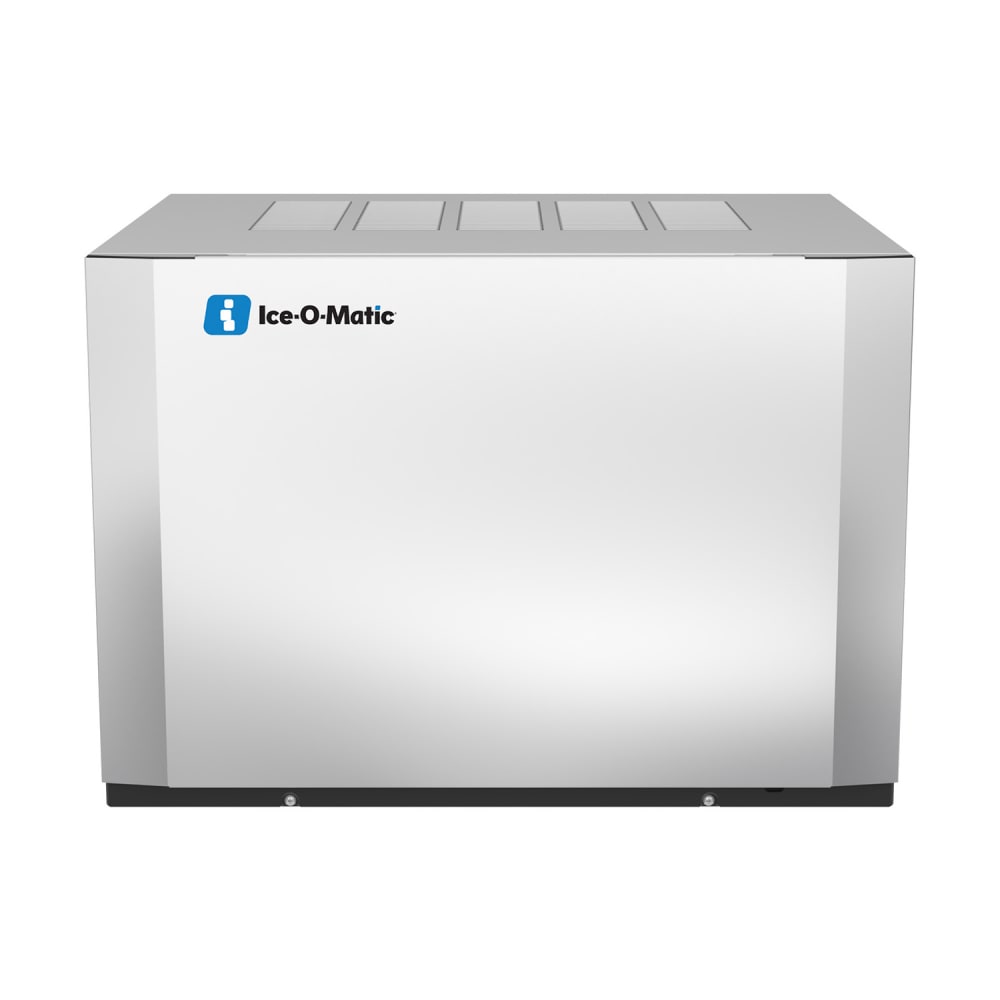

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 600 lb production/24 hours at 70°/50° (455 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

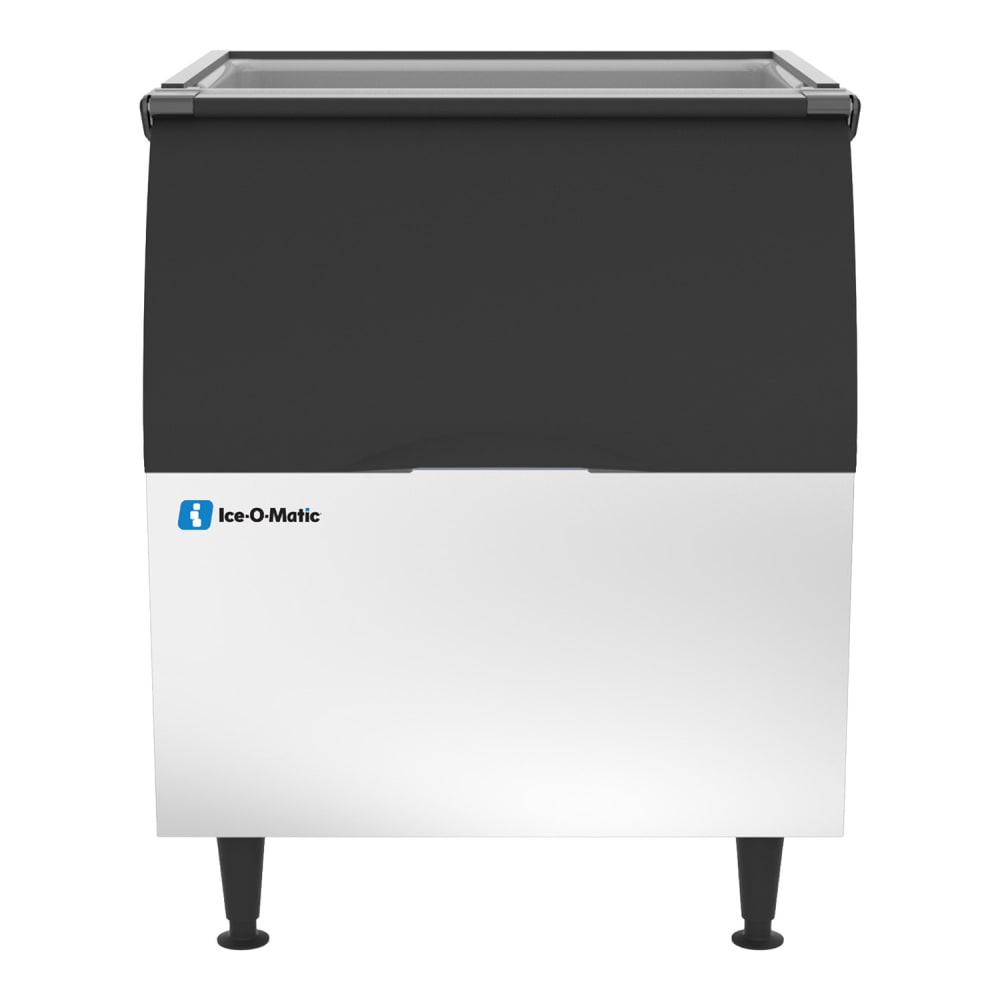

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0636HA90/B40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 600 |
| Access | Lift Up Door |
| Also Known As | CIM0636HA/B40PS |
| Bin Capacity (lb) | 344 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 58.75 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 263.00 |
