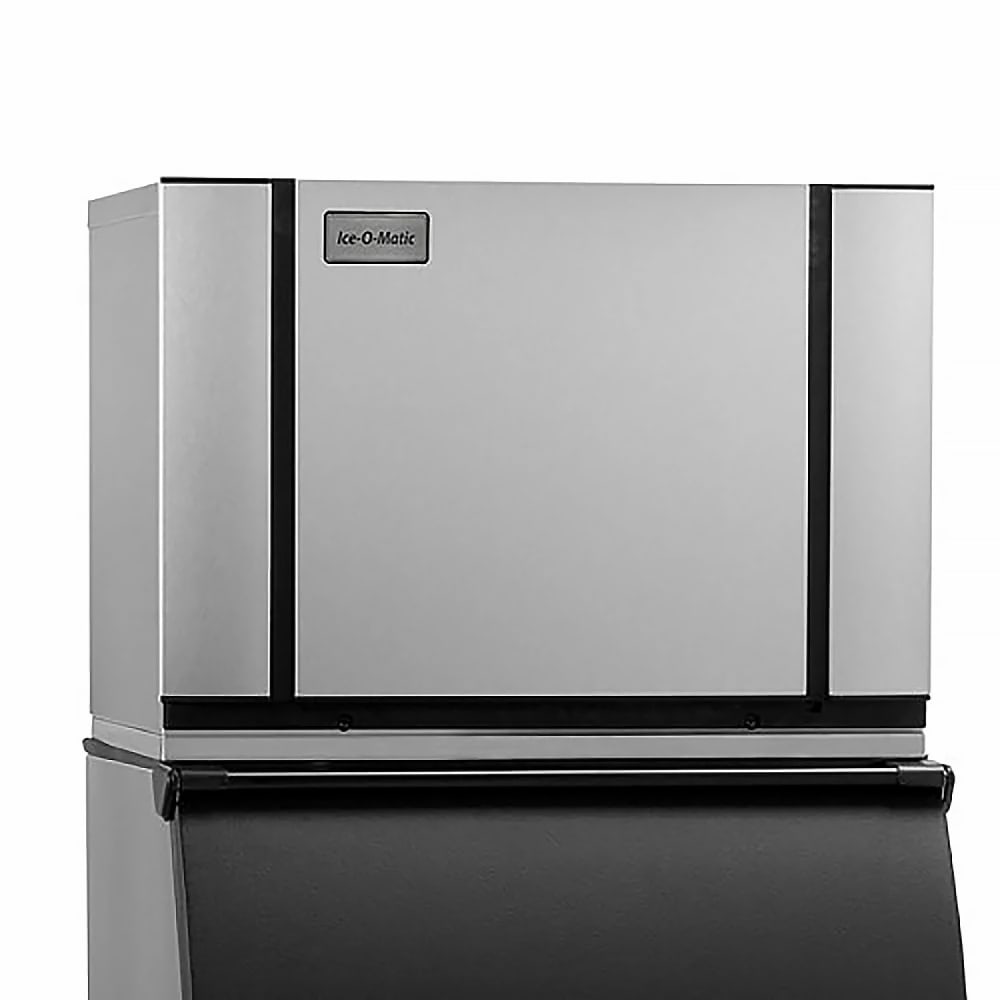

Ice-O-Matic CIM0530HR 30" Half Cube Ice Machine Head - 525 lb/24 hr, Remote Cooled, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 159-CIM0530HR • MPN: CIM0530HR
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Price: $2,585.00
800-541-8683

Image may not depict product color, inclusions or accessories.

Ice-O-Matic CIM0530HR Description

Ice-O-Matic

The Ice-O-Matic CIM0530HR Elevation™ modular cube ice maker can make up to 525 pounds of ice each day when the unit is operating in ambient temperatures of 70 degrees Fahrenheit. It produces half-cube ice measuring 38 inch by 78 inch by 78 inch, which is perfect for use in blended frozen drinks, soft drinks, and dispensed ice operations. The unit is easy to install and service since the Universal Smart Harness™ control board has digital diagnostics and universal components.

An LED status display alerts the operator when cleaning is required, and one-touch controls allow employees to descale and sanitize the unit with minimal labor. The food zone is designed with plastic components that snap in and out so they can be cleaned in your commercial dishwasher. The Ice-O-Matic CIM0530HR Elevation modular cube ice maker also uses Agion® antimicrobial protection to slow the growth of bacteria.

Product Details

Product Features
  • Dispenses half-cube, 38-in. x 78-in. x 78-in. ice
  • Makes up to 525 lbs. of ice in 24 hrs. at 70 degrees F ambient air and 415 lbs. of ice at 90 degrees F
  • Air-cooled, remote condenser produces less heat and noise
  • Universal Smart Harness control board makes the unit easy to install and service
  • BPA-free plastic components are recyclable
  • 115 V/60 Hz/1 ph, 20.1 A, 6.21 kW, 6252 BTU
  • Overall Dimensions: 3014 in. W x 2414 in. D x 2114 in. H
  • CE and cULus listed; NSF certified

Easy to Clean

  • Agion antimicrobial protection reduces bacteria growth
  • LED status display indicates when cleaning is needed

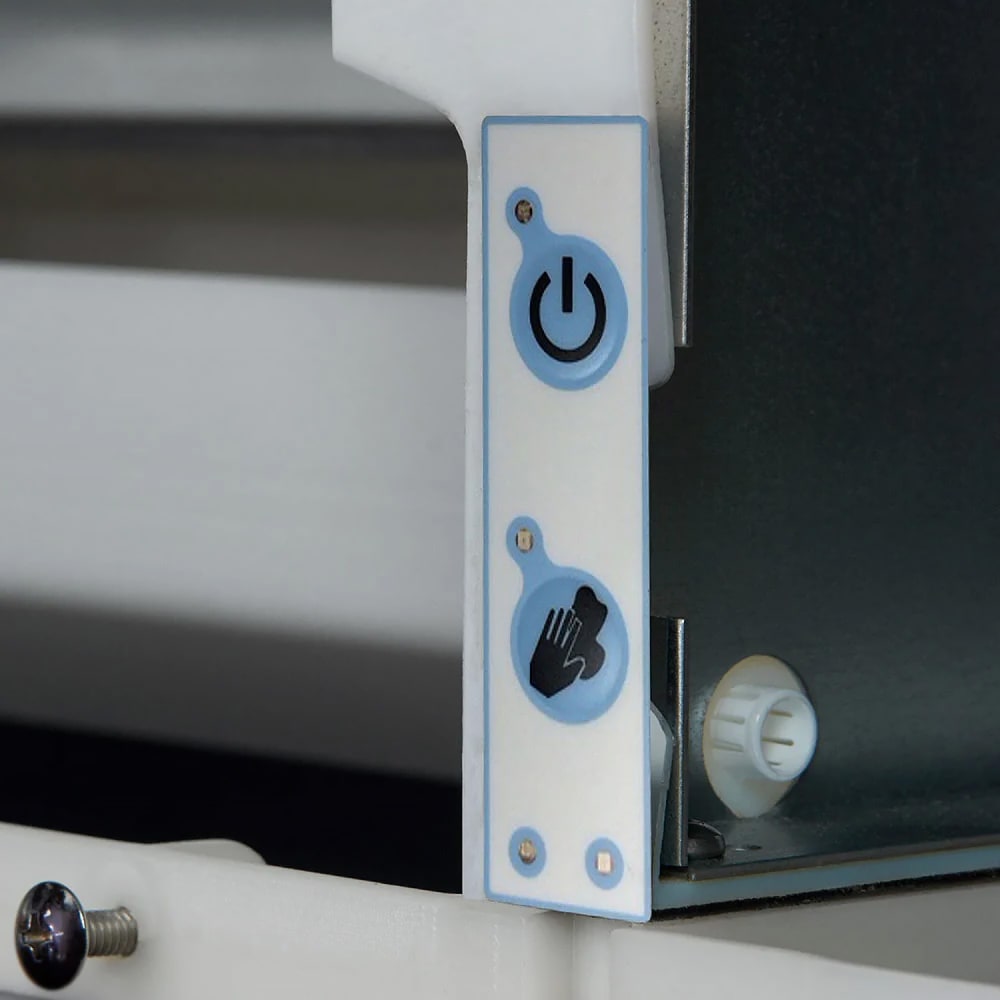

  • Descaling and sanitizing are easy with one-touch controls
  • Plastic food zone lacks crevices so it is easy to wipe clean

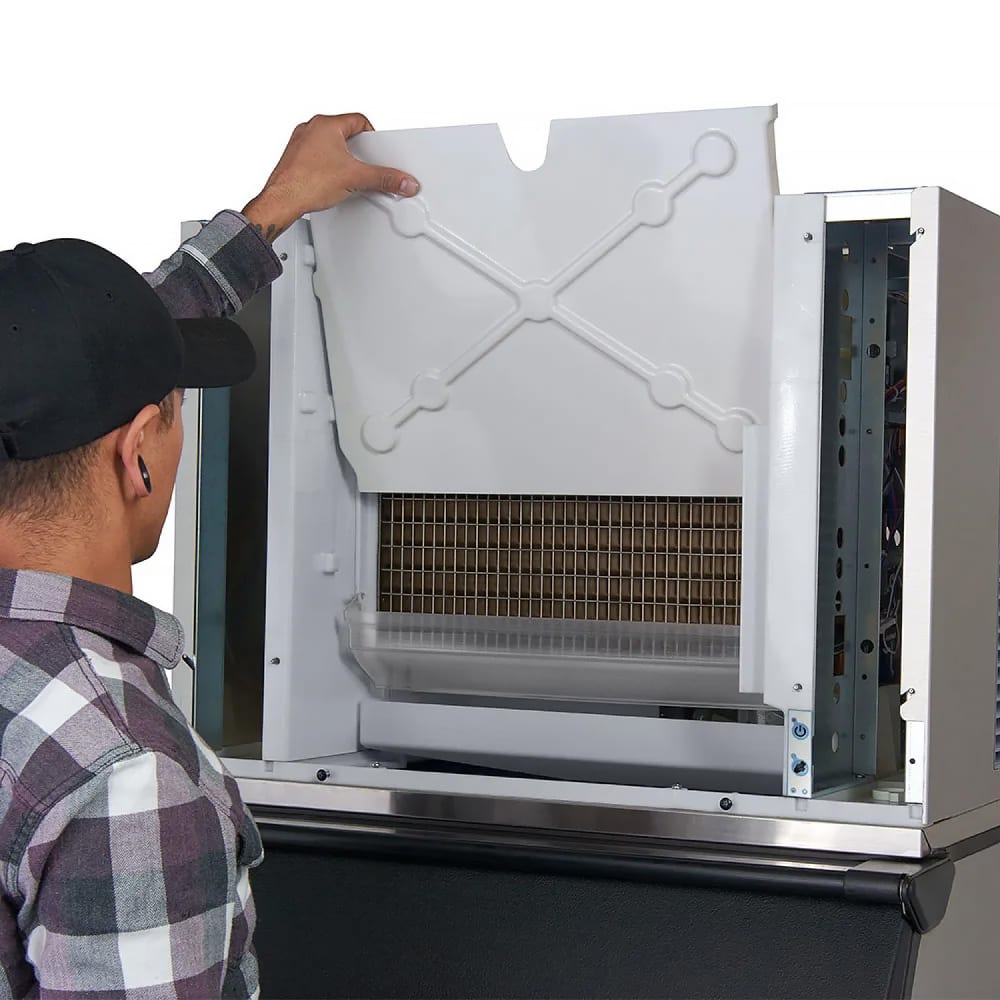

  • Snap-in, snap-out components are dishwasher safe

Elevation Series™ Modular Cube Ice Maker, air-cooled, remote condenser, 30" W, approximately 525 lb production/24 hours at 70°/50° (415 lb at 90°/70°), half-size cubes, Agion® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 115v/60/1-ph, 20.1 amps, cULus, NSF, CE

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Ice-O-Matic CIM0530HR Specifications

PDF Spec Sheet
Manufacturer Ice-O-Matic
24 Hr. Production (lbs) 525
Ice Type Half Cube
Width (in) 30
Compressor Type Remote Cooled
Depth (in) 24.25
Production Range (per day) 300-899 lb
Warranty 3 years parts and labor; 5 year evaporator
Product Type Ice Machines
Product Ice Machine Head
Weight 160.00
Ice-O-Matic CIM0530HR Certifications
  • UL
  • NSF
