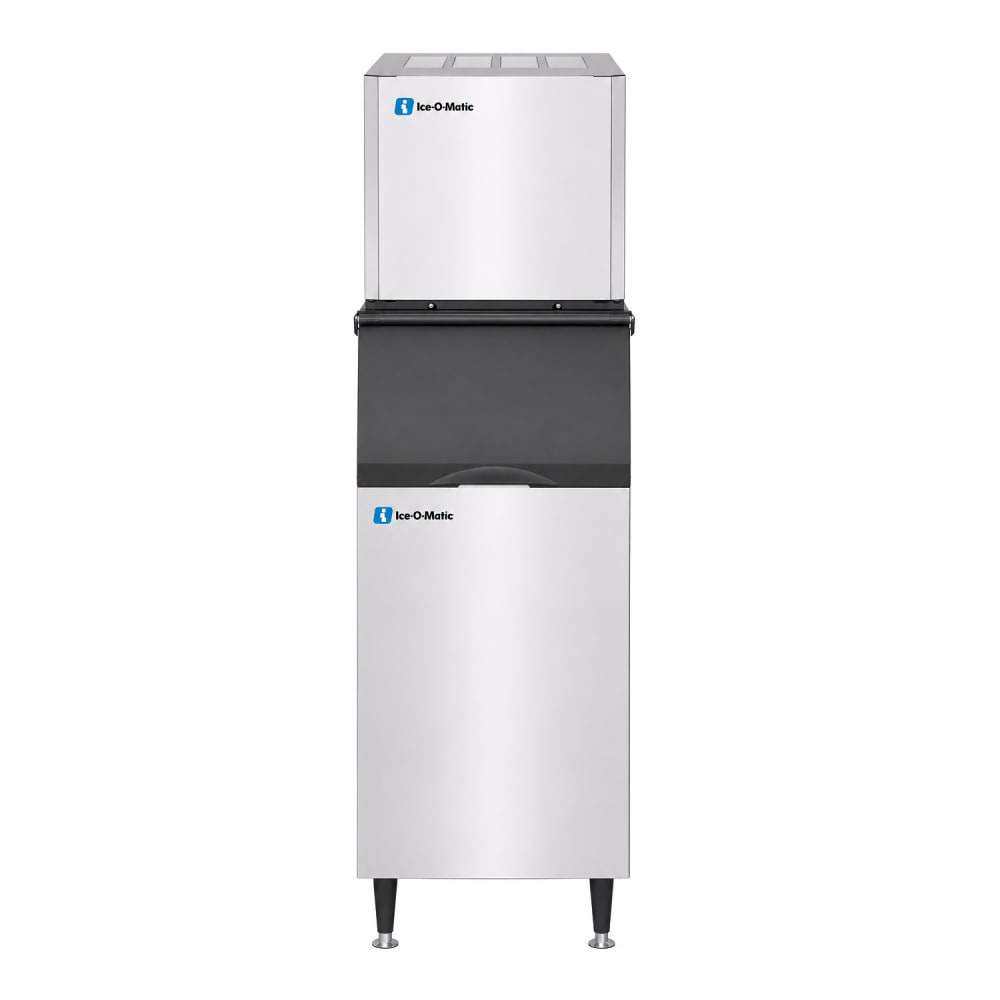

Ice-O-Matic CIM0520FA90/B42 561 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 351 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,275.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0520FA90/B42 Description
As its narrow profile and production capacity are ideal for small-scale applications, the Ice-O-Matic CIM0520FA90/B42 ice maker and bin is great for service in hotels and waiting rooms. The maker head produces full-cube ice, popular in beverages for its slow melting due to its size. Decreasing the potential for airway blockage, a dual exhaust system expels hot air from side and top vents.
The Ice-O-Matic CIM0520FA90/B42 air-cooled ice machine and bin can hold 351 pounds of ice, which is preserved in the bin with its insulated construction. To keep the unit properly sanitized, the bin’s polyethylene interior offers quick and convenient cleaning. It has 6-inch legs that can be adjusted, levelling out the ice machine on floors that aren’t entirely even.
- Part of the Elevation Series™
- 561-lb. maximum daily ice production
- 432-lb. daily ice production at 90 degrees F air and 70 degrees F water
- Air-cooled system
- Produces full-cube ice
- Space-efficient narrow design
- Dual exhaust system releases air from side and top to counter exhaust obstruction
- Smart LED light notifies staff of cleaning needs and ice head status
- PURE ICE® antimicrobial defense
- R290 refrigerant
- 1-touch descaling/sanitization decreases user labor
- Plastic food zone
- Dishwasher-safe components snap out
- Universal Smart Harness™ control board
- Full-cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- 6,252-BTU heat transfer capacity
- Ideal clearance: 6 in. for air intake and exhaust
- 351-lb. bin capacity
- Sloped front door
- Polyethylene interior streamlines cleaning
- Aluminum finish
- Foam insulation reduces thermal loss
- 6-in. adjustable legs

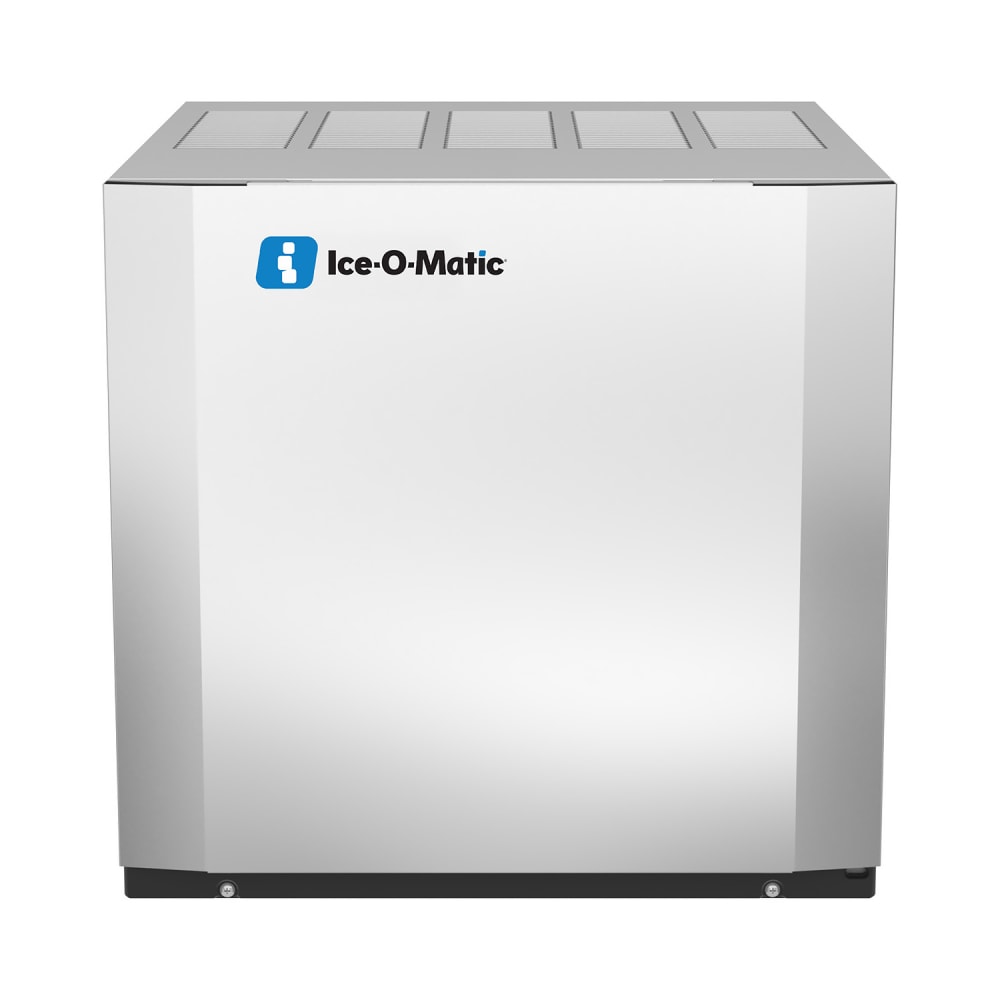

Ice Maker- 22 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 17.8 A, 5.87 kW
- 115 V/60 Hz/1 ph

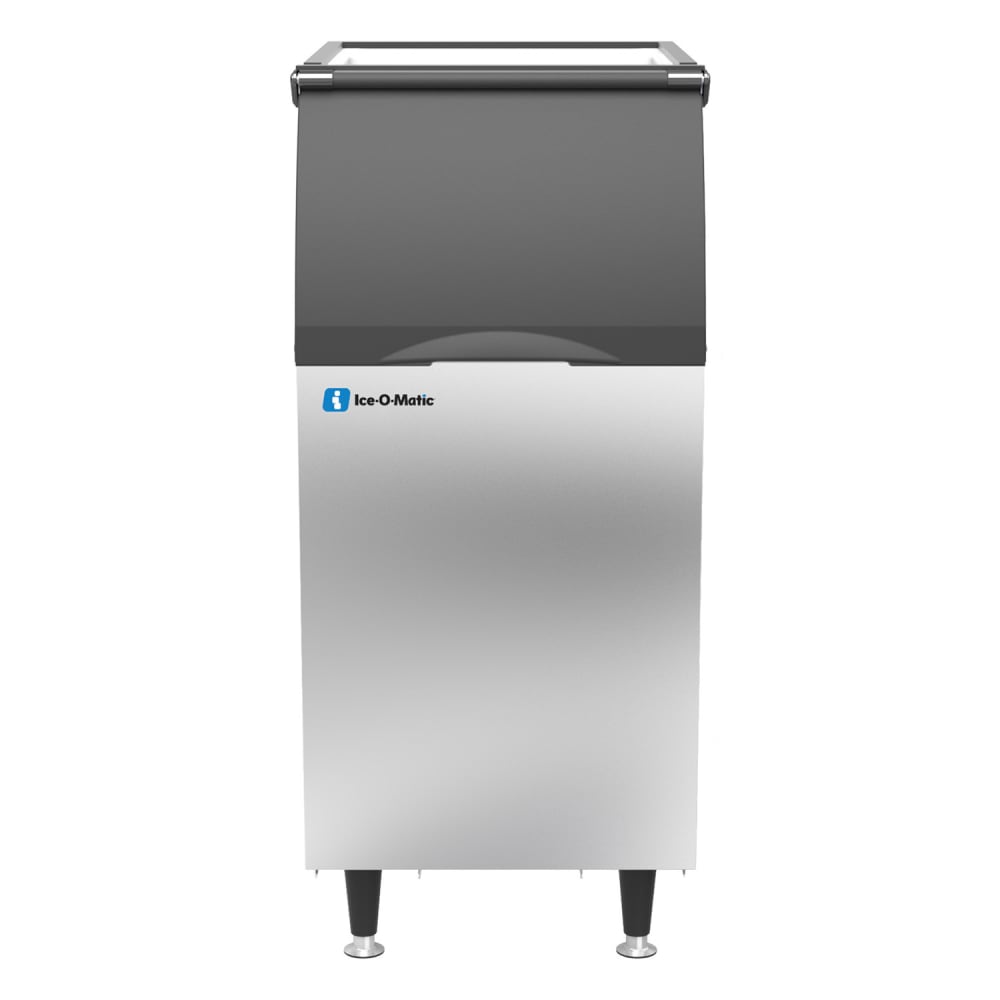

Ice Bin- 22 in. W x 31 in. D x 50 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0520FA90/B42 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 561 lb production/24 hours at 70°/50° (432 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant cULus, NSF, CE, BPA Free, ENERGY STAR®
Ice Bin, 351 lb storage capacity, 22"W, 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0520FA90/B42 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 561 |
| Access | Lift Up Door |
| Also Known As | CIM0520FA/B42PS |
| Bin Capacity (lb) | 351 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 264.00 |
