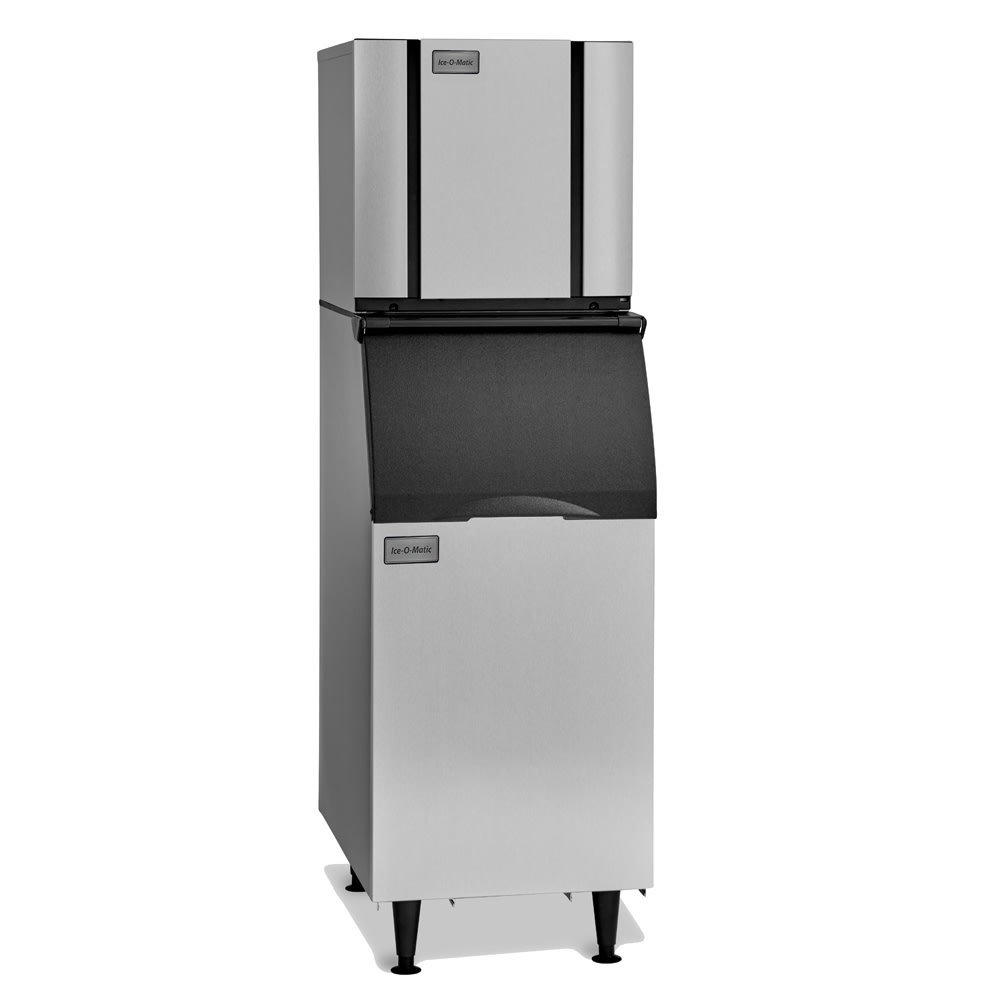

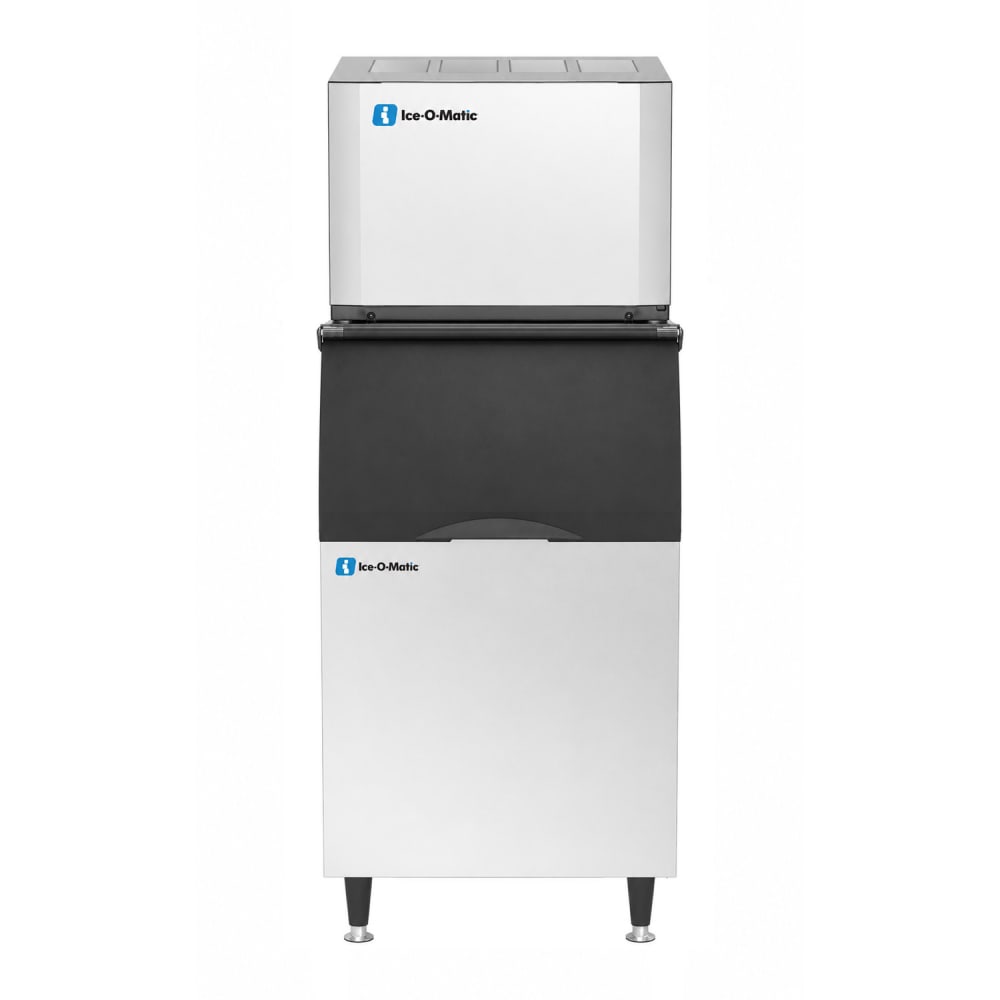

Ice-O-Matic CIM0320HA90/B42 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 351 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,160.00 /Each
Selected Ice Type: Half Cube

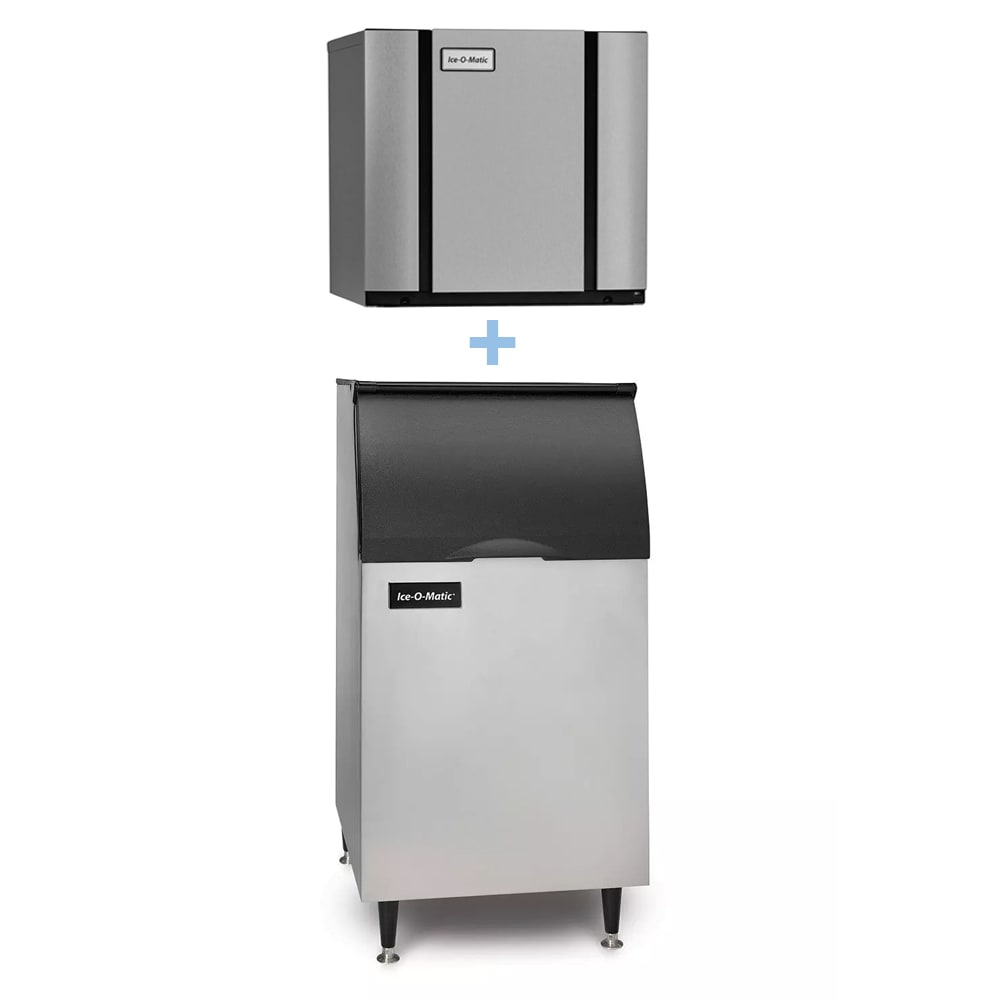

Ice-O-Matic CIM0320HA90/B42 Description
The Ice-O-Matic CIM0320HA90/B42 ice machine head with bin is designed for use in locations with restricted floor space. The ice machine and bin both measure less than 23 inches in width, and the bin has the capacity to store as much as 351 pounds of pre-made ice. A self-contained condenser with dual exhaust provides simplified installation with flexible placement options. Made with an aluminum exterior and poly interior liner, the bin is lightweight and resistant to corrosion.
The Ice-O-Matic CIM0320HA90/B42 half-cube ice maker with bin offers resistance to microbial growth with PURE ICE® antimicrobial treatment, and its one-touch sanitizing and descaling functions streamline cleaning. For unimpeded access, some of the BPA-free interior components are removable and can be washed in a dishwasher to save time. The bin supports the ice machine head and has six-inch legs that can be adjusted for added stability during use.
- Part of the Elevation Series™
- Production capacity: 313 lbs./24 hours in ideal conditions
- AHRI production capacity: 244 lbs./24 hours
- Produces half-size ice cubes for chilling beverages
- Cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Ice maker measures just 22 1⁄4 in. wide
- Uses R290 refrigerant
- Air-cooled design
- Self-contained condenser design for compact footprint
- Dual side and top air exhaust system for heat dispersal
- Microbial growth discouraged by plastic food zone
- Dishwasher-safe components are BPA free and snap in and out
- PURE ICE antimicrobial protection
- Machine status signified by LED smart status display and indicator lights
- Universal components and digital diagnosis with Universal Smart Harness™ control board
- Sanitizing and descaling process with 1-touch control
- Select components can be recycled
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour
- 351-lb. capacity
- Narrow, 22-in. footprint
- Top-hinged, slope-front door
- Interior liner is insulated and made of polyethylene
- Rotocast aluminum finish on exterior
- Sturdy, 6-in. adjustable legs support the unit
- Ice maker: 22 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Bin: 22 in. W x 31 in. D x 50 in. H
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3⁄8-in. FPT
- Water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. diameter
- Electrical connection junction box: 7⁄8-in. diameter
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320HA90/B42 within the 48 contiguous states.
From The Manufacturer

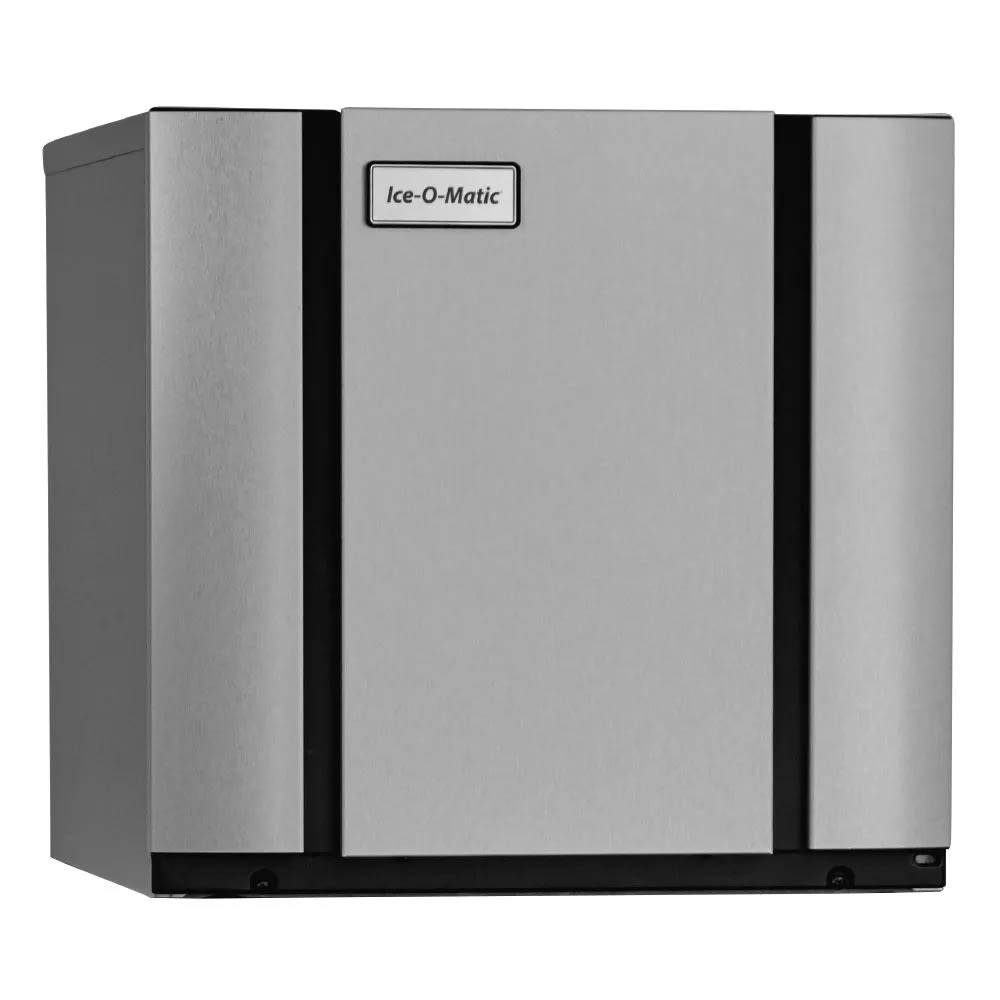

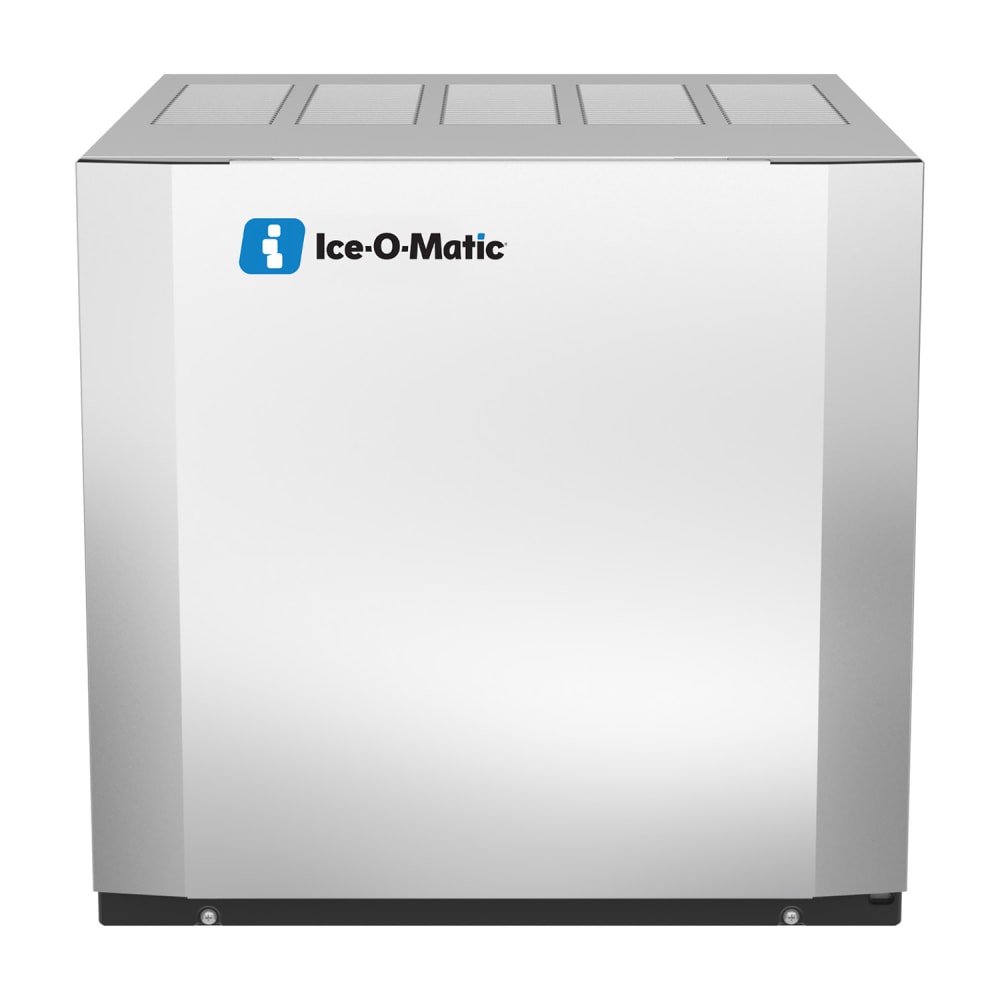

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

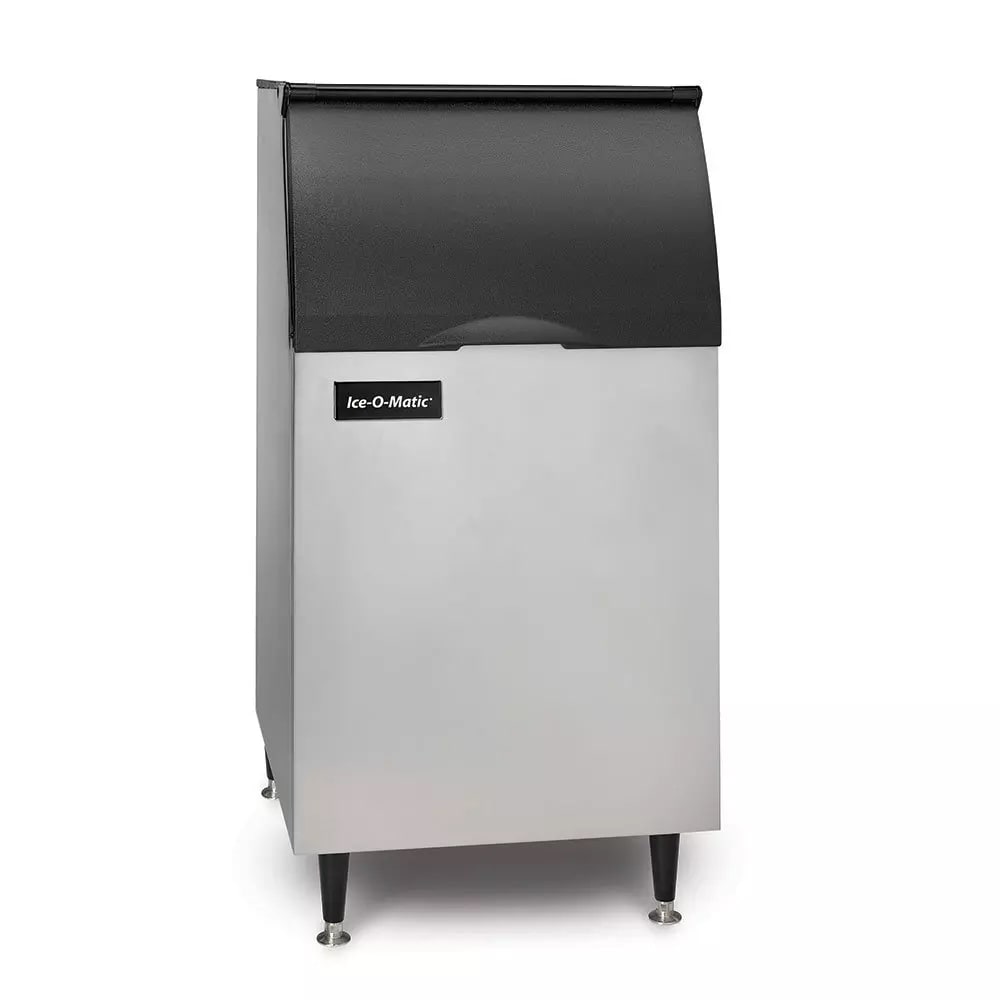

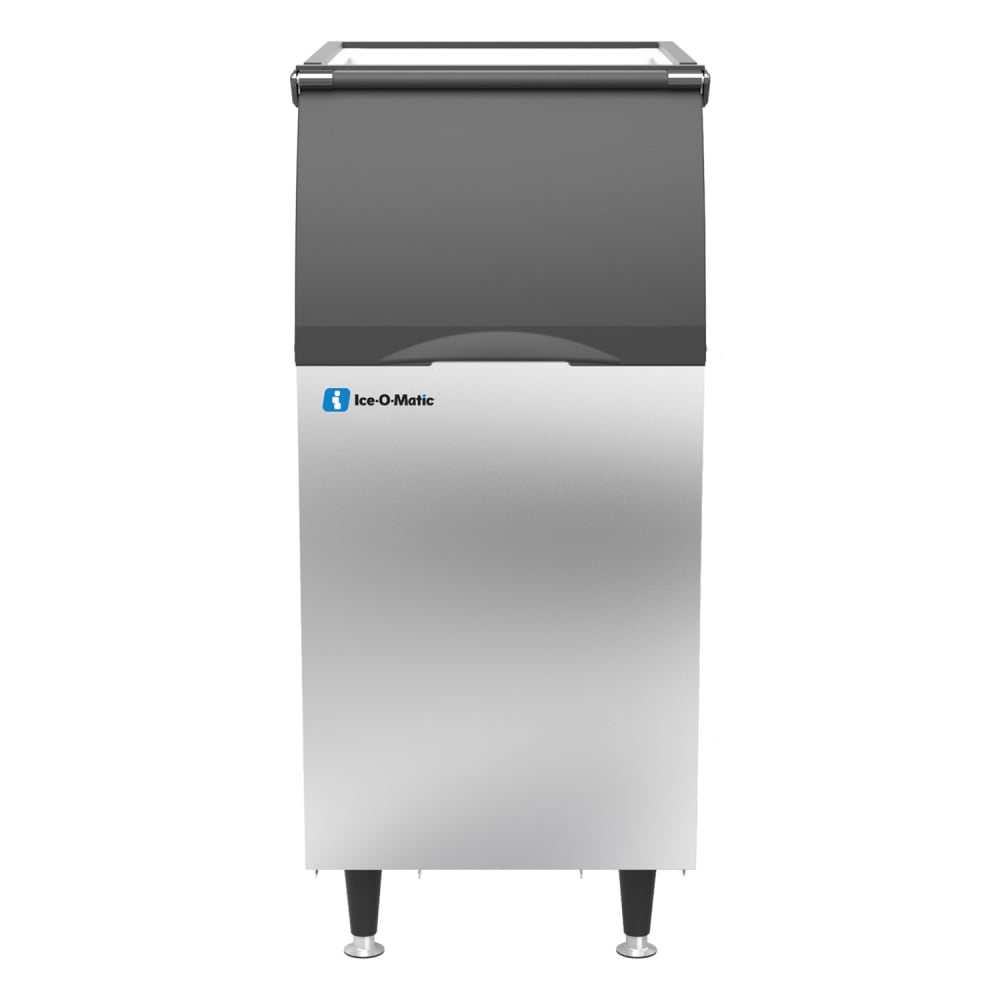

Ice Bin, 351 lb storage capacity, 22"W, 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0320HA90/B42 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 313 |
| Access | Lift Up Door |
| Also Known As | CIM0320HA/B42PS |
| Bin Capacity (lb) | 351 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 249.00 |
Important Prop 65 information for California residents.
- Ice-O-Matic ICE0320HAB42PS
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0320HA90/B42 Ice-O-Matic CIM0320HA90/B42 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 351 lb Storage, Air Cooled, 115v Current Item |
True Refrigeration TCIM-422-HA1-A/TIB-422-A |
|---|---|---|
| Customer Rating |
|
|
| Price | $5,160.00 / Each | $5,354.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| Ice Type | Half Cube | Half Cube |
| 24 Hr. Production (lb) | 313 | 443 |
| Width (in) | 22.25 | 22 |
| Bin Capacity (lb) | 351 | 320 |
| Compressor Type | Air Cooled | Air Cooled |
| Rating | Better | Better |
| Height (in) | 71.25 | 72 |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Voltage | 115 | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
