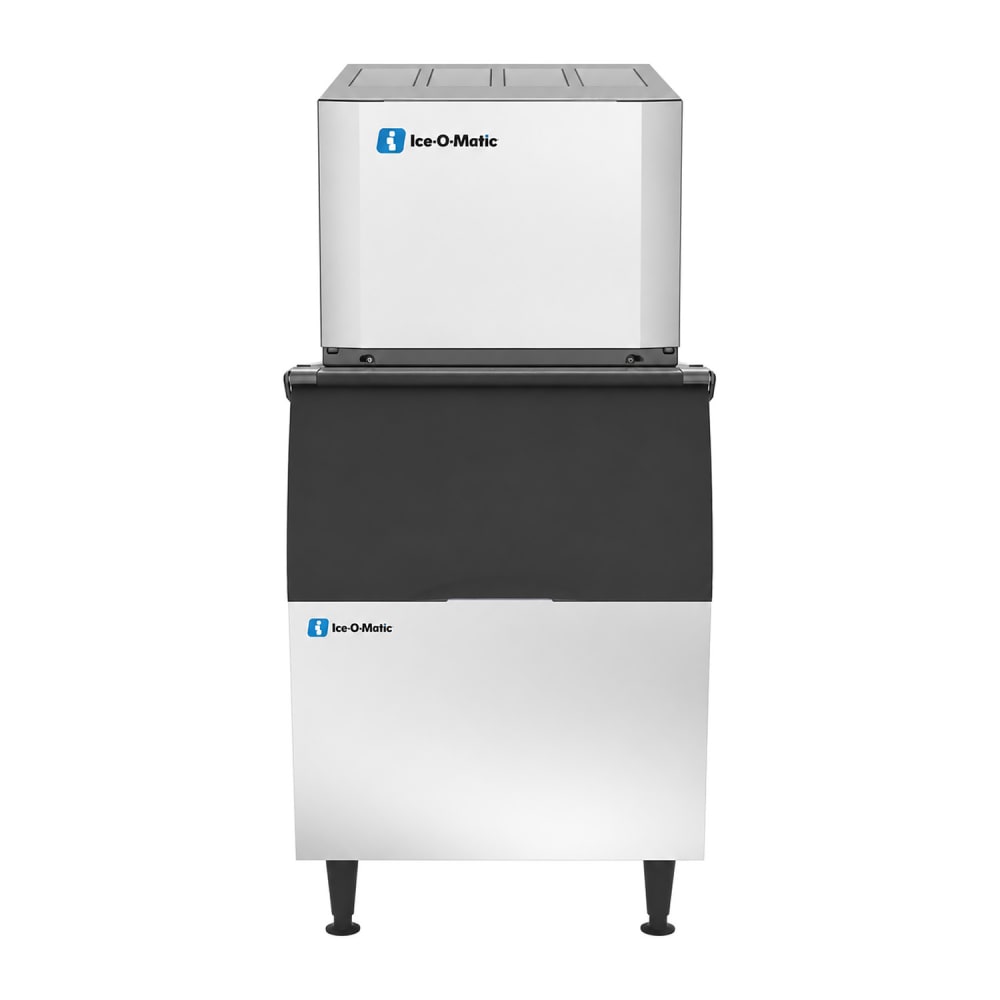

Ice-O-Matic CIM0320HA90/B40/KBT19 313 lb Elevation Series™ Half Cube Ice Machine w/ Bin - 344 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,346.00 /Each
Selected Ice Type: Half Cube
Ice-O-Matic CIM0320HA90/B40/KBT19 Description
Built with a self-contained condenser, the Ice-O-Matic CIM0320HA90/B40/KBT19 half-cube ice maker head with bin can be installed without additional coolant lines or the purchase of a separate condensing unit. To resist the growth of mold, mildew, and bacteria, the ice machine is treated with built-in antimicrobial protection, and select parts snap out and can be washed in a dishmachine for quick cleaning. This ice maker can produce as much as 313 pounds of ice per day, and the bin holds as much as 344 pounds of ice once it's made.
The Ice-O-Matic CIM0320HA90/B40/KBT19 ice machine with bin produces half-size cubes, a type of ice that's especially useful for chilling beverages such as soda, tea, water, and mixed drinks. To effectively disperse heat in a crowded setting, this unit features a dual top and side air exhaust system. Certain components of this machine can be recycled, increasing its environmental friendliness, and it has a heat displacement capability of 4,400 BTUs.
- Part of the Elevation Series™
- Production capacity: 313 lb./24 hours in ideal conditions
- AHRI production capacity: 244 lb./24 hours
- Produces half-size ice cubes for chilling beverages
- Ice maker measures just 22 1⁄4 in. wide
- Cube dimensions: 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- R290 hydrocarbon refrigerant
- Air-cooled design
- Compact installation provided by self-contained condenser
- Heat dispersed from top and side dual air exhaust system
- Plastic food zone discourages bacterial growth
- BPA-free, dishwasher-safe components snap in and out
- PURE ICE® antimicrobial protection
- LED smart status display and indicator lights notify users of machine status
- Digital diagnosis with Universal Smart Harness™ control board
- 1-touch control for sanitizing and descaling process
- Select components are recyclable
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature: 50-100 degrees F
- Ideal water pressure: 20-80 PSIG
- Heat displacement: 4,400 BTU/hour
- KBT19 bin top included; fits 22-in. cuber on 30-in. bin
- 344-lb. capacity
- Sloped, top-hinged front door
- Corrosion-resistant, insulated interior liner made of polyethylene
- Exterior finish of rotocast aluminum
- Supported by 6-in. adjustable legs
- Ice maker: 22 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Bin: 30 in. W x 31 in. D x 37 1⁄2 in. H
- Bin top: 30 in. W x 23 1⁄2 in. D
- 11 A, 6.69 kW
- 120 V/60 Hz/1 ph
- Potable water inlet: 3⁄8-in. FPT
- Water outlet: 3⁄4-in. FPT
- Electrical connection port: 7⁄8-in. diameter
- Electrical connection junction box: 7⁄8-in. diameter
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320HA90/B40/KBT19 within the 48 contiguous states.
From The Manufacturer

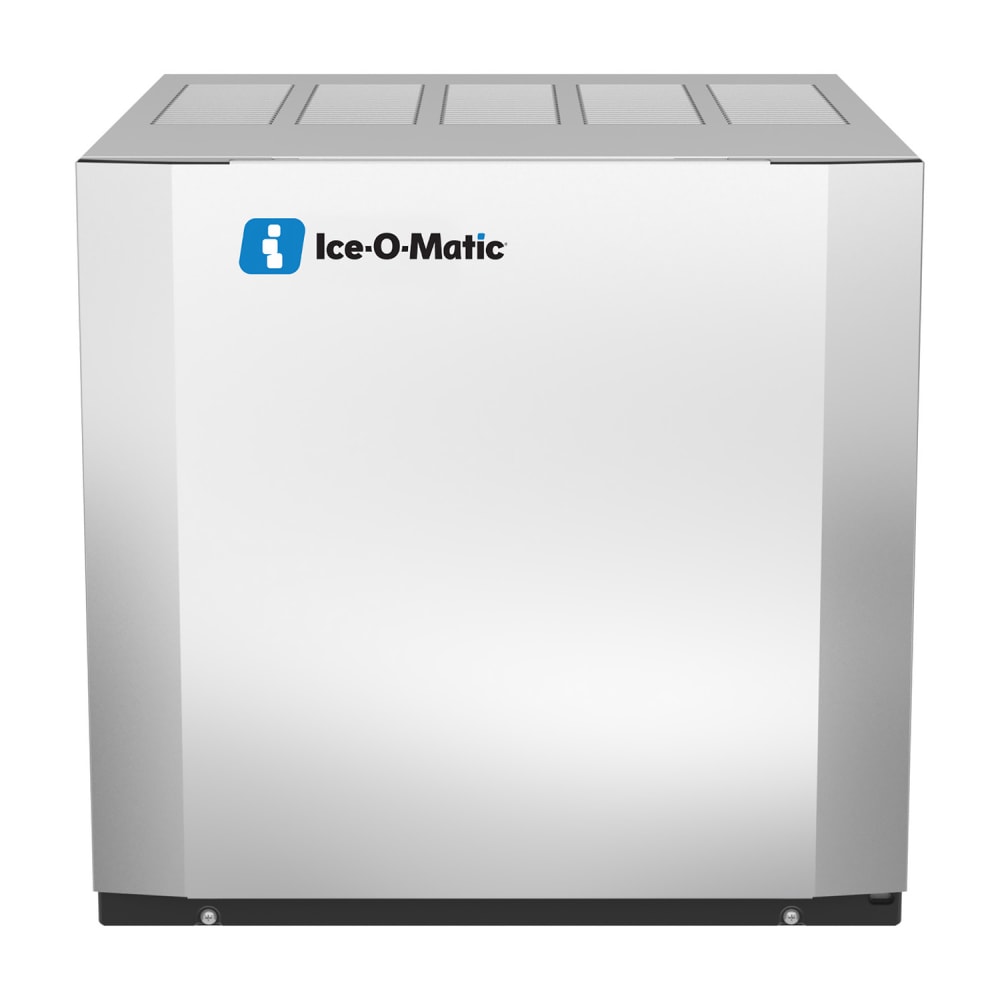

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), half-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free, ENERGY STAR®

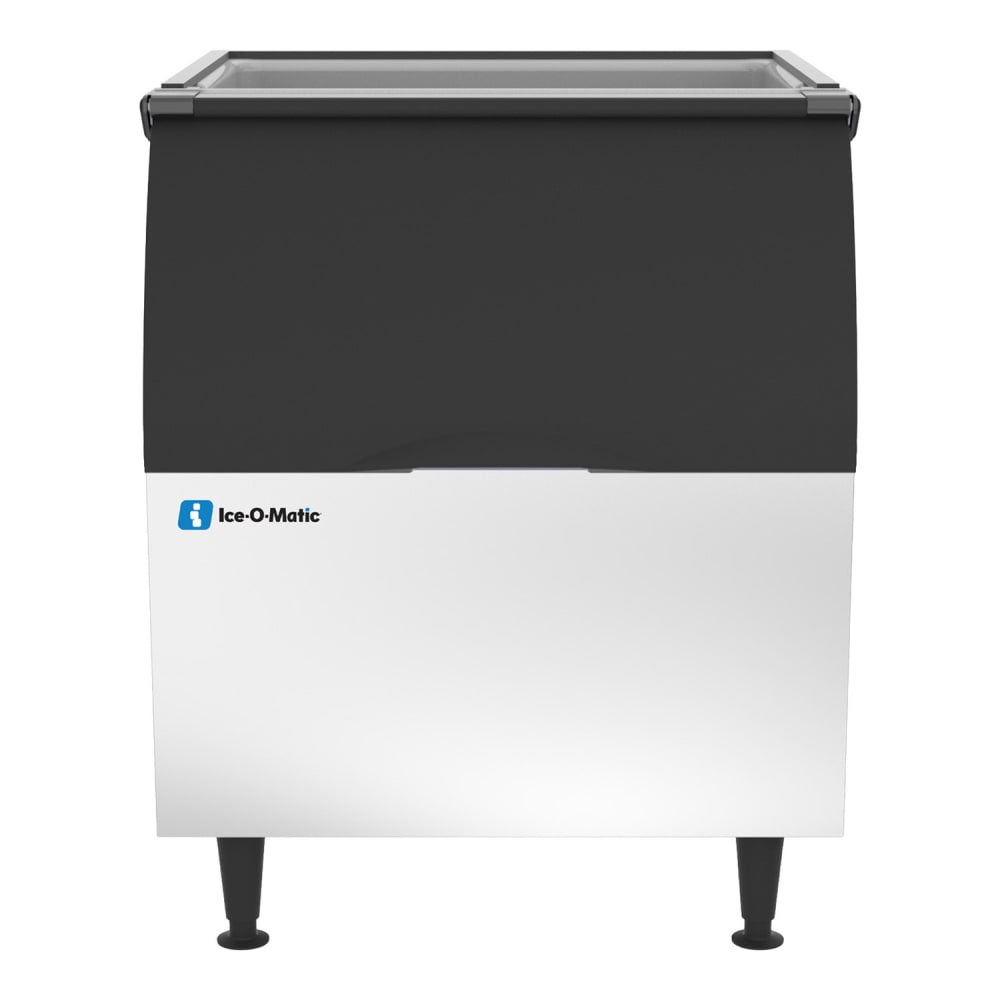

Ice Bin, 344 lb storage capacity, 30"W x 31"D x 37-1/2"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF; (KBT19) Bin Kit for 22” CIM, MFI and GEM Series on a 30” bin
Ice-O-Matic CIM0320HA90/B40/KBT19 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 313 |
| Access | Lift Up Door |
| Also Known As | CIM0320HA/B40PS/KBT19 |
| Bin Capacity (lb) | 344 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 58.75 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 275.00 |
