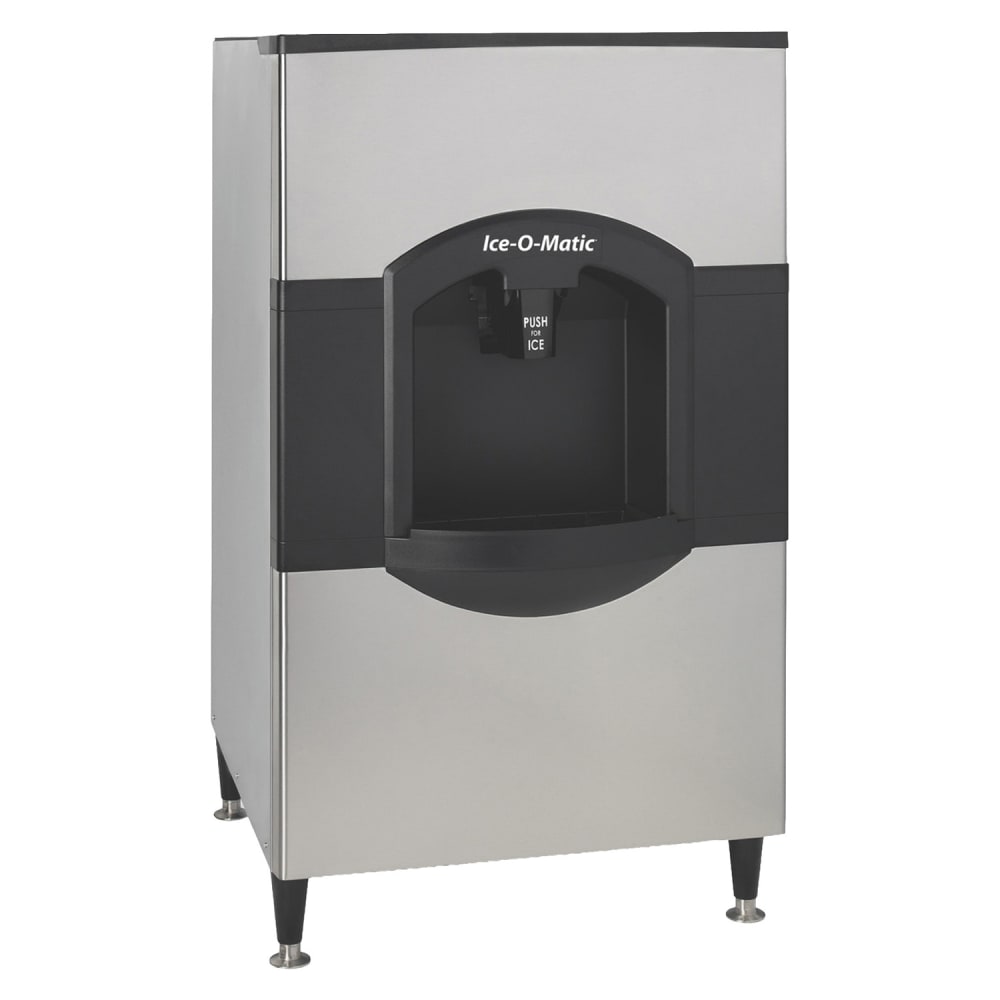

Ice-O-Matic CD40030 Floor Model Cube Ice Dispenser - 180 lb Storage - Bucket Fill, 115v

The Ice-O-Matic CD40030 cube ice dispenser has a simple-to-use push lever that dispenses ice at ¹/₄ pound per second. The storage area can hold 180 pounds of ice, and foam insulation keeps cold air inside to prevent ice from melting quickly. With the unit's Power Clean feature, operators can conveniently access the bin area without removing the ice machine head. If the top front panel is not put back in place, the safety interlock switch prevents machine agitation.

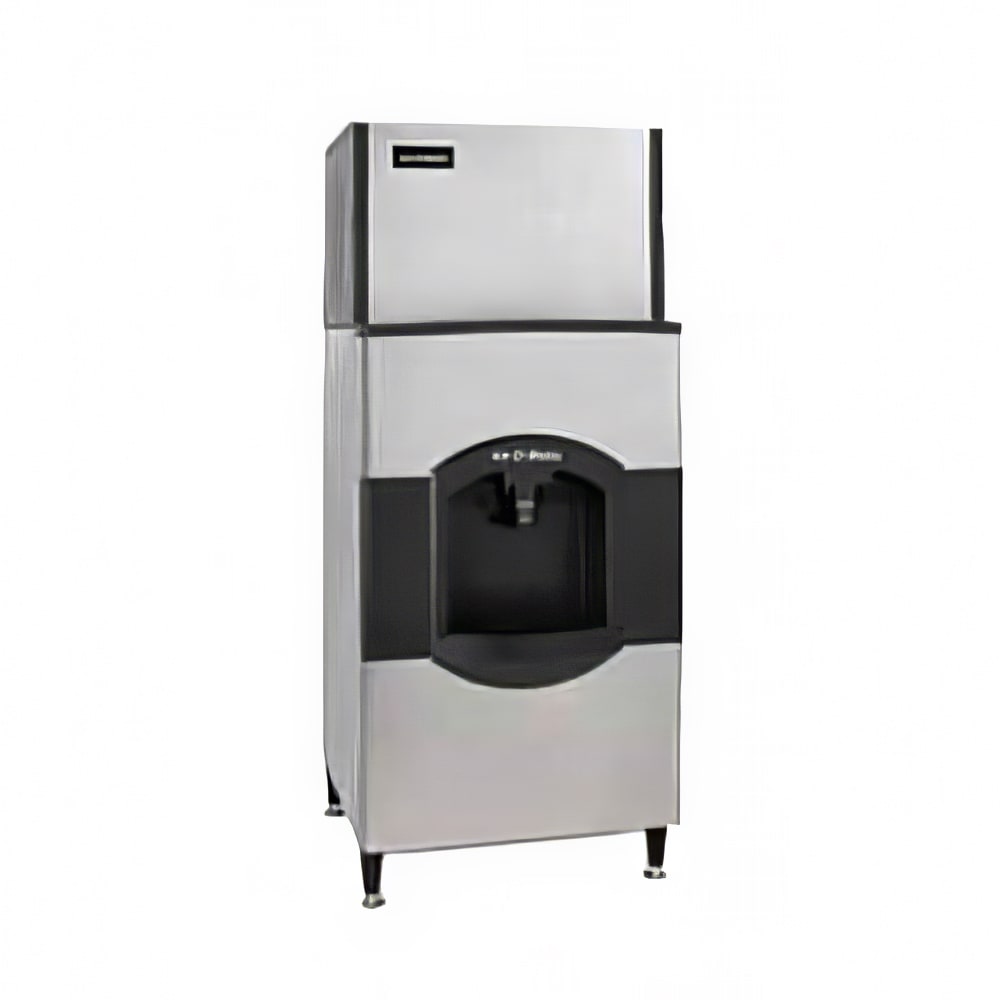

Made of stainless steel and fingerprint-proof plastic, the Ice-O-Matic CD40030 cube ice dispenser is strong, corrosion resistant, and simple to clean. Its 6-inch legs elevate it off the floor so users can clean underneath it. This unit is compatible with a 30-inch-wide ICE series ice machine head, but the ice maker is not included. The amount of ice the ice maker can produce depends on the ambient air temperature and incoming water temperature, so that should be considered when installing the dispenser.

Product Details

• User-friendly push-to-dispense operation
• Turbo Dispense feature quickly dispenses ice at ¹/₄ lb. per sec.
• 180-lb. storage capacity
• 4-in. foam insulation keeps cold air around stored ice
• Power Clean feature provides access to the storage bin for cleaning without removing the ice machine head
• Safety interlock switch stops machine agitation when the panel on the top front is removed
• Stainless steel and smudge-resistant plastic construction resists corrosion and provides durability
• 6-in. legs elevate the unit off the floor
• Accepts 30-in. ICE series cube ice machine heads (sold separately)
• Required ambient air temperature for ice machine: 50-100 degrees F
• Required incoming water temperature for ice machine: 40-100 degrees F
• Required incoming water pressure for ice machine: 20-60 PSIG

Dimensions & Utilities

• Dispensing area: 13¹/₂ in. W x 8¹/₂ in. D x 8⁴/₅ in. H
• Overall: 30 in. W x 33¹/₂ in. D x 53³/₁₀ in. H
• 2.1 A
• 115 V/60 Hz/1 ph

*Free shipping on Ice-O-Matic CD40030 within the 48 contiguous states.

From The Manufacturer

Ice Dispenser, floor model, approximately 180 lb ice storage capacity, push dispensing, designed to accept 30" wide ICE Series™ cube ice makers, 115v/60/1-ph, 2.1 amps, cULus, NSF, CE

*Image may not depict product color, inclusions or accessories.

3-year Parts & Labor

Ice-O-Matic CD40030 Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown
