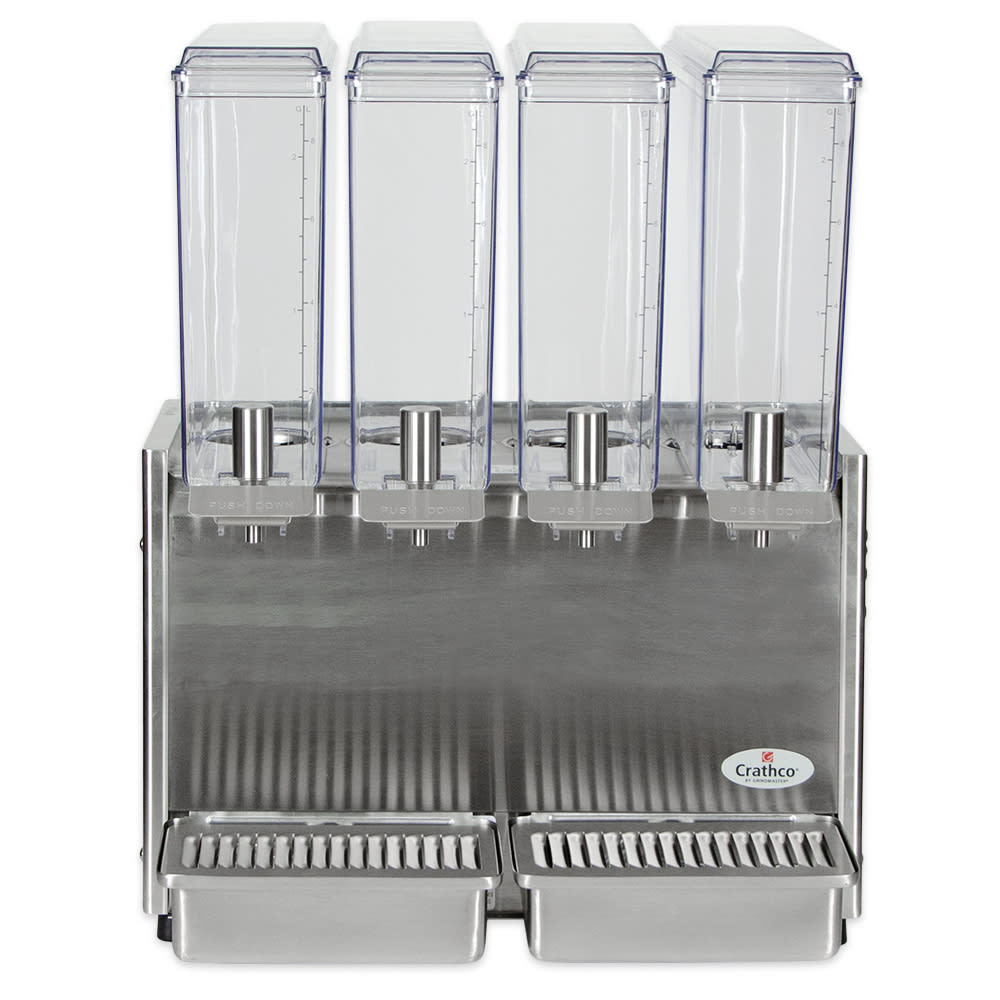

Crathco E49-3 20.5" Mini Quad™ Pre-Mix Cold Beverage Dispenser w/ (4) 2.4 gal Bowls, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 131-E493120 • MPN: E49-3
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $3,028.00
$1,338.47 / Each

Image may not depict product color, inclusions or accessories.

Crathco E49-3 Description


The Crathco E49-3 pre-mix dispenser, part of the Classic Bubblers series of cold beverage dispensers from Grindmaster-Cecilware, is designed to provide multiple drink options, but at only 2012 inches wide, it does not require much space on your countertop. This model comes standard with four durable polycarbonate bowls, each capable of holding 2.4 gallons of product, and dripless pouring valves constructed from stainless steel. While product is being dispensed, cups as tall as 8 inches can rest on a large capacity drip pan, which can hold a larger volume of liquid so it needs to be emptied less frequently during hours of operation.

A highly efficient pump and evaporator provide the Crathco E49-3 with a quick start-up to help your business function as smoothly as possible from open to close of business each day. Products held in this dispenser are cooled with 134A refrigerant and a 15-HP motor, and agitators are included for use with fresh liquids like juice or tea. This model is compatible with 120-volt outlets.

Product Details

  • Crathco Classic Bubblers pre-mix dispenser
  • Mini-Quad model dispenses 4 different flavors into cups as tall as 8-in.

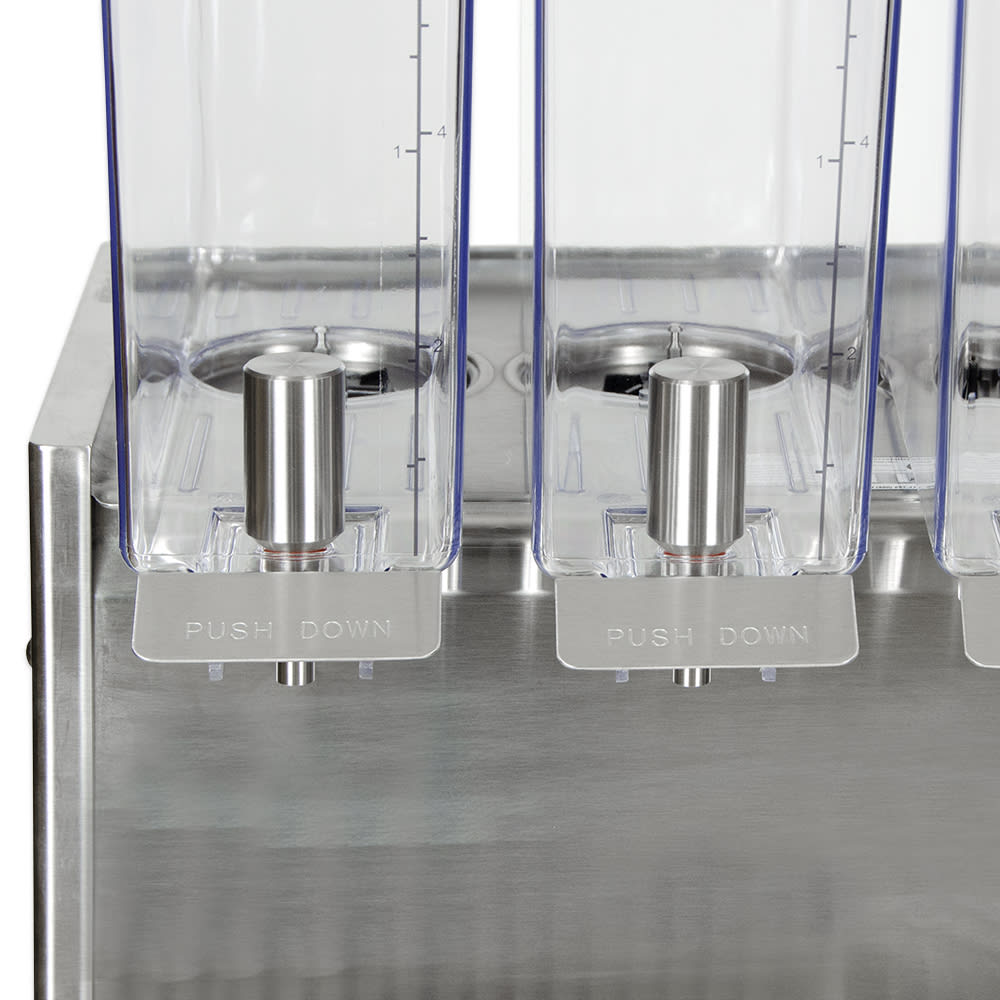

  • Pouring valves are dripless and constructed from stainless steel for enhanced sanitation

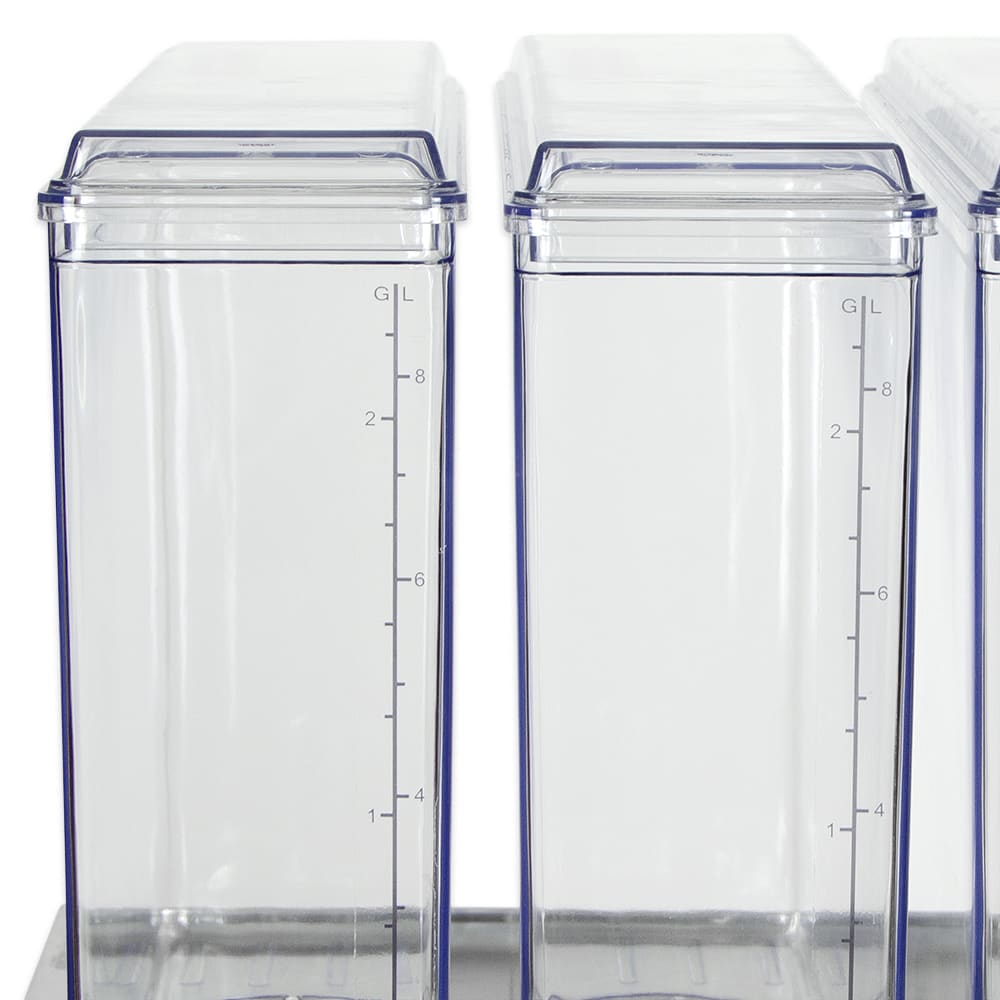

  • (4) 2.4-gal. polycarbonate bowls and matching covers are durable and easy to clean
  • Large-capacity drip pan contains a higher volume of spilled liquid
  • Compact design saves counter space without sacrificing performance
  • Provides a quick start-up with high-efficiency pump and evaporator
  • Each unit includes agitators for use with fresh liquids
  • 15-HP refrigeration with 134A refrigerant
  • 120 V/60 Hz/1 ph, 6 A, 720 W
  • Overall Dimensions: 2012 in. W x 15 in. D x 2512 in. H
  • cULus Listed and NSF certified

Crathco® Classic Bubbler™ Mini Pre-Mix Cold Beverage Dispenser, quad, electric, (4) 2.4 gallon clear polycarbonate bowls & covers, 2-piece stainless steel dripless dispense valves, 35°to 41°F temperature range, 8" cup clearance, includes spray & agitate circulation options, stainless steel side panels & drip tray, R134a, 1/6 HP, cULus, NSF (shipped in 2 boxes) (Grindmaster)

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Crathco E49-3 Specifications

PDF Spec Sheet
Manufacturer Crathco
Capacity (4) 2.4 Gallon
Finish Stainless Steel
Type Cold/ Juice Drink Machine
Uses Pre Mix
Warranty 2-year Parts & Labor; 5-year Compressor
Voltage 115
Hertz 60
Phase 1
Refrigerant R-134a
Width (in) 20.5
Series Classic Bubblers™ Mini Quad™
Height (in) 25.5
Depth (in) 15
Product Type Beverage Equipment
Product Juice Dispenser
Weight 91.00
Crathco E49-3 Certifications
  • UL
  • NSF
