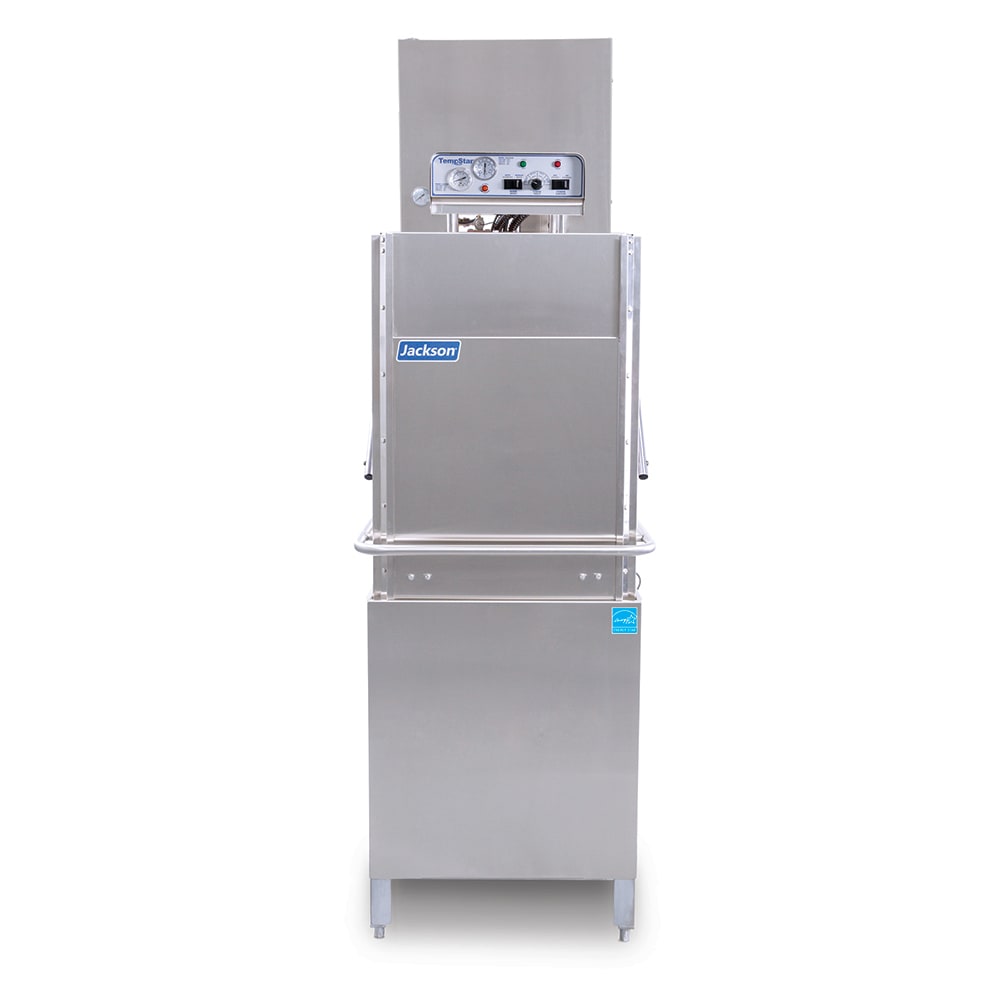

Jackson TEMPSTAR VENTLESS (VER) High Temp Door Type Dishwasher w/ (39) Rack/hr Capacity, 208v/3ph

For versatility, this TEMPSTAR VENTLESS (VER) TempStar® door-type dishmachine's ventless design eliminates the need for a hood because its energy-recovery system collects water vapor to heat incoming water. Its universal-style design enables field conversion from a straight-through unit to a corner unit and vice versa with a kit that isn't included. This 32-inch-wide by 30⁷⁄₈-inch-deep by 82-inch-high unit requires a singles connection for all utilities to simplify setup, and to endure rigorous use in fast-paced kitchens, this stainless steel unit resists rust, corrosion, wear, dents, and warps and can be wiped clean. So it doesn't wobble or rock during operation, it's fitted with adjustable feet that can be raised 1¹⁄₈ inches.

With the help of the energy-recovery system, this Jackson TEMPSTAR VENTLESS (VER) high-temperature warewasher includes a built-in booster heater that raises 40-to-90-degree-Fahrenheit incoming water to 150 degrees Fahrenheit for wash cycles. To ensure proper sanitization during rinse cycles, the Sani-Sure™ mechanism increases water temperature to 180 degrees Fahrenheit. This automatic unit uses stainless steel nozzles for enhanced cleaning action, and staff can monitor operation with the included pressure regulator, high-limit thermostat, and low-water protection system. As cleaning requirements change with each load, operators can switch between normal, medium, heavy, or extra-heavy settings from the multi-cycle timer. The normal cycle can wash a rack in 87 seconds with 0.89 gallons of water per rack, or 41 racks per hour with 36.9 gallons of water.

Product Details

• High-temperature sanitization
• Built-in booster heater increases inlet water by 70 degrees F to achieve 150-degree-F wash temperature
• Sani-Sure final-rinse feature raises water to 180 degrees F for rinsing cycles
• Energy-recovery mechanism
• Internal condensing system
• Washes 41 racks per hour (39 racks with suggested NSF load time)
• Uses 0.89 gal. of water per rack (36.49 gal. of water per hour)
• 8-gal. wash tank
• 3-gal. booster tank
• Electromechanical controls
• Multi-cycle timer with extra-heavy, heavy, medium, and normal cycle settings
• High-limit thermostat
• Low-water protection system
• Stainless steel nozzles
• Self-draining stainless steel pump
• Automatic tank fill and start
• Door interlock mechanism
• Delime cycle
• Manual-wash switch
• 1-HP wash pump motor
• Detergent-/rinse-additive signal connection fuse box
• Pressure regulator included (requires installation by others)

Construction

• 17¹⁄₄-in.-tall chamber
• Ventless
• Exceptionally durable stainless steel
• Feet can be raised 1¹⁄₈ in.
• Single-point connection for all utilities
• Field convertible from straight-through to corner unit with kit (sold separately)

Water & Installation Requirements

• Incoming water temperature: 40-90 degrees F
• Flow pressure connection: 40 PSI
• Minimum clearance above heat exchanger: 6 in.

Dimensions & Utilities

• 32 in. W x 30⁷⁄₈ in. D x 82 in. H
• 45.6 A, 14.6 kW, 1 HP
• 208 V/60 Hz/3 ph
• Minimum drainline size: 1¹⁄₂-in. IPS
• Minimum waterline size: ³⁄₄-in. MIP

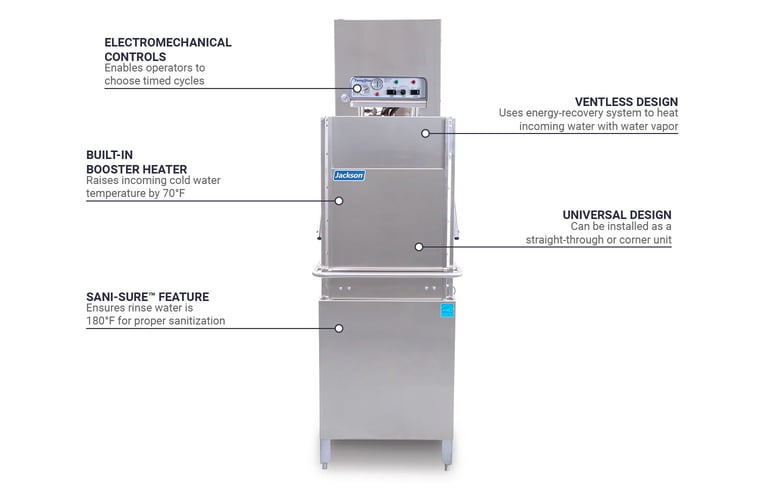

Product Features

From The Manufacturer

TempStar® Dishwasher, door type, high temperature, with ventless & energy recovery, electric tank heat with built-in 70° F booster, approximately (39) racks/hour (0.89 gallons per rack), universal (straight-thru/corner) type, stainless steel exterior, electro mechanical controls, pressure regulator provided (for installation by others), Sani-Sure™, door interlock, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR® (Requires Assembly)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
