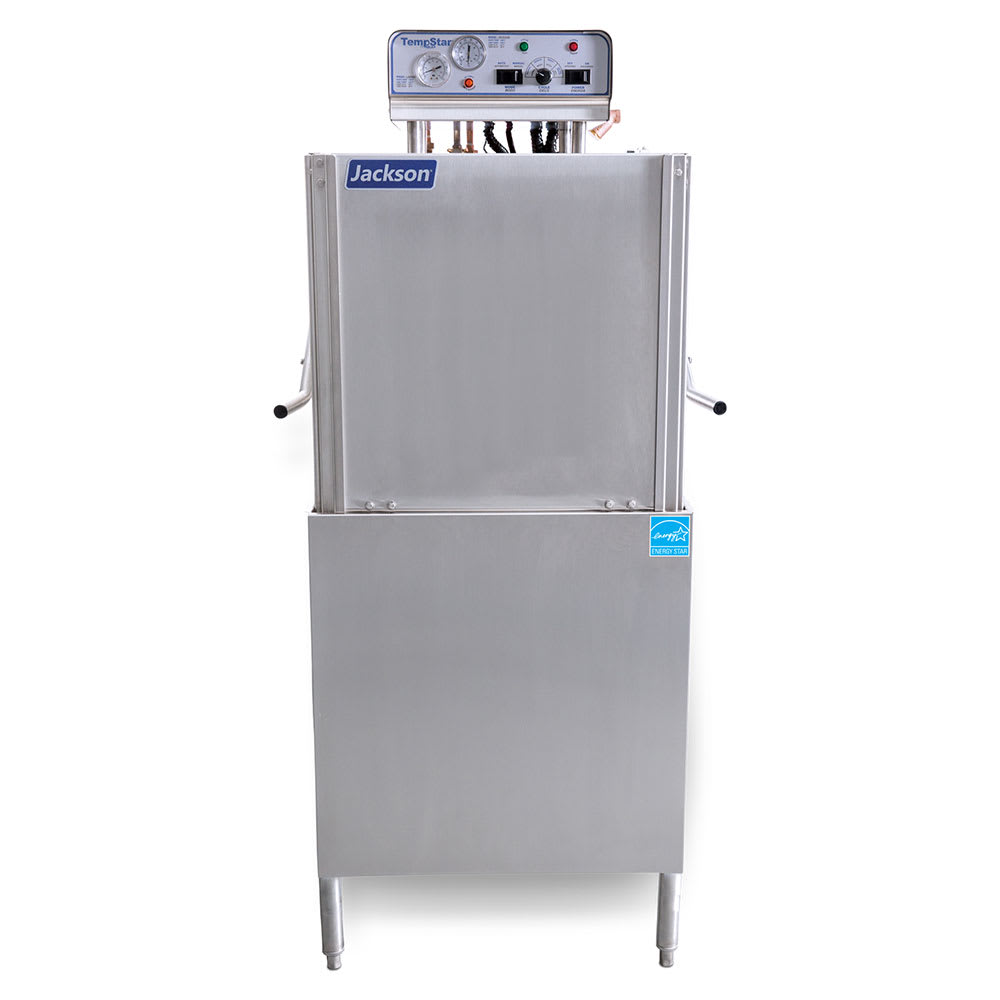

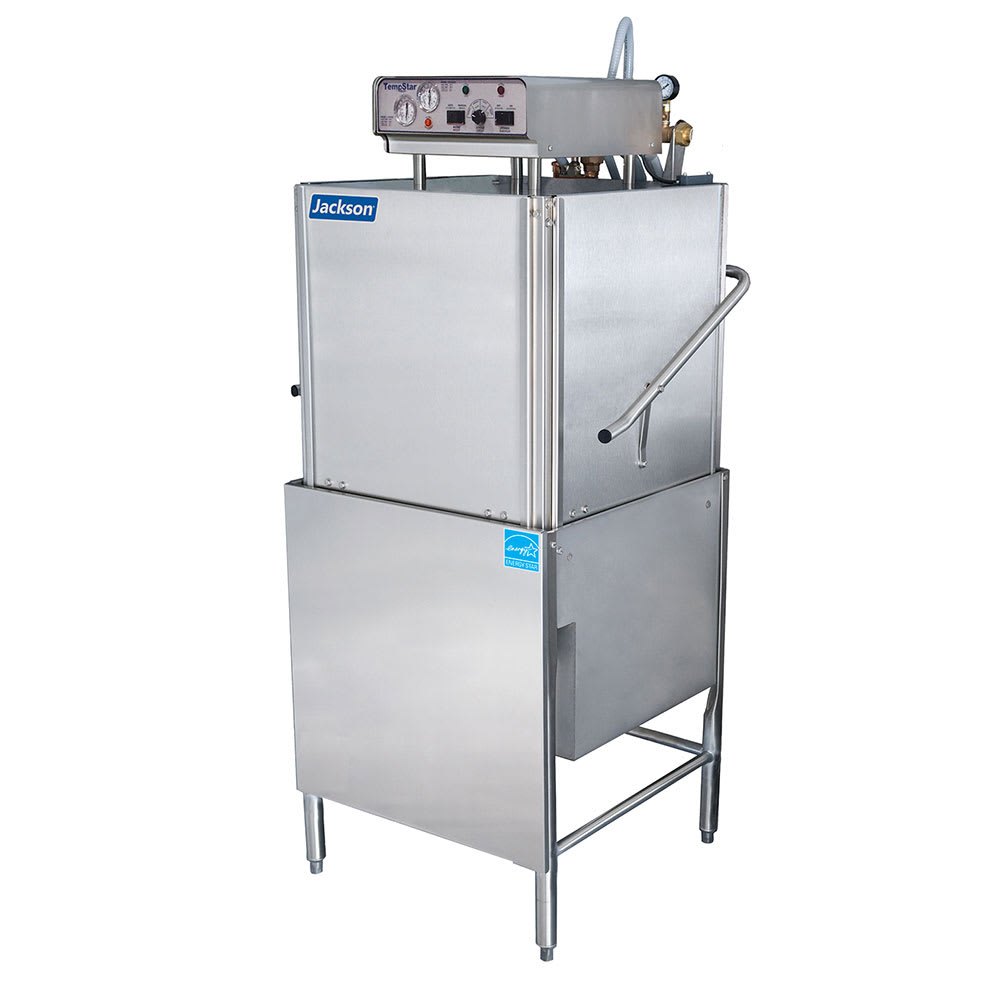

Jackson TEMPSTAR TempStar® High Temp Door-Type Dishwasher w/ 63 Racks/hr Capacity, Built-in Booster, 230v/3ph

The Jackson TEMPSTAR dishmachine is a door-type model with an 8-gallon wash tank and 2-gallon rinse tank. Its upper wash arm and lower counter-rotating wash arms ensure thorough coverage, while the large scrap basket traps solid food pieces. Because this machine is constructed of stainless steel, it's durable, rust resistant, and can be wiped clean. This unit washes as many as 63 racks per hour using 0.89 gallons of water per rack, and the Sani-Sure™ final rinse system ensures the wares come out thoroughly sanitized.

To accommodate various soil levels and time requirements, the Jackson TEMPSTAR door-type dishwasher features a multi-cycle timer with extra-heavy, heavy, medium, and normal options. For improved safety and performance, it has a high-limit thermostat as well as low-water protection. Its controls are top-mounted for accessibility, and its bullet feet are adjustable for rough or uneven flooring. To create a streamlined, organized look, this unit is designed with a front dress panel that conceals the machine's inner components.

Product Details

• Part of the TempStar® series
• Washes 63 racks per hour (58 racks with suggested NSF load time)
• Universal, door-type model
• High-temperature sanitization
• 8-gal. wash tank
• 2-gal. rinse tank
• Uses 0.89 gal. of water per rack
• Built-in booster heater with Sani-Sure final rinse system ensures proper temperatures
• Automatic tank fill
• Vent fan control
• High-limit thermostat and low-water protection
• Resilient stainless steel construction
• Door-actuated start
• Interchangeable wash-rinse arms screw out for simple cleanup
• Top-mounted controls
• Front dress panel
• Large scrap basket
• Adjustable bullet feet
• Delime/manual wash switch
• Self-draining stainless steel pump
• Multi-cycle timer with extra-heavy, heavy, medium, and normal options
• 17¹⁄₄-in. door opening accepts 18-in. trays
• 4-in. minimum wall clearance
• Minimum wash temperature: 150 degrees F
• Minimum rinse temperature: 180 degrees F
• Required incoming flow pressure: 8-12 PSI
• Required incoming water temperature: 110-114 degrees F

Dimensions & Utilities

• 25¹⁄₄ in. W x 29 in. D x 64³⁄₈ in. H
• 49.8 A, 12.9 kW, 1 HP
• 230 V/60 Hz/3 ph
• Minimum waterline size: ¹⁄₂-in. IPS
• Minimum drain line size: 1¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (63) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, electro-mech controls, universal timer, Sani-Sure™, auto tank fill, door actuated start, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
