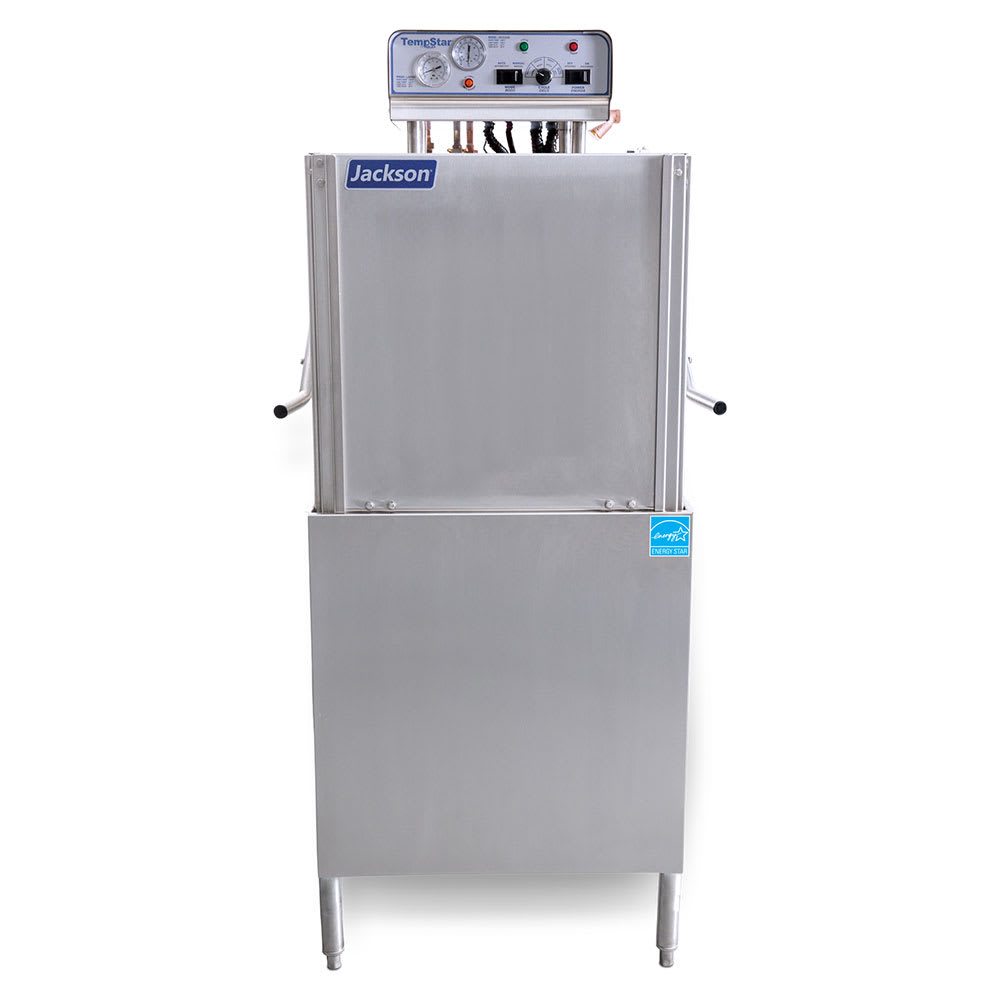

Jackson TEMPSTAR TempStar® High Temp Door-Type Dishwasher w/ 63 Racks/hr Capacity, Built-in Booster, 208v/1ph

For streamlined operation, the Jackson TEMPSTAR commercial dishwasher features accessible top-mounted controls, automatic tank fill, and door-actuated start functions. Its upper wash arm and lower counter-rotating wash arms thoroughly remove debris, while the large scrap basket traps solid food pieces. To accommodate various time requirements and soil levels, it features a multi-cycle timer with extra-heavy, heavy, medium, and normal options. This unit is built with a booster heater and Sani-Sure™ final rinse system to ensure proper sanitization.

The Jackson TEMPSTAR dishmachine is a door-type unit with an 8-gallon wash tank and 2-gallon rinse tank, and it measures 25¹⁄₄ inches wide by 29 inches deep by 64³⁄₈ inches high overall. Using 0.89 gallons of water per rack, this machine can wash a maximum of 63 racks per hour. This unit is mounted on bullet feet that can be adjusted to account for uneven or bumpy flooring.

Product Details

• Part of the TempStar® line
• Washes 63 racks per hour (58 racks with suggested NSF load time)
• Universal, door-type unit with high-temperature sanitization
• 8-gal. wash tank
• 2-gal. rinse tank
• Uses 0.89 gal. of water per rack
• Built-in booster heater with Sani-Sure™ final rinse system
• Rust-resistant stainless steel construction
• Door-actuated start
• Automatic tank fill
• Vent fan control
• High-limit thermostat and low-water protection
• Interchangeable wash-rinse arms screw out for simple cleanup
• Top-mounted controls
• Front dress panel
• Large scrap basket
• Adjustable bullet feet
• Delime/manual wash switch
• Self-draining stainless steel pump
• Multi-cycle timer with extra-heavy, heavy, medium, and normal options
• 17¹⁄₄-in. door opening accepts 18-in. trays
• 4-in. minimum wall clearance
• Minimum wash temperature: 150 degrees F
• Minimum rinse temperature: 180 degrees F
• Required incoming water temperature: 110-114 degrees F
• Required incoming flow pressure: 8-12 PSI

Dimensions & Utilities

• 25¹⁄₄ in. W x 29 in. D x 64³⁄₈ in. H
• 75.2 A, 10.5 kW, 1 HP
• 208 V/60 Hz/1 ph
• Minimum waterline size: ¹⁄₂-in. IPS
• Minimum drain line size: 1¹⁄₂-in. IPS

Product Features

*Free shipping on Jackson TEMPSTAR within the 48 contiguous states.

From The Manufacturer

TempStar® Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (63) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, electro-mech controls, universal timer, Sani-Sure™, auto tank fill, door actuated start, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor
