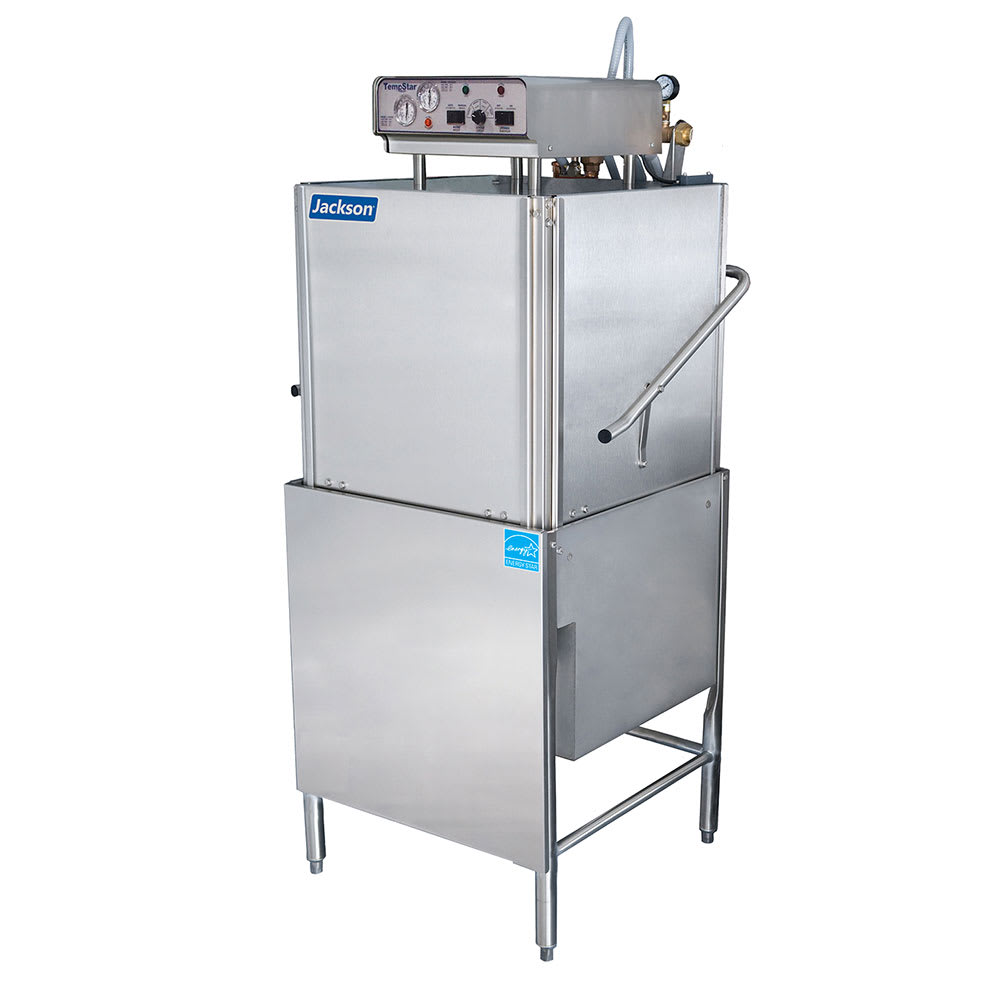

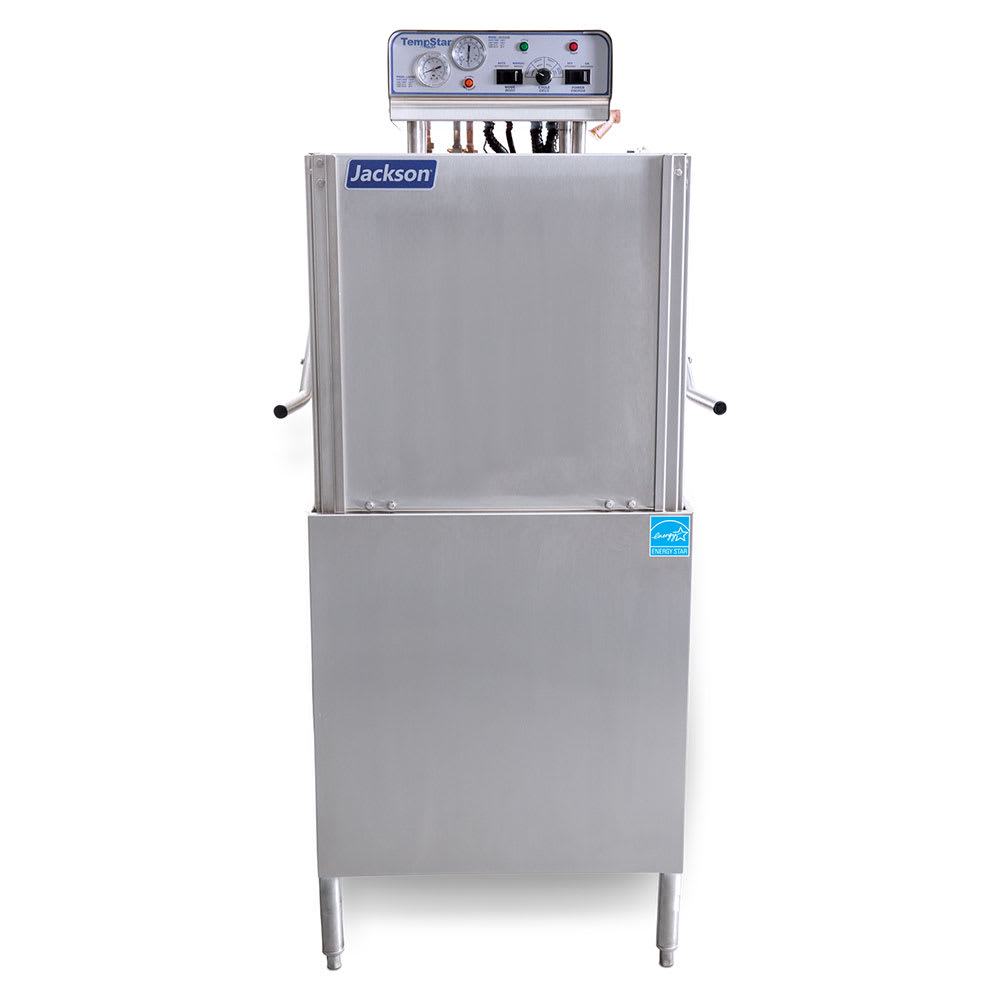

Jackson TEMPSTAR High Temp Door-Type Dishwasher w/ Built-In Booster, 230v/1ph

The Jackson TEMPSTAR electric, high-temp, door-type dishwasher has cycles for normal, medium, heavy, and extra-heavy loads. A normal cycle takes 57 seconds to complete and can be used to clean 58 racks in an hour. The unit comes with a built-in booster heater that has a 70-degree- Fahrenheit rise, ensuring that dishes are properly sanitized. The wash and rinse arms screw in and out to simplify cleaning;, and, since they are interchangeable, it is easy to place them back in the unit.

Standard 20-inch-by-20-inch racks are compatible with the Jackson TEMPSTAR electric, high-temp, door-type dishwasher, and it can also fit 18-inch trays through the 17¹⁄₄-inch door opening. The control system is top mounted, so it is easy to access. There is a high-limit thermostat that keeps protects the unit protected from overheating, while low water protection keeps the water at the ideal level for the cycle.

Product Details

• Washes up to 58 racks per hr. in the normal cycle, 30 racks per hr. in the medium cycle, 20 racks per hr. in the heavy cycle, and 12 racks per hr. in the extra-heavy cycle
• 57-sec. normal cycle, 117-sec. medium cycle, 1717-sec. heavy cycle, and 297-sec. extra-heavy cycle
• Compatible with standard 20-in. x 20-in. racks
• 17¹⁄₄-in. door opening accommodates 18-in. trays
• Easily begin the cycle with auto-start and auto-fill features
• 70- degree s F rise booster heater is built in to increase water temperature to its proper level for sanitizing
• Sani-Sure™ feature assures the operator that water is at the correct temperature
• Wash and rinse arms are interchangeable and unscrew in and out for cleaning
• Nozzles are made of stainless steel and provide a superior cleaning
• Stainless steel pump is self-draining to eliminate wash water
• Large scrap basket collects food scraps to prevent wash arms, rinse arms, and the drain from clogging
• Front dress panel provides protection for the internal components
• Bullet feet are adjustable for levelingto level the unit on uneven floors

Product Features

Top-mounted Control System

• Control system is top -mounted for convenient access
• Multi-cycle timer makes it easy forhelps the operator to keep track of the cycle
• Vent fan control does not allow the unit to run when it is idling
• Manual deliming switch removes hard water deposits
• High-limit thermostat keeps the unit protects the united from overheating
• Low water protection keeps ensures water is at the ideal level for the cycle

Dimensions & Utilities

• 25¹⁄₄ in. W x 25¹⁄₄ in. D x 64³⁄₈ in. H
• 83.6 A, 1 HP
• 230 V/60 Hz/1 ph

From The Manufacturer

TempStar® Dishwasher, door type, high temperature electric tank heat with built-in booster, universal (straight-thru/corner) type, approximately (58) racks/hour capacity (0.89 gallons per rack), stainless steel exterior, universal timer, Sani-Sure, dishtable not included, cETLus, ETL-Sanitation, ENERGY STAR®, 230v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Jackson TEMPSTAR Specifications

Documents

Spec Sheet

Warranty

Use & Care Guide

Service Manual

Manual

Installation Guide

Catalog

Certifications
